Configuring and Managing Host-Based X.25 Links

Configuration Worksheets

Before you start NMMGR, use the worksheets provided here to gather the
necessary configuration information.  Make copies of these worksheets and
fill in the parameter information, then use the worksheets to guide you
through configuration in NMMGR.

DTC Configuration Worksheet

Fill out for each DTCyou are configuring.

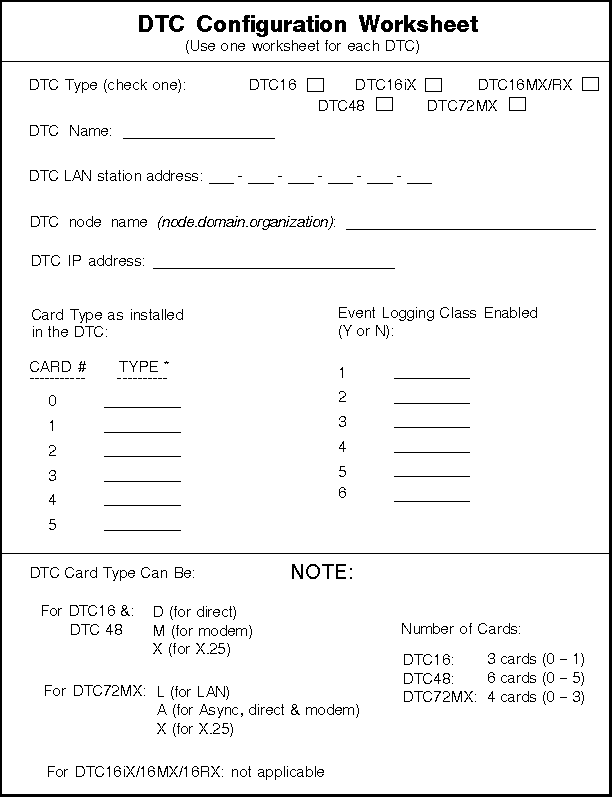

          Figure 2-2.  DTC Configuration Worksheet

DTC Card Configuration Worksheet

Fill out for each direct connect card you are configuring.

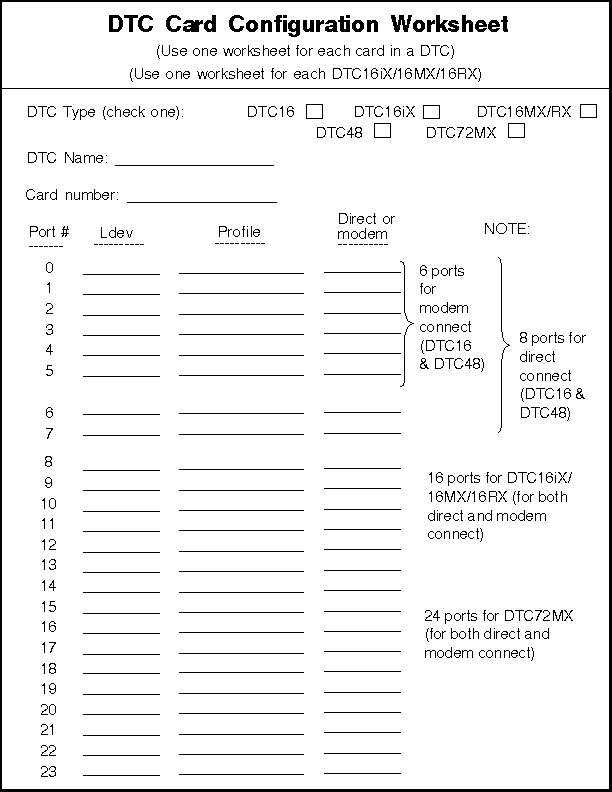

          Figure 2-3.  DTC Card Configuration Worksheet

DTC X.25 Card Configuration - Level 1 and Level 2 Worksheet

Fill out for each DTC X.25 Network Access card you are configuring.

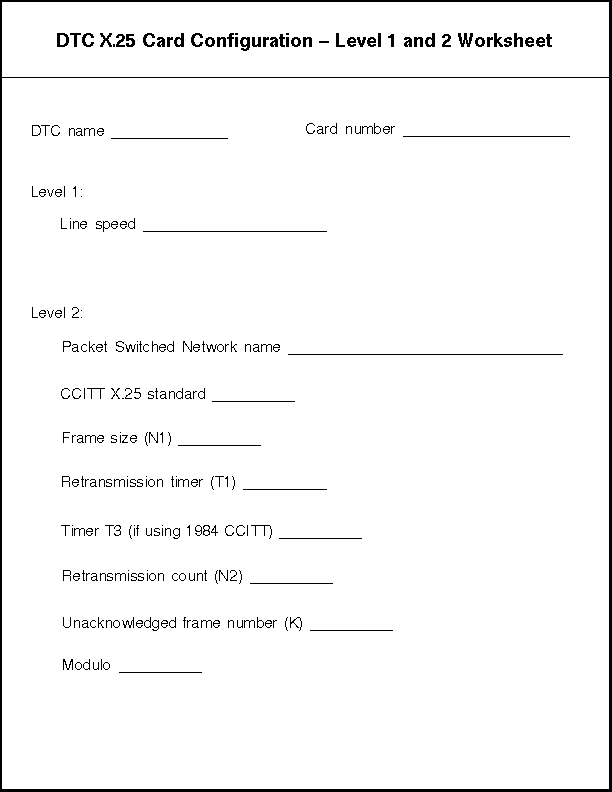

          Figure 2-4.  DTC X.25 Level 1 & 2 Worksheet

DTC X.25 Card Configuration - Level 3 & Miscellaneous Worksheet

Fill out for each DTC X.25 Network Access card you are configuring.

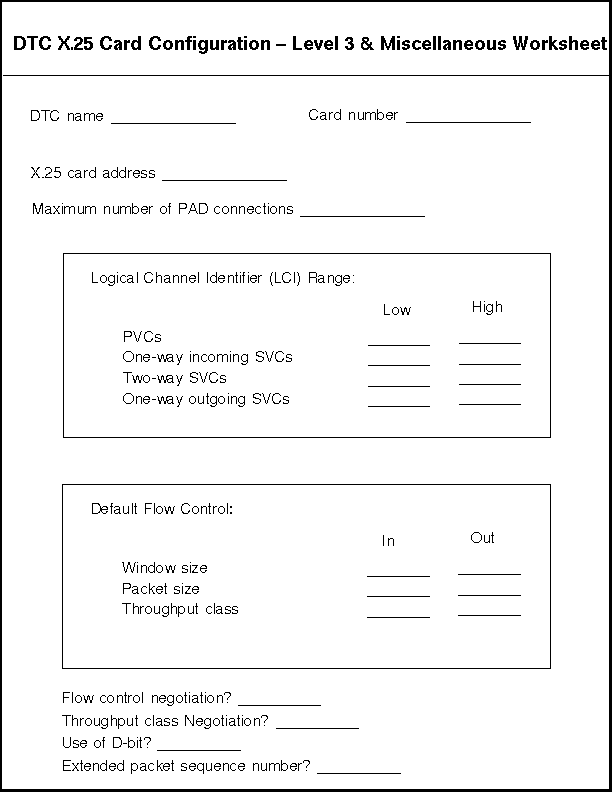

          Figure 2-5.  X.25 Card Level 3 and Miscellaneous Worksheet

DTC X.25 Card Configuration - System-to-System Worksheet

Fill out for each DTC X.25 Network Access card for which you are
configuring system-to-system connections.

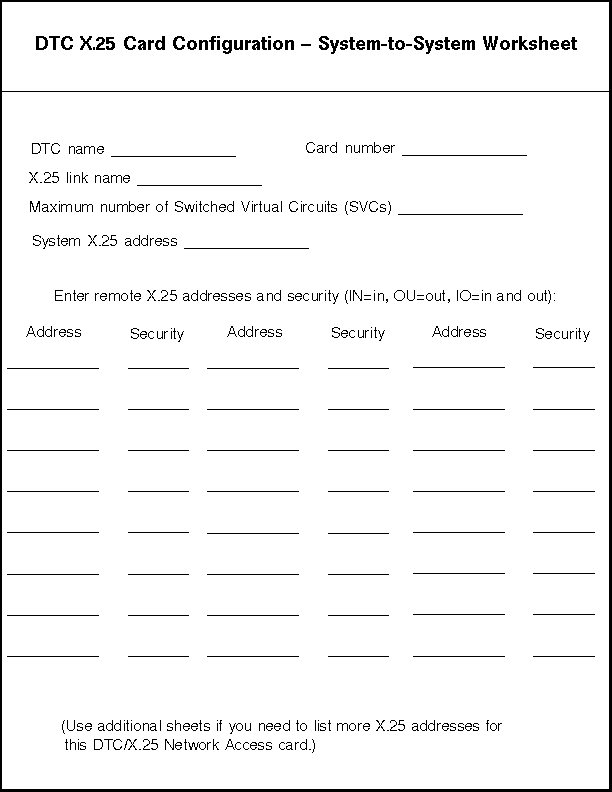

          Figure 2-6.  X.25 Card Configuration - System-to-System Worksheet

DTC X.25 Card Configuration - Nailed PAD Worksheet

Fill out for each DTC X.25 Network Access card for which you are
configuring nailed PAD connections.

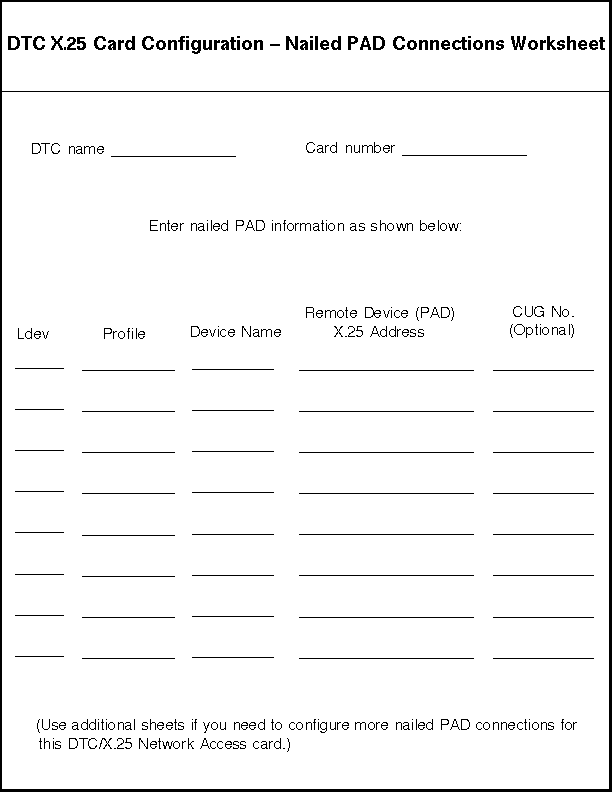

          Figure 2-7.  X.25 Card Configuration - Nailed PAD Worksheet

DTC X.25 Card Configuration - PAD Security Worksheet

Fill out for each DTC X.25 Network Access card for which you are
configuring PAD security.

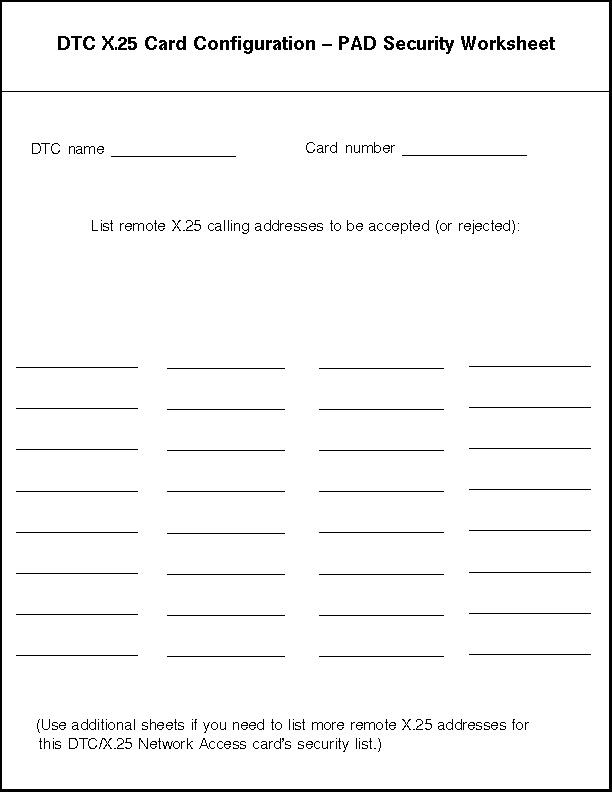

          Figure 2-8.  X.25 Card Configuration - PAD Security Worksheet
