NS3000/iX Error Messages Reference Manual

Logging Formats

Node Management Services automatically format logging records sent to the
console.  Logging records sent to a disk file are stored in coded form.
These records are decoded and formatted by the NMS Trace/Log File
Analyzer (NMDUMP), an NMS system utility program.  Figure 18-1 shows a
typical log record formatted by NMDUMP. To learn how to use NMDUMP see
the Log and Trace Files section in Using the Node Management Services
(NMS) Utilities manual.

Log files and two examples of the information returned in a formatted log
file are explained in "Using Log Files" later in this section.

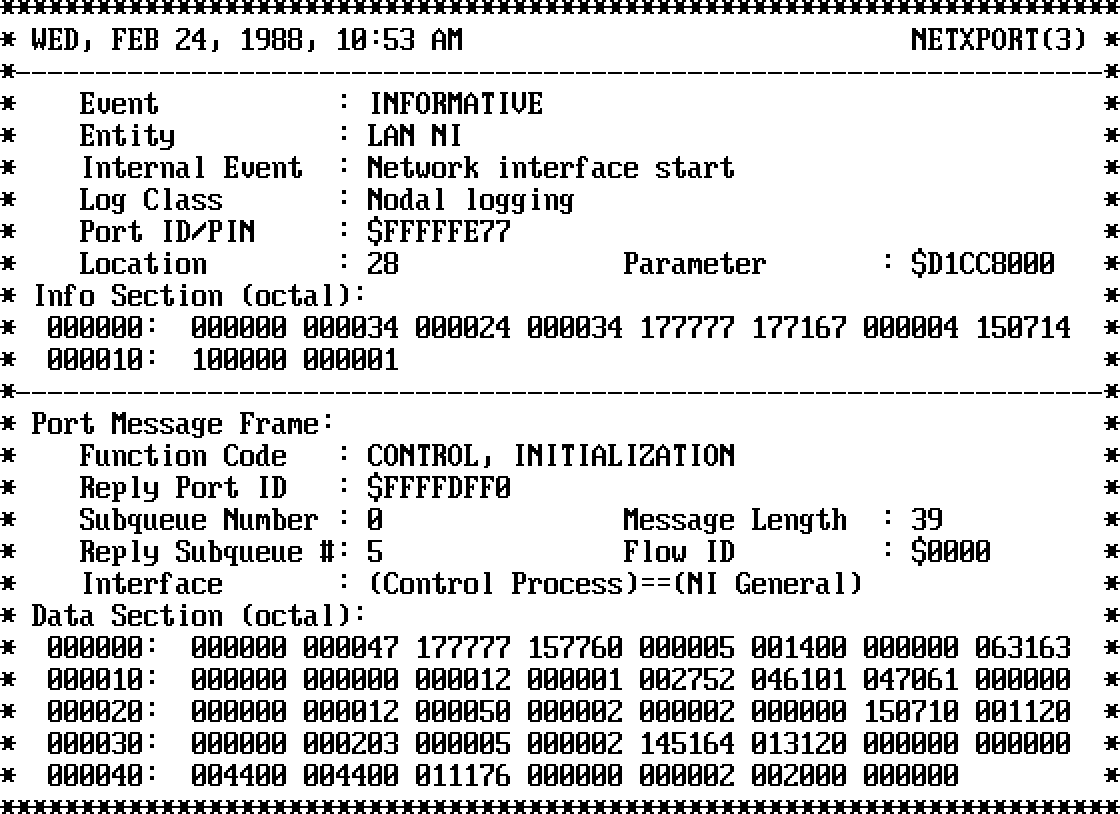

          Figure 18-1.  A Formatted Log Record
