Getting Started with HP IMAGE/SQL

Basic Structures

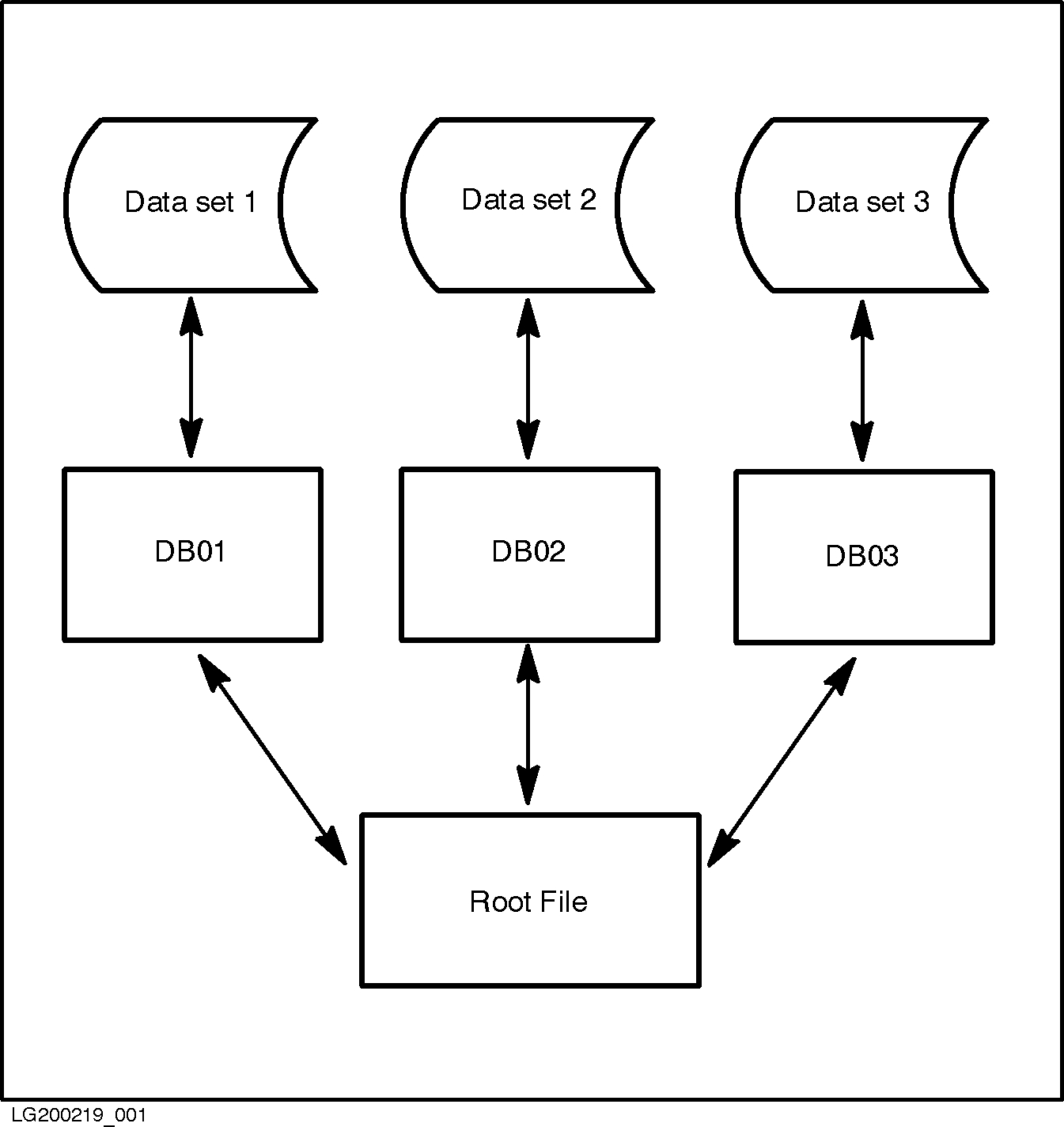

Figure 3-1  shows the basic architecture of the TurboIMAGE/XL system.


          Figure 3-1.  TurboIMAGE/XL Architecture

The TurboIMAGE/XL database manager accesses data in each data set as
needed, based on information given in the root file.

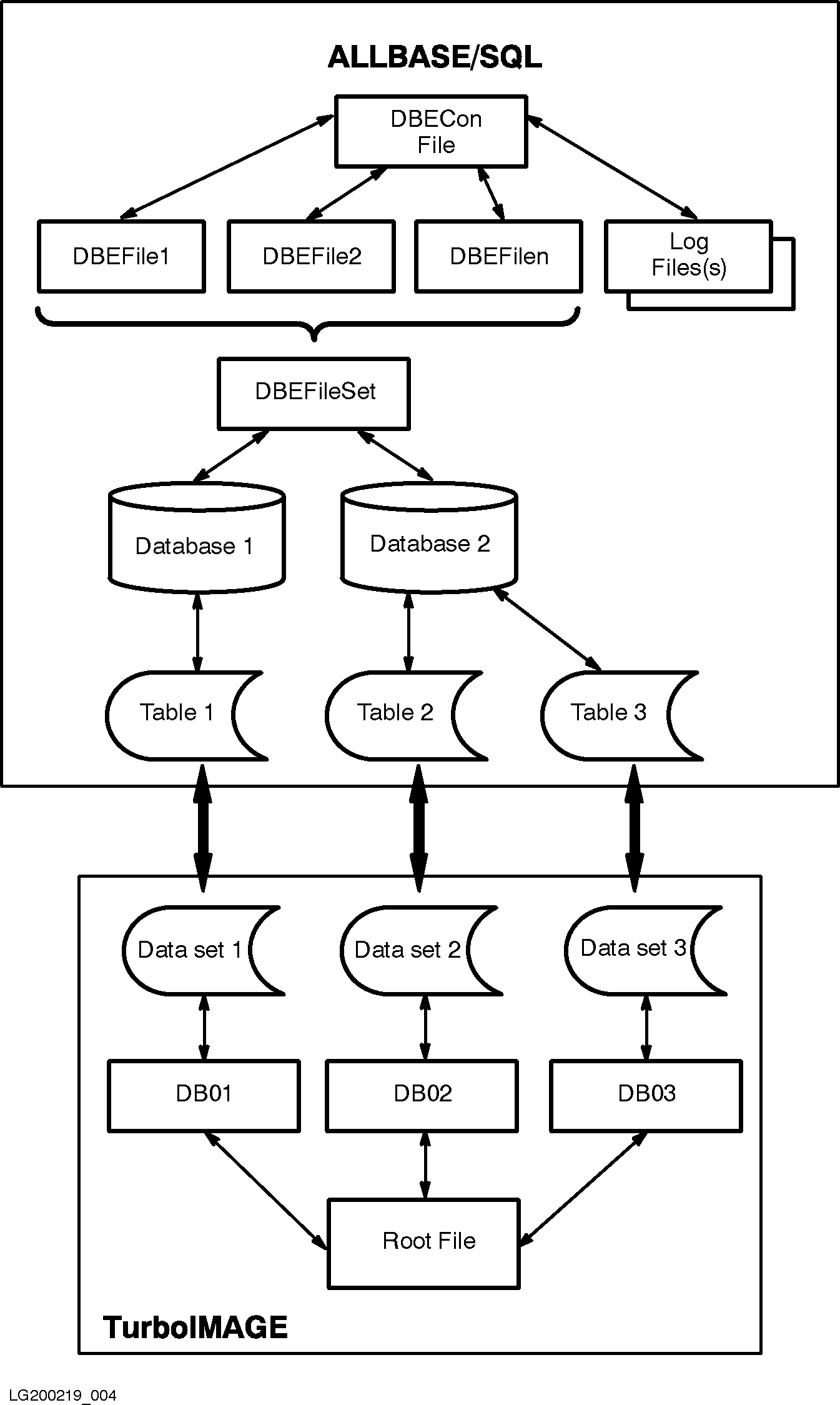

Figure 3-2  shows the IMAGE/SQL architecture.


          Figure 3-2.  IMAGE/SQL Architecture
