How Turbo CONNECT Works

Turbo CONNECT users can select data in mapped tables in the same way that
data in native ALLBASE/SQL tables is selected.

To understand how this is accomplished, you need to know:

 *  What files are used by Turbo CONNECT.

 *  How Turbo CONNECT files are used.

 *  What takes place during the attach/detach process

 *  How Turbo CONNECT maps TurboIMAGE/XL security.

 *  How Turbo CONNECT maps TurboIMAGE/XL data types.

 *  What takes place at run time.

Turbo CONNECT Files

Turbo CONNECT creates two important files, ATCINFO in the same group and
account as the DBEnvironment, and DBNameTC in the same group and account
as the TurboIMAGE/XL database.  (See Figure 3-1.)

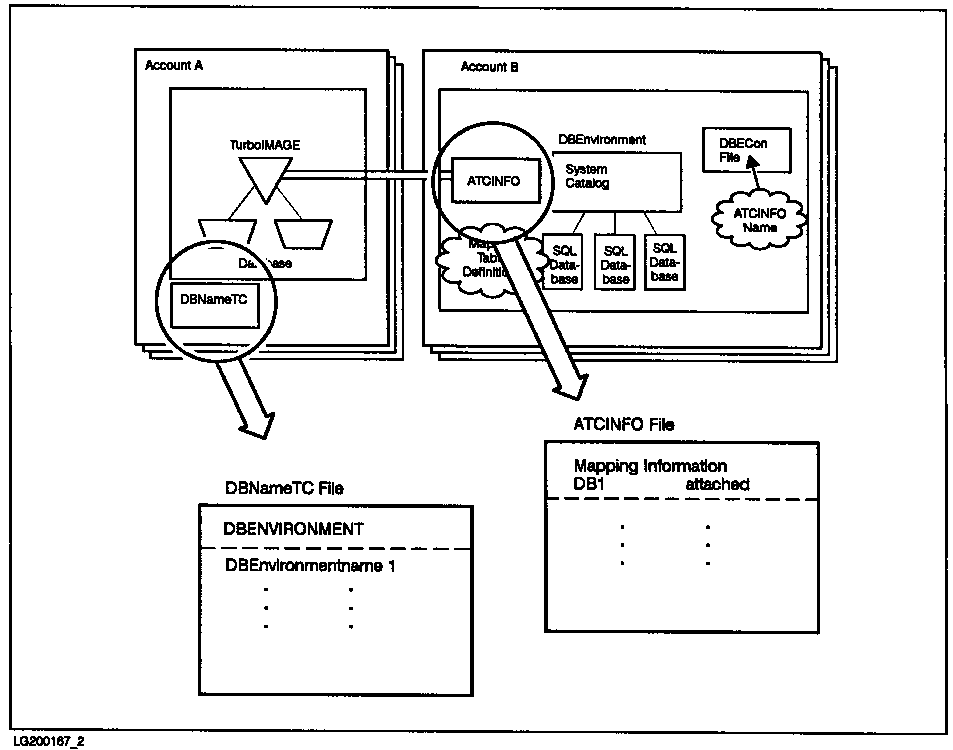

          Figure 3-1.  Files created by Turbo CONNECT

These files contain information about the relationships between all
attached TurboIMAGE/XL databases and their DBEnvironments.  Specifically:

ATCINFO       is a permanent privileged file in the same group and
              account as the DBEnvironment.  It contains mapping
              information about each TurboIMAGE/XL database attached to
              the DBEnvironment.  One ATCINFO file exists for each
              DBEnvironment.

              It is named ATCINFO unless a file equation has been set
              before the attach.  Its name is placed in the DBECon file
              of the DBEnvironment so that it can be located whenever
              Turbo CONNECT needs to use or update the information in
              this file.

DBNameTC      is a permanent privileged file in the same group and
              account as the TurboIMAGE/XL database.  It contains the
              fully qualified names of the DBEnvironments to which the
              TurboIMAGE/XL database is attached.  This information is
              used to let external utilities such as DBUTIL know that the
              database is attached to one or more DBEnvironments.

What Takes Place during an Attach?

An attach is the process that establishes the connection between the
TurboIMAGE/XL database and the DBEnvironment.  Figure 3-2 shows a
TurboIMAGE/XL database and DBEnvironment before the TurboIMAGE/XL
database is attached.

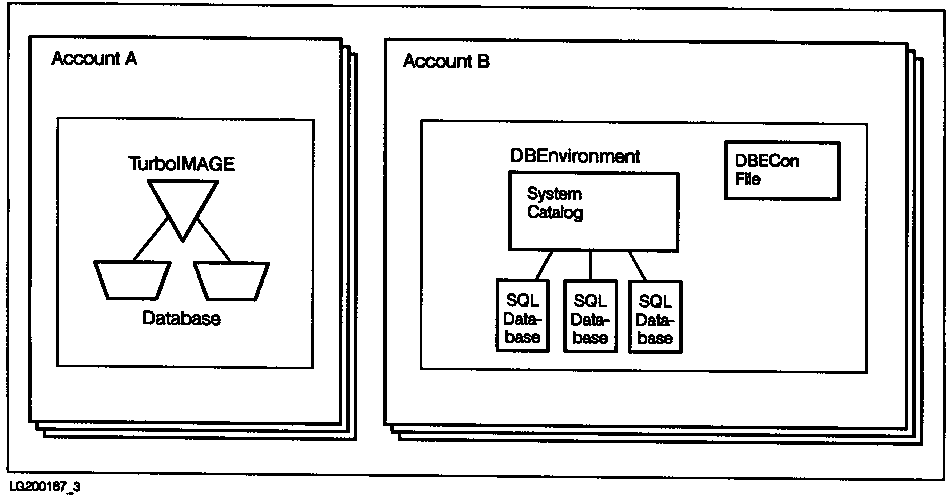

          Figure 3-2.  A TurboIMAGE/XL database and a DBEnvironment before the attach

When the TurboIMAGE/XL database is attached to the DBEnvironment, several
events take place:

   1.  The ATCINFO and DBNameTC files are created.

   2.  Definitions of the TurboIMAGE/XL mapped tables are placed in the
       system catalog of the DBEnvironment.  These entries in the system
       catalog identify the tables as mapped tables.  The naming
       convention for ALLBASE/SQL tables is OwnerName.TableName.  By
       default, in mapped tables Turbo CONNECT specifies the database
       name as the owner name and the data set name as the table
       name.  Thus, the naming convention for mapped tables is
       MappedDatabaseName.MappedDataSetName.  (At attach time, you must
       substitute a different owner name if an already attached database
       has the same name.)

   3.  The TurboIMAGE/XL database creator (DBC) is defined in the ATCINFO
       file as a Turbo CONNECT user.  (For security reasons, all other
       Turbo CONNECT users must be explicitly added by the DBC.)

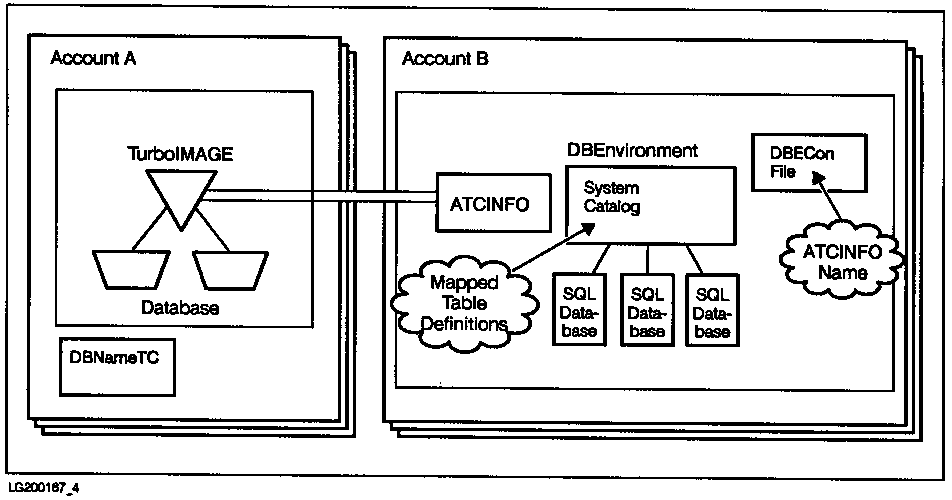

Figure 3-3 shows an attached database.


          Figure 3-3.  An attached TurboIMAGE/XL database

What Takes Place during a Detach?

When a database is detached, you can no longer use ALLBASE/SQL to access
TurboIMAGE/XL data.  All views based on mapped tables are dropped.  This
includes views created by users as well as Turbo CONNECT-created views.
Mapped table definitions are removed from the system catalog and all
mapping information about the detached TurboIMAGE/XL database is removed
from the ATCINFO file.

If you are detaching the only TurboIMAGE/XL database attached to the
DBEnvironment, the ATCINFO file is deleted and its name is removed from
the DBECon file.  If you are detaching the TurboIMAGE/XL database from
the only DBEnvironment it is attached to, the DBNameTC file is deleted.

Detach if you plan to restructure the database or if you wish to remove
all mapping information about the database from the ATCINFO file.

When the database is detached, all customized mapping information
(alternate data types and added Turbo CONNECT users) is lost and must be
remapped when the database is reattached.  ATCUtil command files are
useful for this purpose (refer to tasks 12 and 13 in chapter 2), but to
protect database security be sure command files that contain passwords
and other sensitive information are carefully controlled.  (A message
notifies you when Turbo CONNECT commands containing maintenance words or
passwords have been logged.)
