ALLBASE/SQL Database Administration Guide
Understanding Log File Types
It is important to understand the different conventions for naming and
referring to log files in ALLBASE/SQL. This chapter assumes a basic
distinction between the log (a logical object) and the specific log files
which the log contains. Information about all the specific files in the
log is stored in the DBECon file. You use the SHOWLOG command in SQLUtil
to examine the DBECon file's directory of log files. SHOWLOG also
displays general information about the log as a whole.
When you configure the DBEnvironment, you specify the names of one or two
physical files (depending on whether you have chosen single or dual
logging). These physical files will contain log records that are based
on the transactions applied in the DBEnvironment. Later, you use the
SQLUtil ADDLOG command to add additional log files to the DBEnvironment.
Understanding the LOG FULL Condition
Eventually, log files can become full, and the result is known as a LOG
FULL error condition, which means that no additional transactions can be
logged until log space is provided. When a LOG FULL condition arises,
ALLBASE/SQL rolls back the current transaction and issues the following
error message:
Log Full. (DBERR 14046)
In addition, in most cases other transactions are also rolled back.
NOTE If a LOG FULL condition occurs while a rollback operation is taking
place, all transactions are rolled back, including transactions
that have performed no updates.
Using Single or Dual Logs
When you create the DBEnvironment, you specify either single or dual
logs. In single logging, ALLBASE/SQL maintains one set of log files in
either archive or nonarchive mode. The log file should be placed on a
device different from the one containing the DBEnvironment. For greater
security, you can specify dual logging, in which a duplicate set of log
files is maintained. The second log file should not be on either the
drive containing the DBEnvironment or the drive containing the first log
file. When dual logging is in effect, all the procedures described in
this chapter apply to the files of both logs.
Using Multiple Log Files
To avoid a LOG FULL condition, you can set up a DBEnvironment containing
multiple log files for archive or nonarchive use, and in single or dual
logging mode. When one file becomes filled, ALLBASE/SQL automatically
switches to the next available file.
Log Names and Numbers
Log files are referred to in different ways, depending on the operation
you are attempting to perform. In some instances, you must refer to a
log by its file name. In other cases, you refer to the log by its
identifier number.
Log File Names.
Use a file name when you add a new log with the ADDLOG command, when you
move it to a new location with MOVELOG, or when you must rescue it with
RESCUELOG. The file name is an MPE file name.
Identifier Numbers.
Use the identifier number when you purge a log file or when (in archive
mode only) you store it. Each log file you add is given a specific
identifier number; in the case of dual logging, the same identifier
number refers to both files together.
Sequence Numbers.
ALLBASE/SQL also keeps track of multiple log files through sequence
numbers, which are stored along with the physical file names in the
DBECon file. Sequence numbers are also written onto the tape at the time
you issue a STORELOG command (described in a later section). In the case
of dual logging, the same sequence number refers to both files together.
You never allocate sequence numbers yourself. They are used internally
by ALLBASE/SQL to keep track of the order in which files are applied
during the recovery process. If you attempt to recover a log file that
has the wrong sequence number, you receive an error message.
Sequence numbers continue incrementing each time you switch into a new
log file. As an example, suppose the DBEnvironment is configured for
single logging in archive mode. Log 1 has the filename DBELog1, and
initially it receives log identifier number 1 and sequence number 1. Log
2 has the filename DBELog2, and initially it receives log identifier
number 2, and sequence number 2. When Log 1 runs out of space,
ALLBASE/SQL switches to Log 2. After Log 1 has been backed up and when
it no longer has active transactions in it, it becomes available for
reuse. Then, when ALLBASE/SQL switches over to Log 1 again, it receives
sequence number 3, although it still has identifier number 1, and it is
still called DBELog1.
Using Nonarchive Logs
A nonarchive log behaves like a circular fileset. A circular fileset is
a group of files in which the first one is overwritten when the last one
is full. If a nonarchive log file becomes full, ALLBASE/SQL first issues
a checkpoint in an effort to reclaim the file space taken up by
transactions that have already been committed. (A checkpoint is an event
that flushes data and log buffer contents to disk, and reclaims
nonarchive log file space for reuse.) If a checkpoint does not reclaim
enough space for the current transaction, ALLBASE/SQL attempts to switch
to the next file (if it is available). A log file is considered
available if it does not contain any log records for transactions active
at the last checkpoint. If the log is still full, and there is no other
log available to switch into, a LOG FULL condition occurs, and the
transaction is rolled back.
Multiple Files in Nonarchive Mode.
You can add additional physical log files to the nonarchive DBEnvironment
by means of the SQLUtil ADDLOG command. You can add log files without
stopping the DBEnvironment. Each nonarchive file has a unique log name,
which is an MPE file name, and a log identifier, which is an integer by
which the file is known internally to ALLBASE/SQL. If you are using dual
logging, there are two MPE file names, but there is only one identifier.
In nonarchive logging, you can use multiple log files to ensure that even
a very large transaction will not cause a LOG FULL condition. You do not
back up nonarchive log files.

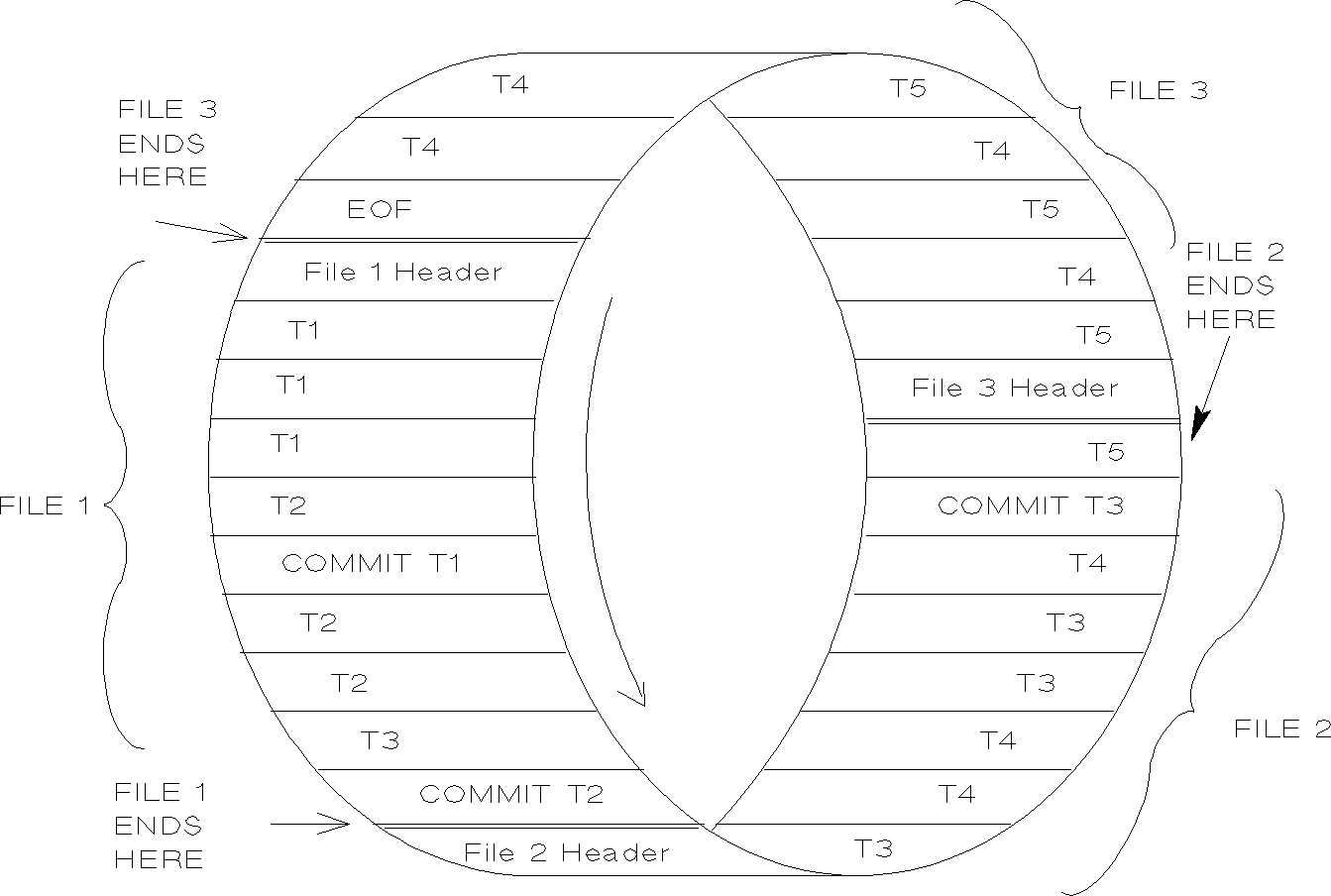

Figure 6-1 shows a nonarchive log for a DBEnvironment that is running
in multiuser mode, with different users starting and ending transactions
at different times.
Figure 6-1. Nonarchive Log
The log has three files--File 1, File 2, and File 3; Files 1 and 2 have
been filled, so ALLBASE/SQL has already switched to File 3. Assume that
transactions 4 and 5 (T4 and T5) are uncommitted. When File 3 becomes
full, ALLBASE/SQL will issue an internal checkpoint. Assuming there is
not enough space left in File 3, ALLBASE/SQL will switch back to File 1
and continue logging. At the moment shown in the figure, both File 2 and
File 3 contain active transactions.
A nonarchive log file should be used when you can frequently do a static
backup of the DBEnvironment so that rollforward recovery is not needed to
recover in the event of a media failure. (Static backup is described
further in a later section.)
Using Archive Logs
Archive logs are also circular filesets. The difference is that file
space cannot be reclaimed--even from files with no active transactions in
them--until the files are backed up. If an archive log file becomes
full, ALLBASE/SQL attempts to switch to the next file (if one is
available). It is available if it does not contain log records for any
currently active transactions, and if it has been backed up. If the next
file is not available, a switch is attempted again after a checkpoint.
(A checkpoint is an event that flushes data and log buffers to disk.) If
the switch still fails, a LOG FULL condition occurs, and the transaction
is rolled back.
When more space is needed, add a new log file with the ADDLOG command.
You can also reclaim log file space by using STORELOG to back up a log
file when it is full. Then, if there are no longer any active
transactions in the file, it can be reused. You should monitor archive
log files periodically with the SHOWLOG command to make sure there is
enough space in them.
When you use archive logging, you must periodically back up the
DBEnvironment and the log files. The backups may be used in the event of
a corruption of the DBEnvironment. Refer to the section "Backup and
Recovery Procedures for Archive Logging" later in this chapter for a
complete description of the procedures for managing archive log files.

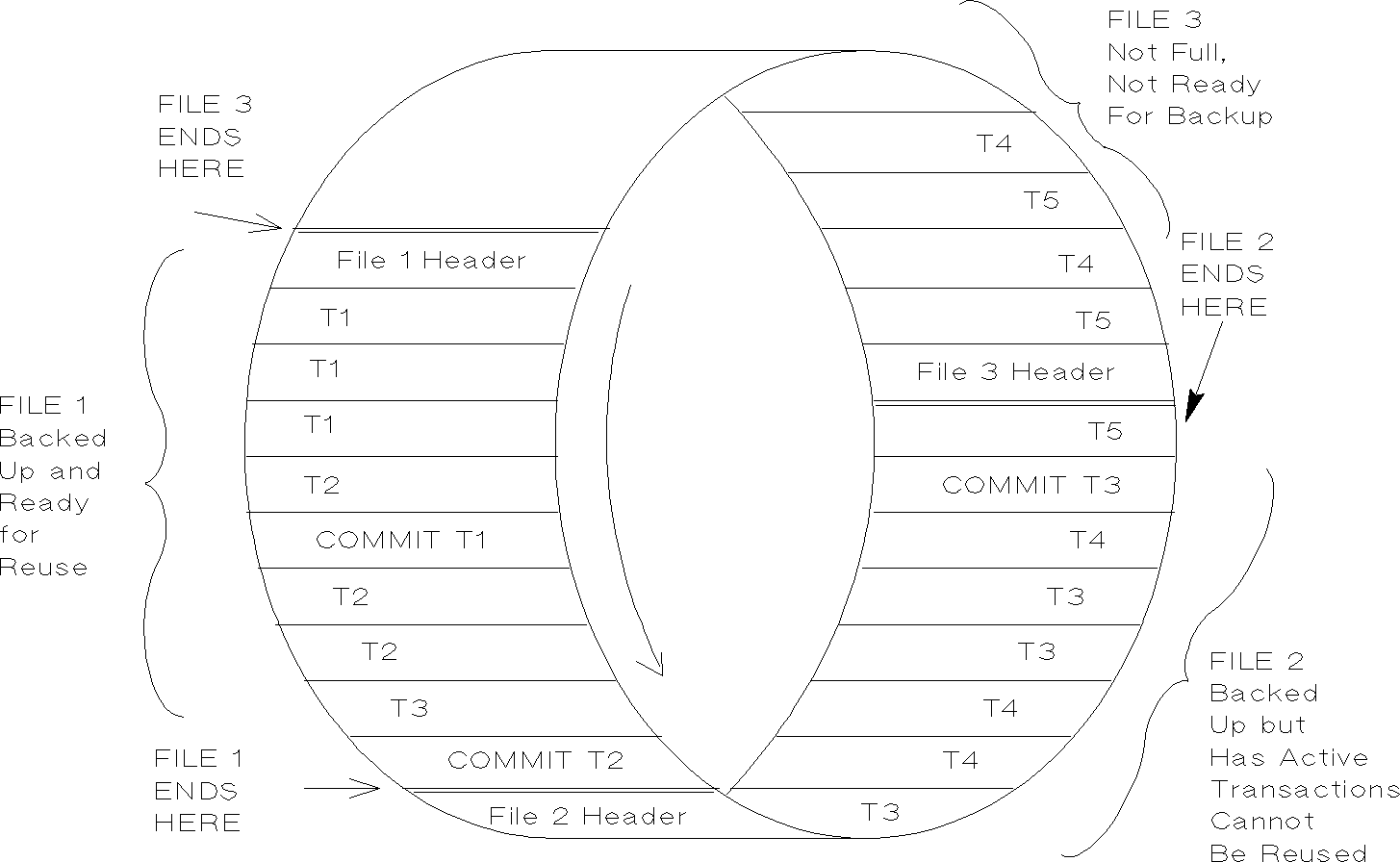

Figure 6-2 shows an archive log as implemented in ALLBASE/SQL.
Figure 6-2. Archive Log
Multiple Files in Archive Mode.
Archive log files are known by three different designations:
* Log name
* Log identifier
* Log sequence number
The log identifier is a number that uniquely identifies the file in the
log directory. The log name is an MPE file name. If you are using dual
logging, there are two MPE file names, but there is only one identifier.
The log sequence number is important only for archive log files. It
identifies the sequence the file occupies in the stream of rollforward
recovery from the time the DBEnvironment was created. Sequence numbers
are never reset.
When you use the STOREONLINE command, a new archive point is defined and
the sequence number of the log file containing the first active
transaction becomes the starting sequence number for the new archive log.
As you cycle through a set of log files, filling them with transactions,
then backing them up with STORELOG, the sequence number increments each
time a new log file is used. Note that the assignment of sequence
numbers has nothing to do with log identifier numbers or log names, so
the same file may be used again and again with different sequence
numbers.
In archive mode, you can use multiple files as a way of ensuring that
there is always enough log file space. For example, when the first log
file becomes full, ALLBASE/SQL will switch automatically to the second,
which is given the next higher sequence number. Then, you can back up
the first file, and when all transactions that were in progress in the
first file have been committed or otherwise terminated, the file becomes
available for reuse. A log file can be backed up as soon as ALLBASE/SQL
has finished writing to it, but it cannot be purged or reused until all
active transactions in it have been committed or rolled back.

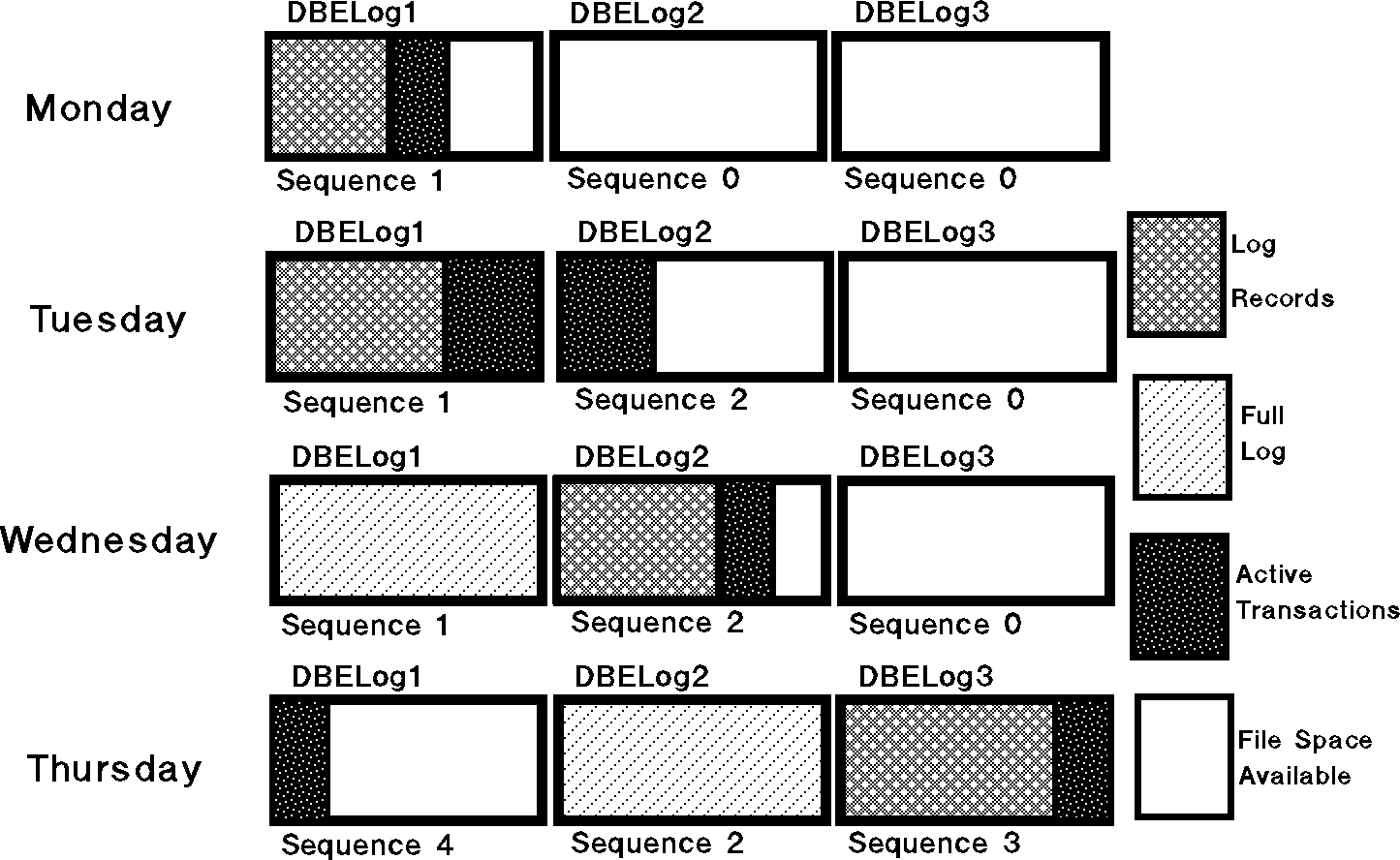

The illustration in Figure 6-3 shows a log with three log
files--DBELog1, DBELog2, and DBELog3 (identifier numbers 1, 2, and 3)
over a period of several days.
Figure 6-3. Log Switching in Archive Mode
At 5 pm on Monday, DBELog1 is not completely full, so it is not ready for
backup. It has sequence number 1, whereas the two unused files DBELog2
and DBELog3 both have sequence number 0. On Tuesday at 5 pm, DBELog1 is
full; there are still some active transactions in it, but it can be
backed up using STORELOG. DBELog2 also has active transactions, but since
DBELog2 is not yet full, no backup of DBELog2 is possible yet. On
Wednesday, all the active transactions are in DBELog2, but DBELog2 is not
yet full and therefore cannot be backed up. DBELog1 is now available for
reuse, since it was backed up on Tuesday and now contains no active
transactions. On Thursday, DBELog2 is full, so it is ready for backup
using STORELOG. Furthermore, DBELog3 is now full and ready for backup.
Note that active transactions now "wrap around" into DBELog1, which now
has sequence number 4. When there are no more unused files available,
ALLBASE/SQL will switch back to an earlier one and reuse it if it has
been backed up and if it contains no active transactions. Note also that
the sequence number of DBELog1 is 1 on Monday and 4 on Thursday. The
file names and identifier numbers of log files are recycled, but the
sequence numbers are never repeated.
MPE/iX 5.5 Documentation
