Calculating Storage for Database Objects
A good database storage design requires the following:
* Understanding DBEFile characteristics
* Calculating storage for tables
* Calculating storage for indexes
* Arranging tables and indexes in DBEFileSets
* Calculating storage for hash structures
* Calculating storage for integrity constraints
The numbers derived from the calculations described in the following
sections are used to assign a value for a number of pages in the PAGES=
clause of the CREATE TABLE and CREATE DBEFILE statements.
Understanding DBEFile Characteristics
DBEFiles are used to store table and index data. They are composed of
4096-byte pages.
DBEFiles can be from 2 to 524,287 pages. The number of pages in an
ALLBASE/SQL file is determined when it is created. In the case of
expandable DBEFiles, the maximum size and the size of an increment are
determined when the DBEFile is created.
All DBEFiles must be associated with a DBEFileSet before they can be used
to store data. A DBEFileSet is a logical grouping of one or more

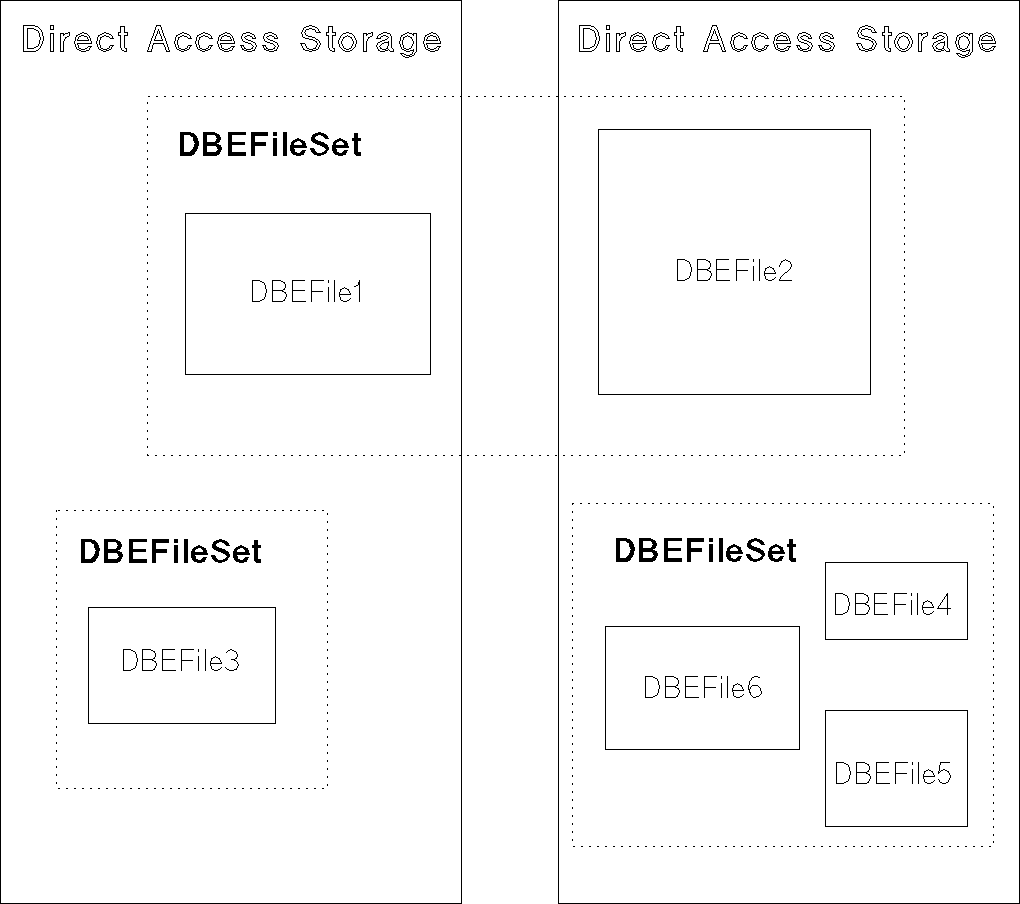

DBEFiles. Figure 3-1 shows a DBEFileSet (represented by the dotted
lines because it is a logical construct) which contains three DBEFiles
(represented by solid lines because they are physical constructs).

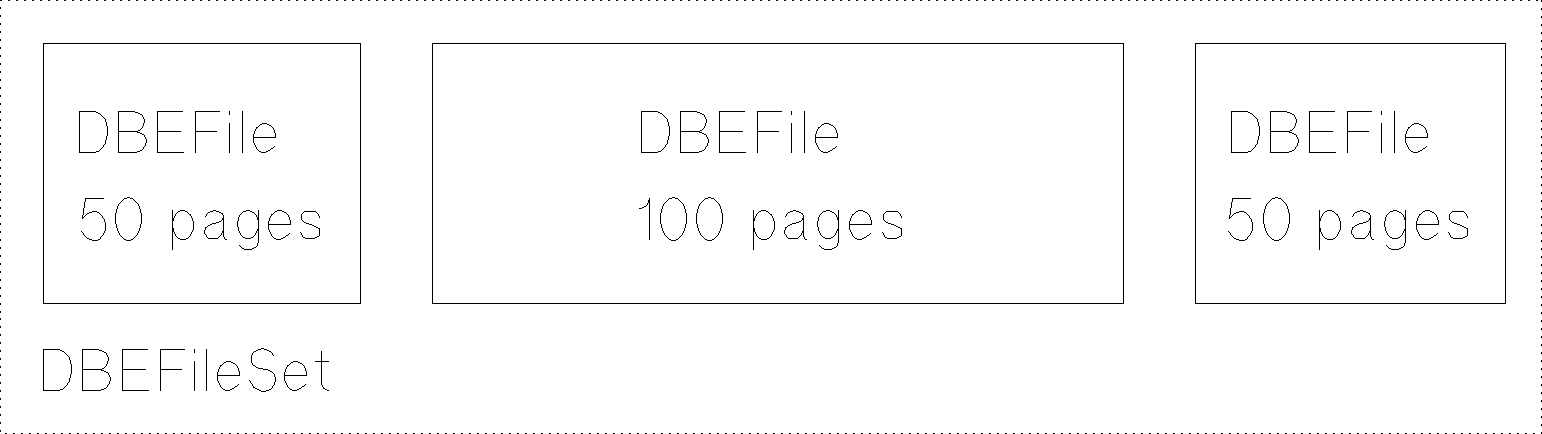

Figure 3-1. DBEFiles in DBEFileSets
The amount of storage available in a DBEFileSet is the sum of the pages
of all the DBEFiles in that DBEFileSet. The DBEFileSet in Figure 3-1
shows a total of 200 pages. When a table in the DBEFileSet illustrated
needs more than 200 pages to store data, additional DBEFiles can be added
to the DBEFileSet to accommodate more data.
You can specify the type of data that a DBEFile can contain. DBEFiles
can be of type MIXED, TABLE, or INDEX. MIXED DBEFiles can store either
table or index data. TABLE DBEFiles can store only table data. INDEX
DBEFiles can store only index data. As shown in Figure 3-2 , DBEFile1
can be of type TABLE, while DBEFile2 and DBEFile3 must be of type MIXED.

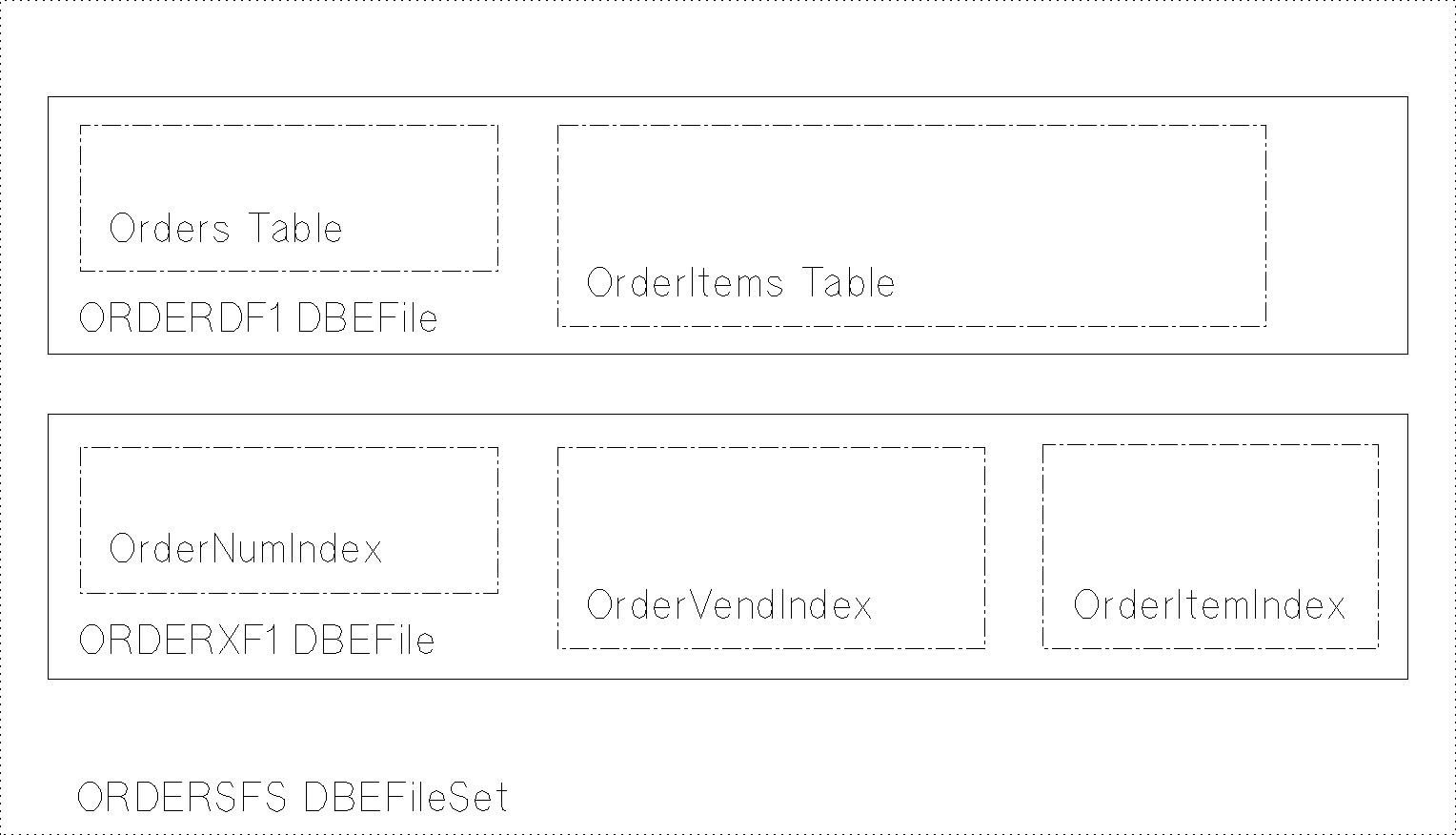

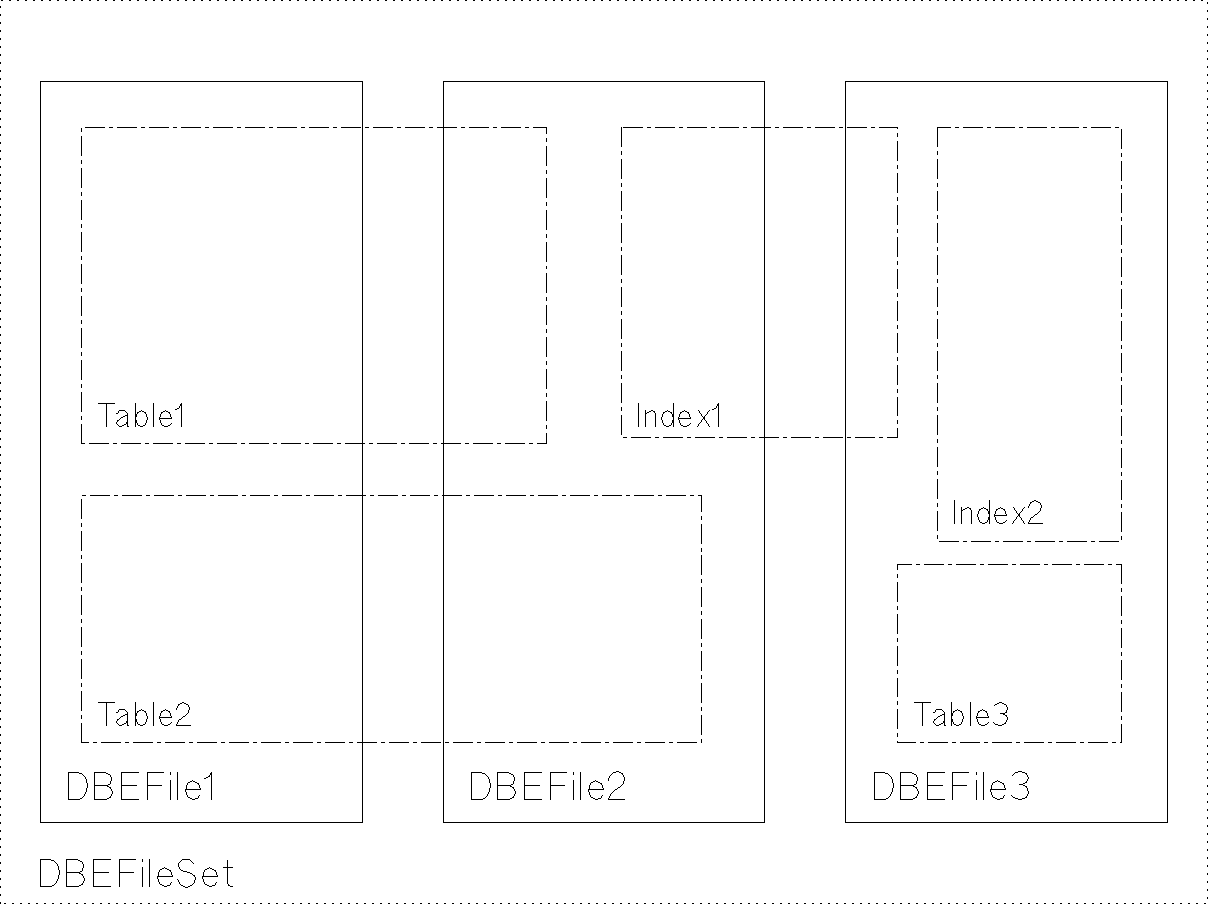

Figure 3-2. Data Stored in DBEFiles within a DBEFileSet
All the DBEFiles for a given table and its indexes must be contained in
one DBEFileSet. Table and index data can span more than one DBEFile
within a DBEFileSet. Figure 3-2 shows the relationship between
DBEFileSets, DBEFiles, and data. Note that in the figure the tables and
indexes are stored in one or more DBEFiles, but they are all contained
within a single DBEFileSet.
Calculating Storage for Tables
You will need the following information to calculate the number of
DBEFile pages needed by each table and index:
* The column size and data type for each column in the table
* The row length of the table
* The approximate number of rows that the table will contain
initially.
Use the following procedure to calculate the necessary number of DBEFile
pages needed for your tables:
1. Calculate the row length for the table (RL).
2. Calculate the number of rows that can fit on a page (NRP).
3. Calculate the number of pages needed to hold all rows (NDP).
4. Calculate the number of directory overhead pages (DO) needed by
ALLBASE/SQL.
5. Add the results of steps three and four to arrive at the total
number of DBEFile pages needed for that table.
The examples presented below show worst-case calculations. They assume
that each row has its own tuple header. Refer to the section "Defining
Null Values for Columns" in the "Logical Design" chapter for more
information about tuple headers.
Calculating Row Length.
The row length is dependent on the data type and size of the columns in
the table.
Column size is calculated in bytes. INTEGER, SMALLINT, REAL, and FLOAT
columns are a fixed number of bytes. The size of BINARY, VARBINARY,
DECIMAL, CHAR, and VARCHAR columns depends on the size given in the
column definition. Refer to Table 3-1 for the storage requirements of
the various data types.
Table 3-1. Data Type Storage Requirements
-----------------------------------------------------------------------------------------------------
| | |
| Type | Storage Required |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| CHAR (n) | n bytes (where n must be an integer from 1 to 3996) |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| VARCHAR (n) | n bytes (where n must be an integer from 1 to 3996) |
| | |
-----------------------------------------------------------------------------------------------------
| [REV BEG] | |
| | |
| DECIMAL (p[,s]) | 4 bytes (where p <= 7) or 8 bytes (where 7 < p <= 15) or 12 |
| | bytes (where 15 < p <= 23) or 16 bytes (where p > 23)[REV |
| | END] |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| FLOAT | 8 bytes |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| REAL | 4 bytes |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| INTEGER | 4 bytes. Integer values less than -2147483648 (-2**31) or |
| | larger than 2147483647 (2**31 - 1) up to 15 digits long are |
| | stored as decimals with a precision of 15 and a scale of 0, |
| | i.e., equivalent to DECIMAL (15,0) |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| SMALLINT | 2 bytes |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| DATE | 16 bytes |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| TIME | 16 bytes |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| DATETIME | 16 bytes |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| INTERVAL | 16 bytes |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| BINARY (n) | n bytes (where n must be an integer from 1 to 3996) |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| VARBINARY (n) | n bytes (where n must be an integer from 1 to 3996) |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| LONG BINARY (n) | n bytes (where n must be an integer from 1 to 231 - 1) |
| | |
-----------------------------------------------------------------------------------------------------
| | |
| LONG VARBINARY (n) | n bytes (where n must be an integer from 1 to 231 - 1) |
| | |
-----------------------------------------------------------------------------------------------------
As you begin calculating row lengths, try to use physical space as
efficiently as possible. Tables can share DBEFiles, but only one table
can store rows in a given DBEFile page. A row whose columns add up to a
length greater than 2000 bytes will potentially waste page space. For
example, if you have a table with a row length of 2050 bytes, a DBEFile
page of 4096 bytes with a 100 byte overhead would only be able to hold
one 2050 byte row. The remaining 1950 bytes would be left empty.
The Parts table used in the examples in this chapter has three columns
with the following characteristics:
PartNumber CHAR(16),
PartName CHAR(30),
SalesPrice DECIMAL (10,2)
Use the following calculation to determine the row length for the table:
The calculations in the following examples assume 30,000 rows will be
stored in the Parts table.
Calculating Rows per Page.

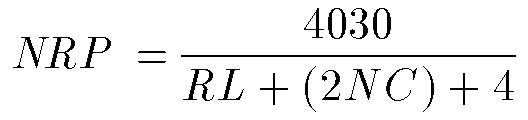

The following formula is used to calculate the number of rows per page
(NRP):
where RL is row length, and NC is the number of columns in the table,
divided into the number of bytes that can fit on a page (a set value of
4030). This formula includes overhead for column values that can be NULL
as well as overhead for the size of VARCHAR and VARBINARY data.

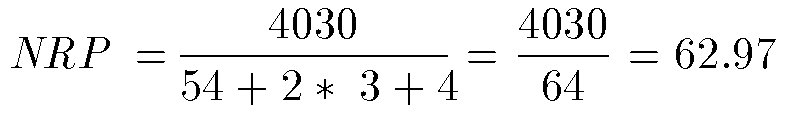

Using the values for the Parts table, the number of rows that can fit on
a page is calculated as follows:
The value for NRP is rounded down to the next integer because a partial
row cannot be stored on a page. The result is 62 rows per page.
Calculating Number of Pages.
The following formula is used to calculate the number of DBEFile pages
(NDP) needed to hold all rows in the table:
where NR is the number of rows in the table, and NRP is the number of
rows per page.
Using the previous value for NRP of 62 and an assumed value of 30,000
rows in the Parts table, the number of pages needed for the table is
calculated as follows:
The value for NDP is rounded up to the next integer because DBEFiles are
not created with partial pages. The result is 484 data pages.
Calculating Directory Overhead.
For every 252 pages in a DBEFile, ALLBASE/SQL creates a page table page
as a directory to store information about the next 252 pages. It
contains pointers to data and keeps track of which pages are empty and
which tables contain rows in which pages. The directory overhead (DO)
can be calculated with this formula:
where NDP is the number of data pages which is divided by a set value of
252.
Using the previous value for NDP of 484 pages, the directory overhead is
calculated as follows:
The value for directory overhead is rounded up to the next integer
because DBEFiles cannot have partial page table pages. The result is 2
page table pages.
The total number of DBEFile pages needed to store 30,000 rows in the
Parts table is calculated as follows:
Perform the calculation for each table to get the total estimated number
of DBEFile pages needed for the DBEnvironment. Be sure to leave enough
space in the DBEFiles for minor expansion of the tables, so you do not
need to add DBEFiles to DBEFileSets frequently.
Calculating Storage for Indexes
For indexes, ALLBASE/SQL uses a doubly linked balanced tree (B-tree)
structure, which can have several levels between its initial node, or
root page, and the leaf node, or leaf page, containing the pointer to the
requested row. (For basic information about B-tree indexes, refer to
"Designing Indexes" in the "Logical Design" chapter.) Calculate the
following values to determine the number of DBEFile pages needed for an
index:
* Index key length
* Size of index header
* Number of bytes per page
* Number of rows per non-leaf page
* Number of leaf pages
* Number of non-leaf pages
* Number of overhead pages
The total number of index pages needed is the sum of the number of leaf
pages, non-leaf pages, and overhead pages.
Calculating the Index Key Length.
The index key length (KL) is calculated by adding 10 to the sum of length
of the columns (SLC) on which the index is created:
The 10 bytes includes 8 bytes for the data TID entry and 2 bytes needed
for the slot table entry. Consult the preceding table, "Data Type
Storage Requirements," for the column length of each data type. If the
index is defined upon a CHAR(16) column, an INTEGER column, and a
CHAR(20) column, the index key length (KL) is calculated as follows:
Calculating the Size of the Index Header.
The size of the index header (IH) can be calculated with the following
formula:
NIC is the number of columns upon which the index is defined. The
constant 1 represents the byte needed for the TID. An additional 2 bytes
is needed for overhead. If the index is defined upon 3 columns then the
size of the index header is determined as follows:
Calculating the Number of Rows per Leaf Page.
The formula used to calculate the number of rows per leaf page (RLP)
depends on whether the index header can be shared. If the columns on
which the index has been defined allow NULL values, or if their data type
is VARCHAR, then the index header cannot be shared.
Use the following formula to calculate the number of rows per leaf page
(RLP) when the index header can be shared :
[REV BEG]
2 is 2 bytes for the slot table entry; 8 is 8 bytes for the data TID
entry. If the index header cannot be shared, use the following formula:
4006 is the number of bytes available in a page. For a conservative
estimate, assume that the leaf pages are 2/3 full. If the result is a
fraction, round down to the nearest integer because a partial row cannot
be stored in a page. For example, if the index key length is 50 and the
index header cannot be shared, the number of rows per leaf page is
calculated as follows:
[REV END]
Calculating the Number of Rows per Non-Leaf Page.

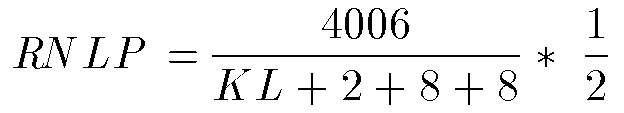

If the index header can be shared, calculate the number of rows per
non-leaf page (RNLP) with the following formula:
[REV BEG]
Where 2 is 2 bytes for the slot table entry; 8 is 8 bytes for the data

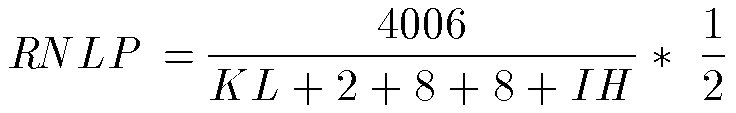

TID entry; 8 is the next data TID pointer. Use the following formula if
the index header cannot be shared:
[REV END]
The value is multiplied by 1/2, because we assume that the non-leaf pages
are half full. If the result is a fraction, round down to the nearest
integer because a partial row cannot be stored in a page. For example,
if the index key length is 50 and the index header cannot be shared, then
the calculation is as follows:
[REV BEG]
[REV END]
Calculating the Number of Leaf Pages.
Each row of table data is pointed to by a row in a leaf page. To
calculate the number of leaf pages (LP), divide the number of rows your
table will contain (RT) by the number of rows per leaf page (RLP). If the
result is a fraction, round down to the nearest integer because partial
pages do not exist. The formula is as follows:
If the table will contain 651090 rows of data, and the value of rows per
leaf page is 44, the number of leaf pages is calculated as follows:
Calculating the Number of Non-Leaf Pages.
To determine the total number of non-leaf pages, you must calculate the
number of non-leaf pages at each level in the B-tree. Start at the
lowest non-leaf level, that is, the level just above the leaf pages, and
move up the B-tree until the level has only one page. At each level, use
the following formula:
NLP(n) is the number of non-leaf pages a level n, RL(n) is the number of
rows needed at level n, and RNLP is the number of rows per non-leaf page.
If the result is a fraction, round down to the nearest integer because
partial pages do not exist. Since the rows of non-leaf pages point to
the leaves at the next level down, the value of RL decreases with each
higher level.

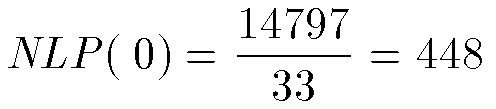

In the example that follows, assume that the rows per non-leaf page is 33
and the number of leaf pages is 14797. First, calculate the number of
pages at the lowest non-leaf level. The rows at this level point to the
leaf pages. Since there are 14797 leaf pages, the RL(0) is 14797. The
calculation is as follows:
Next, calculate the number of non-leaf pages at the next level up. The
rows at this level point to 448 non-leaf pages. The calculation is as
follows:
At the next level up, the page rows point to 13 non-leaf pages. After
rounding up to the nearest integer, the result of the following
calculation is 1, indicating that the highest level has been reached:
The total number of non-leaf pages is the sum of the non-leaf pages at
each level:
Calculating the Number of Directory Overhead Pages.

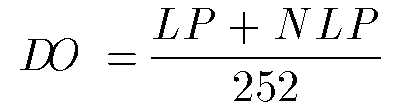

For every 252 pages in the B-tree, a directory overhead page (DO) is
required:
A directory overhead page is also referred to as a page table page.
Using the values from the previous examples, the number of overhead pages
is calculated as follows:
Calculating Total Number of Index Pages.
The total number of index pages (TIP) is the sum of the leaf pages (LP),
non-leaf pages (NLP), and directory overhead pages (DO):
Using the values from the previous examples, the total number of index
pages is calculated as follows:
Arranging Tables and Indexes in DBEFileSets
Remember the following when allocating DBEFile storage:
* All data for a given table and its indexes (including integrity
constraints) must be contained in a single DBEFileSet.
* If you do not specify a DBEFileSet when creating a table, the
table is put in the SYSTEM DBEFileSet.
* Storage is allocated for tables, indexes, and constraints by
adding DBEFiles with the adequate number of pages to the
DBEFileSet in which you intend to create the tables and indexes.
* When you create an index on a table that is located in the SYSTEM
DBEFileSet, index pages also are stored in DBEFiles associated
with SYSTEM.
* Any DBEFile in a DBEFileSet can potentially store rows from any
table and index associated with that DBEFileSet.
Grouping Tables in DBEFileSets.
The following factors affect how tables should be grouped in DBEFileSets:
* ease of maintenance
* performance tuning capability
* independence of hash data
Grouping tables in separate DBEFileSets increases traceability of storage
for particular tables. For example, if you store all tables in the
SYSTEM DBEFileSet, you will not be able to tell which DBEFiles hold
system catalog data and which hold data for a particular table. As a
result, all tables and the system catalog would have to be taken into
consideration when storage space is added to the DBEnvironment. All
maintenance functions such as the UPDATE STATISTICS statement would take
longer if all tables are stored in a single DBEFileSet. Therefore, you
should create a DBEFileSet for each table or group of tables that you
want to maintain separately.
You may want to place tables that are used infrequently in the same
DBEFileSet to use space more efficiently. You can add DBEFiles to the
DBEFileSet to accommodate the space requirements of several tables.
Hash tables must be created in separate DBEFiles. It may be useful to
create separate DBEFileSets for your hash tables.
Large tables should have their own DBEFileSet. If a small table is in
the same DBEFileSet as a large one, the performance of sequential scans
on the small table will not be as good as if the small and large tables
are separated.
You may want to place related tables in the same DBEFileSet. In the
sample database, one DBEFileSet is created for the internal parts
information in the Parts and Inventory tables. Another DBEFileSet is for
the vendor information in the Vendors and SupplyPrice tables. A third
DBEFileSet contains the order data of the Orders and OrderItems tables.
Since related tables are often updated simultaneously, DBEFiles can be
added to the DBEFileSet to accommodate the growth of multiple tables.

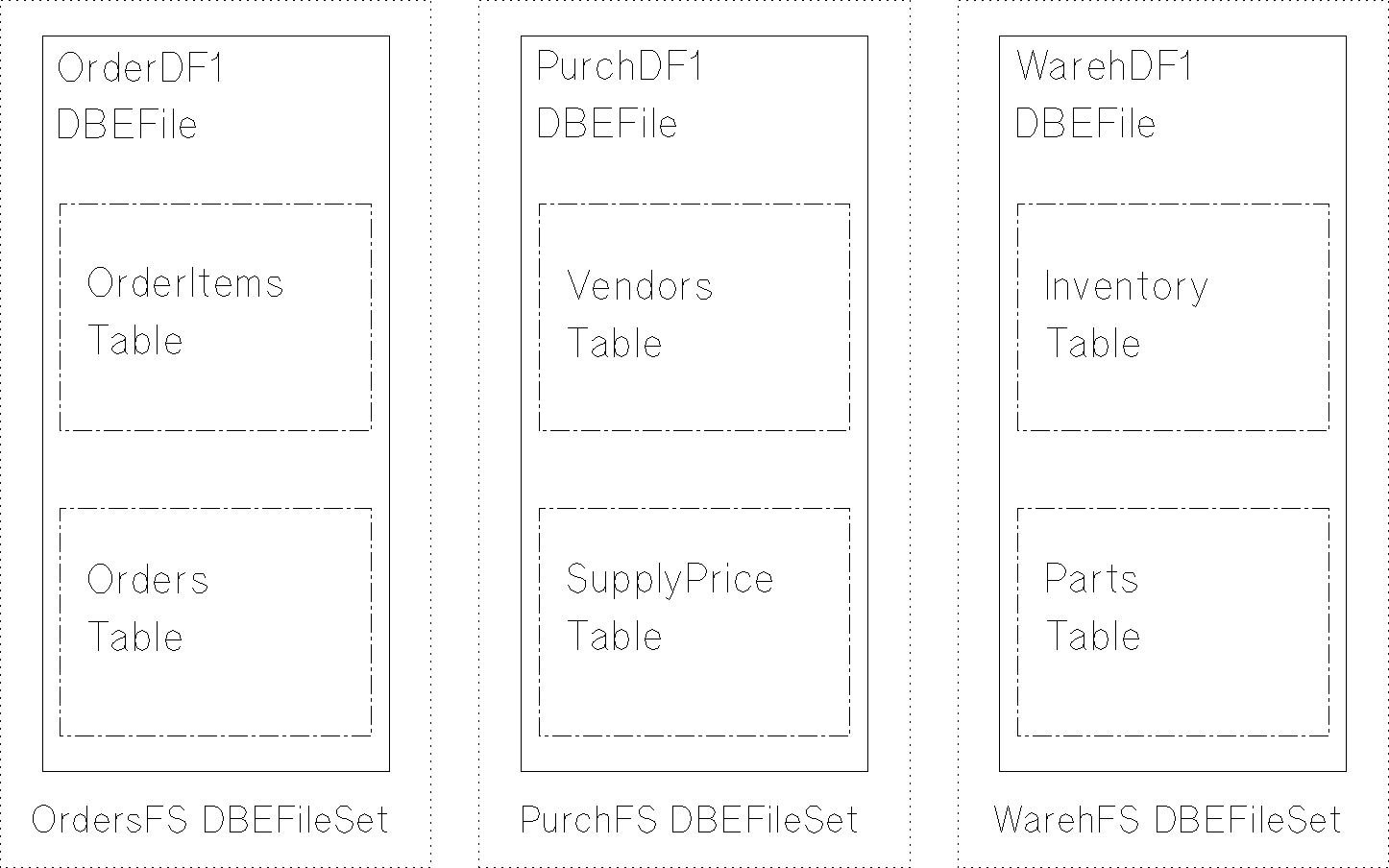

Figure 3-3 shows how the sample DBEnvironment is divided into three
DBEFileSets.
Figure 3-3. DBEFileSets in the Sample DBEnvironment
Choosing DBEFile Types and Devices.
When a DBEFile is created, it can be specified as one of three types:
* TABLE, which contains only table data
* INDEX, which contains only index data
* MIXED, which can contain both table and index data
You can control performance by selecting DBEFile types carefully and by
locating DBEFiles on the appropriate devices. The characteristics of the
transactions to be processed determine if you should create a separate
INDEX DBEFile. If your applications access indexes frequently, placing
the indexes in a separate DBEFile (and possibly on a different, faster
device) may improve performance. If your applications access the indexes
infrequently, having index and table data share the same DBEFile uses
disk space more efficiently.
Using a Single MIXED DBEFile.
The default file type is MIXED. If table and index data are stored
together in a MIXED DBEFile, the disk drive does not have to search
multiple DBEFiles when ALLBASE/SQL uses an index. However, this may not
be true for large tables that span several DBEFiles, or for tables with
multiple indexes.
Using Separate DBEFiles for Tables and Indexes.
You can improve performance by placing table and index data in different
DBEFiles and locating the DBEFiles on different devices. Then, when an
index is used during query processing, each disk drive accesses either
index or table data and reads and updates are distributed over multiple
devices rather than concentrated on a single disk drive.
To ensure that table and index data will be stored in different DBEFiles,
create separate DBEFiles of type TABLE and INDEX, and do not create any
MIXED DBEFiles. If there are no MIXED DBEFiles, ALLBASE/SQL must place
all index data in the INDEX DBEFile and table data in the TABLE DBEFile.
If space of the appropriate type is not available, an error is generated.
If you use separate TABLE and INDEX DBEFiles in a DBEFileSet, you should
use the results of the calculations presented above in "Disk Space for
Tables" to provide enough space in the TABLE DBEFiles to contain all the
tables in the DBEFileSet. Similarly, use the results of the calculations
presented above in "Disk Space for Indexes" to provide enough space in
the INDEX DBEFiles for all the indexes defined on all tables in the
DBEFileSet.
Figure 3-4 shows how the Orders and OrderItems tables in the sample
database are stored in one TABLE DBEFile, and the indexes stored in an
INDEX DBEFile.
Figure 3-4. Table and Index DBEFiles in the OrdersFS DBEFileSet
Note that the OrderFS DBEFileSet does not contain any MIXED DBEFiles.
Using Different Storage Devices.
You can use the MOVEFILE command in SQLUtil to locate INDEX DBEFiles on
separate devices from the TABLE DBEFiles in the same DBEFileSet.
Since you can only move physical files (i.e. DBEFiles), you must keep
tables physically separate to be able to place them on different devices.
Simply storing tables in different DBEFiles does not ensure that they are
physically separate.
You may want to create separate DBEFileSets for two tables that are
accessed frequently at the same time by users or applications. Then
tables can be associated with different DBEFileSets and located on
different disk drives to minimize disk drive workload.
In Figure 3-5, some of the DBEFiles are located on different disks even
though they belong to the same DBEFileSet.
Figure 3-5. DBEFiles, DBEFileSets, and Direct-Access Storage
Estimating DBEFile Size.
You specify a DBEFile size in the PAGES clause of the CREATE DBEFILE
statement. Once you have determined the storage requirements for each
table and index and you have determined which tables and indexes will be
assigned to which DBEFileSets, you can estimate how big the DBEFiles
should be.
Determining DBEFile size involves a trade-off between convenience (that
is, how often you have to add additional DBEFiles) and use of direct
access storage space. Remember the following when choosing a size for
your DBEFiles:
* It is a more efficient use of disk space to add DBEFiles as they
are needed rather than to allocate large DBEFiles before the space
is required.
* DBEFiles within a DBEFileSet can be of different sizes.
* Tables and indexes can span more than one DBEFile.
* A DBEFile cannot be dropped if it is associated with a DBEFileSet.
* The size of a nonexpandable DBEFile cannot be changed without
dropping and recreating it.
* Expandable DBEFiles expand as needed in increments you specify
when you create them up to the maximum you indicate.
Initially, DBEFiles should be large enough to hold the estimated number
of rows for all the tables and indexes in the DBEFileSet.
The DBEFile in the OrderFS DBEFileSet should be large enough to contain
the data for both the Orders and the OrderItems tables. The formulas
discussed earlier in this chapter were used to arrive at the following
page requirements assuming 30,000 rows per table:
Table 3-2. Page Requirements for Table Data
-------------------------------------------------
| | |
| Table Name | Size |
| | |
-------------------------------------------------
| | |
| Orders Table | 195 pages |
| | |
| OrderItems Table | 450 pages |
| | |
-------------------------------------------------
A DBEFile of type TABLE with at least 645 pages should be created to
contain the data for the two tables. You should create the DBEFiles
slightly larger than the estimate to make room for minor growth.
DBEFiles can be added to make room for significant growth.
The Orders table has two indexes and the OrderItems table has one index.
Again, using the formulas on the previous pages, the following numbers
are calculated:
Table 3-3. Page Requirements for Index Data
------------------------------------------------------------------------------
| | | | | |
| Index Name | Table Name | Key Column | Column Data Type | Size |
| | | | | |
------------------------------------------------------------------------------
| | | | | |
| OrderNumIndex | Orders | OrderNumber | Integer | 430 pages |
| | | | | |
| OrderVendIndex | Orders | VendorNumber | Integer | 430 pages |
| | | | | |
| OrderItemIndex | OrderItems | OrderNumber | Integer | 430 pages |
| | | | | |
------------------------------------------------------------------------------
A DBEFile of type INDEX with at least 1290 pages will accommodate 30,000
keys for each of the three indexes. The DBEFiles should be created
slightly larger to make room for minor growth. Again, additional
DBEFiles of type INDEX can be added to accommodate significant growth.
Calculating Storage for Hash Structures
The amount of disk space used by a hash structure consists of the primary
pages you define when you create the structure, page table pages used as
overhead by ALLBASE/SQL, and any overflow pages used for rows which do
not fit on the primary page pointed to by their hash key.
Calculating Primary Pages.
You can use the following formula to estimate the approximate number of
primary pages:
Page Size is the amount of space available on a page for data. After
subtracting overhead from a 4096-byte page, about 3900 bytes are free for
tuples. Fill Factor is the percentage of each primary page that should
be filled.

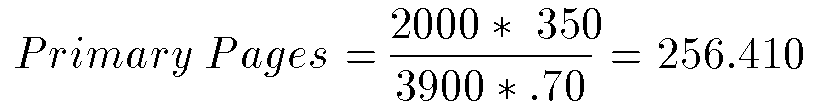

Suppose you will have a table with 2000 rows that are 350 bytes long and
you wish to allow 30% space for additional growth:
Rounding up to the next whole page, the result is 257 primary pages. For
non-integer keys, you should round up again to the next prime number of
pages, which will yield the best results.
Allowing for Overflow.
When ALLBASE/SQL cannot find room for a new row on a primary page, it
places the data on an overflow page. Overflow pages can be in the same
DBEFile as the primary pages, or they can be in any other TABLE or MIXED
DBEFile within the same DBEFileSet. When designing the hash structure,
you can create a DBEFile that accommodates both primary pages and
overflow pages. Specify a DBEFile size that is larger than the number of
primary pages; the extra pages will then be available only for use by the
hash structure.
Some overflow is accommodated by the fill factor described above. You
must also estimate the amount of overflow space needed due to variation
in key values. For an integer key with sequential values, no additional
pages are needed. For a non-integer key, add 20% of the number of
primary pages for overflow.
Calculating the Size of DBEFiles for Hash Structures.
When deciding how large to make the DBEFiles for your hash structures,
start by calculating the total amount of space needed, as follows:
In addition to primary pages and overflow pages, allow one additional
page for every 252 primary pages for page directory overhead.
You can allocate the space for primary hash pages over several DBEFiles.
Using this approach, you create several smaller DBEFiles that add up to
the total number of primary pages plus any overflow. These files can
then be moved, if you wish, to different devices. The total number of
DBEFiles allocated for primary pages in a hash structure cannot exceed
16. Remember to allow one directory page for every 252 primary pages in
each DBEFile.
Remember that DBEFiles used by hash structures are considered bound, that
is, unavailable for any other purpose.
Allocating DBEFiles for Hash Structures.
The DBEFiles for a hash structure are allocated in the reverse of the
order in which they were added to the DBEFileSet in which the table is
created. If you create the hash structure in the same transaction as the
one in which you create the DBEFiles for the hash and add them to the
DBEFileSet, you can be sure that other transactions will not use the new
files.
The primary pages for a hash table can be spread over no more than 16
DBEFiles. Overflow pages for a hash table can be placed in any non-bound
non-index DBEFile with space for them. DBEFiles containing the hash
primary pages are considered bound and therefore unavailable for use by
any other table.
When UPDATE STATISTICS is executed, all DBEFiles bound to hash primary
pages are listed as 100% full to indicate that no more new pages can be
allocated from these DBEFiles. (However, data may still be inserted if
the allocated pages are not yet full, and the last bound DBEFile may
contain overflow pages if primary pages did not use all of it.)
Mapping Logical Page Number to Physical File Location in Hash Structures.
Given a number of DBEFiles with specific sizes and a number of primary
pages, it is possible to determine the physical location of a logical
page number within a hash structure. This information may be useful in
performance tuning.
DBEFile pages are allocated for use by the hash structure in the reverse
of the order in which they were added to their DBEFileSet. For example,
suppose you have created three DBEFiles, each with 100 pages, and added
them to DBEFileSet HashFS in the following order: File1, File2, and
File3. Then, in the same transaction, you create a hash structure in
HashFS with 261 primary pages. The distribution of logical pages is
shown in Table 3-4 :
Table 3-4. Logical Page Number and DBEFile Location in Hash Structure
-------------------------------------------------------------------------------
| | | |
| DBEFile | Physical | Contents |
| | Page | |
| | Number | |
| | | |
-------------------------------------------------------------------------------
| | | |
| File3 | 0 | Page table page (directory) |
| | | |
| | 1-99 | Primary Pages 1-99 |
| | | |
-------------------------------------------------------------------------------
| | | |
| File2 | 0 | Page table page (directory) |
| | | |
| | 1-99 | Primary Pages 100-198 |
| | | |
-------------------------------------------------------------------------------
| | | |
| File1 | 0 | Page table page (directory) |
| | | |
| | 1-63 | Primary Pages 199-261 |
| | | |
| | 64-99 | Unused (available for |
| | | overflow) |
| | | |
-------------------------------------------------------------------------------
Page 0 in each DBEFile is allocated as a page table page for directory
information. A new page table page must be allocated every 252 pages if
the file is large enough. The files in the above example do not have
additional page table pages. If you are using large DBEFiles, you should
include additional page table pages in your calculations.
Calculating Storage for Integrity Constraints
Integrity constraints make use of index structures to enforce the
constraint condition. In addition, each constraint definition is stored
in the system catalog.
Unique Constraints.
Unique constraints make use of unique indexes. When you define a primary
key or specify the UNIQUE option in creating a table, ALLBASE/SQL will
create a unique B-tree index. The storage required for this index is the
same as for unique indexes, described in a previous section. Unique
indexes for unique constraints are stored in the same DBEFileSet as the
table on which the primary or unique key is defined.
Referential Constraints.
In addition to the unique index that is built on a table that has a
PRIMARY key, each referential constraint you define on the referencing
table uses a separate index structure known as a parent-child
relationship (PCR). A PCR is different from a standard B-tree index in
that it contains pointers to both the referencing and the referenced
tables. The data for a PCR is stored in the same DBEFileSet as the
referenced table.
You can get a size estimate for a PCR by using the formulas discussed in
the section, "Calculating Storage for Indexes." Be sure to include the
keys from both the referenced table and the referencing table when
calculating the index length of the PCR.
Hashing on Constraints.
When a unique constraint is defined as you create a new table using the
HASH ON CONSTRAINT clause, the table is built as a hash structure, and
space is allocated as shown in the section, "Calculating Storage for Hash
Structures."
Check Constraints.
Check constraints do not depend on building indexes or PCR's. Therefore,
the only additional space required is for the constraint definition in
the system catalog.
MPE/iX 5.5 Documentation
