Understanding ALLBASE/SQL Data Access

Concurrent access to data by multiple users is facilitated by the use of
a shared data buffer for all users of an ALLBASE/SQL DBEnvironment.
Understanding how this buffer is used can clarify many concurrency
issues.

A DBEnvironment running in multiuser mode is accessed by multiple
processes, as shown in Figure 5-2 .

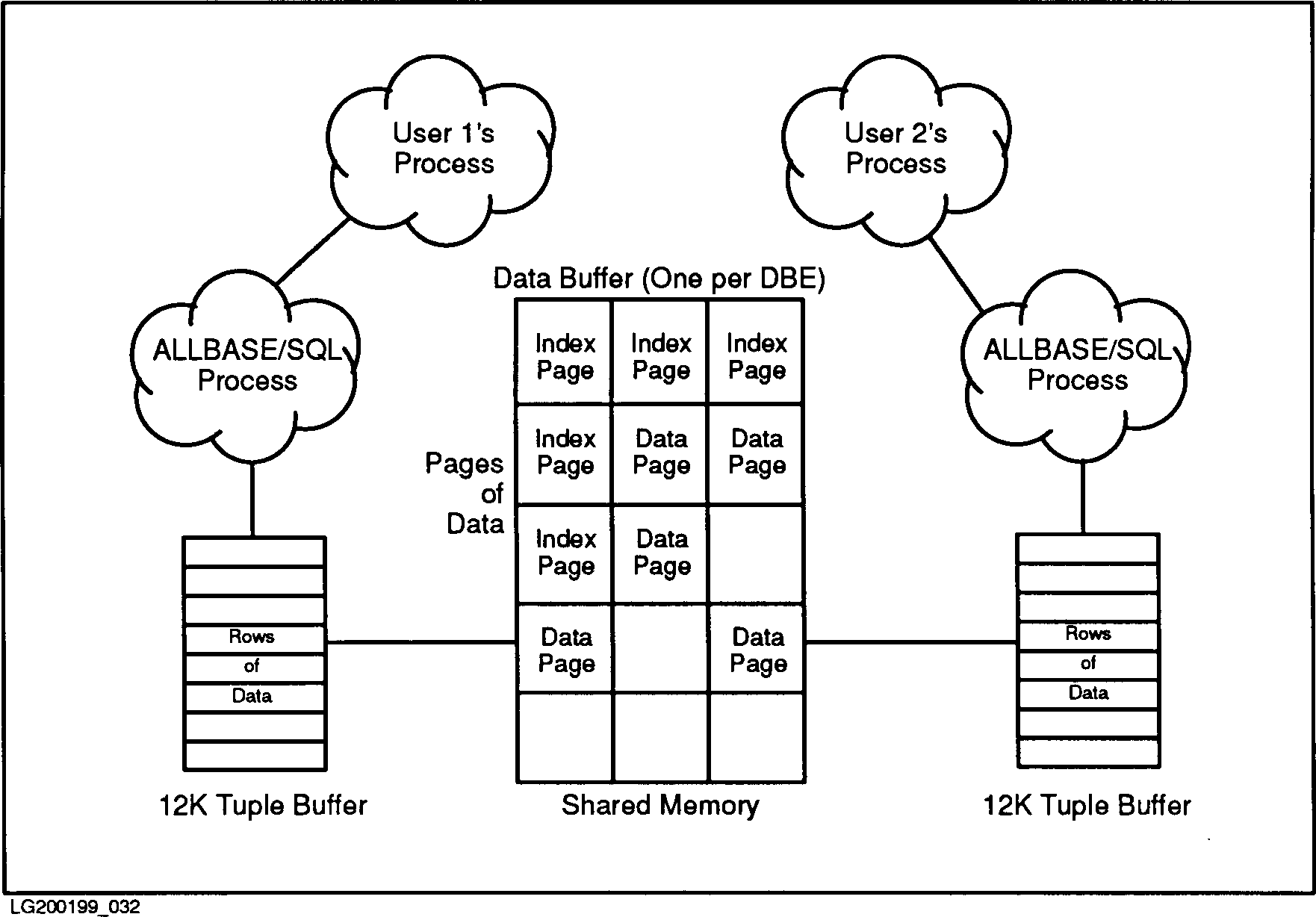

          Figure 5-2.  Multiuser DBEnvironment

A single data buffer services the needs of all users of the
DBEnvironment.  In addition, each interactive user or application program
has its own 12K tuple buffer associated with it.  The data buffer holds
4096-byte pages from the DBEFiles in which tables and indexes are stored.
All pages of data requested from tables in the DBEnvironment and all
index pages required for access to the data are read first into this
shared data buffer.  In the case of queries, qualifying rows (tuples) are
read from the data buffer into the tuple buffer, and then they are
transferred to the screen (in the case of ISQL) or to host variables or
arrays (in the case of an application program).  All changes to existing
data and index pages are placed in the data buffer before being written
to disk.

The use of the data buffer makes access to data efficient, because pages
of data are only read into the buffer when necessary.  These data pages
stay in the buffer until they are swapped out when buffer space is needed
for some other page.  The use of the buffer also promotes quick access to
the same pages of data by different transactions, because a page may not
have to be read in from disk if it is already in the buffer.

When you issue a query, you request a specific set of rows and columns
from different tables in a database.  The content of this set of rows and
columns is the query result.  For every query, ALLBASE/SQL maintains a
cursor, which is a pointer to a row in the query result.  A query result
may be much larger than the size of available memory, so result rows are
read into your application's tuple buffer in blocks of up to 12K at a
time.  As your application advances through a query result, the cursor
position advances.  When the application has read the last row in the
tuple buffer, a new set of rows is read in until the end of the query
result is reached.


NOTE  In procedures or embedded SQL applications, you can explicitly
      declare and open a cursor for each query result.  In ISQL, you do
      not explicitly open cursors; ALLBASE/SQL maintains the pointer
      position for you.


For unsorted queries, the tuple buffer is filled with rows of data taken
from pages found in the data buffer.  Of course, the tuples in the query
result are a subset of the content of each data page.  In other words,
the data buffer contains everything on each data page, but the tuple
buffer contains only the columns and rows you have requested.  As the
cursor moves through the tuple buffer containing the query result,
additional rows must be fetched from the data buffer.  When data has been
fetched from all qualifying pages in the data buffer, additional data
pages must be read into the data buffer from disk, and then additional
qualifying rows and columns must be read into the tuple buffer.  In the
case of sorting, the sort output is stored in a temporary table in the
SYSTEM DBEFileSet before being read into the data buffer.
