ALLBASE/SQL Performance and Monitoring Guidelines

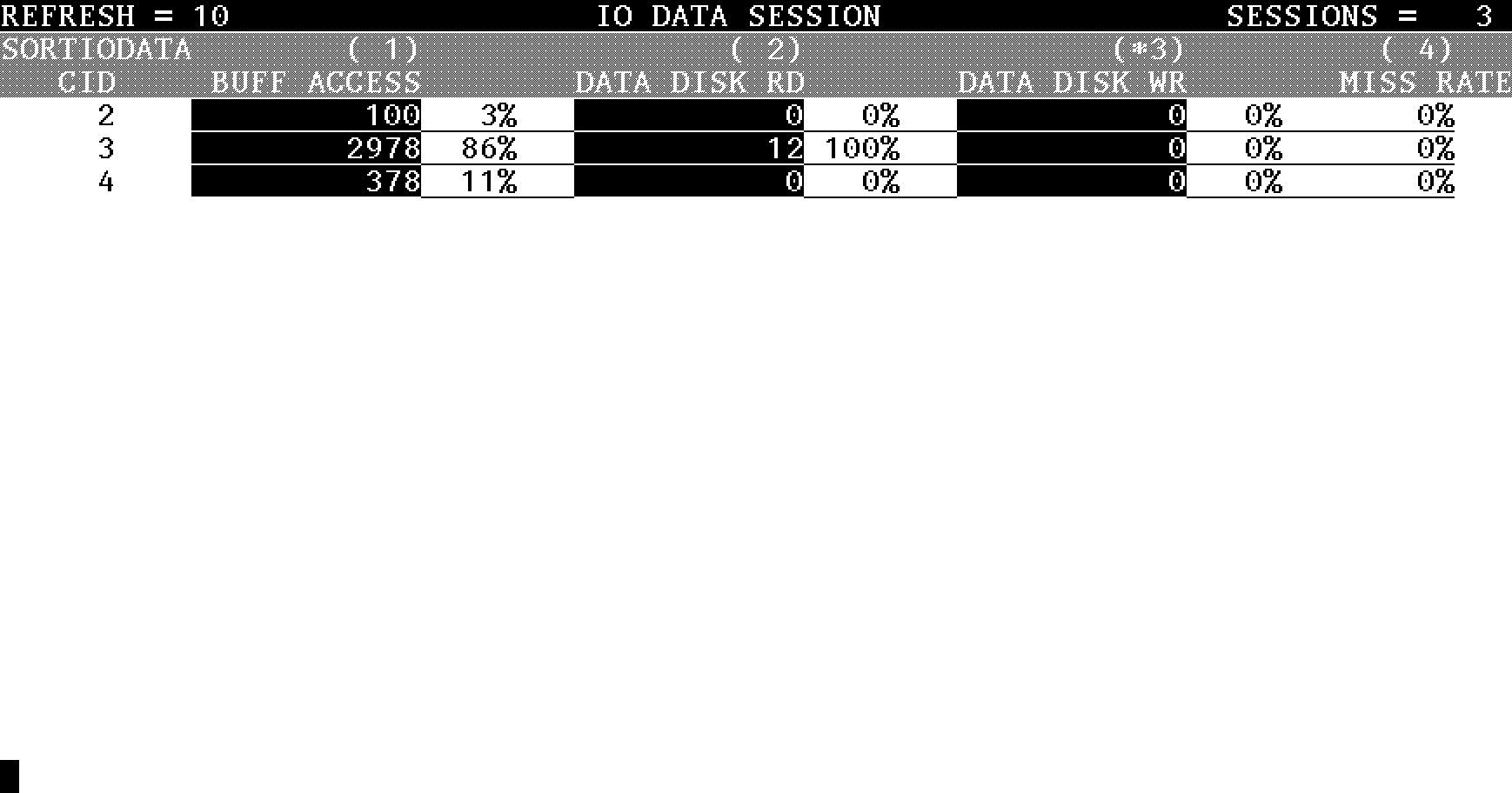

IO Data Session Screen

This screen provides data buffer pool I/O information for each session
attached to the DBEnvironment.




To invoke the IO Data Session screen, use the d s command from the IO
subsystem, or use the /i d s command from other subsystems.

When you invoke this screen, its counters are set to zero.

Field Definitions

REFRESH          The screen refresh rate, in seconds.

SESSIONS         The number of DBEnvironment sessions.

SORTIODATA       An indicator of how the sessions are sorted.  The
                 sessions are sorted in descending order by the value in
                 the column indicated by the asterisk.  In the above
                 example, sessions are sorted by their DATA DISK WR
                 values.  For more information, see the SET SORTIODATA
                 command.

CID              The DBEnvironment connection identification number.

BUFF ACCESS      The number of page requests the session has issued to
                 the data buffer pool.

DATA DISK RD     The number of pages that are not in the data buffer pool
                 at request time.  The operating system must fetch these
                 pages, either from the operating system buffer pool or
                 by a physical disk read.

DATA DISK WR     The number of dirty pages from the data buffer pool that
                 were logically written to disk.

MISS RATE        The percentage of pages that are not in the data buffer
                 pool at request time.  The percentage is calculated as
                 follows:

                      MISS RATE = (DATA DISK RD / BUFF ACCESS) * 100

Related SET Commands

The SET commands in the following table affect this screen.

-----------------------------------------------------------------------------------------------
|                       |                                             |                       |
|        Command        |                 Description                 |        Example        |
|                       |                                             |                       |
-----------------------------------------------------------------------------------------------
|                       |                                             |                       |
| SET REFRESH           | Controls the refresh rate of the screen.    | SET REFRESH 5         |
|                       |                                             |                       |
-----------------------------------------------------------------------------------------------
|                       |                                             |                       |
| SET SORTIODATA        | Sorts sessions in descending order          | SET SORTIODATA 2      |
|                       | according to the value of the specified     |                       |
|                       | column.                                     |                       |
|                       |                                             |                       |
-----------------------------------------------------------------------------------------------
|                       |                                             |                       |
| SET TOP               | Limits the number of sessions displayed.    | SET TOP 10            |
|                       |                                             |                       |
-----------------------------------------------------------------------------------------------
