HP 3000 Manuals

ALLBASE/SQL Pascal Application Programming Guide

The Preprocessor and Program Development

Pascal ALLBASE/SQL application programs have the same stages of
development as any application program.  They originate as Pascal source
code files that are subsequently compiled with the Pascal compiler and
linked by the system linker to create an executable program file.  The
development of ALLBASE/SQL programs, however, requires that you
preprocess those portions of the program that contain SQL commands before
compilation.

In the case illustrated in Figure 2-1 , the ALLBASE/SQL Pascal program
consists of one source file and, optionally, one or more include files.
The preprocessor merges any user include file into the source program,
and preprocesses it.  The result is a modified source code file and
several preprocessor-generated include files.  These preprocessor include
files contain all of the definitions of variables used by any Pascal
statements in the modified source code file.  These two files are then
compiled to produce an object code file, and linked to produce an
executable program file, in the same manner as any other Pascal program.

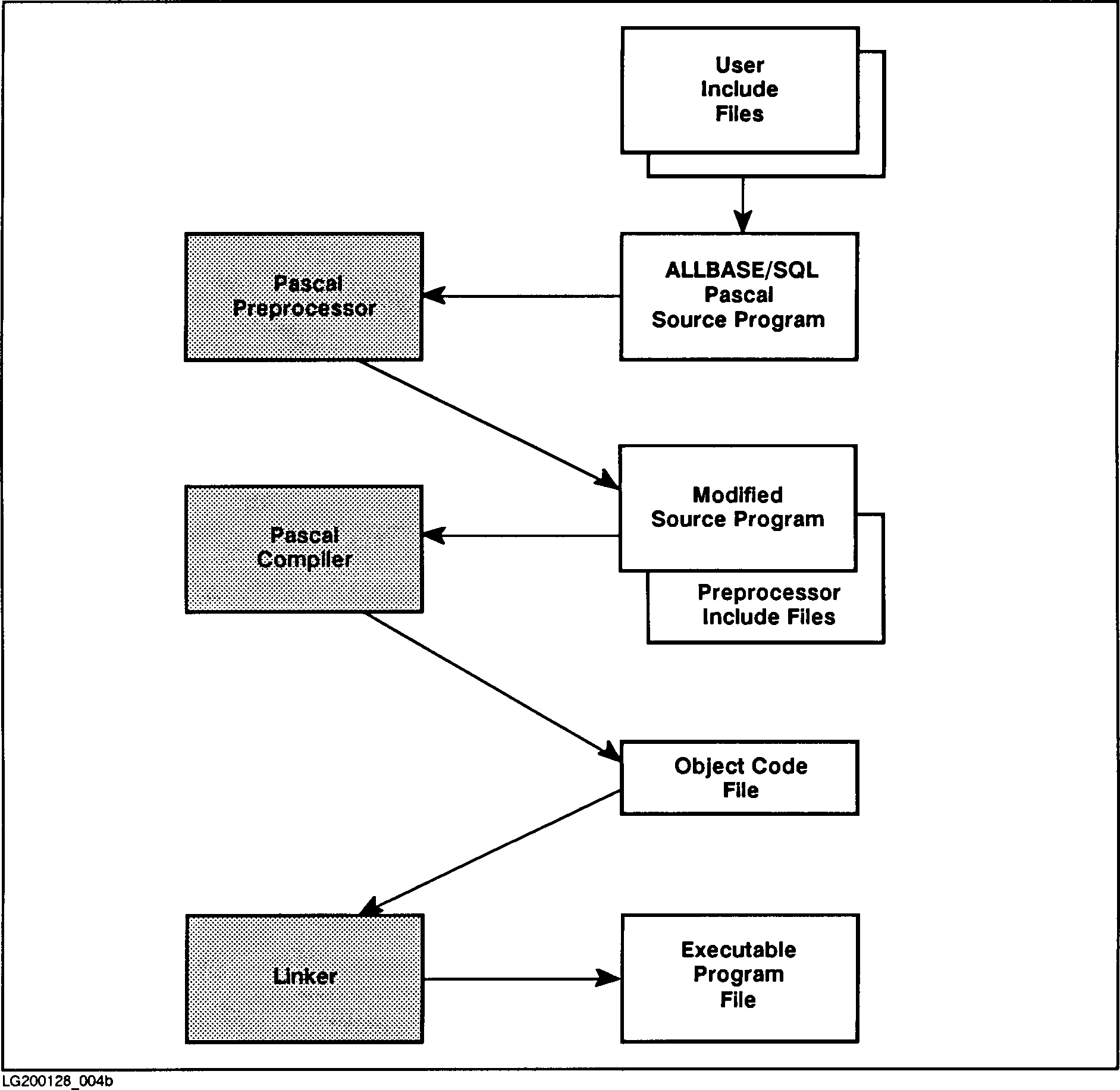

          Figure 2-1.  Developing a Pascal ALLBASE/SQL Program


NOTE  The parts of Figure 2-2  shown with diagonal lines show
      subprogram processing.


In other cases, the ALLBASE/SQL application program might consist of a
main program and one or more subprograms in separate files.  In these
cases, only source files containing embedded SQL code need to be
preprocessed, as illustrated in Figure 2-2.  However, each program file
which contains embedded SQL code must be preprocessed and compiled before
the next program file is preprocessed.  Separately preprocessed program
files that are not immediately compiled will write over each other's
preprocessor created include files and consequently create an error when
compiled.  You invoke the Pascal compiler as many times as necessary to
create the desired number of object code modules.  The files output by
the Pascal preprocessor are treated just as any other compiler input
files at compile time.

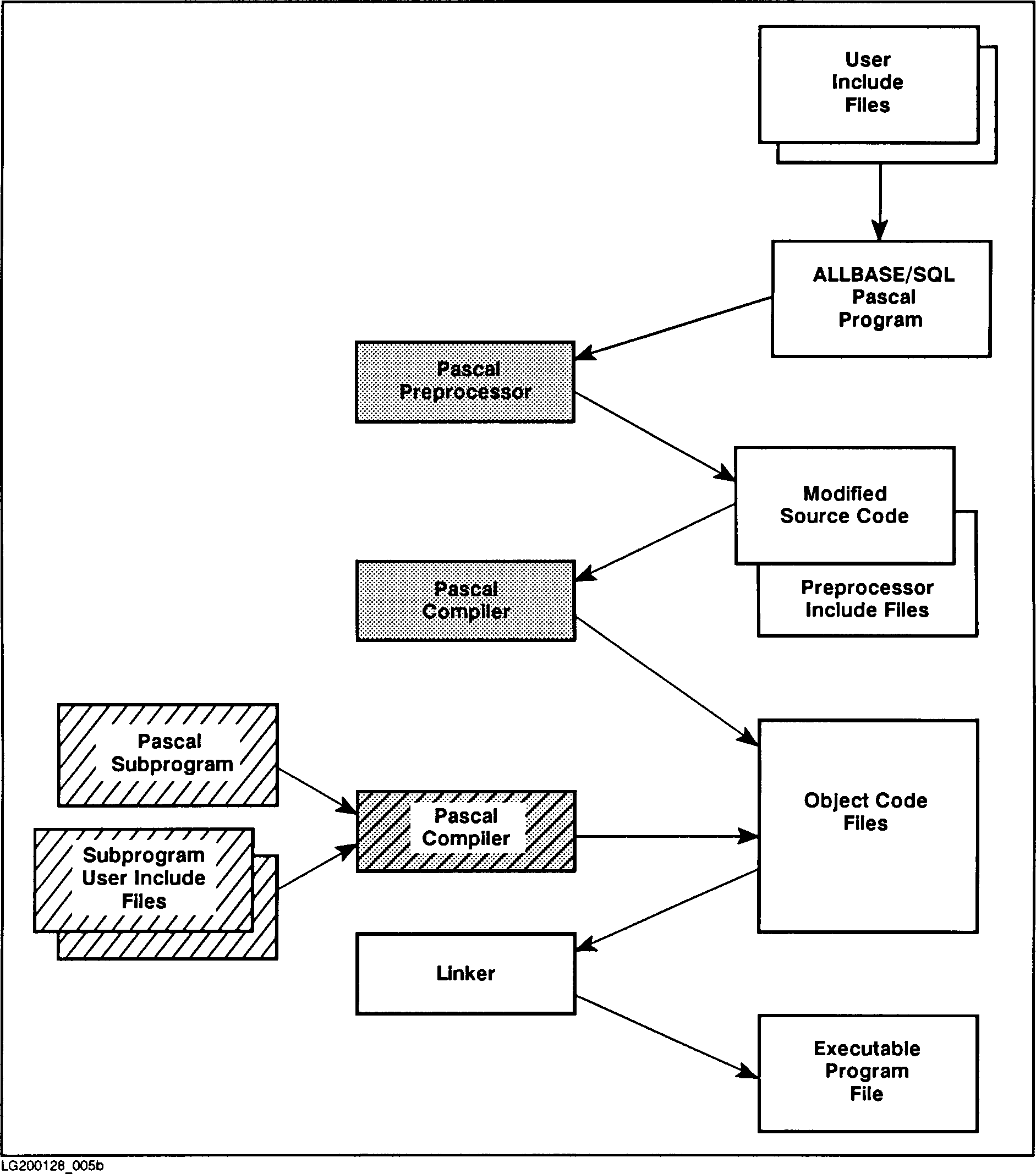

          Figure 2-2.  Developing a Pascal ALLBASE/SQL Program with Subprograms

During any invocation, the Pascal preprocessor can access only one
DBEnvironment.  Therefore programs that access multiple DBEnvironments
must be divided into multiple subprograms, each of which accesses only
one DBEnvironment.  Subprograms that access the same DBEnvironment may be
preprocessed and compiled separately or jointly.  The preprocessor stores
a module in each DBEnvironment accessed for each preprocessor invocation.

You can also create separate subprograms that all access the same
DBEnvironment.  Each subprogram may again be preprocessed and compiled
separately or jointly.  In this case, the preprocessor stores multiple
modules in one DBEnvironment.  Each module consists of sections with each
section representing one SQL command.

The criteria governing the division of an application program into
subprograms is very application-dependent.  As in the development of any
application program, factors such as program size, program complexity,
expected recompilation frequency, and number of programmers affect how a
program is subdivided.  In the case of ALLBASE/SQL Pascal application
programs, the only additional factors are as follows:

   *   All code containing embedded SQL commands must be preprocessed.

   *   The preprocessor can access only one DBEnvironment at a time.

   *   Each separately preprocessed program or subprogram that accesses
       the same DBEnvironment must have a unique OwnerName.ModuleName.
       The module name defaults to the program or subroutine name if the
       user does not provide one.  The owner name defaults to the user's
       logon if the user does not provide one.

   *   The preprocessor can process only one file per invocation.

   *   Each preprocessed subprogram must be compiled before the next
       subprogram is preprocessed.

   *   User include files cannot contain duplicate host variable type
       declarations sections.

MPE/iX 5.0 Documentation
