HP ALLBASE/BRW Tutorial

Exercise 1:Adding and Describing the Third Report

If you have left BRW since the last lesson, restart BRW and begin at the
Select Report screen.  This exercise will take about 5 minutes

Add the report

   1.  Type CUSTREP3 in the Report field.

   2.  Choose  Add Report.  BRW displays the following prompt:




   3.  Type CUSTREP2 in the Copy from report field.

   4.  Press Enter or choose  Add Report.

       BRW then displays the password prompt as below:




   5.  Type the password, PASS2, for CUSTREP2.

   6.  Press Enter.

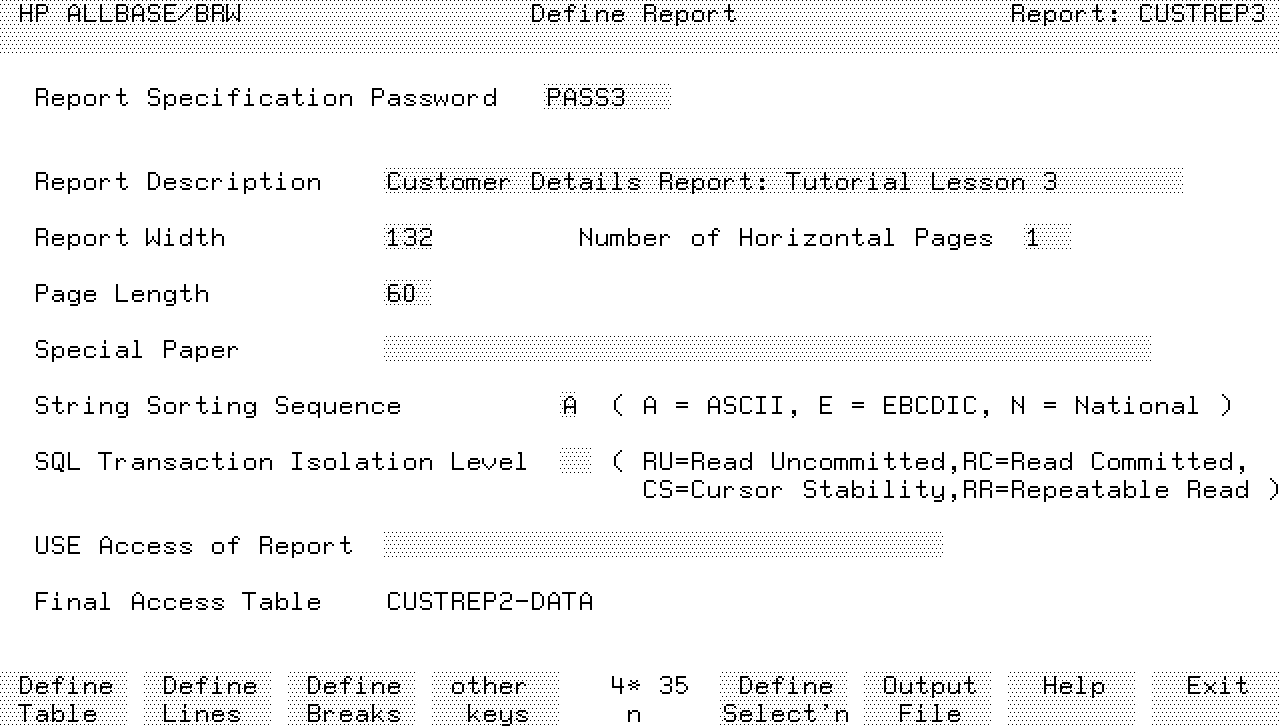

       BRW copies report CUSTREP3 from your old report, CUSTREP2, and
       displays the Define Report screen, as below.




BRW displays the message "Report copied" at the bottom of the screen to
tell you that the report CUSTREP2 has been copied successfully.

Add a Password and Report Description

   1.  Type a password, PASS3, in the Report Specification Password field

   2.  Type the description Customer Details Report: Tutorial Lesson 4 in
       the Report Description field.

       As in the previous report, you will use the standard paper type,
       length, and width as well as the standard character set for string
       sorting.  Therefore, do not change these fields.

   3.  Press Enter.

BRW displays the message "Report modified" to tell you that the changes
were made.
