HP Information Access Data Dictionary
HP Information Access Server is the HP 3000 side of HP Information
Access, a data-retrieval system that gives users access to PC databases
and HP 3000 data on the host HP 3000.
If you have Access Server on your system already, you can use the
Information Access data dictionary to create the HP ALLBASE/BRW
dictionary file, BRWDIC.
This data dictionary is on the HP 3000 host system and consists of two
databases:
* HDPDIC
This database contains all the information needed to allow access
to data.
* HDPENV
This database contains information about users.
The HP ALLBASE/BRW program BRWACCSD extracts this information from the
data dictionary and loads it into the BRWDIC file.
The combination HP ALLBASE/BRW and HP Information Access gives you a
powerful reporting system.
HP ALLBASE/BRW is the MIS tool for creating operational data on a
production basis.
HP Information Access gives PC-user's a tool for accessing data on
the HP 3000 through their PC--on demand.
These tools can share the same dictionary, the HP Information Access
dictionary. However, as HP ALLBASE/BRW supports several different
dictionaries, you must also construct a BRWDIC file.
There are three possible scenarios when setting up such a reporting
system:
a. You have HP ALLBASE/BRW and are now adding HP Information Access.
In this case, you have already defined the BRWDIC file and you
need to set up the HP Information Access Data Dictionary. Please
refer to the HP NewWave Office: Information Access Server
Database Administration manual for instructions.
b. You have HP Information Access and are now adding HP ALLBASE/BRW.
You can use the HP Information Access Data Dictionary as a source
for constructing the BRWDIC file. However, to take advantage of
HP ALLBASE/BRW features for Date- and Time- items, as well as
sub-items, you must define some extra information in an MPE file
called ACCSDEF before building the BRWDIC file. These steps are
described in the next section.
c. You purchase HP ALLBASE/BRW and HP Information Access together.
You should first set up the HP Information Access data dictionary
as described in the HP NewWave Office: Information Access Server
Database Administration manual, and then construct the BRWDIC file
as descibed in the next section.
Terminology
You should note that not all terms used in the HP Information Access data
dictionary mean the same thing in HP ALLBASE/BRW. Here is a list of the
terms used and their different meanings:
-------------------------------------------------------------------------------------------
| |
| HP Information Access HP ALLBASE/BRW |
| Data Dictionary |
| |
-------------------------------------------------------------------------------------------
| |
| table format |
| |
| data source location |
| |
-------------------------------------------------------------------------------------------
Note also that the following list of HP Access Server features is not
supported by HP ALLBASE/BRW:
* Environment information - access groups, users, security
information and so on.
* Information contained in View Tables, except that for:
* Using IMAGE compound-items (you do not have to break down
the compound item into single items).
* Defining parent/child relations in the ACCSDEF file with
the SUB function.
* Controlling the form in which IMAGE-zoned and -packed item types
are displayed by HP ALLBASE/BRW.
The following table lists the HP Information Access Data Dictionary
element-types and describes how they are handled by HP ALLBASE/BRW.
-----------------------------------------------------------------------------
| |
| HP Information Length BRW Type Remarks |
| Access (1 word |
| Type = |
| 16 bits) |
| |
-----------------------------------------------------------------------------
| |
| L (logical) 1 word I (integer) logical |
| |
| I (integer) 1 word I (integer) |
| |
| I (integer) 2 words I (integer) |
| |
| I (integer) 4 words N (numeric) only 13 digits supported |
| |
| R (real) 2 words R (real) |
| |
| R (real) 4 words R (real) |
| |
| C (character) S (string) maximum length 255 bytes |
| |
| P (packed) N (numeric) packed |
| |
| Z (zoned) N (numeric) zoned |
| |
| L, I, C D (date) date specified in ACCSDEF |
| |
| L, I, C T (time) time specified in ACCSDEF |
| |
-----------------------------------------------------------------------------
Supported Features
The following HP ALLBASE/BRW item types are not supported by HP
Information Access Server:
* The element types DATE and TIME.
* The definition of the sub-items of some types, used to describe
parent/child relations.
Defining Date and Time Using an ACCSDEF File
In order to describe the items Date and Time to HP ALLBASE/BRW, you must
define an additional MPE file which lists these items. This file must be
called ACCSDEF and can be defined with a conventional text editor. If
ACCSDEF is in the group in which you are creating the BRWDIC, the
BRWACCSD program automatically loads it.
Define the Date and Time items in the ACCSDEF file as shown in the
following example:
___________________________________________________________
| |
| Example: |
| -------- |
| : Comment : ;|
| : The entries of the example are taken from TOYDB ;|
| |
| SUBBEGIN |
| |
| TABLE order-details |
| sh-date-year = SUB (shipment-date,1,C2) |
| sh-date-month = SUB (shipment-date,3,C2) |
| sh-date-day = SUB (shipment-date,5,C2) |
| |
| TABLE orders |
| |
| order-date-year = SUB (order-date,1,2) |
| order-date-month = SUB (order-date,3,5) |
| order-date-day = SUB (order-date,5,2) |
| |
| SUBEND |
| |
| EDITBEGIN |
| |
| TABLE orders |
| |
| ITEM order-date |
| HEADING "string converted to date-ymd" |
| DATE DATE-YMD |
| ITEM order-date-year |
| HEADING "year component" |
| ITEM order-date-month |
| HEADING "month component" |
| ITEM order-date-day |
| HEADING "day component" |
| |
| TABLE order-details |
| |
| ITEM shipment-date |
| HEADING "string converted to date-ymd" |
| DATE DATE-YMD |
| ITEM sh-date-year |
| HEADING "year component" |
| ITEM sh-date-month |
| HEADING "month component" |
| ITEM sh-date-day |
| HEADING "day component" |
| |
| EDITEND |
| |
___________________________________________________________
Summary of example
This example illustrates how the characteristics of the following items
are changed:
SHIPMENT-DATE
in the dataset ORDER-DETAILS, and
ORDER-DATE
in the dataset ORDERS
Here is an outline of the steps used to change the items:
a. Create three sub-items (children), each with a two-digit value for
year, month and day.
b. Change the type of the parent item (currently C for character) to
date.
c. A short one-line explanation of what has been changed in the item
appears below the name of that item.
Syntax for ACCSDEF file

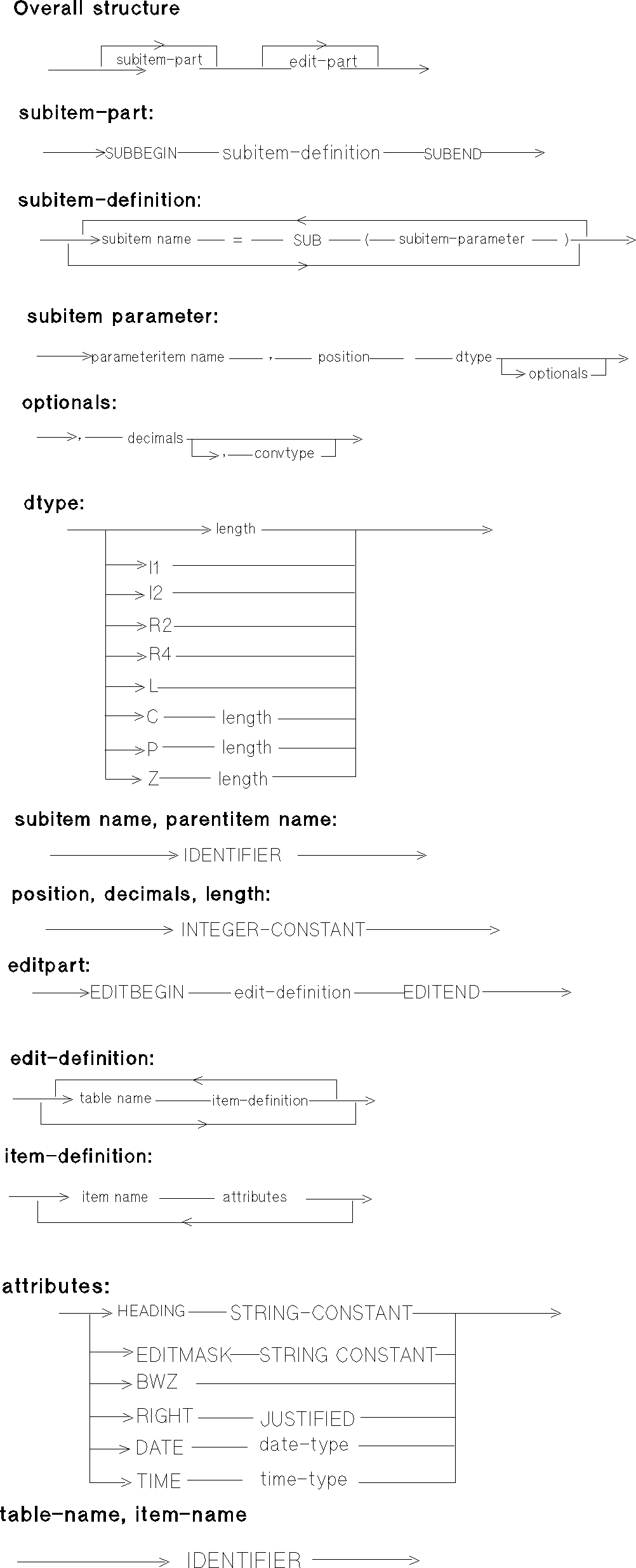

The figure on the next page illustrates the syntax for the ACCSDEF file.
![[]](../../pic3k/M011795/FFN2383c50.gif)
ACCSDEF syntax
The figure on the previous page shows the syntax for ACCSDEF. The rules
below and also the following sections describe this syntax in greater
detail.
Comments
You must enclose any comments in semicolons (;)
;COMMENT;
and you may not type a comment within a comment.
Sub-item Part
The Sub-item part implements the SUB function used in the View Tables in
the HP Information Access data dictionary.
Type in the following:
sub-item-name = SUB (parent-item-name; position,
which must be positive; dtype; decimals; convtype)
An Identifier must:
* Be 1 to 16 characters in length.
* Begin with an alphabetic character (A through Z) followed by:
* any characters from A to Z (lower or upper case)
* digits from 0 to 9
* any one of these special characters: + - * / ? ' # % & @
Example:
Assume you have an item defined in the HDPDIC as:
SHIPMENT-DATE X6
The value of the item represents a three-part date composed of
year, month, day, with two digits for each of the three parts;
each part can have a value of more than two digits if required.
Now you define the sub-item by splitting the date into its
individual components:
Note that one of the ITEMs must begin with 1, the smallest
positon.
A valid shipment date could be:
"880309"
SHIP-DATE-YEAR = SUB (SHIPMENT-DATE,1,C2)
SHIP-DATE-MONTH = SUB (SHIPMENT-DATE,3,C2)
SHIP-DATE-DAY = SUB (SHIPMENT-DATE,5,C2)
This is then converted to:
SHIP-DATE-YEAR = "88"
SHIP-DATE-MONTH = "03"
SHIP-DATE-DAY = "09"
You can now access these subitems with HP ALLBASE/BRW.
Edit Part
In the Edit part of the definition process you can add the following
attributes to an item:
* heading text and edit mask
These are both strings of a maximum length of 30 characters.
* Date type and Time type
You can change any item's type to a Date- or Time type with HP
ALLBASE/BRW. The original type of the item must, however, be equal
to the length of the new type you wish to assign to the item.
(This is not supported by HP Access Server.)
ACCSDEF Date and Time-Item Tables
You can use the following tables for reference purposes. They list the
various Date- and Time-types you can specify in the supporting file
ACCSDEF, together with the required type and length of the corresponding
element-entries in the HP Access Server Data Dictionary.
DATE-ITEM Table (DISPLAY and INTEGER Format)
-------------------------------------------------------------------------------------------
| |
| Dictionary/3000 Length Required Base Type Example: |
| Long Name (1 wd = 16 bits) (Date is 04/28/92) |
| |
-------------------------------------------------------------------------------------------
| |
| DATE-DMY-D 8 Bytes C 28/04/92 |
| |
| DATE-DMYY-D 10 Bytes C 28/04/1992 |
| |
| DATE-MDY-D 8 Bytes C 04/28/92 |
| |
| DATE-MDYY-D 10 Bytes C 04/28/1992 |
| |
| DATE-YMD-D 8 Bytes C 92/04/28 |
| |
| DATE-YYMD-D 10 Bytes C 1992/04/28 |
| |
| DATE-DDY-D 6 Bytes C 118/92 |
| |
| DATE-DDYY-D 8 Bytes C 118/1992 |
| |
| DATE-YDD-D 6 Bytes C 92/118 |
| |
| DATE-YYDD-D 8 Bytes C 1992/118 |
| |
-------------------------------------------------------------------------------------------
| |
| DATE-DM-D 5 Bytes C 28/04 |
| |
| DATE-MD-D 5 Bytes C 04/28 |
| |
| DATE-MY-D 5 Bytes C 04/92 |
| |
| DATE-MYY-D 7 Bytes C 04/1992 |
| |
| DATE-YM-D 5 Bytes C 92/04 |
| |
| DATE-YYM-D 7 Bytes C 1992/04 |
| |
-------------------------------------------------------------------------------------------
| |
| DATE-DMY-I 3 Words I, L |
| |
| DATE-DMYY-I 3 Words I, L |
| |
| DATE-MDY-I 3 Words I, L |
| |
| DATE-MDYY-I 3 Words I, L |
| |
| DATE-YMD-I 3 Words I, L |
| |
| DATE-YYMD-I 3 Words I, L |
| |
| DATE-DDY-I 2 Words I, L |
| |
| DATE-DDYY-I 2 Words I, L |
| |
| DATE-YDD-I 2 Words I, L |
| |
| DATE-YYDD-I 2 Words I, L |
| |
-------------------------------------------------------------------------------------------
Table 18-0. DATE-ITEM Table (DISPLAY and INTEGER Format) (cont.)
-------------------------------------------------------------------------------------------
| |
| Dictionary/3000 Length Required Base Type Example: |
| Long Name (1 wd = 16 bits) (Date is 04/28/92) |
| |
-------------------------------------------------------------------------------------------
| |
| DATE-DM-I 2 Words I, L |
| |
| DATE-MD-I 2 Words I, L |
| |
| DATE-DD-I 1 Word I, L |
| |
| DATE-MY-I 2 Words I, L |
| |
| DATE-MYY-I 2 Words I, L |
| |
| DATE-YM-I 2 Words I, L |
| |
| DATE-YYM-I 2 Words I, L |
| |
-------------------------------------------------------------------------------------------
| |
| DATE-CALENDAR 2 Bytes I, L |
| |
| DATE-JULIAN 4 Bytes I, L |
| |
-------------------------------------------------------------------------------------------
DATE-ITEM Table (NUMERIC and ALPHANUMERIC Format)
-------------------------------------------------------------------------------------------
| |
| Date/Time Length Required HDPDIC Type Required Example: |
| Keyword (1 word = 16 bits) (Date is 04/28/92) |
| |
-------------------------------------------------------------------------------------------
| |
| DATE-DMY 6 Bytes C 280492 |
| |
| DATE-DMYY 8 Bytes C 28041992 |
| |
| DATE-MDY 6 Bytes C 042892 |
| |
| DATE-MDYY 8 Bytes C 04281992 |
| |
| DATE-YMD 6 Bytes C 920428 |
| |
| DATE-YYMD 8 Bytes C 19920428 |
| |
| DATE-DDY 5 Bytes C 11892 |
| |
| DATE-DDYY 7 Bytes C 1181992 |
| |
| DATE-YDD 5 Bytes C 92118 |
| |
| DATE-YYDD 7 Bytes C 1992118 |
| |
-------------------------------------------------------------------------------------------
| |
| DATE-DM 4 Bytes C 2804 |
| |
| DATE-MD 4 Bytes C 0428 |
| |
| DATE-DD 3 Bytes C 118 |
| |
| DATE-MY 4 Bytes C 0492 |
| |
| DATE-MYY 6 Bytes C 041992 |
| |
| DATE-YM 4 Bytes C 9204 |
| |
| DATE-YYM 6 Bytes C 199204 |
| |
-------------------------------------------------------------------------------------------
TIME-ITEM Table (All Formats)
-------------------------------------------------------------------------------------------
| |
| Date/Time Length Required HDPDIC Type Required Example: |
| Keyword (Time is 15:43:24) |
| |
-------------------------------------------------------------------------------------------
| |
| TIME-HM24-I 4 Bytes C 1543 |
| |
| TIME-HMS24-I 6 Bytes C 154324 |
| |
| TIME-HM12-I 5 Bytes C 0343P |
| |
-------------------------------------------------------------------------------------------
| |
| TIME-HM24-D 5 Bytes C 15:43 |
| |
| TIME-HMS24-D 8 Bytes C 15:43:24 |
| |
| TIME-HM12-D 6 Bytes C 03:43P |
| |
-------------------------------------------------------------------------------------------
| |
| TIME-HM24-I 2 Words I, L |
| |
| TIME-HMS24-I 2 Words I, L |
| |
-------------------------------------------------------------------------------------------
| |
| TIME-CLOCK 4 Bytes I, L |
| |
-------------------------------------------------------------------------------------------
Preparing a BRWDIC with HP Information Access Data Dictionary
After you have specified which information from the HP Information Access
data dictionary you require for use with HP ALLBASE/BRW, you must create
the BRWDIC using the BRWACCSD program.
The BRWACCSD program extracts the information from the data dictionary's
database, HDPDIC, and creates a dictionary file, BRWDIC.
Before you can run the BRWACCSD program, you must use a file equation to
ensure that BRWACCSD can open the database root-file HDPDIC and the
ACCSDEF file even when they are not in the same group where you create
the dictionary file, BRWDIC. Typically, HDPDIC resides in the group
PPCDICT of the account HPOFFICE, and ACCSDEF resides in the group where
you normally work. In our example, ACCSDEF resides in yourgroup on
youraccount.
To create the BRWDIC with BRWACCSD
1. Type the following file equations:
FILE HDPDIC=HDPDIC.ppcdict.hpoffice
FILE ACCSDEF=ACCSDEF.yourgroup.youraccount
Use the groups and accounts appropriate for your data.
2. Run BRWACCSD:
:RUN BRWACCSD.PUB.SYS
This prompt appears:
Dictionary Password :
3. Type the dictionary password and press Return. If you press
Return without typing in anything, the BRWACCSD program
terminates. The password does not appear on the screen when you
type it.
4. Respond to the next prompt:
Dictionary Password : not displayed
Use Parent Items (N/Y): _
a. Type Y (yes) if you wish to include (use) the parent items
in the dictionary file, BRWDIC.
b. Type N (no) or press Return if you do not wish to include
them.
If ACCSDEF is in the group where you are working, the following
appears:
*** Supporting File opened is ACCSDEF
Print to File (N/Y) :
a. Type in Y (yes) if you want the list of error messages from
the analysis of ACCSDEF to be written to the ACCSPRNT file.
b. Type N (no) or press Return if you want the list of error
messages to be written to the $STDLIST file.
The BRWACCSD program now begins analyzing the ACCSDEF supporting file.
* * * Start analysing ACCSDEF
* * * ERRORS 0 Warnings 0
* * * Start analysing HPDIC
END OF PROGRAM
After analyzing ACCSDEF, the total number of errors and warnings is
displayed on the screen.
If the error total is 0, the BRWACCSD program begins analyzing the
HDPDIC. (The total number of warnings is irrelevant.)
Once the analysis is complete and there were no errors, BRWACCSD creates
the HP ALLBASE/BRW dictionary file, BRWDIC. [REV BEG] (If there are
warnings, the BRWDIC file will still be created.) [REV END]
