Maintaining File Security
[REV BEG]
Three security features are available on the MPE/iX system to restrict
access to a single file or all disc files in a particular account or
group: lockwords, the MPE/iX File Access System matrix, and access
control definitions (ACDs).
Lockwords
Lockwords are file "passwords" which provide a primary level of file
security by restricting access to a file to users not knowing the file's
lockword. These lockwords may be assigned to a file when the file is
created with the BUILD command or when the file is renamed. To delimit
the lockword, enter a forward slash (/) following the file name:
BUILD MYFILE/KEY
RENAME MYFILE/LOCK
[REV END]
For additional information, refer to the MPE/iX Commands Reference Manual
Volumes 1 and 2 (32650-90003 and 32650-90364).
MPE/iX File Access System
The HP 3000 system includes a set of security provisions with each
account, group, and individual file. This set specifies restrictions on
access to a single disc file or to all disc files in a particular account
or group.
The restrictions are based on three factors:
* Modes of access (for example, reading, writing, or saving).
* Types of user (for example, a user with Account Librarian
capability, Group Librarian capability, or a user to whom the
access modes specified are permitted.)
The security provisions for any file describe the permitted access modes
for various users of the file.
Specifying and Restricting File Access by Access Mode.
When a program opens or creates a file, it can define the way the file
can be accessed by specifying a particular access mode for the file (for
example, read-only, write-only, update, and so on). These specifications
apply to files on any device, and only the creator of file can change or
override them.
When specifying the access mode for a file, it is important to know the
location of the current end-of-file before and after the file is opened
and the location of the logical record pointer that indicates where the
next operation will begin. For example, the choice of the correct access
mode can write a record to a file and:
* Append it following the last record or overwrite an existing
record.
* Correct information in a file rather than delete it.
* Redirect output from one device to another.
For detailed information on this topic, refer to Accessing Files
Programmer's Guide (32650-90017).
Table 6-8 describes the file access mode types.
Table 6-8. File Access Mode Types
-----------------------------------------------------------------------------------------------
| | | |
| Access Mode | :FILE Parameter | Description |
| | | |
-----------------------------------------------------------------------------------------------
| | | |
| | | |
| Read only | IN | Allows you to read a file, but not to write |
| | | on it. |
| | | |
- -
| | | |
| Write only | OUT | Allows you to write on a file, but not to |
| | | read it. Any data already in the file is |
| | | deleted when the file is opened. |
| | | |
- -
| | | |
| Write (save) only | OUTKEEP | Allows you to write on a file, but not to |
| | | read it. You can add new records both |
| | | before and after current end-of-file |
| | | indicator. |
| | | |
- -
| | | |
| Append only | APPEND | Allows you to append information to a file, |
| | | but not to overwrite the current |
| | | information or read the file. You can add |
| | | new records only after the current |
| | | end-of-file indicator. Used when present |
| | | contents of a file must be preserved. |
| | | |
- -
| | | |
| Input/output | INOUT | Allows unrestricted input and output access |
| | | of file. Information already on the file |
| | | is saved when the file is opened. (In |
| | | general, it combines the features of IN and |
| | | OUTKEEP.) |
| | | |
- -
| | | |
| Update | UPDATE | Allows use of FUPDATE intrinsic to alter |
| | | records in a file. Record is read into |
| | | your data stack, altered, and rewritten to |
| | | the file. All data already in the file is |
| | | saved when the file is opened. |
| | | |
- - - -
-----------------------------------------------------------------------------------------------
Specifying File Access by Type or User.
Restrictions on accessing a file are established when the file is created
according to the default established for the group and account where the
file resides.
The capabilities of a user who accesses a file can determine the security
restrictions applied. Table 6-9 describes the types of users
recognized by the MPE/iX Security System, their mnemonic codes, and
definitions.
Table 6-9. User Type Definitions
-----------------------------------------------------------------------------------------------
| | | |
| User Type | Mnemonic Code | Description |
| | | |
-----------------------------------------------------------------------------------------------
| | | |
| | | |
| Any user | ANY | Any user defined in the system, including |
| | | all categories defined below. |
| | | |
- -
| | | |
| Account librarian | AL | User with account librarian capability, who |
| user | | can manage certain files within the account |
| | | that may or may not all belong to one |
| | | group. |
| | | |
- -
| | | |
| Group librarian | GL | User with group librarian capability, who |
| user | | can manage certain files within his home |
| | | group |
| | | |
- -
| | | |
| Creating user | CR | User who created this file |
| | | |
- -
| | | |
| Group user | GU | Any user allowed to access this group as |
| | | his logon or home group, including all GL |
| | | users applicable to this group. |
| | | |
- -
| | | |
| Account member | AC | Any user with authorized access under this |
| | | account, including access through AL, GU, |
| | | GL, and AC. |
| | | |
- - - -
-----------------------------------------------------------------------------------------------
For detailed information on this topic, refer to Accessing Files
Programmer's Guide (32650-90017).
The user access modes to a file are determined by four separate levels of
security settings. All four levels are checked and must be passed to
grant a user access to a file. The only two levels over which a standard
user has control are the file and lockword levels. However, it is
important for a standard user to understand all levels of the security
system, since the combination of all the settings determines the user's

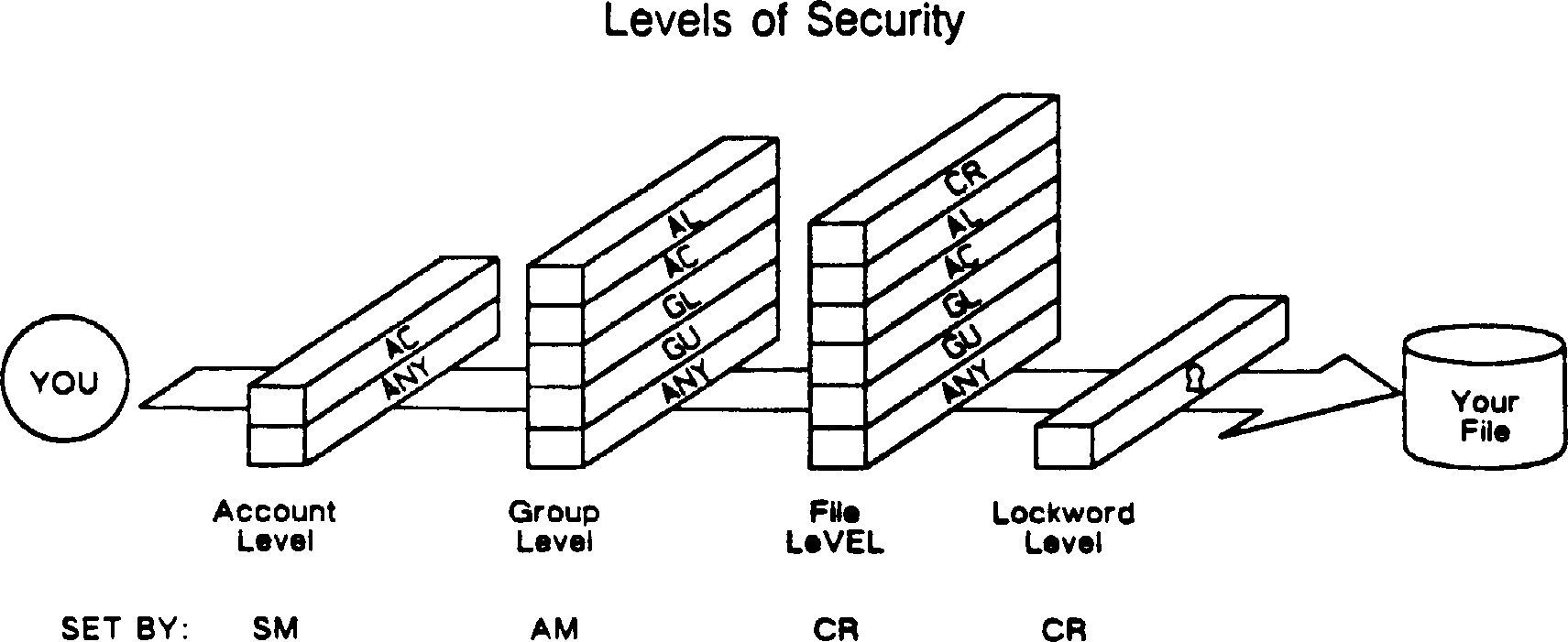

access to the file. Figure 6-16 shows the security levels checked
when a user attempts to gain access to a file.
![[]](../../pic3k/M012013/FFN523c50.gif)
Figure 6-16. Security Level for File Access
The default security at account, group, and file levels are as follows:
* Account level
SYS (R,X:ANY;W,A,L:AC)
other accounts (R,X,W,A,L:AC)
* Group level
PUB (R,X:ANY;A,W,L,S:AL,GU)
other groups (R,W,A,L,X,S:GU)
* File level
(R,X,W,A,L:ANY)
At the group level, the MPE/iX Security System recognizes six access
modes:
Reading (R)
Appending (A)
Writing (W)
Locking (L)
Executing (X)
Saving (S)
It recognizes seven user types:
Any User (ANY)
Account Librarian User (AL)
Group Librarian User (GL)
Group User (GU)
Account Member (AC)
System Manager (SM)
Account Manager (AM)
For detailed information on this topic, refer to Accessing Files
Programmer's Guide (32650-90017).
When a file is created, the security provisions that apply to it are the
default provisions assigned by MPE/iX at the file level, coupled with the
user-specified or default provisions assigned to the account and group to
which the file belongs. At any time, however, the creator of the file
can change the file level security provisions. Thus, the total security
provisions for a file depend on specifications made at three levels:
account, group, and file. A user must pass tests at the account, group,
and file levels (in order) to successfully access a file in the requested
mode.
If no security provisions are explicitly specified by the user, the
following provisions are assigned at the file level by default:
Reading (R)
Appending (A)
Writing (W)
Locking (L)
Executing (X)
Any User (ANY)
Because the total security for a file always depends on security at all
three levels, a file not explicitly protected from a certain access mode
at the file level may benefit from the default protection at the group
level. For detailed information on this topic, refer to Accessing Files
Programmer's Guide (32650-90017).
[REV BEG]
Access Control Definitions (ACDs)
Access Control Definitions (ACDs) allow the owner of a file to specify
permissions for access to a file or to a device. An ACD takes precedence
over the previous access controls, namely the MPE file access matrix and
lockwords. The owner of a file is any of the following: the creator of
the file, the account manager (AM capability) where the file resides, or
the system manager (SM capability).
A device or file can be paired with an ACD. When a user tries to acquire
the device or to open the file, the system first checks the authorization
list of the associated ACD. When a file is paired with an ACD, the ACD is
put into its file label extension. The ACD contains a list of access
modes paired with users.[REV END]
Specifying and Restricting File Access. [REV BEG]
Similar to the MPE File Access System, ACDs use modes to specify the
types of access to grant or refuse to users as follows:
R read
W write
A append
L lock
X execute
NONE none (no access)
RACD read and copy the ACD permission file
ACDs are defined in a similar manner as file access modes. For example:
ACD = (R,W:MGR.ACCTING, DENNIS.LEE; R:@.PAYROLL; A:@.@
MGR.ACCTING and DENNIS.LEE can read and write to the file associated with
this example ACD. Any user in PAYROLL can read it, and any user on the
system can append to it. If a user is not given a permission, the user
does not have it.
Managing ACDs with Commands and Intrinsics.
Use commands to manage ACDs interactively through the command
interpreter. Use intrinsics to manage ACDs in a program.
1. Creating ACDs
ACDs for files may be created or owned by the system manager (SM
capability), the account manager (AM capability) where the file
resides, or by the creator of the file. ACDs for devices can only
be created or owned by the system manager (SM capability).
When creating a new file with the COPY, FCOPY, or RESTORE
commands, use parameters to create its ACD. Use the ALTSEC command
or the HPACDPUT intrinsic to create an ACD for an existing device
or file.[REV END]
[REV BEG]
2. Preserving ACDs
Device ACDs are not permanent objects and must be redefined every
time the system is rebooted. The easiest ways to do this are to
put ALTSEC commands into the SYSTART file, either directly or in a
command file.
File ACDs are permanent objects and survive a reboot. When
storing files to tape, FCOPY and STORE store the files' ACDs
unless you specify otherwise.
3. Listing ACDs
To get information about ACDs interactively, use the SHOWDEV
command for devices, and the LISTFILE command for files. To get
information about ACDs programmatically, use the HPACDINFO or
HPACDPUT intrinsics.
Any user can find out whether an ACD exists for a particular
device or file, but only an owner, or user granted RACD (read ACD)
access, can get a listing of the ACD contents.
4. Copying ACDs
To copy an ACD from one file to another, use the COPYACD parameter
of the ALTSEC command. Only the owner or user granted RACD (read
ACD) access can copy an ACD.
5. Modifying ACDs
To change an ACD, use the ALTSEC command or the HPACDPUT
intrinsic. Only an owner can alter an ACD.
6. Deleting ACDs
To delete an ACD, use the ALTSEC command or the HPACDPUT
intrinsic. Only an owner can delete an ACD.
7. Migrating ACDs
Both MPE V/E and MPE/iX support the use of ACDs. MPE/iX, however,
allows more user-mode pairs than MPE V/E.
_________________________________________________________________
NOTE Device ACDs shold not be migrated because they are tied to
their system's configuration.
_________________________________________________________________
Move file ACDs between MPE V and MPE/iX by using the STORE and
RESTORE commands, where COPYACD is the default.[REV END]
[REV BEG]
_________________________________________________________________
NOTE You must have authorization to use the COPYACD parameter of
the STORE and RESTORE commands. If you are not an owner of
the file and do not have RACD permission, you will get an
error.
_________________________________________________________________
Changing Disc File Security Provisions.
The security provisions for the account and group levels are managed only
by users with System Manager or Account Manager capabilities,
respectively. However, you can change the security provisions for any
disc file you have created by using the :ALTSEC command. This does not
affect any account-level or group-level provisions that may cover the
file, and it does not affect the security provided by a lockword. For
detailed information on this topic, refer to Accessing Files Programmer's
Guide (32650-90017).
Suspending and Restoring Security Provisions.
You can temporarily suspend the security restrictions on any disc file
you create by using the :RELEASE command. This allows any user to access
the file in any mode, thus providing unlimited access to the file. It
does not remove lockword protection, and it does not modify the file
security settings recorded in the system. It merely bypasses them
temporarily. :RELEASE remains in effect for a file until you enter the
:SECURE command in this or a later job or session or until the file is
modified.
For detailed information on this topic, refer to Accessing Files
Programmer's Guide (32650-90017).[REV END]
