HP 3000 Manuals

Using the 900 Series HP 3000: Advanced Skills Module 2: File Management

Lesson 3 Creating Temporary Files


NOTE  System programmers must read this lesson.  If you do not plan to do
      any programming, you may skip this lesson.


Introduction

Lesson 3 presents the following concepts related to compiling and linking
files:

   *   displaying names of temporary files

   *   creating temporary files during compiling and linking

   *   using system-defined temporary files to redirect compilation
       output

Some files, other than those that you create, are created by the system
or subsystem temporarily during program compiling and linking.  These
files are referred to as temporary, system-defined files.  In this
lesson, you will learn about several of these system-defined files:

$NEWPASS      Temporary file created automatically during compiling to
              which newly generated compiled code is written.

$OLDPASS      Temporary file created automatically when compiling
              is complete.  Used to hold compiled code.

$NULL         Temporary file that is empty when used as input and
              meaningless when used as output.  (The output essentially
              disappears into what
              is referred to as the bit bucket.)

Each of these files is discussed in this lesson.

$NEWPASS and $OLDPASS

The system creates temporary files to hold data generated during program
processing.  By doing this, output from one process can serve as input to
another process.  For example, compiler output serves as linker input.


          Figure 2-4.  Temporary Files

When you compile and link a program, the following happens, as shown in
figure 2-4:

   1.  Source code serves as input to the compiler.

   2.  The compiler builds $NEWPASS and writes compiled code to $NEWPASS.

   3.  When compiling is done, $NEWPASS is closed and renamed $OLDPASS
       (automatically).  $OLDPASS contains the object code.

   4.  The linker uses $OLDPASS as input.

   5.  The linker builds $NEWPASS and writes linked, executable code to
       $NEWPASS.

   6.  When linking completes, $NEWPASS is closed and renamed $OLDPASS
       (automatically).  $OLDPASS contains the executable code.  $OLDPASS
       may be executed or saved with a new name by the user.

The LISTFILE command alone does not the names of these files.  LISTFILE
displays only permanent, disk files.  To display the names of temporary
files, such as $OLDPASS, you must use the ;TEMP option of the LISTFILE
command (LISTFILE;TEMP).

Here is an exercise that generates these temporary files.

Exercise 2-3:  $OLDPASS.

Follow the designated steps to generate $OLDPASS.

   1.  Make sure that you are logged on as USERx.ACCTx in the CLASS
       group.

   2.  Compile and link the C source code called HIC. You can list its
       contents with PRINT. The commands to compile and link are given
       below:

            CCXLLK source,program,listfile

       source:               source file (HIC)

       program:              compiled, linked code (default = $OLDPASS)

       listfile:             errorlisting file (default = terminal
                             screen)

          a.  Allow the name of the executable program file (compiled,
              linked version) to default.

          b.  Name the error listing file, HIERR.

   3.  To see if any temporary files were generated, enter:

            LISTFILE @.CLASS,2;TEMP

          a.  Are any temporary files generated?

          b.  What is their file type and file code?  What does this
              mean?  (A list of codes appears in the help facility (at
              the system prompt, enter:  HELP FILE FILECODE). The same
              information is available in appendix F of the MPE/iX
              Commands Reference Manual Volumes 1 and 2 (32650-90003 and
              32650-90364).

          c.  What happens if you enter

                   LISTFILE @.CLASS.ACCTx,2

              Why?

   4.  To save the $OLDPASS file as a permanent file, you must enter this
       command:

            SAVE $OLDPASS,filename

          a.  Do so now to save $OLDPASS as a permanent file called HICP.

                   SAVE $OLDPASS,HICP

          b.  Use the LISTFILE command to verify that it is now a
              permanent disk file with the proper characteristics.
              Notice in particular that this is a binary file, ready for
              execution.

   5.  Use LISTFILE,3 to examine the characteristics of the HIERR file
       (especially the record size and the file type).  Since HIERR is an
       ASCII file, you should be able to view it; however, the record
       size is too great for the editor.  What might you do to remedy
       this?

********** End of Exercise 2-3 **********

When you are modifying, compiling, and linking several programs, over and
over again, $OLDPASS always contains the latest version of whatever
source code was processed.  To prevent the possibility of overwriting the
current
processed code, you must explicitly specify a program file name in the
compile/link command line.

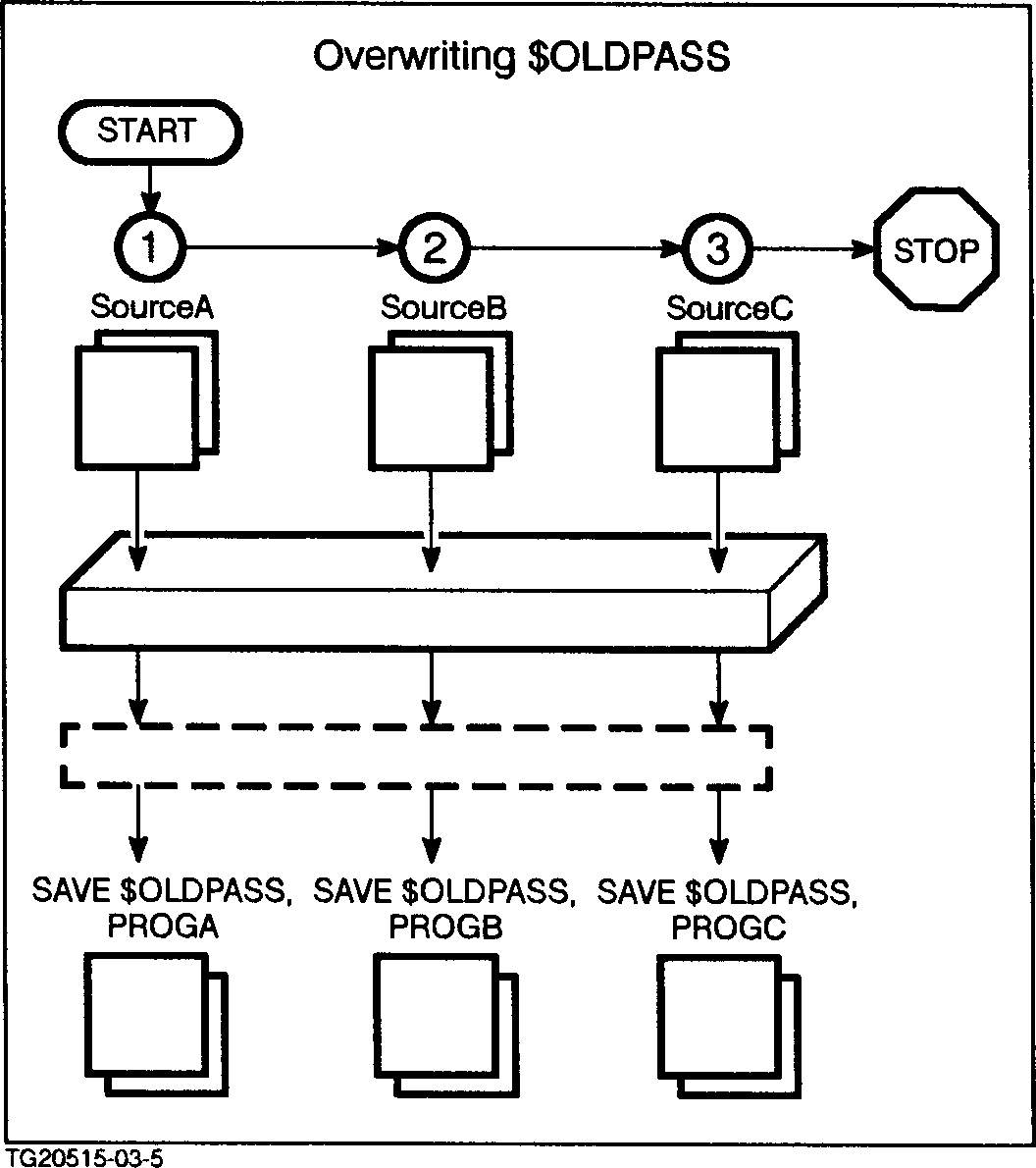

          Figure 2-5.  Overwriting $OLDPASS

Allow the name to default to $OLDPASS only if you are working with just
one program.  Make sure to save $OLDPASS under a different name when you
finish, because temporary files only exist for the duration of the
session!

$NULL

If you wish your output to "disappear," $NULL is a handy file to use.
Output that is written to $NULL goes nowhere ("bit bucket").

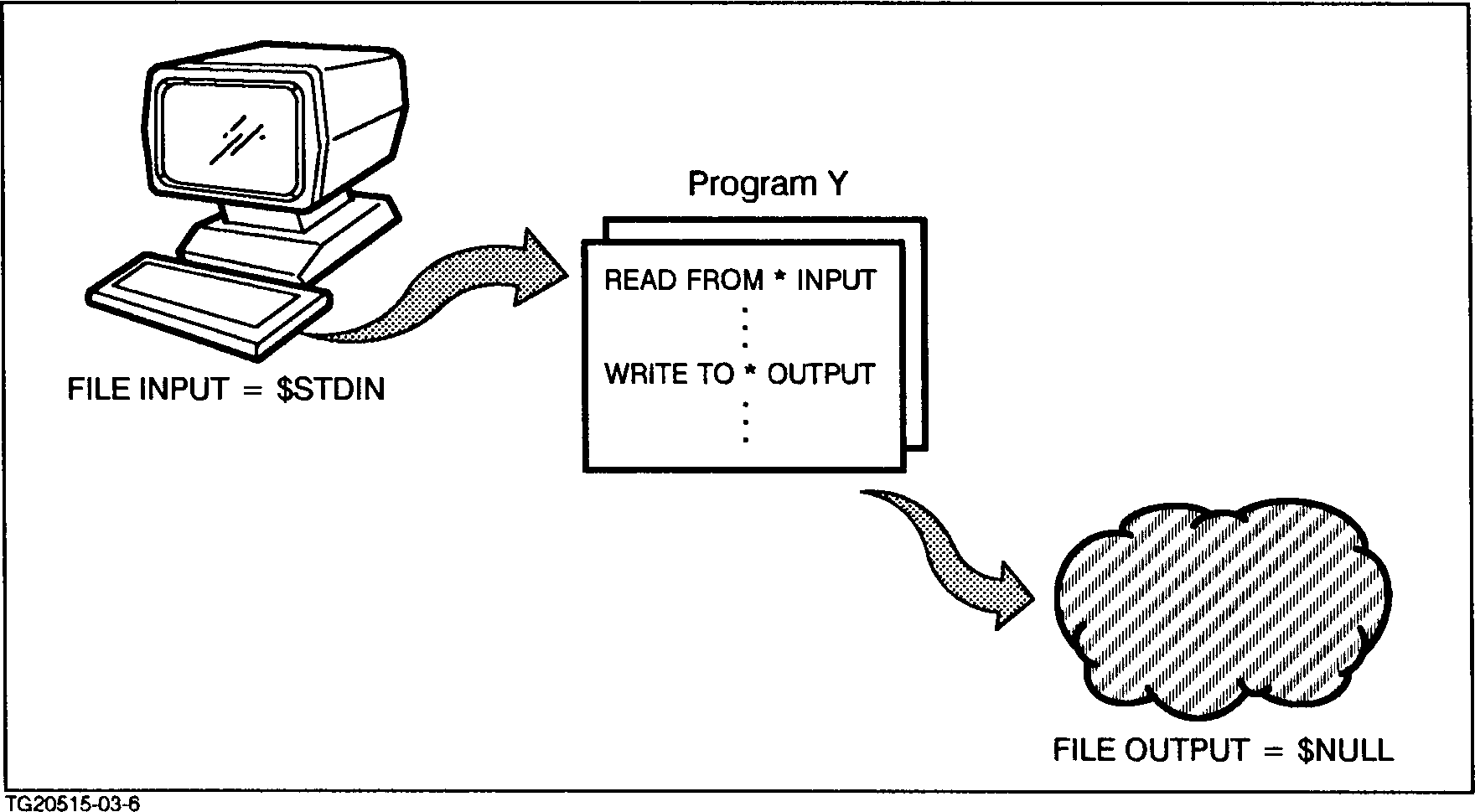

          Figure 2-6.  $NULL File

For example, suppose that you had a program that took user input,
performed calculations, and wrote those calculations to the terminal and
to a file.  During the compiling/linking phase, you are interested only
in whether or not the program is syntactically correct.

For testing purposes--when you run the program--you are interested only
in whether or not it prompts correctly, and lists the results on the
screen where you can examine them.  You don't care whether the results
are stored in a file or not.  In this case, you can specify the output
file to be $NULL and it will never show up on disk.


NOTE  For Programmers

      When compiling a large program, specify $NULL as the list file.
      Compilation occurs much faster since no time is spent listing
      program lines on the screen.


Lesson summary

   1.  The LISTFILE;TEMP command displays the names of temporary files.

   2.  $NEWPASS and $OLDPASS are created during compiling and linking.
       Only $OLDPASS remains after the process.

   3.  $NULL can be used to direct program output to "disappear" during
       testing.

   4.  SAVE is used to save a temporary file as a permanent one.
