Conversion Algorithm

The conversion utilities convert records or fields from files that are
assumed to have been created at an HP 262X terminal configured for 7-bit
operation and for a language other than USASCII. The conversion from the
HP 262X implementation of a European 7-bit substitution character set to
the 8-bit ROMAN8 character set.  This involves converting the values of
certain characters stored in the file.  Before conversion, the file
should look correct on an HP 262X terminal configured for 7-bit operation
with the appropriate substitution set.  After conversion the file will
look correct on any terminal configured for 8-bit operation.

Records and/or fields from files of all types are converted using the
same algorithm.  The conversion affects only the 12 characters shown in
Table D-2 (all other characters remain unchanged).  There are two rows of
information opposite each national substitution set listed in Table D-2:

 *  The upper row indicates the graphic assigned in 7-bit operation.

 *  The lower row indicates the decimal value assigned the graphic in
    ROMAN8 after using the conversion algorithm.

          Table D-2.  Character Conversion Decimal Values


Table D-3 shows the special character conversion for specified FRANCAIS M
and ESPANOL M characters.  If these characters are followed immediately
by certain characters, the two-character combination is converted to a
single ROMAN8 character, and the field or record being converted is
padded at the end with a blank.

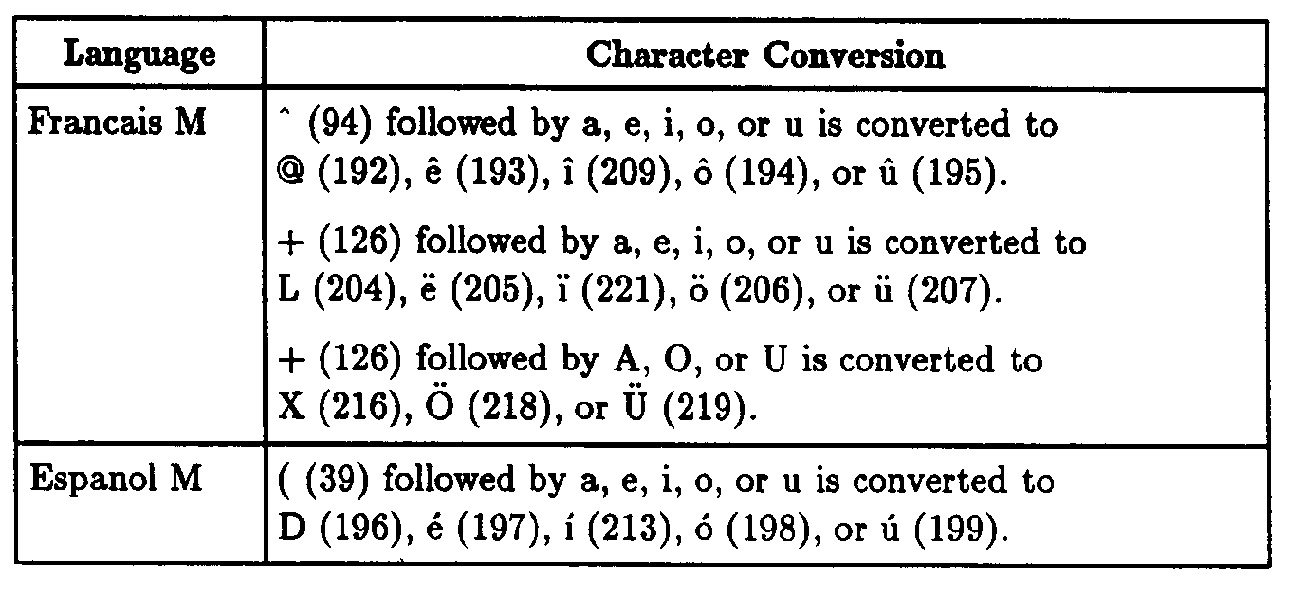

          Table D-3.  Special Character Conversion



NOTE  If these characters are followed by any other character, they are
      converted to their ROMAN8 equivalent as shown in Table D-2.
