Process Management Programmer's Guide

Deleting Processes

MPE XL provides intrinsics that enable your program to delete itself
and/or other processes.  You may wish to delete a process because:

 *  It has accomplished its task (use the TERMINATE or KILL intrinsics).

 *  It has reached an error condition (use the QUIT or QUITPROG
    intrinsics).

When your program directs MPE XL to delete a process, MPE XL uses the
algorithm illustrated in Figure 2-1 to delete a process.  When your
program deletes a process, MPE XL also searches for and deletes all of
the process's descendants (children, grandchildren, and so forth ).  In
addition, the operating system accomplishes the following tasks:

 *  All files opened by the process are closed and assigned the same
    disposition they had when opened (as if the FCLOSE intrinsic had been
    called with a disposition of zero).

 *  All system resources reserved for that process (including the data
    area, process control block, and PIN) are returned to MPE XL and made
    available for use by other processes.

The following sections describe how your program can delete itself and/or
another process using these intrinsics:

 *  TERMINATE

 *  KILL

 *  QUIT

 *  QUITPROG

Deleting a Process with TERMINATE

Your program can call the TERMINATE intrinsic to delete itself.  The
following is an example of a TERMINATE intrinsic call:

     TERMINATE;

MPE XL deletes the process by following the algorithm described in
"Deleting Processes" .

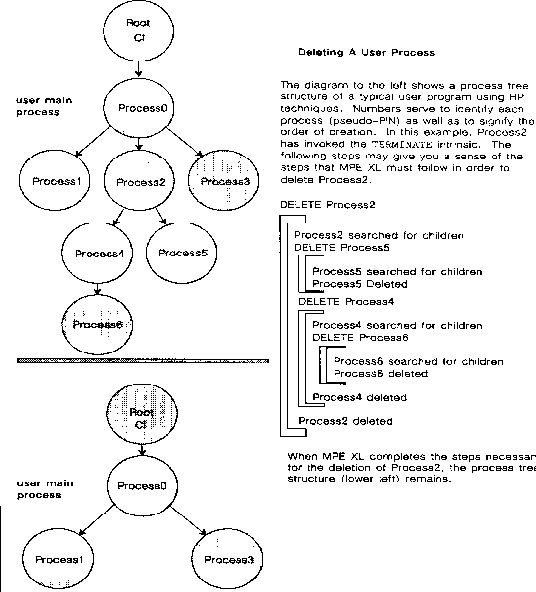

          Figure 2-1.  MPE XL Algorithm for Process Deletion

Deleting a Child Process with KILL (PH Capability Required)

If your program has PH capability, it can call the KILL intrinsic to
delete a child process.  An example of a KILL intrinsic call is:

     KILL (PIN);

PIN specifies the Process Identification Number of the child process to
be deleted from the system.  MPE XL deletes the process by following the
algorithm described in "Deleting Processes" .

Aborting a Process

When your program has reached what you (the programmer) have defined as
an error condition, you may wish to delete it from the system.  In
addition, you want to be notified that MPE XL deleted the calling process
in an error condition (aborted).

The QUIT intrinsic accomplishes this task by:

   1.  Transmitting an abort message to $STDLIST

   2.  Setting your job/session Job Control Word (JCW) to an error state

   3.  Directing MPE XL to delete the calling process, following the
       algorithm described in "Deleting Processes"

The following is an example of a QUIT intrinsic call:

     QUIT (NUM);

The NUM parameter is transmitted to $STDLIST as part of the abort
message.  You can use this number to assist you in determining the state
of the calling process when the abort occurred.

In a session, your Root CI remains active even after the entire program
finishes.  In a batch job, the job terminates as soon as the entire
program finishes, unless the :CONTINUE command is in effect.

Aborting the Entire User Process Structure

Your program can call the QUITPROG intrinsic to abort your entire user
process structure (all processes below the Root CI). The QUITPROG
intrinsic functions similarly to the QUIT intrinsic.  The only difference
is that when your program calls QUITPROG, MPE XL deletes the entire user
process structure (not just the calling process, as is the case with
QUIT).

The following is an example of a QUITPROG intrinsic call:

     QUITPROG (NUM);

The NUM parameter is transmitted as part of the abort message to the
calling process's $STDLIST. You can use this number to assist you in
determining the state of the calling process when the abort occurred.

In a session, your Root CI remains active even after the entire program
is aborted.  In a batch job, the job terminates, unless the :CONTINUE
command is in effect.
