USING VPLUS/V AN INTRO. TO FORMS DESIGN Self-Paced Training Guide

TERMINATE REPEATING FORM

Suppose there is no more order information and you want to record the
totals for the current order.

Action

Press NEXT FORM.

The screen is cleared and the final form, ORDER_TOTALS, displayed on the
screen.  The totals from individual order lines have been summed to
determine the net total for the order, which is displayed on this screen
along with the order number and date, as shown in Figure 7-24.

Although the form design would allow the user to change the tax rate, the
discount percentage, or enter a shipping charge, it is not necessary.

Action

Do not enter data on this form; press ENTER to record the totals on batch
Record #4.

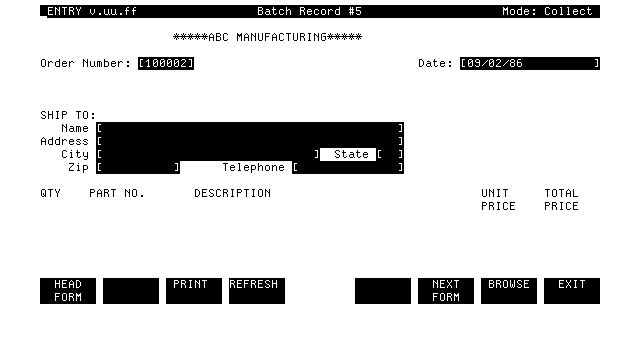

          Figure 7-25.  The ORDER_HEAD Form

When you press ENTER, the screen is cleared and a new header form is
displayed, as shown in Figure 7-25.  The new form has the order number
100002 since it is the start of a new order.

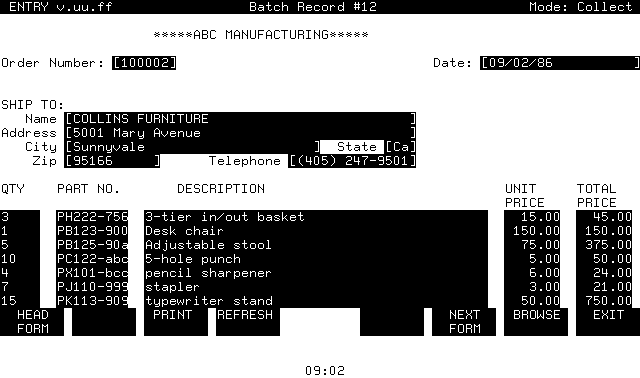

          Figure 7-26.  The ORDER_LINE Form Appended the Maximum Number of Times
