MORE CALCULATED FIELDS

The next field after DISCNT is called SUB and contains the subtotal.
This value is the result of subtracting any discount from the net total.
The subtotal is another display-only field containing a dollar value.

Action

Change the field type (FType) to D and the data type (DType) to NUM2.
Then press FIELD TOGGLE to enter the SET statement that calculates a
subtotal, as shown in Figure 5-12.  Press ENTER.

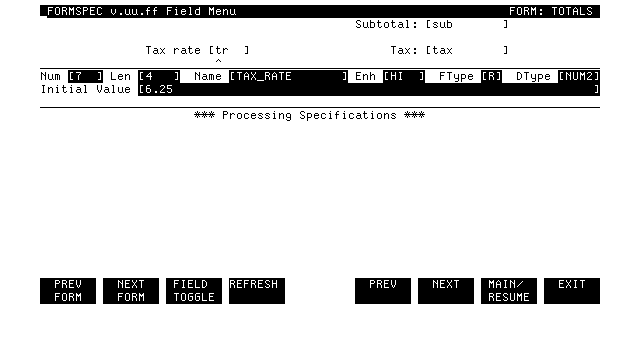

          Figure 5-13.  Field Menu for TAX_RATE in the TOTALS Form

After you press ENTER at the SUB field, the next Field Menu is the one
for the tax rate (TR) field.

Action

As shown in Figure 5-13, change the name of this field to TAX_RATE for
clarity in subsequent statements.  Make it a required field, and give it
the data type NUM2.  Since tax rates are fairly stable, assign this field
an initial value of 6.25 for a tax rate of 6 1/4%.  Press ENTER.

The data type is R for required rather than D for display-only so that
the user can change the initial tax rate as needed.

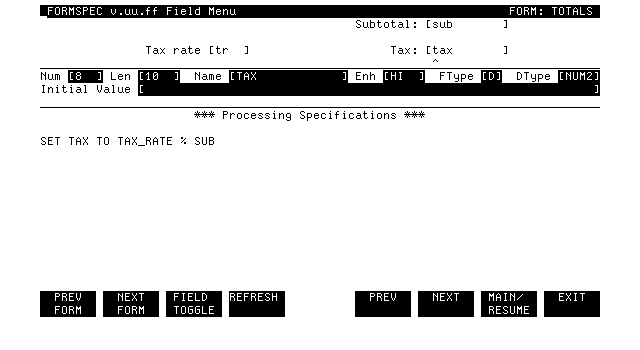

          Figure 5-14.  Field Menu for TAX in the TOTALS Form

The next Field Menu is for the TAX field, which is a display-only field
calculated from the tax rate and the discounted total.

Action

As shown in Figure 5-14, change the field type to D, the data type to
NUM2 to correspond to the other dollar values, and then go to the
Processing Specifications to enter the SET statement to calculate the
tax.  Press ENTER.

Assuming the tax rate is 6.25, this statement sets the TAX field to 6 1/4
percent of the subtotal value in the SUB field.  Remember that the value
of SUB is the net total less the discount.

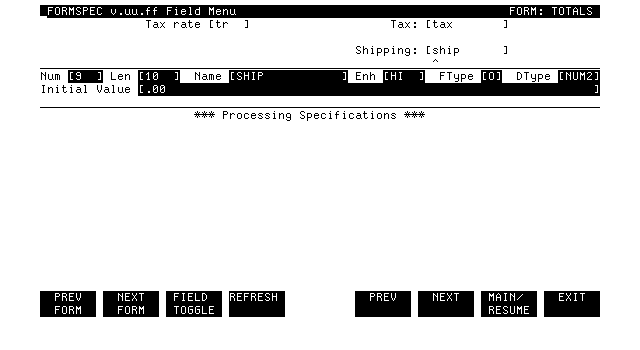

          Figure 5-15.  Field Menu for SHIP in the TOTALS Form

The next Field Menu displayed is for the SHIP field, which is the
shipping cost value.  Shipping cost is a user-entered value that may or
may not be needed.

Action

At the Field Menu for SHIP, leave the field type as O for optional,
change the data type to NUM2 to conform to the other dollar values, and
provide an initial value of zero (in the format .00 as shown in Figure
5-15).

Since the value of the SHIP field is used in a later calculation, it must
have a value or the calculation would not be made.

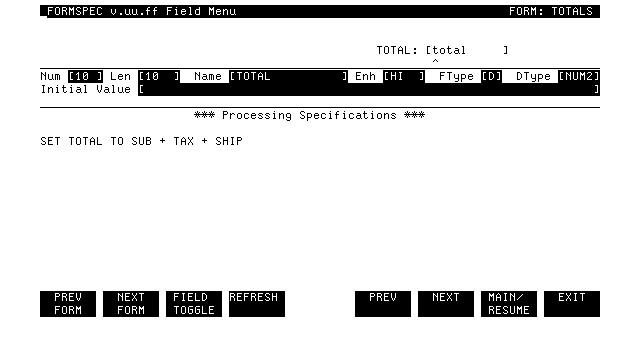

          Figure 5-16.  Field Menu for TOTAL in the TOTALS Form

The next field, TOTAL, contains the total cost of the order.  The value
of TOTAL is calculated by adding the tax and any shipping cost to the
subtotal.

Action

Change the field type to D and the data type to NUM2.  Then enter the SET
statement in the Processing Specifications area, as shown in Figure 5-16.
Press ENTER.

The last field on the TOTALS form contains the customer name originally
entered on the ORDER form.

Action

Leave this field as is.

At this point, the user can enter a name or leave the field blank; later
you will see how the name can be transferred automatically from the ORDER
form.
