USING VPLUS/V AN INTRO. TO FORMS DESIGN Self-Paced Training Guide

ADD NEW FIELDS

FORMSPEC displays the Form Layout Menu for the ORDER form (which was
called SHIPTO), as shown in Figure 3-4.  Once a form is displayed, you
can change the placement, name or size of any existing fields, or the
header information and text on the form.

Action

For this exercise, you add six new fields to the ORDER form; the lengths
and positions of the new fields are defined in Table 3-1.

          Table 3-1.  Defining the Fields for the ORDER Form

-------------------------------------------------------------------------------------------------
|                               |                           |                 |                 |
|             Field             |            Tag            |    Line No.     |     Length      |
|                               |                           |                 |                 |
-------------------------------------------------------------------------------------------------
|                               |                           |                 |                 |
| Order Number                  | ordate                    |        5        |        6        |
|                               |                           |                 |                 |
| Quantity                      | qty                       |       17        |        5        |
|                               |                           |                 |                 |
| Part Number                   | partnum                   |       17        |        9        |
|                               |                           |                 |                 |
| Description                   | description               |       17        |       43        |
|                               |                           |                 |                 |
| Unit Price                    | uprice                    |       17        |        7        |
|                               |                           |                 |                 |
| Total Price                   | tprice                    |       17        |        7        |
|                               |                           |                 |                 |
-------------------------------------------------------------------------------------------------

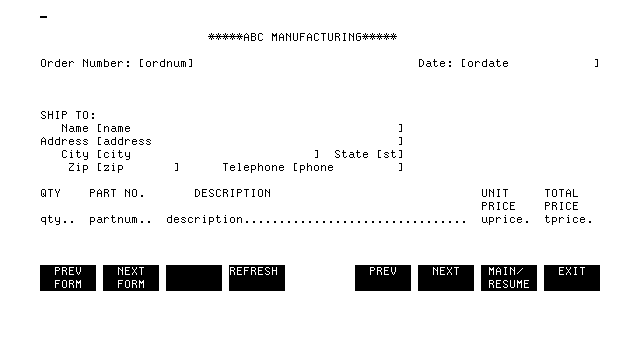

          Figure 3-5.  The Form Layout for the ORDER Form
