Adding a User Group
To add a user group,
* Select Add User Group from the Configure X.400 User Groups Action
Menu.
This displays the Add User Group screen.
![[]](../../pic3k/M011985/FFN503c50.gif)

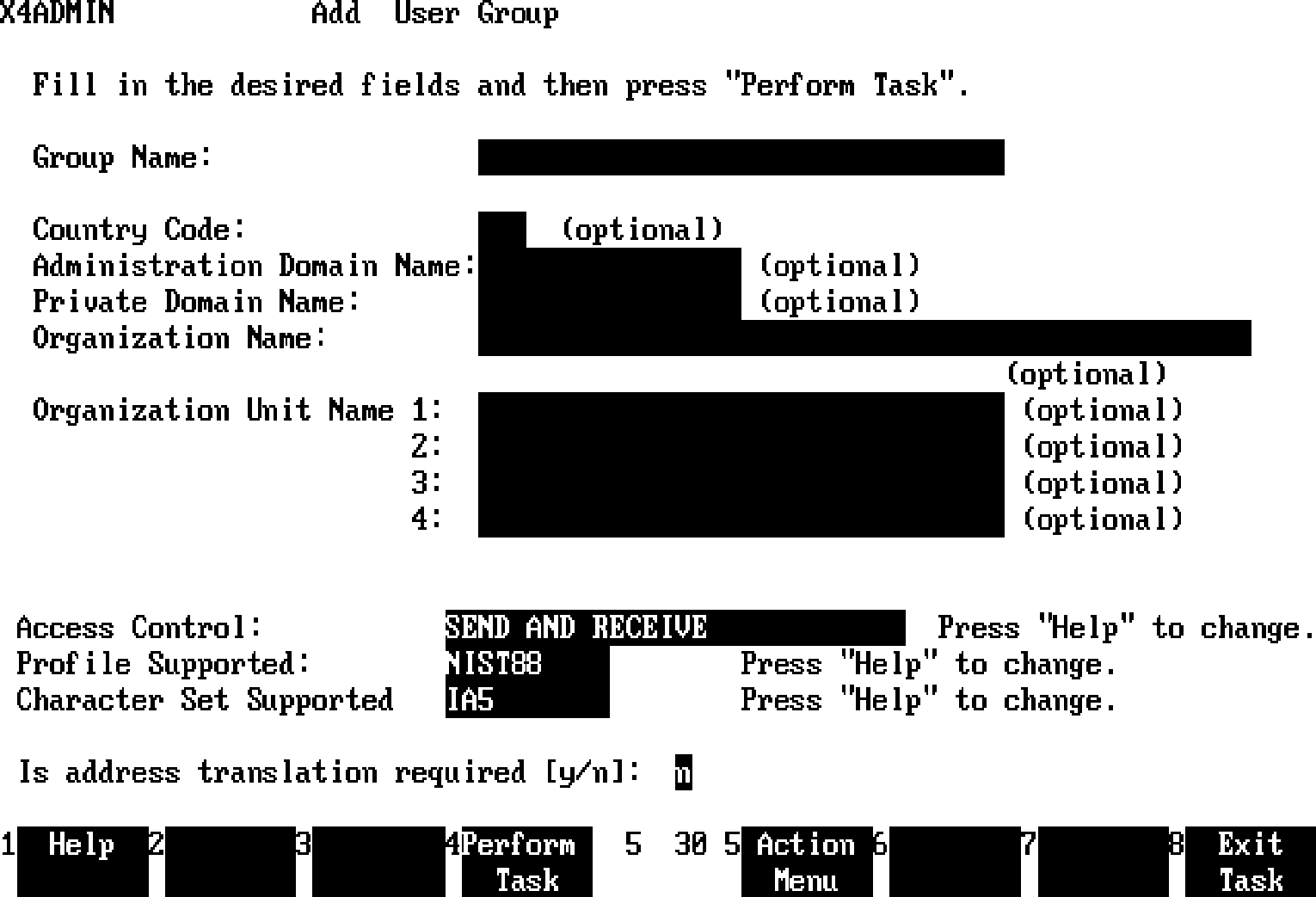

Figure 9-2. Add User Group Screen
The fields on this screen are:
Group Name
Required. Enter the name of the user group.
Country Code
Optional. The country where the user group is
located.
Administration
Domain Name
Optional. The administration domain name of the user
group. This is a printable string of up to 16
characters.
Private Domain
Name
Optional. The private domain name of the user group.
This is a printable string of up to 16 characters.
Organization Name
Optional. The name of the organization of the user
group. The name is a printable or T.61 string of up
to 64 characters.
Organization Unit
Names
Optional. The names of specific units within the
organization of the user group. Up to four units can
be specified with Organization Unit 1 being the
highest in the organizational hierarchy, Organization
Unit 2 being the second highest, etc. Each
organization unit name is a printable or T.61 string
of up to 32 characters.
NOTE If a user group requires an organization name and/or organization
unit name with printable characters and T.61 format, two separate
user groups must be configured: one using printable characters,
the other using T.61 format.
Access Control
Required. Limit X.400 connectivity of a user to send
and/or receive or to have no permission to send and
receive.
To select a new value for this field, press the Help
key. Your choices are: SEND AND RECEIVE, SEND ONLY,
RECEIVE ONLY, and NEITHER SEND NOR RECEIVE.
Access control is checked in the following manner:
if all user groups for the originator and recipients
have send and receive permission, no checking is
done. Otherwise, the originator is first checked for
send permission. Then, the recipient is checked for
receive permission.
If an originator does not have send permission, then
the originator receives a non-delivery report for all
recipients. If a recipient does not have receive
permission, the originator receives a non-delivery
report for that recipient.
The default value is configured in the Configure
Local MTA screen.
Profile Supported
Required. Define the profile type supported at the
user agent level.
To select a new value for this field, press the Help
key. Your choices are: EWOS88 (1988 X.400, Europe),
NIST88 (1988 X.400, U.S.A.), NIST84 (1984 X.400,
U.S.A.), CEN41201 (1984 X.400 for PRMD to PRMD
connections, Europe), and CEN41202 (1984 X.400 for
ADMD to PRMD connections, Europe).
If the X.400 system conforms to more than one of
these, use the first profile listed. For example, if
the X.400 system conforms to NIST84 and EWOS88,
select EWOS88. If the X.400 system conforms to 1984
X.400 standard only, then it can only receive 1984
X.400 messages.
The default value is configured in the Configure
Local MTA screen.
Character Set
Supported
Required. Define the character set that can be
received by this user group. When another user group
attempts to communicate with you using HP OpenMail,
the appropriate character set is used for the message
sent to you.
To select a new value for this field, press the Help
key. Your choices are: T.61 (teletex), ISO6937, and
IA5.
The default value is configured in the Configure
Local MTA screen.
Is address
translation
required [y/n] Optional. Enter n if the user group is made up of
(y/n): users from outside this organization and the address
does not need to be translated. Enter y if the user
group is made up of users from inside this
organization and the address must be translated
(country and ADMD names). Address translation allows
one MTA to communicate with multiple ADMDs.
The default value is configured in the Configure
Local MTA screen.
To add domain defined attributes,
* Press the Action Menu key.
* Select the Domain Defined Attributes item.
For more information on the Domain Defined Attributes window, refer to
the "Domain Defined Attributes Window" section of the "Configuring Routes
and Alternate Routes" chapter of this manual.
To add physical delivery fields,
* Press the Action Menu key.
* Select the Physical Delivery Fields item.
For more information on the Physical Delivery Fields window, refer to the
"Physical Delivery Fields Window" section of the "Configuring Routes and
Alternate Routes" chapter of this manual.
