Installing and Configuring HP X.400 Administrator's Guide

Configuring the OpenMail Connection

Configure the OpenMail connection only if you are using OpenMail.  The
OpenMail/X.400 interface uses the information configured in this screen.
To configure the local OpenMail connection,

   *   Select the OPENMAIL item from the Configure X.400 Menu.

This displays the Configure OpenMail Connection screen.

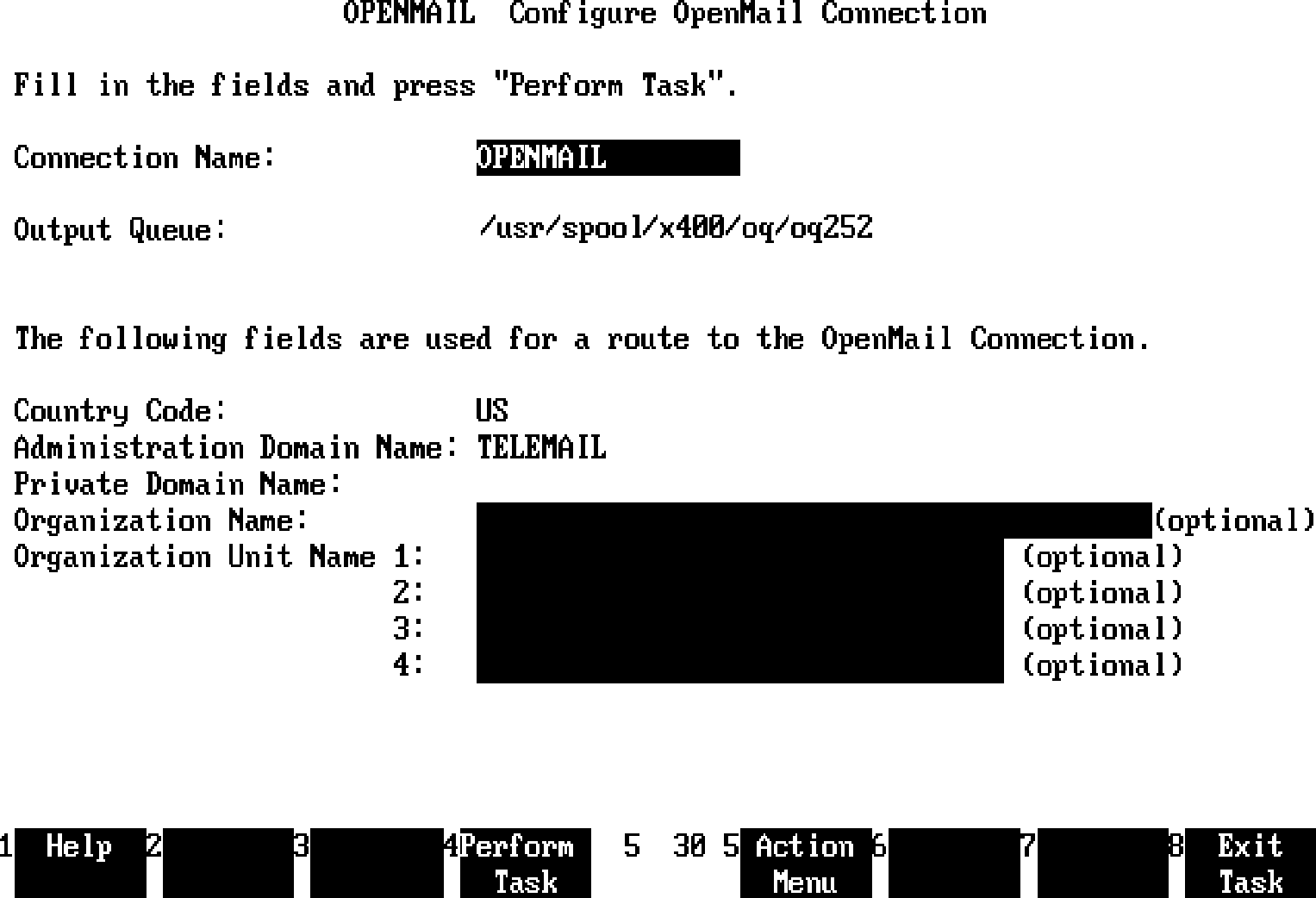

          Figure 7-15.  Configure OpenMail Connection Screen

The fields on the screen are:

Connection Name

                          Required.  Default:  OPENMAIL. This is the
                          unique name that identifies the OpenMail
                          connection.  This name must be different from
                          the local and adjacent MTA names, HP X.400/HP
                          Desk Node names, the Sendmail connection name,
                          and API client names.  It is a printable string
                          of up to 32 characters.  Use this connection
                          name as the destination of a route when
                          configuring additional routes for the OpenMail
                          connection.

Output Queue

                          Display.  This directory name is always
                          /usr/spool/x400/oq/oq252.

Country Code

                          Display.  The country specified for the local
                          MTA.

Administration Domain
Name
                          Display.  The administration domain name
                          configured for the local MTA.

Private Domain Name

                          Display.  The Private Domain Name specified for
                          the local MTA.

Organization Name

                          Optional.  This is the organization name
                          assigned to the OpenMail connection and is a
                          printable string of up to 32 characters.

                          The wildcard, asterisk (*), and the null
                          character (#)are not allowed in this attribute
                          for the primary route.

Organization Unit Name
1-4
                          Optional.  These are the organization unit
                          names 1-4 assigned to the OpenMail connection.

                          The wildcard, asterisk (*), can be entered in
                          this attribute for the primary route.

                          Each organization unit name is a printable
                          string of up to 32 characters.

One primary route to the OpenMail connection is created automaticallywhen
the OpenMail connection is configured.  Additional routes can be
configured for the OpenMail connection by selecting the ROUTES item on
the Configure X.400 Menu.  Enough information must be supplied so that
the route generated for the OpenMail connection is unique.

To modify the OpenMail connection,

   *   Modify the connection name, organization name, or organization
       unit names.

   *   Press the Perform Task key.

       To delete the OpenMail connection,

   *   Press the Action Menu key to display the Action Menu so you can
       select the Delete OpenMail Connection item.

Deleting an OpenMail Connection

To delete the OpenMail connection

   *   Select the OPENMAIL item from the Configure X.400 Menu.

   *   Press the Action Menu key.

   *   Select theDelete OpenMail Connection item from the Action Menu.

This displays the Delete OpenMail Connection screen.  All routes
associated with the deleted OpenMail connection are also deleted.

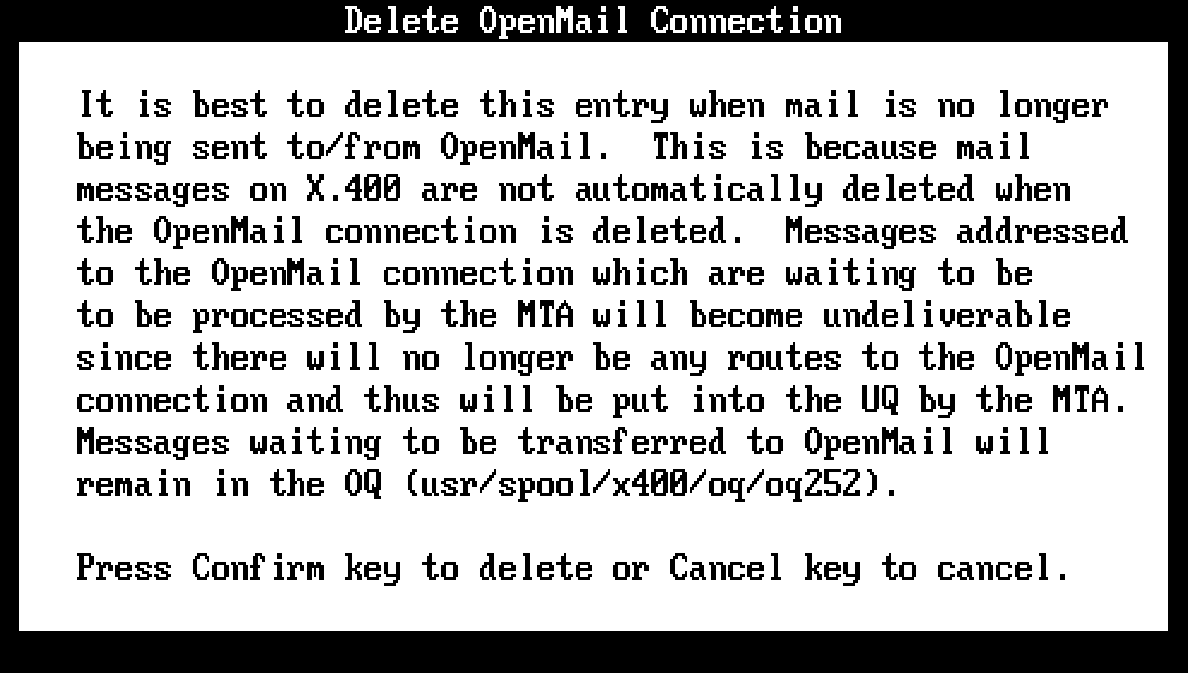

          Figure 7-16.  Delete OpenMail Connection Screen

To delete the connection,

   *   Press the Confirm key.

To cancel the delete operation,

   *   Press the Cancel key.
