Configuring Systems for Terminals, Printers, and Other Serial Devices

Printer Profile Screen (PC-Based)

Figure 7-7  shows a Printer Profile screen used for PC-based
management.

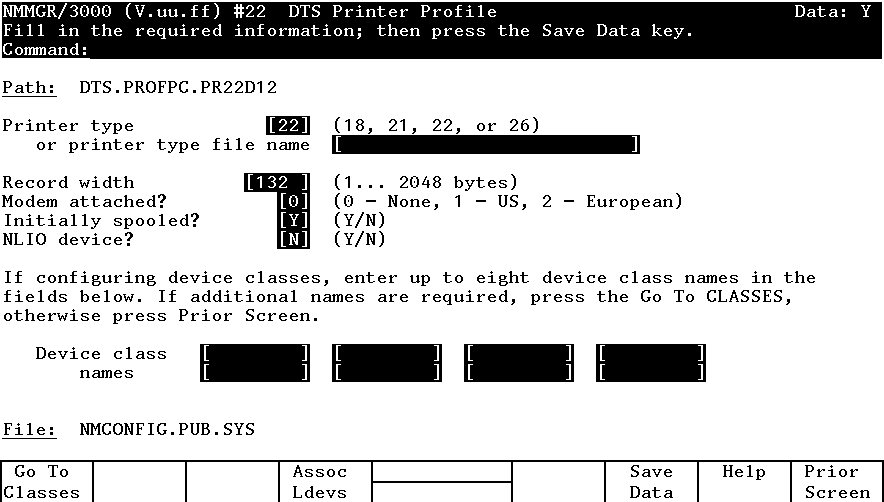

          Figure 7-7.  Printer Profile Screen (PC-Based)


NOTE  The Printer Profile screen used for PC-based management contains a
      subset of the fields used by the Printer Profile screen used for
      host-based management (see Figure 7-5 ).  Refer to the previous
      subsection for an explanation of the fields.

      The reason PC-based printer profiles contain fewer fields is that
      most printer characteristics are defined in the OpenView DTC
      Manager (on the PC).

      Note that the field "Modem attached?" is the same as "Modem type"
      in the host-based Printer Profile screen.
