Configuring Systems for Terminals, Printers, and Other Serial Devices

Terminal Profile Screen (PC-Based)

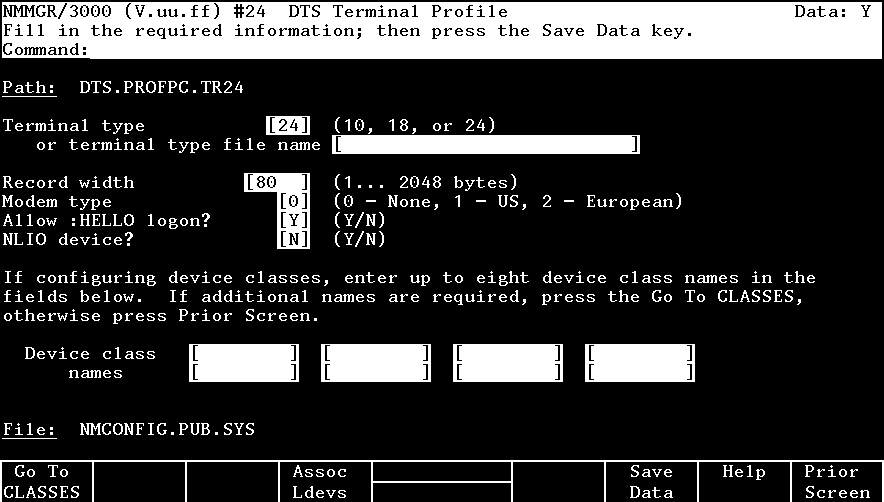

Figure 7-4  shows a Terminal Profile screen for PC-based management.
Note that you only need to configure a terminal profile for nailed
terminals if you are using PC-based management.  Nailed terminals are
ports with permanent LDEVs assigned to them and can be accessed
programmatically.


          Figure 7-4.  Terminal Profile Screen (PC-Based)


NOTE  The Terminal Profile screen used for PC-based management contains a
      subset of the fields used by host-based management (see Figure 7-2
      ).  Refer to the previous subsection for an explanation of the
      fields.

      The reason PC-based terminal profiles contain fewer fields is that
      most terminal characteristics are defined in the OpenView DTC
      Manager (on the PC).
