List Network Assignments

2.  Configuration

1.  Transport Configuration

3.  List Network Assignments

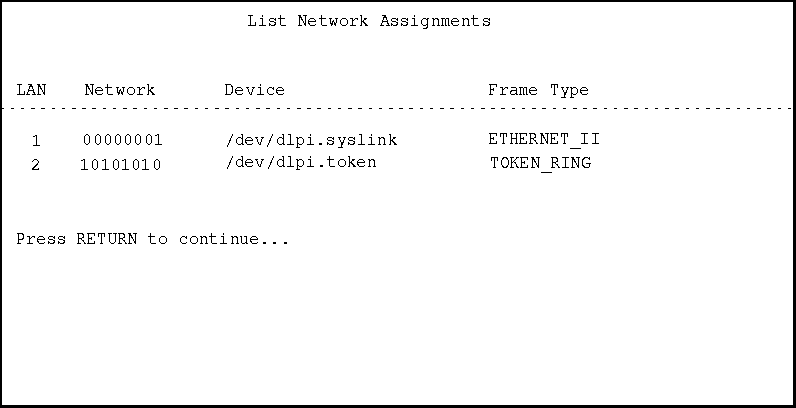

          Figure 10-6.  List Network Assignments

LAN

This field specifies the number of the LAN to which the following
configuration information applies.  For example, LAN 1 will use a
different configuration than LAN 2.

Network Number

The external network number specifies a unique number designating the
address for the network.  The external network number can be up to eight
hexadecimal numbers in length.

Device Name

This is the adapter device name which specifies the path of the device
driver file in the host's device directory.

The device name is a file name in the following format:

/dev/dlpi.linkname

where the linkname corresponds to the link name configured in NMMGR.

Frame Type

The frame type specifies the type of packet header that the device driver
uses.  Valid frame types are:  ETHERNET_802.3, ETHERNET_II, TOKEN_RING,
ETHERNET_802.2.

Delete Pending

If this message is displayed in the far right, next to a network
configuration, the network will be deleted when you return to the Main
menu (where configuration values are automatically updated) or when you
exit SCONSOLE (and configuration changes are updated).  This flag
indicates that the Delete a Network feature was used to delete the
specified network configuration.
