Symbolic Debugger/iX User's Guide

Displaying Source and Assembly Code

To view both the source code and its matching assembly code, enter the ts
(toggle screen) command.  When you do this, the source window is divided
into two windows, the top for source code and the bottom for assembly
code as shown in Figure 3-3.

To view source and assembly code, enter:

     >ts

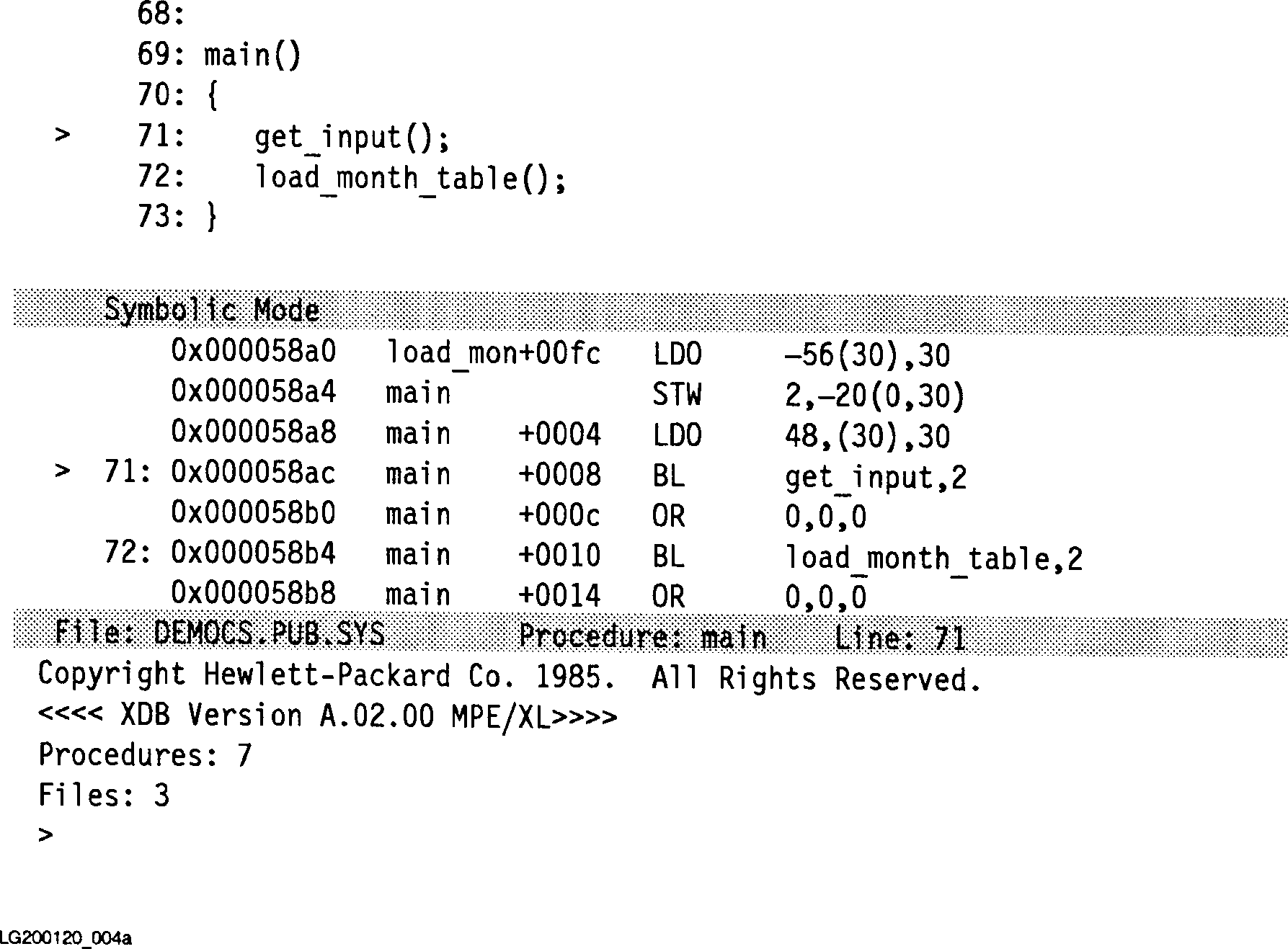

          Figure 3-3.  The HP Symbolic Debugger Screen (Source and Disassembly Mode)

To return to source mode, enter ts again.
