HP Pascal/iX Programmer's Guide

System-Dependent Features

System dependent features are available to all HP Pascal programs
(regardless of the system on which the compiler is running), but the
system affects their definitions and behavior.  System dependent HP
Pascal features fall into these categories:

   *   Compiler options.

   *   File names.

   *   Associating logical and physical files.

   *   Using file equations.

   *   Default file attributes.

   *   Standard modules.

   *   Miscellaneous.

Compiler Options

The following compiler options are available only to programs that are
compiled by the HP Pascal compiler running on the MPE/iX operating system
and contain the compiler option OS 'MPE/XL'.

     FONT
     HP3000_16
     HP3000_32

The compiler option INCLUDE is available to programs compiled by the HP
Pascal compiler running on either the MPE/iX or HP-UX operating system,
but it works differently on the two systems.

Refer to the HP Pascal/iX Reference Manual for more information on the
compiler options FONT, HP3000_16, HP3000_32, and INCLUDE.

File Names

An MPE/iX file name has the syntax

     filename [/lockword][.group[.account]][:nodename]

where each of filename, lockword, group, account and node is a string of
one to eight alphanumeric characters.  The first character in the string
is a letter, and each of domain and organization is a string of one to 16
alphanumeric characters, the first of which is a letter.  The entire file
name cannot have more than 86 characters.  MPE/iX does not distinguish
between uppercase and lowercase letters.

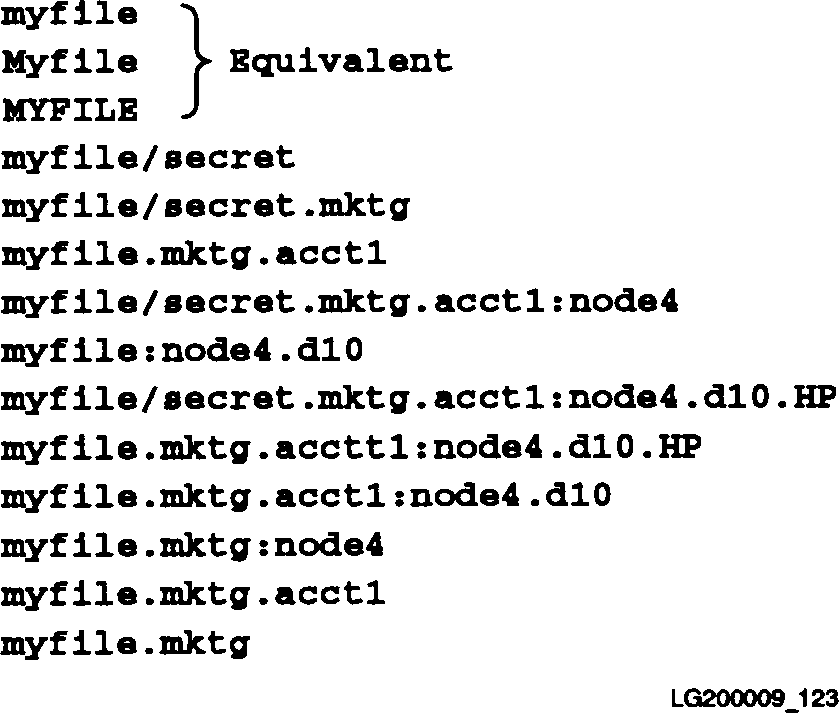

Example

[]
For more information on MPE/iX file names, refer to the MPE/iX Commands Reference Manual. Associating Logical and Physical Files Your program does not affect its external environment unless its logical files are associated with physical files at run-time. If they are, file operations work concurrently on logical and physical files (see Chapter 3 ). In HP Pascal on the MPE/iX operating system, a logical file is associated with a physical file under any one of the following conditions: 1. The name of the logical file is both a program parameter and the first parameter of a predefined file-opening procedure. The predefined file-opening procedure has no second parameter. The operating system associates the logical file name with a default physical file, whose name consists of the first eight characters of the logical file name. This name must be an acceptable MPE/iX file name (for example, it cannot contain an underscore character (_)). If the default physical file does not exist, HP Pascal creates a temporary physical file with that name. Example PROGRAM case_one (input,output,file1); VAR file1 : FILE OF integer; BEGIN reset(file1); . . . END. The operating system associates the logical file file1 with the physical file FILE1. If FILE1 does not exist, HP Pascal creates a temporary file named FILE1. The standard files input and output are exceptions to this scheme. When they are program parameters, the operating system associates them with the physical files $STDIN and $STDLIST, respectively. If a logical file name is not a program parameter, but is the first parameter of a file-opening procedure that has no second parameter, the operating system associates the logical file with a temporary, nameless physical file (assuming that the logical file is not already associated with a physical file). You cannot save the temporary file. When the program ends or the logical file is associated with another physical file, the temporary file is inaccessible. 2. The names of the logical and physical files are the first and second parameters, respectively, of a predefined file-opening procedure. It does not matter whether the logical file name is a program parameter or not. Example PROGRAM case_two (input,output); {logical file name is not a program parameter} VAR file1 : FILE OF integer; BEGIN rewrite(file1,'numfile'); . . . END. The operating system associates the logical file file1 with the physical file numfile. This association holds, even if the logical file name is a program parameter. Example PROGRAM case_three (input,output,file1); {logical file name is a program parameter} VAR file1 : FILE OF integer; fname : PACKED ARRAY [1..8] OF char; BEGIN fname := 'numfile'; rewrite(file1,fname); . . . END. The operating system still associates file1 with numfile, not FILE1. The second parameter of a file-opening procedure need not be a string literal. It can also be a PAC variable or string expression. Using File Equations The MPE/iX FILE command redirects the association of one physical file to another physical file and specifies additional file attributes, which are MPE/iX dependent. Example PROGRAM prog (outfile); VAR i : integer; outfile : text; BEGIN rewrite(outfile); FOR i := 1 TO 20000 DO writeln(outfile,i); END. If PRG is the program file for prog and you execute the MPE/iX command sequence :FILE OUTFILE = FILE2 :RUN PRG then output goes to FILE2 instead of OUTFILE. If you execute the MPE/iX command sequence FILE OUTFILE; DISC=21000; REC=-20,,F,ASCII RUN PROG then a nondefault attribute file is created. Default File Attributes When HP Pascal creates a file, the physical file attributes depend on the file component type. Table A-1 gives the default file attributes of files built by HP Pascal programs. After the program has executed, the MPE/iX command LISTF shows these values for the files that the program built (LISTF attribute names are in parentheses). Table A-1. Default File Attributes ----------------------------------------------------------------------------------------------------- | | | | How Program | Default File Attribute | | Declares File | | | | | ----------------------------------------------------------------------------------------------------- | | | | | | | | Record Size | File Type (TYP) | Current File Size | Maximum File Size | | | (SIZE) | | (EOF) | (LIMIT) | | | | | | | ----------------------------------------------------------------------------------------------------- | | | | | | | FILE OF type | Component size | Fixed length | Number of | 1023 | | | | binary (FB) | components | | | | | | written | | | | | | | | ----------------------------------------------------------------------------------------------------- | | | | | | | Text | 256 bytes | Variable length | Number of lines | 1023 | | | | ASCII with | written | | | | | carriage control | | | | | | (VAC) | | | | | | | | | ----------------------------------------------------------------------------------------------------- Standard Modules Two standard modules are available on MPE/iX: stdinput and stdoutput. If a module imports the stdinput module, it can use the predefined file input in I/O statements such as read and readln. If a module imports the stdoutput module, it can use the predefined file output in I/O statements such as write and writeln. Example MODULE mymod; IMPORT stdinput, stdoutput; EXPORT FUNCTION myproc : integer; IMPLEMENT FUNCTION myproc : integer; VAR i : integer; BEGIN prompt('enter number:'); {need not specify output file} readln(i); {need not specify input file} myproc := i; END; END. Additional Features The HP Pascal features in the left-hand column depend on the MPE/iX operating system in the ways explained in the right hand column. Feature MPE/iX Dependency Close options The optional third parameter of the predefined procedure close can be SAVE, LOCK, TEMP, NORMAL, CRUNCH, or PURGE, whose meanings are: SAVE LOCK The file is saved as a permanent file after it is closed. TEMP NORMAL The file is saved as a temporary file after it is closed. CRUNCH Space after end-of-file marker is removed when the file is closed. PURGE The file is purged after it is closed. Halt MPE/iX calls the intrinsic QUIT with an integer parameter. Internal table size The Job Control Word (JCW) PASXDATA is the number of pages to allocate to each internal table (there is one internal table for identifiers and another for structured constants). The default internal table size is 100 pages. To set the internal table size to n pages, use the command: :SETJCW PASXDATA n Write If the file being written is $STDLIST (the default output file), the output is unbuffered; therefore, a write to $STDLIST has the same behavior as prompt. Input The standard program parameter and textfile input is $STDIN. Maxpos The call maxpos(f) returns the position number of the last component of the file f that the program can access. It is an error if the file f is not open for direct access. Open options The third parameter of the predefined file-opening procedures append, associate, open, read, reset, rewrite, and write. They and their meanings are: Option Meaning CCTL The file has carriage control. (Ignored for associate.) DIRECT The file is open for read and write access (associate only). NOCCTL The file does not have carriage control. (Ignored for associate.) READ The file is open for read access only (associate and open only). WRITE The file is open for write access only (associate and open only). SHARED The file can be open to more than one program at a time. (Ignored for associate.) EXCLUS The file cannot be open to more than one program at a time. (Ignored for associate.) LOCK The file is locked. If the file is already locked, the program waits until it is unlocked. (Ignored for associate.) At least one open option is required for associate; for all other file-opening procedures, open options are optional. You can specify more than one open option (separate them with commas). If the physical file specified in the associate procedure has one or more of the characteristics specified by the open options, then the logical file assumes the same characteristics. If not, the associate procedure does not associate the new physical file with the logical file. Output The standard program parameter and textfile output is $STDLIST. System intrinsic file SYSINTR.PUB.SYS System default module PASLIB.PUB.SYS library Restrictions on Using Executable Libraries (XLs) Global variables cannot be referenced across load modules. This applies to globals declared through normal, global, external, and module subprogram compilation units. In particular, you cannot use the standard files input or output. If a subprogram compilation unit is put in an XL, memory is overwritten. You cannot put an external compilation unit in an XL. Using MODULE or SUBPROGRAM with global compilation units will cause separate storage locations to be allocated. A non-local GOTO from an XL cannot branch to a label in the outer block.
