ALIGNMENT

ALIGNMENT is an HP Pascal Option.

The ALIGNMENT compiler option specifies the alignment requirements for a
type (for the definition of alignment see Chapter 5 ).  It cannot be
used with string or file types.  The alignment of a record or array must
be at least as large as its largest field or element.

ALIGNMENT does not support alignments greater than 8 bytes for variables.
Only fields are aligned greater than 8 bytes.  However, you can align a
record or array with more than 8 bytes through a call to P_GETHEAP with
the appropriate alignment parameter.

Syntax

     $ALIGNMENT integer$

Parameter

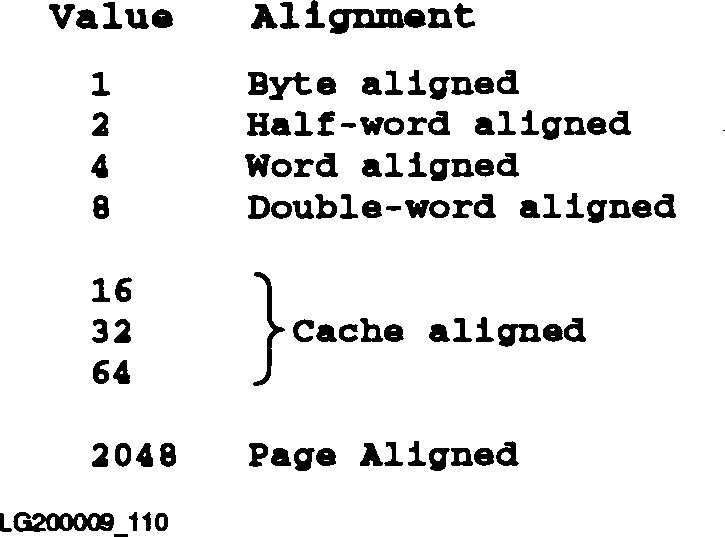

integer       In the range 1..2048.  The following values for integer
              specify the alignments indicated.  Other values are
              illegal.




Default       Depends upon packing algorithm.

Location      After the symbol = in a type definition.

Example

     TYPE
        Rec = $ALIGNMENT 16$
              RECORD
              F1 : Integer;
              F2 : ShortInt;
              F3 : Real;
              END;

        Integer_ = $ALIGNMENT 2$ Integer;
        Ptr = ^Integer_;
