Chapter 7  Program Structure

An HP Pascal program consists of two major parts:  the program heading
and the program block.  The program block includes the declaration part
which consists of definitions of constants and types, and declarations of
labels, variables, procedures, functions, and modules.  This chapter
describes in detail the program heading and program block.  This includes
the declaration part and module as well as the function and procedure.
Below is an example of an HP Pascal program.

Syntax

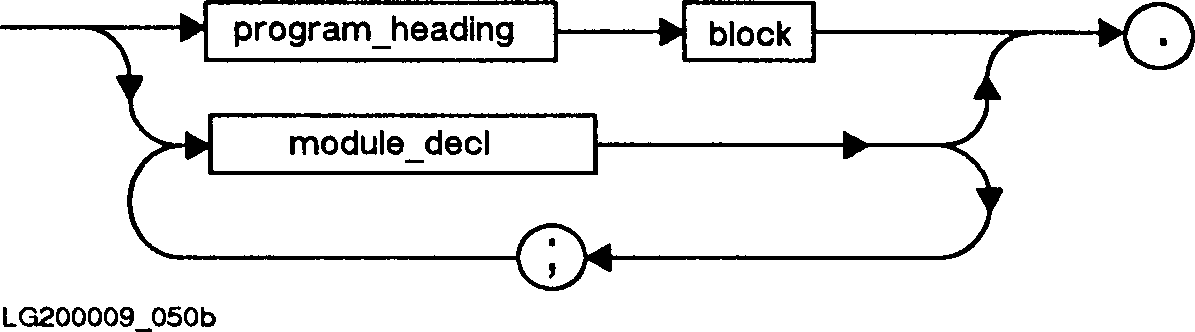

     Compilation_unit:




Example

     PROGRAM minimum;            { The minimum program that the HP Pascal }

     BEGIN                       { compiler will process successfully:  }
     END.                        { no program parameters. }

     PROGRAM show_form1 (output); { Uses the standard textfile output   }

     BEGIN
        writeln ('Greetings!')    { and the standard procedure writeln. }
     END.

     PROGRAM show_form2 (input,output);

     VAR
        a,b,total: integer;

     FUNCTION sum (i,j: integer): integer;   { Function declaration     }

     BEGIN
        sum:= i + j
     END;

     BEGIN
        prompt ('Enter two integers: ');
        readln (a,b);
        total:= sum (a,b);
        writeln ('The total is: ', total)
     END.
