Constant Definition
A constant definition establishes an identifier as a synonym for a
constant value. The identifier may then be used in place of the value.
The value of a symbolic constant may not be changed by a subsequent
constant definition in the same scope or by an assignment.
The reserved word CONST precedes one or more constant definitions. A
constant definition consists of an identifier, the equal sign, (=) and a
constant value. For more information about CONST, refer to the section
"CONST" in this chapter.
The reserved word NIL is a pointer value representing a NIL value for all
pointer types. Predeclared constants include the standard constants
maxint and minint, as well as the standard Boolean constants true and
false. These constants are discussed in detail in the following pages of
this chapter.
Constant expressions are a restricted class of HP Pascal expressions.
Consequently, operands in constant expressions must be integers, reals,
or ordinal declared constants. Operators must be +, -, *, /, DIV, or
MOD. Note that all other operators are excluded. Furthermore, only calls
to the standard functions abs, binary, chr, hex, octal, odd, ord, pred,
strlen, and succ are legal.
One exception to the restrictions on constant expressions is permitted;
the sign of a real or longreal declared constant may be changed using the
negative real unary operator (-). The positive operator (+) is legal,
but has no effect.
In HP Pascal, constant definitions must follow label declarations and
precede function or procedure declarations. CONST, TYPE, VAR, MODULE,
and IMPORT sections may be intermixed.
Example
CONST
fingers = 10; { Unsigned integer. }
pi = 3.1415; { Unsigned real. }
message = 'Use a fork!'; { String literal. }
nothing = NIL;
delicious = true; { Standard constant. }
neg_pi = -pi; { Real unary operator. }
hands = fingers DIV 5; { Constant expression. }
numforks = pred(hands); { Constant expression with }
{ call to standard function. }
CONST
This reserved word indicates the beginning of one or more constant
definitions that introduces an identifier as a synonym for a constant
value. The identifier may then be used in place of that value.
Constant definitions appear after the program header or any LABEL
declarations, and before any procedure or function definitions. In HP
Pascal, CONST, TYPE, VAR, MODULE, and IMPORT definitions may be
intermixed.
Syntax
Const_decl:
![[]](../../pic3k/M012111/FFN353c50.gif)
Example
PROGRAM show_CONST;
LABEL 1;
TYPE
type1 = integer;
type2 = Boolean;
str1 = string[5];
CONST
const1 = 3.1415; { constant }
const2 = true;
strconst = str1['abcde']; { string_constructor }
VAR
var1 : type1;
BEGIN
END.
For examples of structured constants, see the appropriate sections.
false
This predefined Boolean constant is equal to the Boolean value false.
The ordinal value of false is 0.
Example
PROGRAM show_false(output);
VAR
what, lie : Boolean;
BEGIN
IF false THEN writeln('Always false, never printed.');
what := false;
lie := NOT true;
IF what = lie THEN writeln('Would I lie?');
END.
Output:
Would I lie?
true
This predefined Boolean constant is equal to the Boolean value true. The
ordinal value of true is 1.
Example
PROGRAM show_true(output);
VAR
what, truth : boolean;
BEGIN
IF true THEN writeln('Always true, always printed.');
what := true;
truth := NOT false;
IF what = truth THEN writeln('Everything I say is a lie.');
END.
Output:
Always true, always printed.
Everything I say is a lie.
maxint
This standard constant returns the upper bound of the integer type. The
value is implementation defined, however, it must allow for at least nine
decimal digits. For more information, see the HP Pascal/iX Programmer's
Guide or the HP Pascal/HP-UX Programmer's Guide, depending on your
implementation.
Example
PROGRAM show_maxint(input,output);
VAR
i,j : integer;
r : real;
BEGIN
readln(i,j);
r := i + j;
IF r > maxint THEN writeln('Sum too large for integers.');
END.
minint
This standard constant returns the lower bound of the integer type. The
value is implementation defined, however, it must allow at least nine
decimal digits. In general, the range of signed integers allows the
absolute value of minint to be greater than maxint. For more
information, see the HP Pascal/iX Programmer's Guide or the HP
Pascal/HP-UX Programmer's Guide, depending on your implementation.
Example
PROGRAM show_minint(input,output);
VAR
i,j : integer;
r : real;
BEGIN
readln(i,j);
r := i - j;
IF r < minint THEN writeln('Difference too large for integers.');
END.
NIL
This predefined constant is the value of a pointer that designates that
the pointer does not point at anything. NIL is compatible with any
pointer type. A NIL pointer or pointer that has been assigned to NIL
does not point to any variable at all. It is an error to dereference a
NIL valued pointer.
NIL pointers are useful in linked list applications where the link
pointer points to the next element of the list. The last element's
pointer can be assigned to NIL to indicate that there are no further
elements in the list.
Array Constants and Array Constructors
An array constant is a declared constant defined with an array
constructor that specifies values for the components of an array type.
The values for all elements of the structured type must be specified and
must have a type identical to the type of the corresponding elements.
An array constructor consists of a previously defined array type
identifier and a list of values in square brackets. Array constructors
are only legal in a CONST section of a declaration part. They cannot
appear in other sections or in executable statements. Each component of
the array type must receive a value that is assignment compatible with
the component type. There is a shorthand allowed for PAC and string
constants where a string literal may be used to assign values to multiple
components. An array constant may not contain files.
An array constant may be used to initialize a variable in the executable
part of a block. Individual components of an array constant may also be
accessed in the body of a block, but not in the definition of other
constants.
Within the square brackets, the reserved word OF indicates that a value
occurs repeatedly. For example, 3 OF 5 assigns the integer value 5 to
three successive array components. The symbols (. and .) may replace
the left and right square brackets, respectively.
Syntax

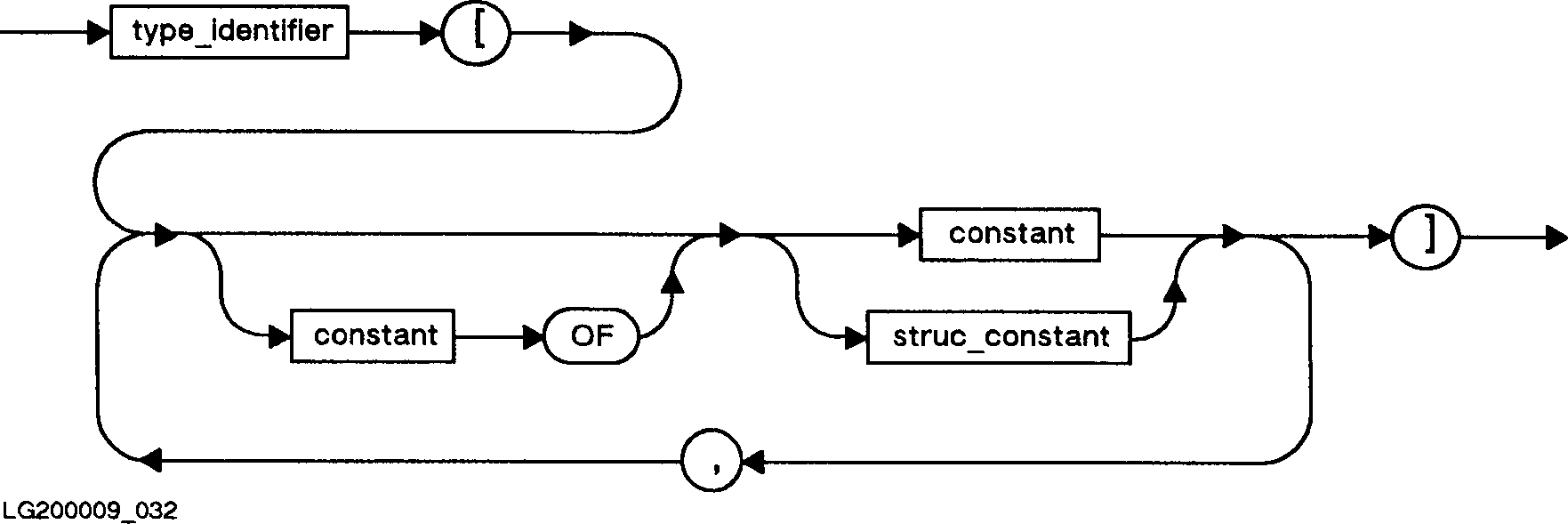

Array_constructor
![[]](../../pic3k/M012111/FFN363c50.gif)
Example
TYPE
Boolean_table = ARRAY [1..5] OF Boolean;
table = ARRAY [1..100] OF integer;
row = ARRAY [1..5] OF integer;
matrix = ARRAY [1..5] OF row;
color = (red, yellow, blue);
color_string = PACKED ARRAY [1..6] OF char;
color_array = ARRAY [color] OF color_string;
CONST
true_values = Boolean_table [5 OF true];
init_values1 = table [100 OF 0];
init_values2 = table [60 OF 0, 40 OF 1];
identity = matrix [row [1, 0, 0, 0, 0],
row [0, 1, 0, 0, 0],
row [0, 0, 1, 0, 0],
row [0, 0, 0, 1, 0],
row [0, 0, 0, 0, 1]];
colors = color_array [color_string ['RED', 3 OF ' '],
color_string ['YELLOW'],
color_string ['BLUE', 2 OF ' ']];
The name of the previously declared constant may be specified within a
structured constant. The previous example can also be written as
indicated below. Note that for the special case of PAC that if all of
the components are not specified, as in the example below, the remaining
components are filled with blanks as assignment compatibility indicates.
CONST
red = 'RED';
yellow = 'YELLOW';
blue = 'BLUE';
colors = color_array [ color_string[red];
color_string[yellow];
color_string[blue] ];
Record Constructor
A record constant is a declared constant defined with a record
constructor that specifies values for the fields of a record type. A
record constant may be used to initialize a variable in the body of a
block. Individual fields of a record constant in the body of a block may
be selected, but not when defining other constants.
A record constructor consists of a previously declared record type
identifier and a list in square brackets of fields and values. All
fields of the record type must appear, but not necessarily in the order
of their declaration. Values in the construct or must be assignment
compatible with the fields. Note that a record constructor is only legal
in the CONST section of a declaration part. It cannot appear in other
sections or in an executable statement.
For records with variants, the constructor must specify the tag field
before any variant fields. Then only the variant fields associated with
the value of the tag may appear. For records with tagless variants, the
initial variant field selects the variant.
The values may be constant values or constructors. To use a constructor
as a value, the field in the record type must be defined with a type
identifier. A record constant may not contain a file.
Syntax

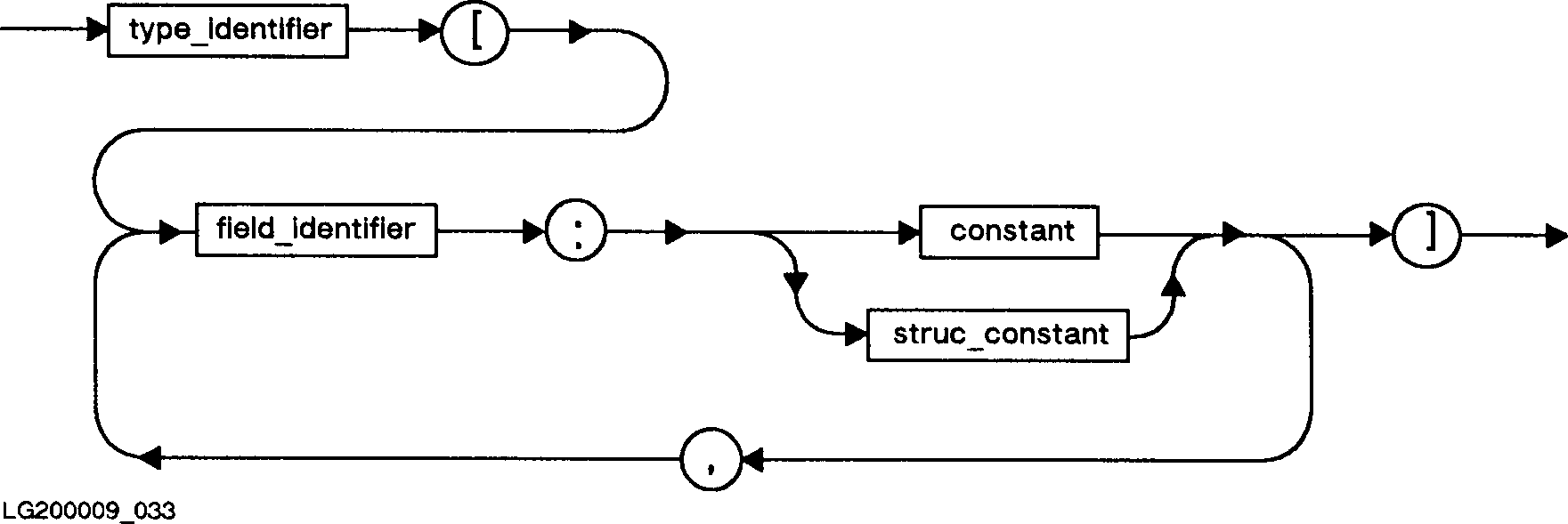

Record_constructor:
![[]](../../pic3k/M012111/FFN373c50.gif)
Example
TYPE
securtype = (light, medium, heavy);
counter = RECORD
pages: integer;
lines: integer;
characters: integer;
END;
report = RECORD
revision: char;
price: real;
info: counter;
CASE securtag: securtype OF
light: ();
medium: (mcode: integer);
heavy: (hcode: integer;
password: string[10]);
END;
CONST
no_count = counter [pages: 0, characters: 0, lines: 0];
big_report = report [revision: 'B',
price: 19.00,
info: counter [pages: 19,
lines: 25,
characters: 900],
securtag: heavy,
hcode: 999,
password: 'unity'];
no_report = report [revision : ' ';
price : 0.00;
info : no_count;
securtag : light];
Restricted Set Constructor
A set constant is a declared constant defined with a restricted set
constructor that specifies set values. A restricted set constructor
consists of an optional previously declared set type identifier and a
list of constant values in square brackets. Subranges may appear in this
list. Restricted set constructors may appear in a CONST section of a
declaration part, or in executable statements and can be used to
initialize a set variable in the body block.
The constant must be an ordinal constant value or an ordinal subrange. A
constant expression is legal as a value. The symbols (. and .) may
replace the left and right square brackets, respectively.
Syntax

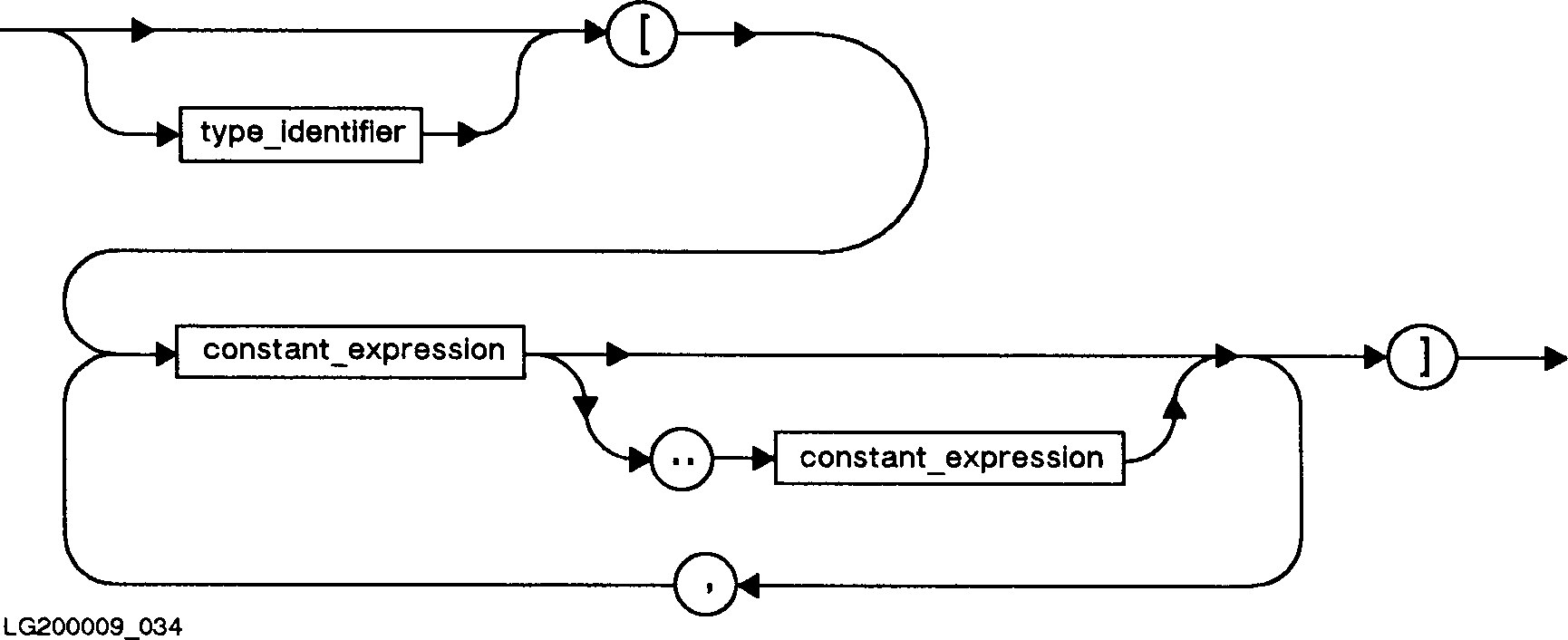

Restricted_set_constructor:
![[]](../../pic3k/M012111/FFN383c50.gif)
Example
TYPE
digits = SET OF 0..9;
charset = SET OF char;
CONST
all_digits = digits [0..9]; { Subrange. }
odd_digits = digits [1, 1+2, 5, 7, 9];
letters = charset ['a'..'z', 'A'..'Z'];
no_chars = charset [ ];
no_iden = [2, 4, 6, 8] { No set identifier. }
String Constructor
A string constant is a declared constant defined with a string
constructor that specifies values for a string type. The length of the
string constant may not exceed the maximum length of the string type used
in its definition. The number of characters in the definition determines
the current length of the string constant.

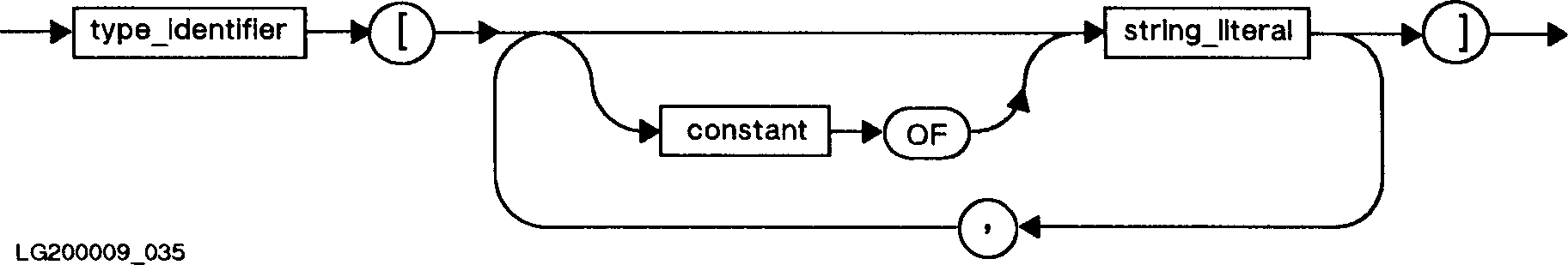

A string constructor consists of a previously defined string type
identifier and a list of values in square brackets. Note that string
constructors are only legal in a CONST section of a declaration part.
They cannot appear in other sections or in executable statements.
Within the square brackets, the reserved word OF indicates that a value
occurs repeatedly. For example, 3 OF 'a' assigns the character a to
three successive string components. The symbols (. and .) may replace
the left and right square brackets, respectively. String literals of
more than one character may appear as values.
A string constant may be used to initialize a variable in the statement
part of a block. Individual components of a string constant in the body
of the block may be accessed, but not in the definition of other declared
constants.
Syntax
String_constructor:
![[]](../../pic3k/M012111/FFN393c50.gif)
Example
TYPE
s = string[80];
CONST
blank = ' ';
greeting = s['Hello!'];
farewell = s['G',2 OF 'o','d','bye'];
blank_string = s[10 OF blank];
