Simple Types
The simple data types are made up of ordinal, real, and longreal types.
Ordinal types include the standard types integer, char, and Boolean as
well as enumerated, subrange, shortint, longint, bit16, bit32, and bit52
types.
Syntax

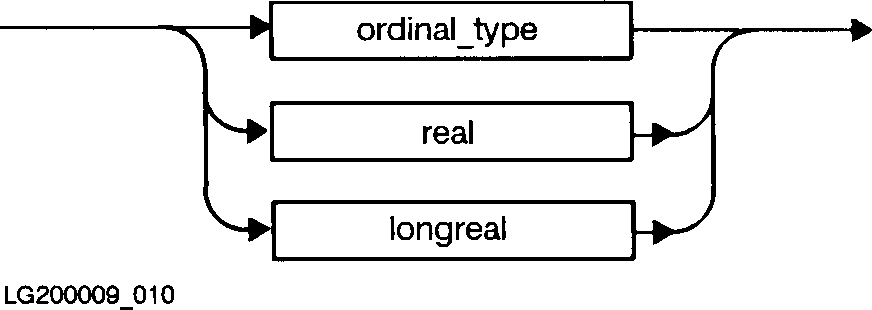

Simple_type:
![[]](../../pic3k/M012111/FFN123c50.gif)
Ordinal
Ordinal types are types that have a one-to-one correspondence with a
subset of natural numbers. These values are ordered so that each has a
unique ordinal value that indicates its position in a list of all the
values of the type.
Ordinal types include bit16, bit32, bit52, Boolean, char, enumerated,
integer, shortint, longint, and subrange. Enumerated types are declared
by enumerating all the possible values of the type. Subrange types are
declared by specifying the minimum and maximum values of the subrange.
Integral-types include bit16, bit32, bit52, integer, shortint, longint,
and subrange of integer.
Sub-integer includes bit16, shortint, and subrange of integer;
super-integer includes bit52 and longint. bit32 is a sub-integer when
used with a real operand or used in a real function such as sin;
otherwise, bit32 is a super-integer.
Syntax

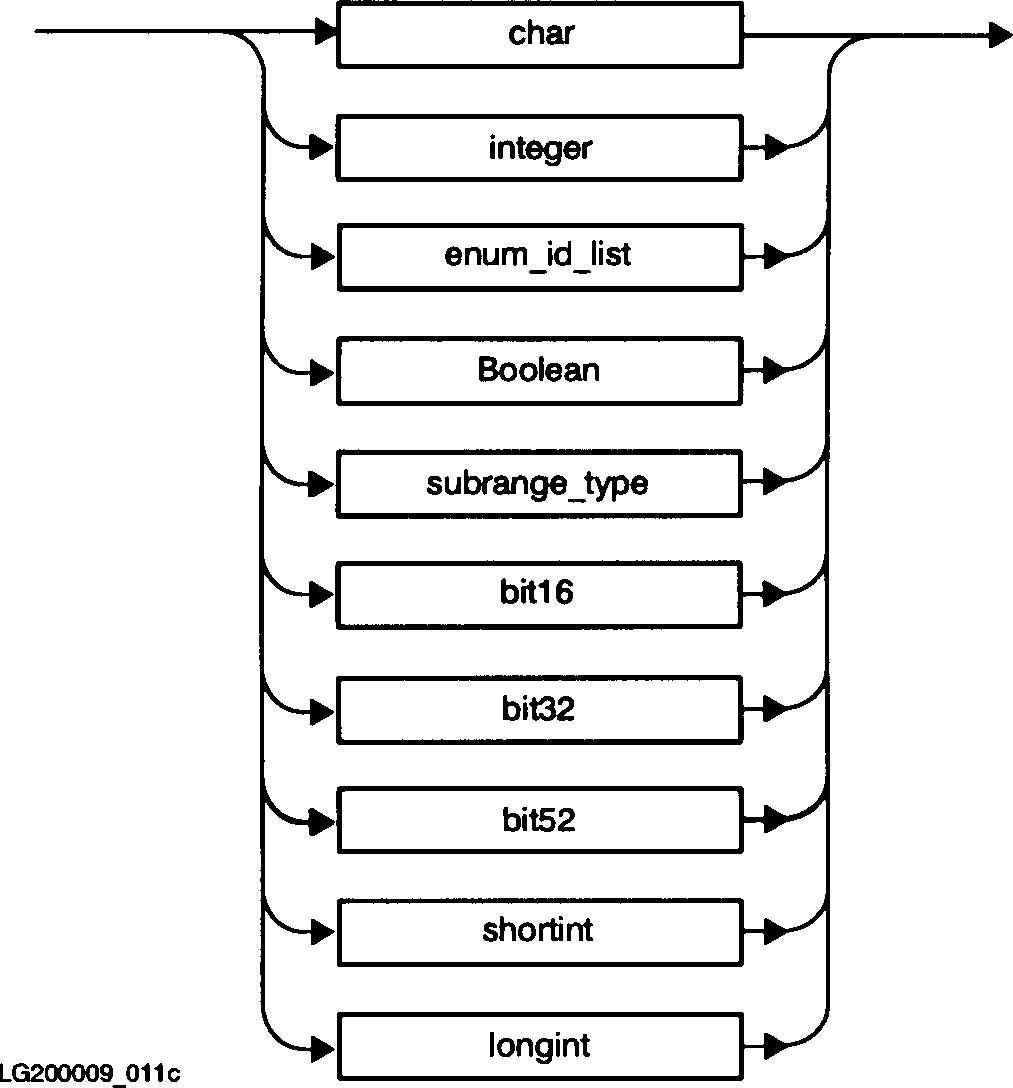

Ordinal_type:
![[]](../../pic3k/M012111/FFN133c50.gif)
NOTE For relational tests, the two operands must be compatible types.
When membership tests are performed, the left-operand type must be
a single ordinal value, while the right-operand is of a SET type.
Bit16.
The predefined data type bit16 is a subrange, 0..65535, that is stored in
16 bits. bit16 is a unique HP Pascal type because arithmetic operations
on bit16 data are truncated to modulo 65536 when stored.
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >, IN
arithmetic +, -, *, /, DIV, MOD
Standard Functions
bit16 argument - abs ln sin
arctan odd sqr
chr ord sqrt
cos pred succ
exp
bit16 return - pred
succ
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
program bits1 (output);
var q:bit16;
begin
q:=hex('ffff');
q:=q + 1; { q is now 0 }
writeln('wrapped around value = ',q:1);
end.
Output:
wrapped around value = 0
Bit32.
The predefined data type bit32 is a subrange, 0..232-1, that is stored in
32 bits. bit32 is a unique HP Pascal type because arithmetic operations
on bit32 data are performed with unsigned 32 bit integers.
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >, IN
arithmetic +, -, *, /, DIV, MOD
Standard Functions
bit32 argument - abs ln sin
arctan odd sqr
chr ord sqrt
cos pred succ
exp
bit32 return - pred
sqr
succ
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
NOTE The multiply operator (*) may cause overflow traps. See
"OVFLCHECK" .
Example
$standard_level 'hp_modcal'$
program bits2(output);
var q,r:bit32;
begin
{ one way to get bit32 constants >= 2 ** 31 }
$push; type_coercion 'conversion'; range off$
q:=bit32(hex('ffffffff')) + 1; { q is now 0 }
r:=bit32(hex('7fffffff')) + 1; { r is now > maxint }
$pop$
writeln('wrapped around value = ',q:1);
writeln('past maxint value = ',r:1);
end.
Output:
wrapped around value = 0
past maxint value = 2147483648
Bit52.
The predefined data type bit52 is a subrange, 0..252-1, that is stored in
64 bits. bit52 is a unique HP Pascal type because arithmetic operations
on bit52 data are performed with unsigned 64 bit integers.
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >, IN
arithmetic +, -, *, /, DIV, MOD
Standard Functions
bit52 argument - abs ln sin
arctan odd sqr
chr ord sqrt
cos pred succ
exp
bit52 return - pred
sqr
succ
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
$standard_level 'hp_modcal'$
program bits3(output);
var q:bit52;
begin
{ one way to get bit52 constants >= 2 ** 31 }
$push; type_coercion 'conversion'$
q:=bit52(123456) * 1000000000 + 789012345;
$pop$
writeln(q);
end.
Output:
123456789012345
Boolean.
The Boolean type is a predefined enumerated type that indicates logical
values. The elements of this data type are two constant identifiers,
true and false, where false is less than true. HP Pascal defines the
type Boolean in the following way:
TYPE
Boolean = (false, true);
Permissible Operators
assignment :=
Boolean AND, OR, NOT
relational <, <=, =, <>, >=, >, IN
Standard Functions
Boolean argument - ord
pred
succ
Boolean return - eof
eoln
odd
pred
succ
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
VAR
left_handed: Boolean;
BEGIN
left_handed := false;
END;
Char.
The char type is a predefined ordinal type that is used to represent
individual characters in the 8-bit ASCII character set. A char literal
is either a single character surrounded by single quote marks, or a sharp
(#) followed by a number or letter.
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >, IN
Standard Functions
char argument - ord
pred
succ
char return - chr
pred
succ
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
VAR
do_you: char;
BEGIN
do_you := 'Y';
do_you := #G; { BELL character }
END;
Enumerated.
An enumerated type is a user-defined, ordinal type that defines an
ordered set of values by the enumeration of identifiers in parentheses.
The sequence in which the identifiers appear determines the ordering.
The enumerated identifiers are defined as constants. The ORD of the
first has the value zero, and the ORD of the others have successive
integer values in order of their specification. The limit on the maximum
number of identifiers in an enumerated type is implementation dependent.
Refer to the HP Pascal/iX Programmer's Guide or the HP Pascal/HP-UX
Programmer's Guide, depending on your implementation, for more
information.
Syntax

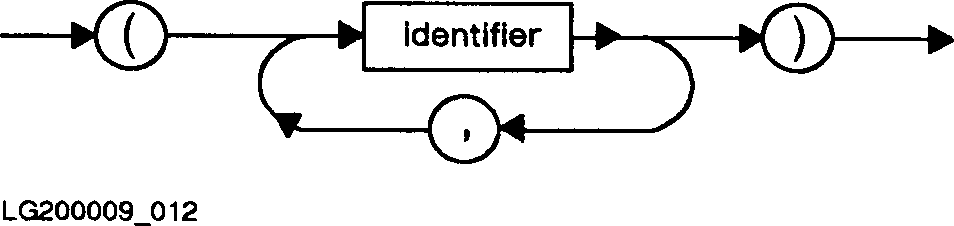

Enumerated_id_list:
![[]](../../pic3k/M012111/FFN143c50.gif)
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >, IN
Standard Functions
enumerated argument - ord
pred
succ
enumerated return - pred
succ
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
TYPE
days = (monday, tuesday, wednesday, thursday, friday, saturday, sunday);
color = (red, green, blue, yellow, cyan, magenta, white, black);
Integer.
The integer type is a predefined, ordinal type whose possible values are
determined by a subrange of the negative and positive integers. The
lower bound of the subrange is the predefined constant minint, and the
upper bound is the predefined constant maxint. The integer type
represents a signed number of at least nine digits.
Permissible Operators
assignment :=
relational <, <=, =, <>, >, >=, IN
arithmetic +, -, *, /, DIV, MOD
Standard Functions
integer argument abs exp pred
-
arctan ln sin
chr odd sqr
cos ord succ
integer return - abs maxpos round strmax
binary octal sqr strpos
hex ord sqrt succ
lastpos position strlen trunc
linepos pred
Standard Procedures
halt strread
prompt strwrite
read writedir
readdir writeln
readln
Example
VAR
wholenum: integer;
i,j,k,l : integer;
Longint.
The predefined data type longint is an integer in the range -263..263-1
that is stored in 64 bits.
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >, IN
arithmetic +, -, *, /, DIV, MOD
Standard Functions
longint argument abs ln sin
-
arctan odd sqr
chr ord sqrt
cos pred succ
exp
longint return - abs
pred
sqr
succ
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
$standard_level 'hp_modcal'$
program prog(output);
var q:longint;
begin
{ one way to get longint constants >= 2 ** 31 or < - 2 ** 31 }
$push; type_coercion 'conversion'$
q:=longint(123456) * 1000000000 + 789012345;
$pop$
writeln(q);
end.
Output:
123456789012345
Shortint.
The predefined data type shortint is an integer in the range
-32768..32767 that is stored in 16 bits. (In contrast, if you declare a
variable to be in that range, it is stored in 32 bits.)
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >, IN
arithmetic +, -, *, /, DIV, MOD
Standard Functions
shortint argument - abs ln sin
arctan odd sqr
chr ord sqrt
cos pred succ
exp
shortint return - pred
succ
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
program short(output);
var q:shortint;
begin
q:=-1;
writeln('size of shortint = ',sizeof(q):1);
end.
Output:
size of shortint = 2
Subrange.
A subrange type is a user-defined, ordinal type that is a sequential
subset of a predefined or user-defined, ordinal base type. It consists
of a lower bound and an upper bound separated by the special symbol "..".
The upper and lower bounds must be constant values or constant
expressions of the same ordinal type. The lower bound cannot be greater
than the upper bound.
Syntax

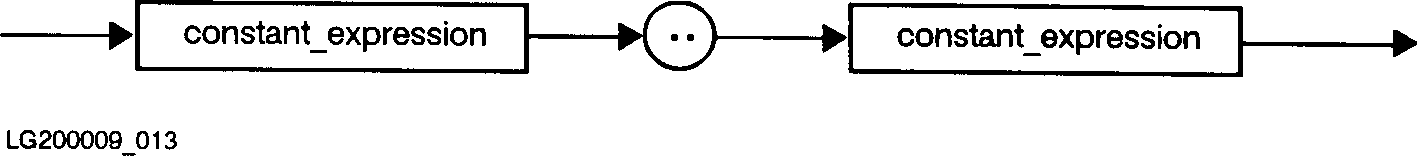

Subrange_type:
![[]](../../pic3k/M012111/FFN153c50.gif)
NOTE A variable of a subrange type possesses all the attributes of the
base type of the subrange, but its values are restricted to the
specified closed range. It has the same set of permissible
operators and standard functions as its base type.
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
CONST
maxsize = 10;
TYPE
day_of_year = 1..366;
lowercase = 'a'..'z'; { Base type is char. }
days = (Monday, Tuesday, Wednesday,
Thursday,Friday,Saturday,Sunday);
weekdays = Monday..Friday;
weekend = Saturday..Sunday;
e_type = 1..maxsize - 1; { Upper bound is con- }
{ stant expression. }
{ Maxsize is declared }
{ constant. }
Real
The real type is a predefined, simple type that represents a subset of
the real numbers. For the range covered by the subset, see the HP
Pascal/iX Programmer's Guide or the HP Pascal/HP-UX Programmer's Guide,
depending on your implementation.
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >
arithmetic -, +, *, /
Standard Functions
real argument - abs ln sqr
arctan round sqrt
cos sin trunc
exp
real return - abs exp sqr
arctan ln sqrt
cos sin
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
PROGRAM show_realnum(output);
VAR
realnum: real;
BEGIN
realnum := 6.023E+23;
writeln(realnum);
END.
Output:
6.02300E+23
Longreal
The longreal type is a predefined, simple type that represents a subset
of the real numbers. This type may have more precision and a larger
range than the type real. The range the subset covers is implementation
dependent in HP Pascal. For more details see the HP Pascal/iX
Programmer's Guide or the HP Pascal/HP-UX Programmer's Guide, depending
on your implementation.
Permissible Operators
assignment :=
relational <, <=, =, <>, >=, >
arithmetic -, +, *, /
Standard Functions
longreal argument - abs round
arctan sin
cos sqr
exp sqrt
ln trunc
longreal return - abs ln
arctan sin
cos sqr
exp sqrt
Standard Procedures
prompt strread
read strwrite
readdir writedir
readln writeln
Example
VAR
precisenum: longreal;
BEGIN
precisenum:= 1.1234567891L+04;
.
