HP FORTRAN 77/iX Reference

INTEGER Statement (Nonexecutable)

The INTEGER statement is a type specification statement that explicitly
assigns the INTEGER*2 and INTEGER*4 data types to symbolic names, and
optionally assigns initial values to variables.

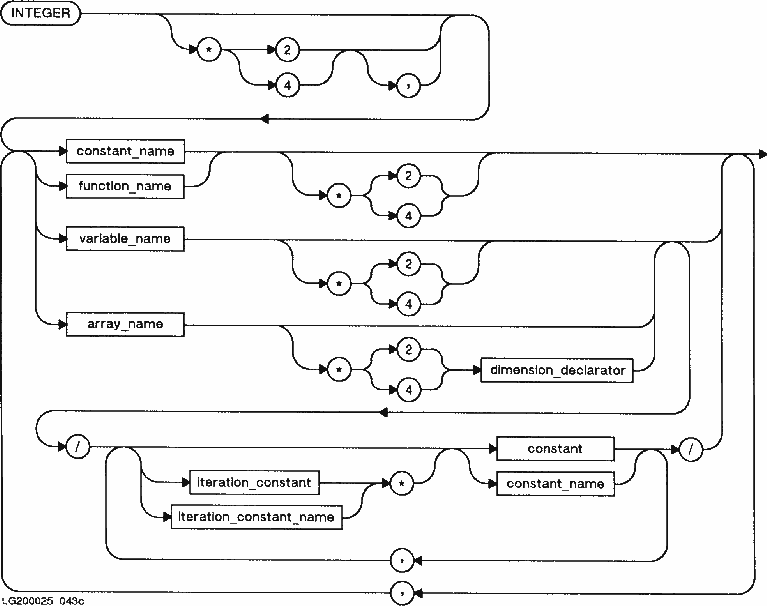

The following syntax includes the INTEGER, INTEGER*2, and INTEGER*4
statements.

[]
Semantics As an extension to the ANSI 77 standard, a length specifier can follow the item being declared. This specification overrides the length implied by the type statement. If the item being declared is an array name with a dimension declarator, the length specifier precedes the dimension declarator. The INTEGER*2 statement, an extension to the ANSI 77 standard, declares items to be 2-byte integers. The INTEGER*4 statement, also an extension to the ANSI 77 standard, declares items to be 4-byte integers.
NOTE By default, the INTEGER statement is equivalent to the INTEGER*4 statement. This is the same as the effect of the LONG compiler directive. The SHORT compiler directive may be used to make INTEGER equivalent to INTEGER*2. See Chapter 7 for further details. In addition, compiler run-string options can have the same effect. See Chapter 7, "Compiler Directives" for further details.
If an array declarator is specified in a type statement, the declarator for that array must not appear in any other specification statement (such as DIMENSION). If only the array name is specified, an array declarator must appear within a DIMENSION or COMMON statement. Each symbolic name can appear in a type statement only once. Examples Notes --------------------------------------------------------------------------------------- INTEGER run,time The variables run and time are 4-byte integers. INTEGER*2 rn,hours(4,5) The variable rn and each element of the two- dimensional array hours are short integers. INTEGER counter*2,index*4,matx(4,5)*2 The variable counter and each element of the two-dimensional array matx are short integers. index is a long integer.
