HP COBOL II/XL Reference Manual
OPEN Statement
The OPEN statement opens a specified file or files. It also performs
checking and writing of labels, and other input or output operations.

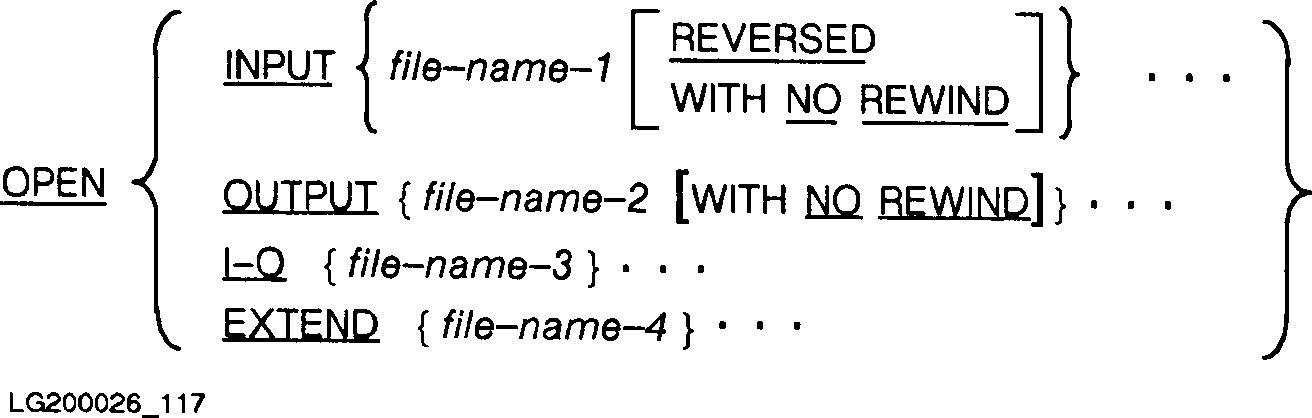

Syntax
Where file-name-1 through file-name-4 are the files to be opened.
Description
The NO REWIND phrase can only be used for sequential files. It has no
meaning for indexed, random, or relative files and must not be used for
such files. When using ANSI74 entry point, EXTEND can only be used for
sequential files.
The REVERSED phrase is not implemented in HP COBOL II. If used, it is
treated as a comment. The REVERSED phrase is an obsolete feature of the
1985 ANSI COBOL standard.
You can use a single OPEN statement to open several files. The files to
be opened need not have the same organization or access. However, each
file must have a description equivalent to the description used for it
when it was created.
Prior to the successful execution of an OPEN statement for a file, the
file must not be referenced implicitly or explicitly by the execution of
a statement.
When a file has been successfully opened, its associated record area is
made available to the program. However, execution of an OPEN statement
does not obtain or release any data record of the opened file. The
various input-output statements must be used to do this.
The INPUT, OUTPUT, I-O, or EXTEND phrases must only be used once in an
OPEN statement for any given file. You may open a file with any of the
phrases in the same program. However, the file must be closed each time
using a CLOSE statement without the LOCK phrase (without the REEL/UNIT
phrase in the case of sequential files) before another OPEN statement can
be issued for that file.
The INPUT phrase opens a file for input operations. If the OPTIONAL
phrase is specified in the SELECT clause of a file and the file is not
present, the first READ statement for the file causes an AT END
condition.
The OUTPUT phrase creates a file if it does not already exist and opens
it for output operations. When the output file is opened, it contains no
data records. The file created is a job or session temporary file using
the formal file designator specified in the SELECT clause.[REV BEG] For
information about how INDEX files are created, see Appendix H , "MPE
XL System Dependencies."[REV END]
The I-O phrase permits the opening of a file for both input and output
operations. As an HP extension to ANSI COBOL'74, HP COBOL II creates the
file if it does not already exist. Under ANSI COBOL'85, the file is not
created unless the OPTIONAL keyword is specified in the SELECT clause.
This also applies to the EXTEND phrase.
When files are opened with the INPUT or I-O phrase, the OPEN statement
(without the EXTEND or NO REWIND phrases in the case of sequential files)
sets the file position indicator to the first record currently existing
within the file. (Indexed files use the prime record key to determine
the first record to be accessed.) If no records exist in the file, the
file position indicator is set in such a manner that the next executed
format 1 READ statement for the file results in an AT END condition.
For a relative or indexed file in the dynamic access mode, execution of
an OPEN I-O statement followed by one or more WRITE statements and then
a READ NEXT statement causes the READ NEXT statement to access the first
record in the file at the time the READ NEXT statement executes. This
is an incompatible feature with ANSI COBOL'74.
[REV BEG]
In ANSI COBOL'74, the above sequence of events causes the READ NEXT
statement to access the record in the file that was first when the OPEN
statement executed, not necessarily the record that is first when the
READ NEXT executes. If one of the WRITE statements inserts a record with
a key or relative record number lower than any other record in the file,
that record would not be read by the READ NEXT. This is the difference
between ANSI COBOL'74 and ANSI COBOL'85.[REV END] For compatibility with
ANSI COBOL'74, use the ANSI74 entry point.
If a CLOSE statement has not been issued for an open file when a STOP RUN
statement (or a GOBACK statement in a main program) is executed, the file
is automatically closed by the COBOL run-time system.
Label Records
The LABEL RECORDS clause of the file description entry for a file
indicates whether label records are present in the file.
The following rules apply when label records are present:
1. When the INPUT phrase is used in the OPEN statement, standard
labels are checked in accordance with the conventions for input
label checking. Any user labels specified for the file are
processed according to the procedure specified by a format 2 USE
statement.
2. When the OUTPUT phrase is used in the OPEN statement, standard
labels are written in accordance with the conventions for output
label writing. Any user labels specified for the file are written
according to the procedure specified by a format 2 USE statement.
3. When the I-O phrase is used in an OPEN statement, standard labels
are checked in accordance with the conventions for input-output
label checking. New standard labels are written in accordance
with input-output label writing. Any user labels specified for
the file are processed according to the procedure specified by a
format 2 USE statement.
When label records are specified, but are not present, and the file was
opened using the INPUT phrase, an input-output routine error results.
When label records are present, but not specified, and the file was
opened using the INPUT phrase, the label records are ignored.
EXTEND, REVERSE, and NO REWIND Phrases
The REVERSE and NO REWIND phrases apply to sequential files. When using
the ANSI74 entry point, EXTEND can only be used for sequential files.
The REVERSE and NO REWIND phrases are not recognized by the HP COBOL II
compiler, and are treated as comments if specified.
The EXTEND phrase, when specified in an OPEN statement, positions the
file immediately following the last logical record of the file.
Subsequent WRITE statements for the file add records at the end of the
file as though the file had been opened with the OUTPUT phrase.
If you specify the EXTEND phrase for multiple file reels, a compilation
error diagnostic appears. This is done to conform to the 1974 ANSI COBOL
standard. The object program on an HP computer system allows the EXTEND
operation to execute, even for multiple file reels. However, any files
following the referenced file are written over and are made inaccessible.
When the EXTEND phrase is specified and the LABEL RECORDS clause of the
file description for the file indicates the existence of label records,
the execution of the OPEN statement includes the following steps:
1. The beginning file labels are processed only if the file resides
on a single reel or unit. Any user labels specified for the file
are processed according to the procedure specified by a format 2
USE statement.
2. Processing then proceeds as though the file had been opened with
the OUTPUT phrase.
Permissible Statements
The following tables indicate the statements permitted to be executed for
a file of a given organization opened in a given open mode.
Table 9-3. Sequential Organization
-----------------------------------------------------------------------------------------------------
| | |
| | Open Mode |
| Statement | |
| | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | Input | Output | Input-Output | Extend |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| Read | X | | X | |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| Write | | X | X | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| Rewrite | | | X | |
| | | | | |
-----------------------------------------------------------------------------------------------------
WRITE with Input-Output mode is an HP extension to the ANSI COBOL
standard.
Table 9-4. Relative and Indexed Organization
-----------------------------------------------------------------------------------------------------
| | | |
| File Access | | Open Mode |
| Method | Statement | |
| | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | | Input | Output | Input-Output |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| Sequential | READ | X | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | WRITE | | X | |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | REWRITE | | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | START | X | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | DELETE | | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | SEEK (Rel. only) | [REV BEG] | | [REV END] |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| Random | READ | X | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | WRITE | | X | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | REWRITE | | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | START | | | |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | DELETE | | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | SEEK (Rel. only) | X | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| Dynamic | READ | X | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | WRITE | | X | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | REWRITE | | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | START | X | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | DELETE | | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
| | | | | |
| | SEEK (Rel. only) | X | | X |
| | | | | |
-----------------------------------------------------------------------------------------------------
NOTE For ANSI, EXTEND can be used with the WRITE statement only if
Access Mode Sequential.
The SEEK statement is an HP extension to the ANSI COBOL standard.
Table 9-5. Random Organization
-------------------------------------------------------------------------------------------------
| | |
| | Open Mode |
| Statement | |
| | |
-------------------------------------------------------------------------------------------------
| | | | |
| | Input | Output | Input-Output |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| Seek | X | | X |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| Read | X | | X |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| Rewrite | | | X |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| Write | | X | X |
| | | | |
-------------------------------------------------------------------------------------------------
FILE STATUS Data Item
If the file named in the OPEN statement has a FILE STATUS data item
associated with it, the FILE STATUS data item is updated following the
execution of the OPEN statement to indicate whether or not the attempt to
open the file was successful. Refer to "FILE STATUS Clause" in Chapter 6
for valid combinations of status keys 1 and 2.[REV BEG] For more
information on handling I/O errors, see "Input-Output Error Handling
Procedures" .[REV END]
