HP COBOL II/XL Reference Manual

File Description Clauses

Each clause described on the following pages, if used, must be part of a
file description entry. However, several of the clauses do not apply to
sort-merge files (that is, to SD level indicator entries). Those that do
not apply to SD level entries are noted as they are described.

The FILE SECTION must begin in Area A with the words FILE SECTION
followed by a period. The header is followed by a level indicator
(either FD or SD) and the name of the file being described. One or more
record description entries must follow each file description entry. A
file description entry is terminated by a period.

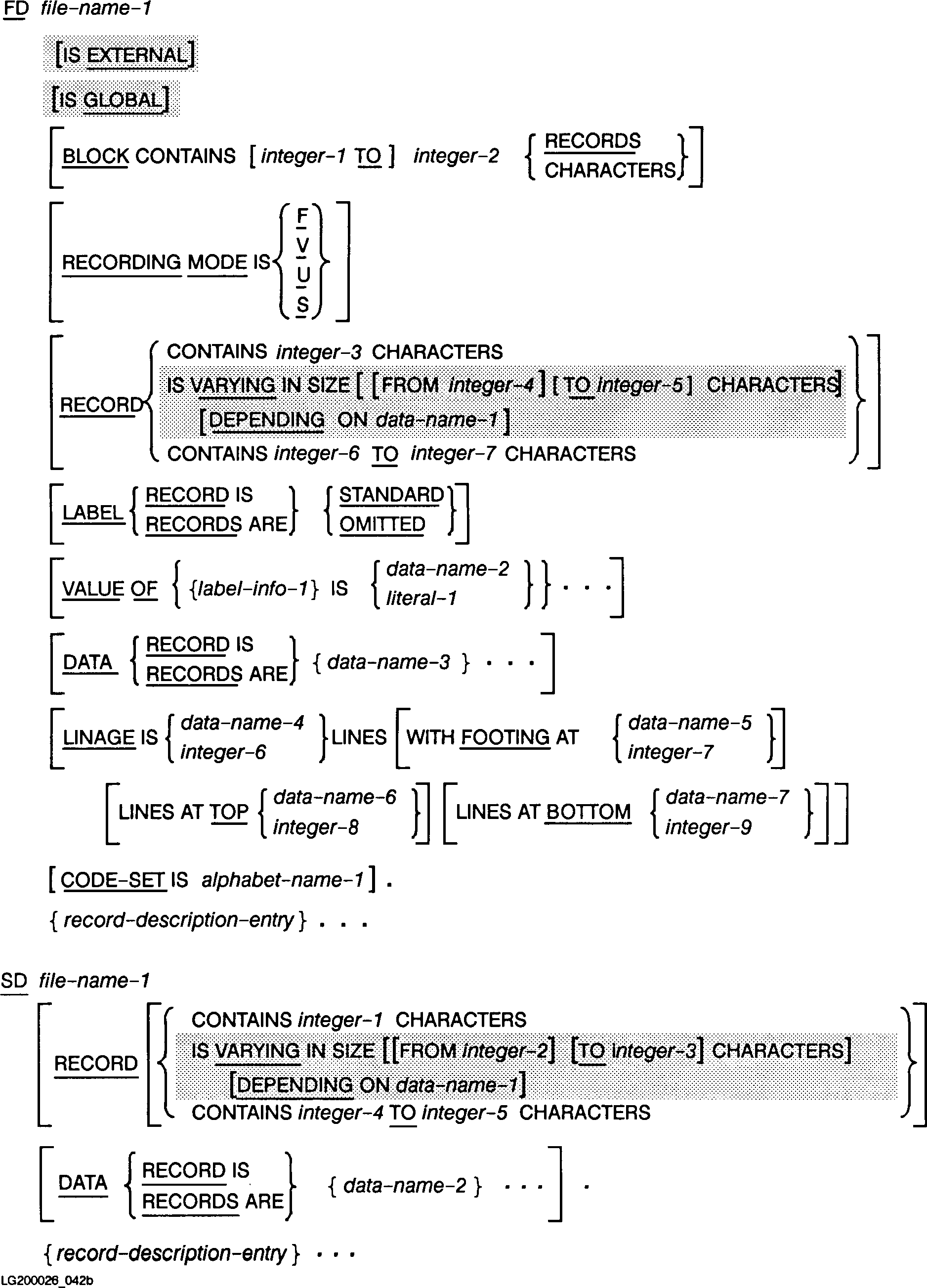

The general formats for the file description clauses are:

FD Level Indicator - For Data File Descriptions

The FD level indicator names the data file being described. It must be
the first clause in a data file description entry.

Syntax.

The data file description clause has the following format:

FD file-name-1

Parameters.

FD indicates that the clauses that follow are data file
description clauses.

file-name-1 the name of the data file being described.

Description.

The characters FD must begin in Area A. These characters are followed by
a space and the name of the data file being described. Following the
name, several clauses, mostly optional, are used to describe the file.
At least one record description entry must follow the file description
entry.

SD Level Indicator - For Sort File Descriptions

An SD level indicator names the file to be sorted or merged. It must be
the first entry in a sort-merge file description entry.

Syntax.

The format of the SD level indicator is:

SD file-name-1

Parameters.

SD indicates that the clauses that follow are used to
describe a file to be sorted and/or merged.

file-name-1 the name of the file being described.

Description.

The characters SD must begin in Area A. These characters are followed by
a space and the name of the data file being described. The name may then
be followed by a RECORD CONTAINS clause or DATA RECORDS clause, and must
be followed by at least one record description entry.

BLOCK CONTAINS Clause

The BLOCK CONTAINS clause allows you to specify the blocking factor of
the file being described. This clause should be used if the actual
blocking factor of the file being described cannot be determined by the
operating system.

For example, this clause is optional when the physical record contains
exactly one complete logical record or, for sequential files only, when
the physical device associated with the file is a unit-record device
(such as a card reader).

When the BLOCK CONTAINS clause is omitted, the default blocking factor
from the operating system is automatically assigned.

This clause does not apply to sort-merge files (SD level descriptions).

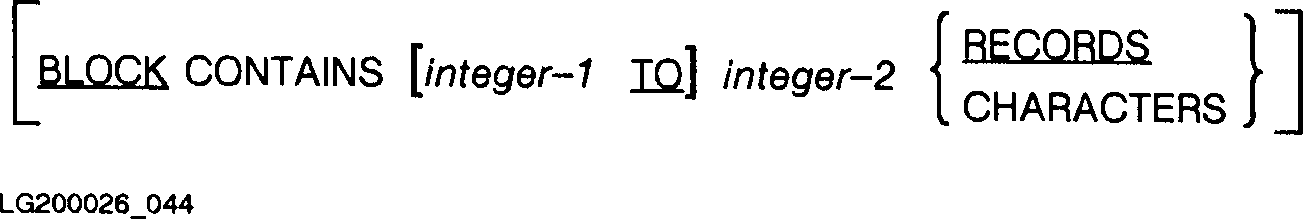

Syntax.

Parameters.

integer-1 optional and must be positive. It refers to the minimum
blocking factor size or to the minimum size of the
physical record, depending upon whether the keyword
RECORDS or CHARACTERS is used. Due to the way in which
the operating system determines file attributes, this
phrase is treated as a comment.

integer-2 required and must be positive. If used in conjunction
with integer-1, it specifies the maximum size of the
physical record; used alone, however, it specifies the
exact size of the physical record, or the exact blocking
factor.

RECORDS specifies that the physical record size of the file is
determined by its blocking factor.

CHARACTERS when specified, is used to determine the blocking factor
by dividing the value of integer-2 by the logical record
size. Refer to the RECORD CONTAINS clause description
in this chapter.

Description.

When the word CHARACTERS is used, the physical record size should be
specified as a multiple of the maximum logical record size. Note that
this logical record size must include any slack bytes generated by the
compiler. Refer to the SYNCHRONIZED clause description in this chapter.

If logical records of differing size are grouped into one physical
record, they are treated differently, according to the file's
organization:

* Sequential or indexed file - The size of a logical record is
variable, and is equal to the size of the record currently being
accessed.

* Random and relative files require fixed length records.

To illustrate the use of the BLOCK CONTAINS clause:

* A magnetic tape file contains variable length logical records with
a maximum of 120 characters, blocked with a minimum of four
logical records per physical record. There is a maximum of 480
characters (bytes) per physical record, and a minimum of 60 bytes
per physical record.

In this case, you can use either:

BLOCK CONTAINS 4 RECORDS.

or:

BLOCK CONTAINS 60 TO 480 CHARACTERS.

NOTE The figures specified above are only used as estimates by the
operating system. The actual blocking factor varies depending on
the logical records, and the physical record size for variable
records contains control information. Therefore, it is larger than
specified in the BLOCK CONTAINS clause. This applies to relative
files as well. Refer to the MPE File System Manual for more
information on blocking factors.

* A random access disk file contains fixed length logical records of
206 bytes (103 words) each. Therefore, there are 50 unused bytes
per sector. To minimize this waste, a blocking factor of six
records can be used:

BLOCK CONTAINS 6 RECORDS.

* A serial access disk file contains variable length logical
records, ranging from 256 to 2560 bytes per record. The blocking
factor is 10.

You can use either:

BLOCK CONTAINS 256 TO 2560 CHARACTERS.

or:

BLOCK CONTAINS 10 RECORDS.

CODE-SET Clause

The CODE-SET clause specifies the character code convention that
represents data stored in sequential files. This clause may be specified
for all files with sequential organization. This clause is optional,
with ASCII being the default if it is not specified.

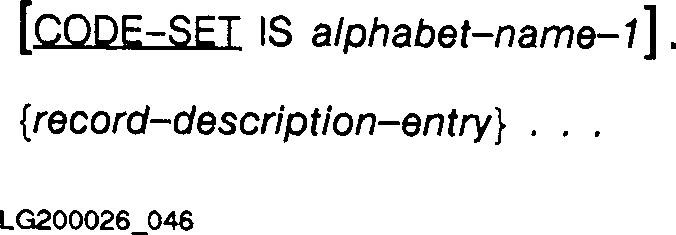

Syntax.

Parameters.

alphabet-name-1 a previously defined name related to either EBCDIC,
EBCDIK, STANDARD-1, STANDARD-2 or NATIVE. It must be
specified in the ALPHABET clause of the SPECIAL-NAMES
paragraph in the ENVIRONMENT DIVISION.

Description.

If the CODE-SET clause is specified, alphabet-name-1 indicates the
character code convention used to represent the data on the related file.
It further indicates the conversion routine to be used in translating the
data into ASCII (when reading it) and translating data back into its
original character code (when writing it from your program).

When the CODE-SET clause is used for a file, all data in that file must
be described as USAGE IS DISPLAY, and any signed numeric data must be
described with the SIGN IS SEPARATE clause.

NOTE The HP utility FCOPY can be used to translate EBCDIC files
containing records with elements that are other than USAGE DISPLAY.
Refer to the FCOPY Reference Manual for more information.

DATA RECORDS Clause

The DATA RECORDS clause is an obsolete feature of the 1985 ANSI COBOL
standard.

For any type of file (random, sequential, sort-merge, and so forth) the
DATA RECORDS clause serves only to document the names of data records
associated with a file. This clause is, therefore, optional for both FD
and SD level file descriptions.

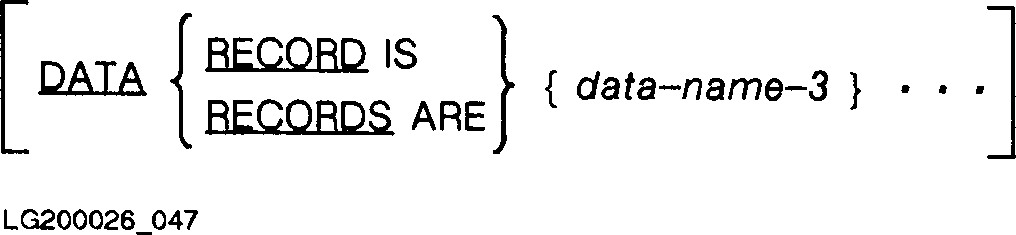

Syntax.

Parameters.

data-name-2 and its subsequent occurrences are the names of data
records.

Description.

Use of more than one data name in this clause indicates that the file
contains more than one type of data record. For instance, they might be
of different size or format.

EXTERNAL Clause

The EXTERNAL clause is a feature of the 1985 ANSI COBOL standard.

The EXTERNAL clause specifies the external attributes of a file
connector, the associated data records, and the associated data items.

Syntax.

IS EXTERNAL

Description.

If the file description entry for a sequential file contains the LINAGE
clause and the EXTERNAL clause, the LINAGE-COUNTER data item is an
external data item. FILLER cannot be specified for any record
descriptions associated with a file description entry that contains the
EXTERNAL clause. See Chapter 11 , "Interprogram Communication", for
more detailed information.

GLOBAL Clause

The GLOBAL clause is a feature of the 1985 ANSI COBOL standard.

The GLOBAL clause specifies that the file connector, the data records and
associated data items are available to the contained programs within a
nested program in which the file is declared global.

Syntax.

IS GLOBAL

Description.

The GLOBAL clause can only be specified in the FD clause of the FILE
SECTION. Refer to Chapter 11 , "Interprogram Communication," for more
detailed information.

LABEL RECORDS Clause

[REV
BEG]

The LABEL RECORDS clause is an obsolete feature of the 1985 ANSI COBOL
standard.[REV END]

The LABEL RECORDS clause specifies whether one or more labels exist on
the file and, optionally, the names of the records containing the label.
This clause does not apply to sort-merge files.[REV BEG] This clause is
optional.[REV END]

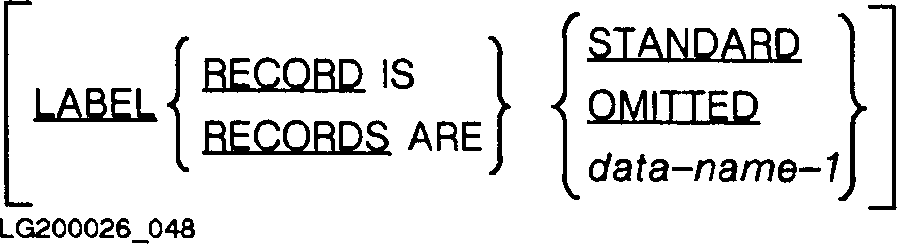

Syntax.

Parameters.

OMITTED specifies that no explicit labels exist for the file or
the device to which the file is assigned.

STANDARD specifies that labels exist for the file or the device
to which it has been assigned, and that the labels
conform to the operating system's label specification.

data-name-1 the name of the label record which must be described in
a record description entry associated with the file.
This record must not appear in the DATA RECORDS clause
associated with the file. Use of this option indicates
that user labels, as well as standard labels, are to be
processed. All PROCEDURE DIVISION references to these
names, or to any subordinate items, must appear within
USE procedures. Label records for all files share the
same area of memory.

Data-name-1 cannot be an external record. The
data-name-1 parameter is an HP extension to the ANSI
COBOL standard.

Description.

With HP COBOL II, it does not matter whether you specify that labels are
STANDARD or OMITTED because the operating system processes standard
labels before making the associated file available to your COBOL program.

If the file being described is an external file, all programs describing
this file must have consistent LABEL RECORDS clauses.

LINAGE Clause

The purpose of the LINAGE clause is to describe the format of a logical
page. It is used in conjunction with sequential files opened for output.
Although there is not necessarily any relation between a logical and a
physical page, it is advisable (particularly when writing a logical page
to the line printer) to consider the size of a physical page when you are
defining a logical one.

The LINAGE clause applies only to sequential files. It has no meaning
for relative, random, indexed, or sort-merge files.

Its use is optional with sequential files, but it must be used if you
intend to write records to the file using the END-OF-PAGE (or EOP) phrase
of the WRITE statement.

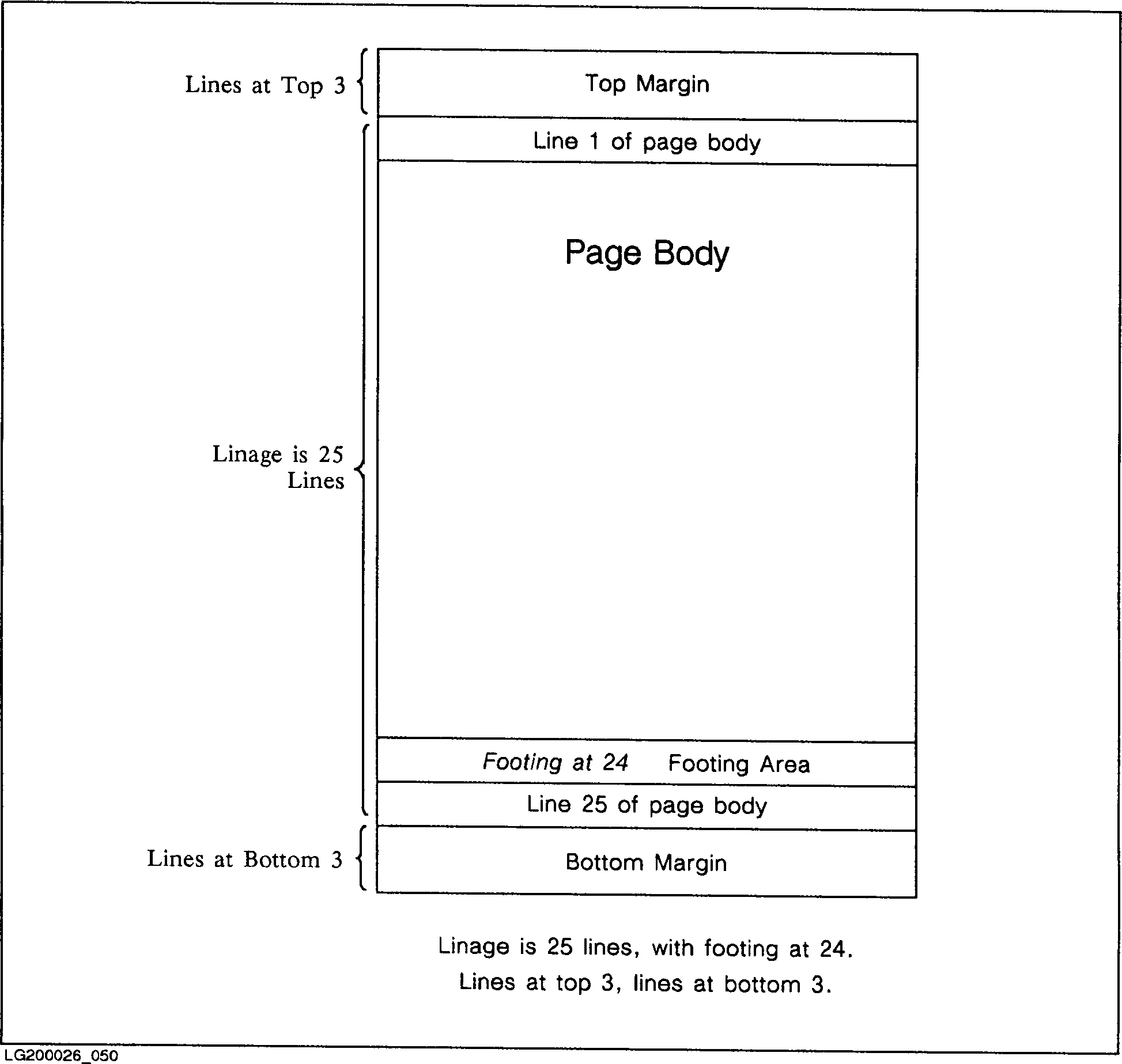

A logical page consists of a top margin, page body, footing area, and
bottom margin. Within a file, logical pages are contiguous. Figure 7-1
shows the concept of a logical page.

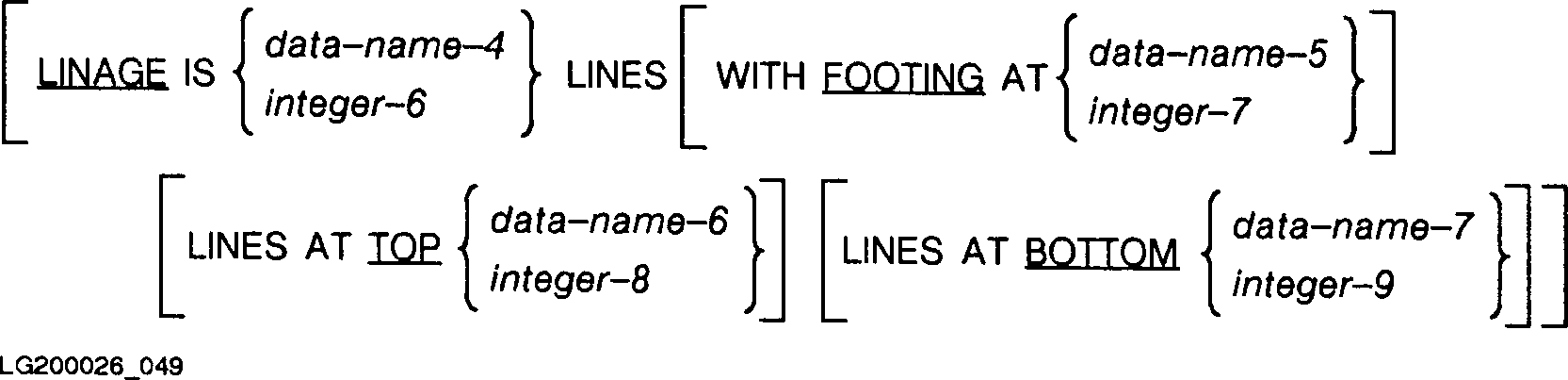

Syntax.

Parameters.

data-name-4 each reference an elementary unsigned integer data item.
through
data-name-7

integer-6 greater than zero.

integer-7 greater than or equal to zero and not greater than
integer-6.

integer-8 and each greater than or equal to zero.
integer-9

Description.

The LINAGE clause uses data-name-4 or integer-6 to define the number of
lines in the page body. The page body is the area of the logical page in
which lines can be written or spaced. Because a page size is being
defined, integer-6 (or the value associated with data-name-4) must be
greater than 0.

If the file being described is an external file, and any file description
entries for this file have a LINAGE clause, all file description entries
in the run unit that describe this file must have a LINAGE clause. Also,
the parameters must be either constants or external data items.
Corresponding parameters must be the same in all LINAGE clauses for this
file.

Figure 7-1. Example of the LINAGE Clause and its Logical Representation

FOOTING Phrase.

The FOOTING phrase is optional. If specified, however, it uses integer-7
or data-name-5 to define the FOOTING AREA of the page body.

The entire page body can be the footing area. That is, integer-7 (or,
the value of data-name-5) may be 1, in which case the footing area is all
of the page body.

The footing area is used in conjunction with the END-OF-PAGE phrase of
the WRITE statement. It signifies that the end of the logical page has
been reached.

If you do not use the FOOTING phrase, then the only way that an end of
page condition can occur is for a WRITE statement to attempt to write a
record beyond the end of the logical page body (that is, when a page
overflow condition exists).

LINES AT TOP and LINES AT BOTTOM Phrases.

The LINES AT TOP and LINES AT BOTTOM phrases are optional. They are used
to specify a top margin and a bottom margin, respectively, for the
logical page. If neither phrase is used, the margins are assumed to be
zero.

If THE LINES AT TOP phrase is specified, it uses integer-8 or data-name-6
to specify the number of lines in the top margin.

If THE LINES AT BOTTOM phrase is specified, it uses data-name-7 or
integer-9 to specify the number of lines in the bottom margin.

The top and bottom margins are distinct from the page body; therefore, no
data may be written into them.

Use of Data Names Versus Use of Integers.

The use of integers in a LINAGE clause allows for less flexibility than
does the use of data names.

When an integer (either integer-6, integer-7, or integer-8) is specified,
it is used when the file associated with the LINAGE clause is opened for
output. This value is used for every logical page written for the file
and cannot change during a particular execution of the program in which
it appears.

The values of data names, on the other hand, can vary during the
execution of a program. Therefore, the values are checked and used not
only when the associated file is open for output, but also whenever a
WRITE statement containing an ADVANCING PAGE phrase is executed, or a
WRITE statement is executed and a page overflow condition occurs.

Taking each of these cases in turn:

* When the file is opened for output, the current values of
data-name-4, data name-5, data-name-6, and data-name-7 are used to
define their associated sections of the FIRST logical page only.

* When a WRITE statement is executed, and the ADVANCING PAGE phrase
is activated, the current values of data-name-4, data name-6 and
data-name-7 are used to define the page body, top and bottom
margins of the next logical page.

* If a footing area has been defined, the ADVANCING PAGE phrase is
activated when the WRITE statement in which it appears attempts to
write data into the footing area. In this case, the data is
written into the footing area of the current logical record and
the current value of data-name-5 is then used to define the
footing area for the next logical page.

* When a WRITE statement is executed and a page overflow condition
occurs, thus forcing an end-of-page condition, the current values
of data-name-4, data name-6, and data-name-7 are used to define
their associated parts of the next logical page.

This type of end-of-page condition implies that either the value of
data-name-5 is the same as that of data-name-4 or that a footing area was
not defined (the two are equivalent).

In either case, the data to be written is placed in the first available
line of the next logical record (depending upon whether the BEFORE or
AFTER ADVANCING phrase was used in the WRITE statement).

If a footing area has been defined, the current value of data-name-5 is
then used to define the footing area of this logical record.

LINAGE-COUNTER.

Any time a LINAGE clause is specified for a file, a LINAGE-COUNTER is
supplied for the file.

Because you can have more than one file whose description contains a
LINAGE clause, you must qualify the LINAGE-COUNTER of each file by using
the file name.

The value of a LINAGE-COUNTER at any given time is the current line
number of the associated page body. This value ranges from one, for the
first line of a page body, to integer-6 (or the value of data-name-4).
You can reference a LINAGE-COUNTER in the PROCEDURE DIVISION, but cannot
change it.

Each time a record is written to a logical page, the associated
LINAGE-COUNTER is incremented according to the following rules:

* When the file associated with LINAGE-COUNTER is first opened,
LINAGE-COUNTER is set to one.

* If the ADVANCING phrase of the WRITE statement is not specified,
LINAGE-COUNTER is incremented by one when the WRITE statement is
executed.

* If the ADVANCING phrase is used with a WRITE statement, and

* is of the form, ADVANCING integer-1 or ADVANCING
identifier-2, LINAGE-COUNTER is incremented by integer-1
(or the value of identifier-2) when the WRITE statement is
executed.

* is of the form ADVANCING PAGE, LINAGE-COUNTER is reset to
one.

* If a new logical page is to be written upon, LINAGE-COUNTER is
reset to one.

RECORD CONTAINS Clause

The RECORD CONTAINS clause specifies the size, in characters, of data
records in a file. Because each data record of a file is completely
defined in a record description entry, this clause is optional for any
file description entry.

Syntax.

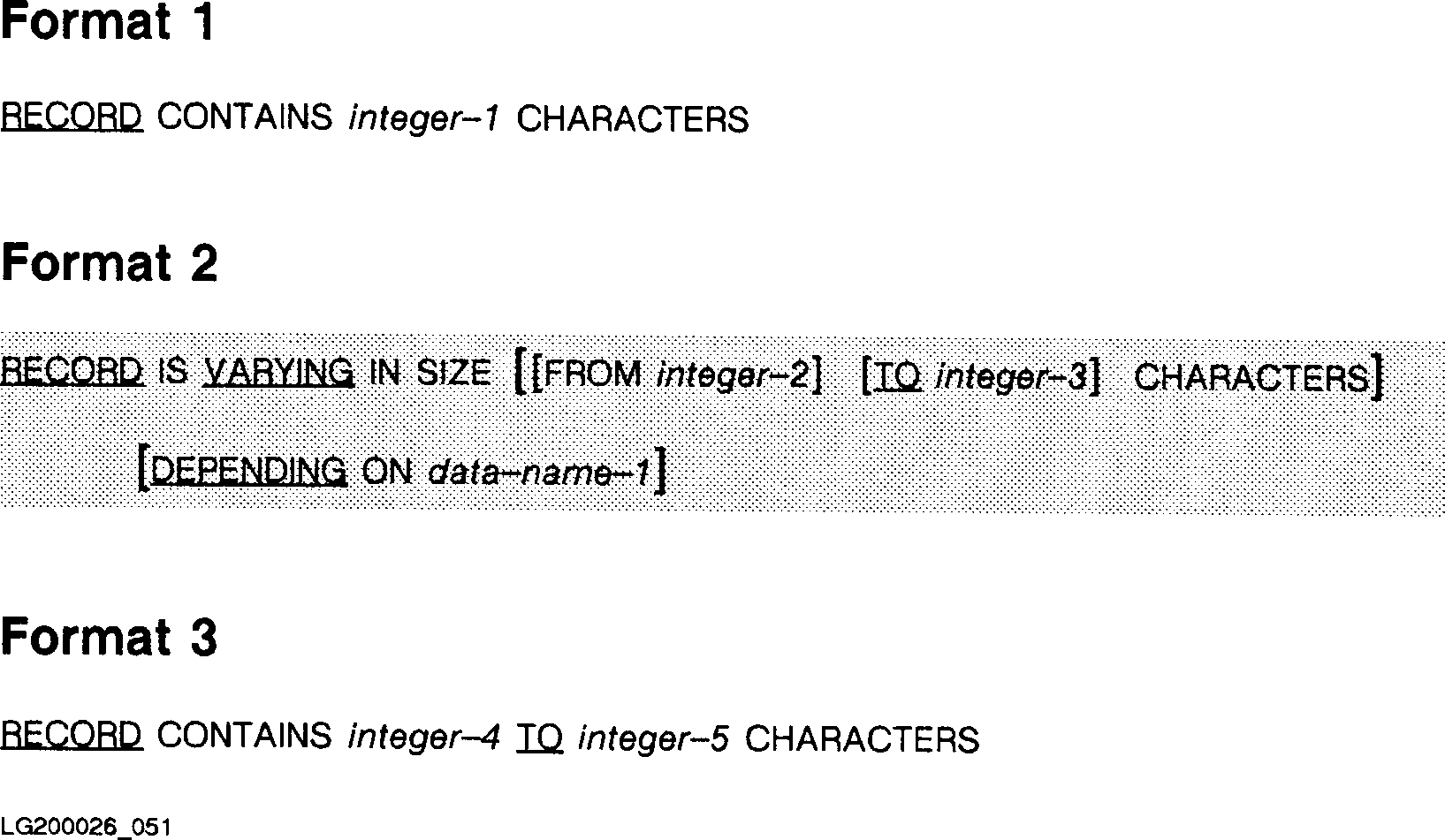

The RECORD CONTAINS clause has the following three formats:

Parameters.

integer-1 specifies the number of characters contained in each
record of the file.

integer-2 specifies the minimum number of character positions to
be contained in any record of the file.

integer-3 specifies the maximum number of character positions to
be contained in any record of the file.

integer-4 specifies the minimum number of characters in the
smallest size data record.

integer-5 specifies the maximum number of characters in the
largest size data record.

data-name-1 must be an elementary unsigned integer in the
WORKING-STORAGE or LINKAGE section.

Description.

The size of a record is determined by taking the sum of the numbers of
all characters in all fixed length elementary items, and adding to that
sum the maximum number of characters in any variable length item
subordinate to the record.

This sum may differ from the actual size of the record because of slack
bytes. Refer to the SYNCHRONIZED and USAGE clause descriptions appearing
later in this chapter.

If the RECORD clause is not specified in all formats, the size of each
data record is completely defined in the record description entry.

Fixed Length Records.

Format 1 is used to specify fixed length records. integer-1 specifies
the number of character positions contained in each record in the file.

Variable Length Records.

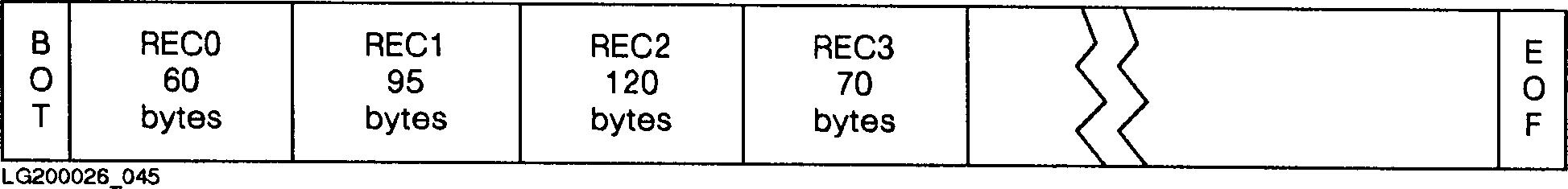

Format 2 is used to specify variable length records.

The number of character positions associated with a record description is
determined by the sum of the number of character positions in all
elementary data items excluding redefinitions and renamings, plus any
implicit FILLER due to synchronization.

If a table is specified, the minimum or maximum number of table elements
described in the record is used in the summation above to determine the
minimum or maximum number of character positions associated with the
record description.

If integer-2 is not specified, the minimum number of character positions
to be contained in any record of the file is equal to the least number of
character positions described for a record in that file.

If integer-3 is not specified, the maximum number of character positions
to be contained in any record of the file is equal to the greatest number
of character positions described for a record in that file.

If data-name-1 is specified, the number of character positions in the
record must be placed into the data item referenced by data-name-1 before
any RELEASE, REWRITE, or WRITE statement is executed for the file.

If data-name-1 is specified, the execution of a DELETE, RELEASE, REWRITE,
START, or WRITE statement or the unsuccessful execution of a READ or
RETURN statement does not alter the content of the data item referenced
by data-name-1.

During execution of a RELEASE, REWRITE, or WRITE statement, the number of
character positions in the record is determined by the following three
conditions:

* If data-name-1 is specified, by the content of the data item
referenced by data-name-1.

* If data-name-1 is not specified and the record does not contain a
variable occurrence data item, by the number of character
positions in the record.

* If data-name-1 is not specified and the record does contain a
variable occurrence data item, by the sum of the fixed portion and
that portion of the table described by the number of occurrences
at the time of execution of the output statement.

If data-name-1 is specified, after the READ or RETURN statement for the
file successfully executes, the contents of the data item referenced by
data-name-1 indicate the number of character positions in the record just
read.

If the INTO phrase is specified in the READ or RETURN statement, the
number of character positions in the current record that participate as
the sending data items in the implicit MOVE statement are determined by
the following two conditions:

* If data-name-1 is specified, by the content of the data item
referenced by data-name-1.

* If data-name-1 is not specified, by the value that would have been
moved into the data item referenced by data-name-1.

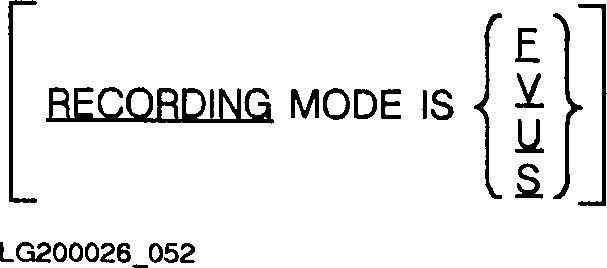

Format 2 is the preferable way to specify variable length records. If
format 3 is used, the RECORDING MODE clause must also be specified.

In format 3 of the RECORD clause, the size of each data record is
completely defined in the record description entry.

The size of each data record is specified in terms of the number of
character positions required to store the logical record, regardless of
the types of characters used to represent the items within the logical
record. The size of a record is determined by the sum of the number of
characters in all fixed length elementary items plus the sum of the
maximum number of characters in any variable length item subordinate to
the record. This sum can be different from the actual size of the
record.

Example.

The following example illustrates use of the RECORD VARYING clause.

IDENTIFICATION DIVISION.
PROGRAM-ID. COBVAR.
ENVIRONMENT DIVISION.
INPUT-OUTPUT SECTION.
FILE-CONTROL.
SELECT IFILE ASSIGN TO "IFILE".
SELECT IFILE2 ASSIGN TO "IFILE".
DATA DIVISION.
FILE SECTION.
FD IFILE
RECORD IS VARYING FROM 10 TO 50 DEPENDING ON LEN.
01 IREC.
05 FILLER PIC X OCCURS 10 TO 50 TIMES DEPENDING ON LEN.
FD IFILE2
RECORD IS VARYING FROM 10 TO 50.
01 IREC2 PIC X(50).
WORKING-STORAGE SECTION.
01 LEN PIC S9(4) BINARY.
01 LEN-ED PIC ++++9.
01 WREC PIC X(50).
PROCEDURE DIVISION.
P1.
DISPLAY "EXAMPLE 1 ODO REC"
OPEN INPUT IFILE
PERFORM UNTIL LEN = -1
READ IFILE
AT END MOVE -1 TO LEN
NOT AT END
DISPLAY IREC
MOVE LEN TO LEN-ED
DISPLAY "Length is ", LEN-ED
END-READ
END-PERFORM
CLOSE IFILE
DISPLAY SPACE

DISPLAY "EXAMPLE 2 FIXED REC"
OPEN INPUT IFILE2
MOVE ALL "X" TO IREC2
READ IFILE2 AT END MOVE -1 TO LEN
END-READ
DISPLAY IREC2
DISPLAY SPACE

DISPLAY "EXAMPLE 3 READ INTO WREC"
MOVE ALL "X" TO IREC2 WREC
READ IFILE2 INTO WREC AT END MOVE -1 TO LEN
END-READ
DISPLAY IREC2
DISPLAY WREC
CLOSE IFILE2.

If IFILE contains the following data:

1234567890
123456789*123456789*
123456789*123456789*123456789*

The program will produce the following output:

EXAMPLE 1 ODO REC
1234567890
Length is +10
123456789*123456789*
Length is +20
123456789*123456789*123456789*
Length is +30

EXAMPLE 2 FIXED REC
1234567890XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

EXAMPLE 3 READ INTO WREC
123456789*123456789*XXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
123456789*123456789*

RECORDING MODE Clause

The RECORDING MODE clause is an HP extension to the ANSI COBOL standard.

The RECORDING MODE clause specifies how logical records are contained in
the file, and whether or not the logical record being read or written
spans more than one physical record (generally because of hardware
constraints or for I-O efficiency). This clause does not apply to
sort-merge files. This clause is optional.

Syntax.

Parameters.

F specifies fixed length logical records. This implies that no
OCCURS DEPENDING on clause can be associated with any record
description entry for the file. Also, if more than one record
description entry is supplied for the file, all record lengths
calculated from the record descriptions must be the same. This
option is the only one that is valid for random access and
relative files.

V specifies variable length logical records.

U specifies undefined length logical records. This kind of file
cannot be blocked. Therefore, the BLOCK CONTAINS clause need not
be used for this kind of file.

S enables the MULTI-RECORD (or more accurately, "multi-block")
option. This option allows the reading or writing of a single
logical record across more than one physical record.

Description.

If none of the above codes is specified, an F is the default value.

Logical records are contained in files as either fixed, variable, or
undefined in length.

A fixed length record file contains logical records whose lengths are all
the same.

A variable length record file contains logical records whose lengths may
vary. In such a file, each record is preceded by a[REV BEG] two-byte
count, which specifies the length of that[REV END] particular record.

An undefined length record file contains logical records of undetermined
length. In such a file, each logical record is equivalent to one
physical record, and a physical record is as long as the longest possible
logical record in the file.

To clarify the case of logical records spanning more than one physical
record, assume you want to read logical records of 128 characters each
from a card reader.

Each card represents a physical record of 80 characters. Therefore, to
read one logical record, you must read two physical records.

In such a case, you could specify the recording mode as equal to S, the
operating system's multi-record option.

VALUE OF Clause

The VALUE OF clause is an obsolete feature of the 1985 ANSI COBOL
standard.

The VALUE OF clause allows you to access existing files on labeled tapes
or to create a new labeled tape. A label contains identification,
whether the label is in IBM or ANSI standard format, the expiration date
of the file protection, and the position of the file on the tape. This
clause does not apply to sort-merge files.

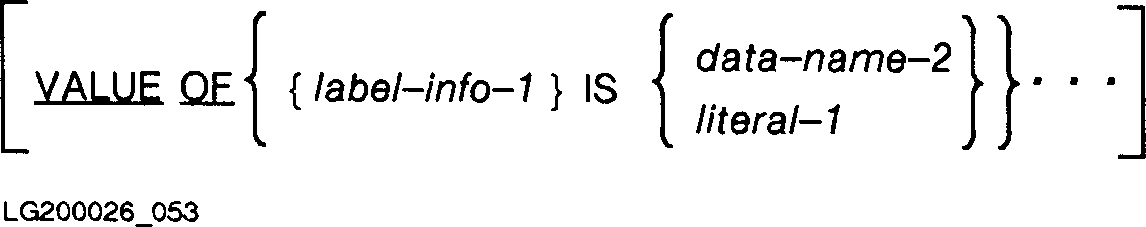

Syntax.

Parameters.

label-info-1 specifies one of the following fields: VOL, LABELS,
SEQ, or EXDATE. Each of these fields is described in
Table 7-1 on the following page.

data-name-2 must be described in the WORKING-STORAGE SECTION. This
name can be qualified, but cannot be subscripted,
indexed, or described with the USAGE IS INDEX clause in
a data description. It is used to specify the value of
the associated label-info entry. The possible values
are shown in Table 7-1 on the following page.

literal-1 a COBOL literal or a figurative constant.

Description.

The data name associated with VOL can specify a data item of any
category, but must consist of a maximum of six characters or digits. The
data name associated with SEQ can also specify a data item of any
category, but must consist of a maximum of four digits or characters.
The data names associated with LABELS and EXDATE must name alphanumeric
data items; the respective picture strings for LABELS must describe data
that is three characters long, EXDATE that is eight characters long and
of the form, mm/dd/yy.

All VALUE OF clauses for each external file in the run unit must be
consistent.

Table 7-1. Values of the LABEL INFO and DATA NAME Parameters
in the VALUE OF Clause
-----------------------------------------------------------------------------------------------
- label-info-n - Meaning - data-name-n or literal-n -
-----------------------------------------------------------------------------------------------
| VOL | Volume identification. | Any combination of one to six characters |
| | | from the set A through Z, and 0 through 9. |
-----------------------------------------------------------------------------------------------
- LABELS - ANSI standard or IBM format. - ANS or IBM. -
-----------------------------------------------------------------------------------------------
| SEQ | Relative position of file on a | 0 to 9999, NEXT, or ADDF. |
| | magnetic tape. | |
-----------------------------------------------------------------------------------------------
| EXDATE | Date when file may be written | Date, in the form month/day/year. The |
| | over. Until that time, the | default is 00/00/00. |
| | file is protected. | |
-----------------------------------------------------------------------------------------------

Example.

DATA DIVISION.

FILE SECTION.
FD TAPEFL
VALUE OF VOL IS "JTAPE1", LABELS IS "ANS",
SEQ IS 10, EXDATE IS "02/25/85".
:
FD NEW-TAPE
VALUE OF VOL IS "JTAPE2", LABELS IS "ANS",
SEQ IS "ADDF", EXDATE IS "02/25/85".
:
PROCEDURE DIVISION.
DISPLAY "PLEASE MOUNT NEW TAPE FOR JTAPE2" UPON CONSOLE.
OPEN OUTPUT NEW-TAPE, INPUT TAPEFL.
.
.
.

Assuming that NEW-TAPE names a new file, when the OPEN statement above is
executed, the information given in the VALUE OF clause is used to write a
label for the tape volume.

When TAPEFL is opened, the specification of 10 for the SEQ value causes
the tape to automatically be placed at the beginning of the tenth file on
the volume named JTAPE1.

Note that a message requesting that the volumes JTAPE2 and JTAPE1 be
mounted is displayed on the operator's console. Because JTAPE2 is a new
volume, the DISPLAY statement above was used to tell the operator that
JTAPE2 does not already exist.

MPE/iX 5.0 Documentation
