HP COBOL II/XL Reference Manual

SUBTRACT Statement

The SUBTRACT statement subtracts one or more numeric data items from one
or more numeric data items and stores the result in one or more data
items.

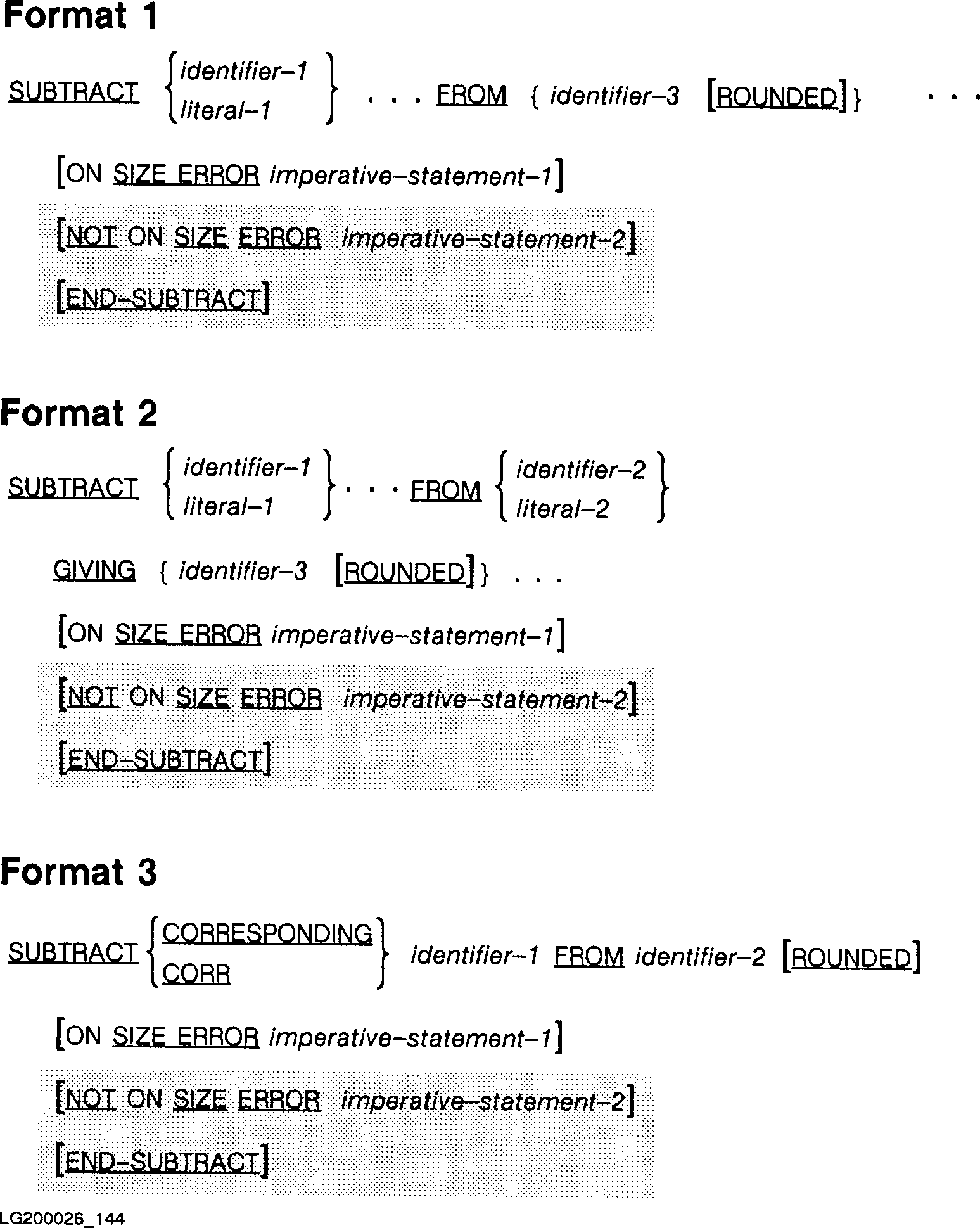

Syntax

The SUBTRACT statement has three formats:




Parameters

identifier-1,   elementary numeric data items, or if to the right of the
identifier-2,   keyword GIVING, may be elementary numeric-edited data
and so forth    items.

                The exception is in format 3, where identifier-1 and
                identifier-2 must be group items.

literal-1,      numeric literals.
literal-2, and
so forth

CORR            abbreviation for CORRESPONDING.

Description

The compiler always ensures that enough places are carried in order to
avoid losing significant digits.

The ROUNDED, SIZE ERROR,  NOT ON SIZE ERROR, and CORRESPONDING phrases,
as well as rules applying to multiple results and overlapping operands
are described in Chapter 8 .

The composite of operands, a hypothetical data item obtained by the
superimposition of data items, must not exceed 18 digits.  This composite
is determined for each format as follows:

Format 1:             Composite is determined by using all of the
                      operands in a given statement.

Format 2:             Composite is determined using all of the operands
                      in a given statement except those following the
                      GIVING phrase.

Format 3:             Composite is determined using each pair of
                      corresponding data items separately.

When format 1 of the SUBTRACT statement is used, all literals or values
of identifiers preceding the FROM phrase are added together, and the
resulting sum is subtracted from the value of each identifier specified
in the FROM phrase.  As each subtraction is completed, the result is
stored in the identifier of the FROM phrase used as operand.

When format 2 is used, all literals or values of identifiers preceding
the FROM phrase are added together, and then subtracted from literal-2 or
the value of identifier-3.  The result of this subtraction is then stored
in each identifier following the GIVING keyword.

When format 3 is used, data items in identifier-1 are subtracted from and
stored in corresponding data items of identifier-2.

Examples

     SUBTRACT FIRST-YR, SECOND-YR FROM THIRD-YR.

     SUBTRACT HIRE-DATE FROM AGE GIVING YEARS-OF-SERVICE.

In the first example above, the value of FIRST-YR is added to the value
of SECOND-YR, and this sum is subtracted from, and stored in THIRD-YR.

In the second example, the value of AGE is subtracted from the value of
HIRE-DATE, and the results are stored in YEARS-OF-SERVICE.

In the example below, QTY-1, QTY-2, and QTY-3 of PARTS-OUT are subtracted
from QTY-1, QTY-2, and QTY-3 of CURRENT-PARTS, and the results are stored
in QTY-1, QTY-2, and QTY-3 of CURRENT-PARTS.

     FILE SECTION.
     FD INVFILE.
     01 PARTS-INV.
            03  PARTS-OUT.
                04  PARTS-NUM-1          PIC X(10).
                04  QUANTITY             PIC 9(6).
                04  SUB-PARTS-OUT.
                    05  QTY-1            PIC 9(6).
                    05  QTY-2            PIC 9(6).
                    05  QTY-3            PIC 9(6).
             03  CURRENT-PARTS.
                04  PART-NUM-1           PIC X(10).
                04  QUANTITY             PIC 9(6).
                04  CURRENT-SUB-PARTS.
                    05  QTY-1            PIC 9(5).
                    05  QTY-2            PIC 9(5).
                    05  QTY-3            PIC 9(5).
                         :
     PROCEDURE DIVISION.
              :
          SUBTRACT CORRESPONDING SUB-PARTS-OUT FROM CURRENT-SUB-PARTS.
