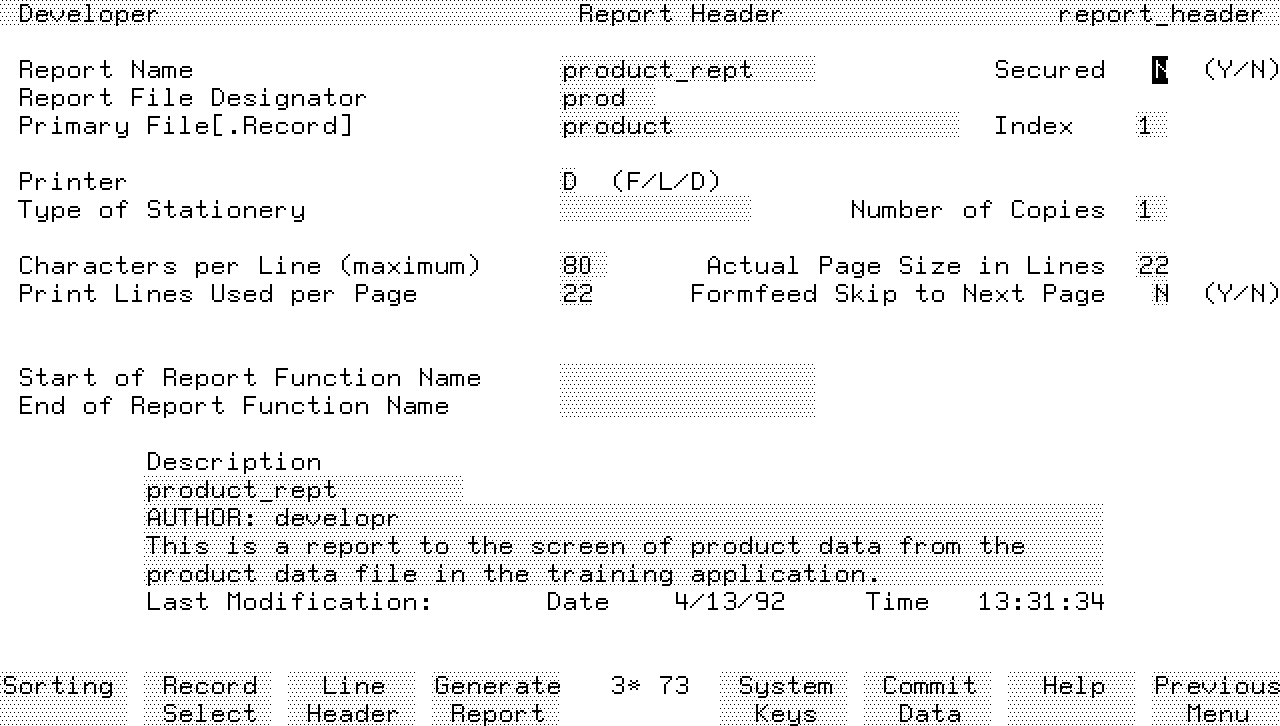

Task 1 - Creating the Report Header The first item you must define for every report is the report header. Menu Path From the main menu: 1. Select the Reports option 2. Choose Header Screen Description This screen allows you to define the basic operational specifications of the report. These specifications include the name of the report, the primary file for the report, the type of stationery for the report, the printer to be used, and a brief description of the report.Report Header Screen To enter the field values: Field Entry Explanation --------------------------------------------------------------------------------------- Report Name product_rept The name of the report you are creating. Secured Accept the default. This specifies whether this report is secured against an unauthorized developer changing the definition. Report File Accept the default of This is the name of the MPE/iX formal file Designator prod. designator for the report output file. You can use an MPE/iX file equation to direct the report to a specific device, or to a disk file. By default, the report is directed to the device class LP. Primary File[.Record] product The name of the data file that is the primary file for this report. In this particular report, all the records in this file are printed. Index Accept the default of The index used to read the file. Since 1. this report is not sorted, it also determines the order in which the records are printed. In this report, the file is printed in product number order. Printer D Specifies whether the report is printed to a formal file designator (F), a local printer attached to your terminal (L), displayed on your terminal screen (D), or printed at printer 1, 2, 3 or 4. These four printers are defined by your HP ALLBASE/4GL administrator. Type of Stationery Leave this field Specifies the stationery type that should blank. be loaded on the printer for this report. If the specified stationery is not loaded on the printer, MPE/iX requests the system operator to change the paper to the correct type. Table 6-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- Number of Copies Accept the default of You can print multiple copies of the same 1. report by specifying a value greater than 1 in this field. Characters per Line Accept the default Specifies the maximum allowable report line (maximum) value 80 width. The width you specify also determines the maximum width that the report painter allows you to use when you create an image of this report. Actual Page Size in Accept the default of Specifies the physical form length of the Lines 22. paper for the report. Print Lines Used per Accept the default of The logical page size. That is, the Page 22. maximum number of lines that can be printed on each physical page. Formfeed Skip to Next Accept the default of Specifies the type of form feeding control Page N. that is used. If you use non-standard size stationery, you may need to use linefeeds to advance to the next page. Entering Y specifies a formfeed, and N specifies multiple linefeeds. Start of Report If you are developing This is the name of a function that is Function Name the HP ALLBASE/SQL executed before HP ALLBASE/4GL starts based application, producing the report. This function can enter sel_product. display a screen to obtain user input for Otherwise, leave this parameters that are used within the report, field blank. or data that is used in the report. To produce a report for an HP ALLBASE/SQL database, you must declare and open a cursor using the SELECT command in an SQL logic block. The start of report function sel_product will contain an SQL command to call an appropriate SQL logic block. You will create this after creating the report header. Table 6-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- End of Report Leave blank. The name of a function to be executed after Function Name the report is produced. You could use this function to update data files as a result of totals obtained during the generation of the report. Description Enter a suitable description. To complete and commit the screen: 1. When all the entries on this screen are correct, press the Commit Data function key to create the report header. The report header is now complete and you can go on to define the remainder of the report. The Next Step for KSAM and TurboIMAGE/iX Applications For the KSAM based and HP TurboIMAGE/iX based application, the next step is to define the print lines used for this report. 1. Press the Previous Menu function key to return to the reports menu. Then turn to "Task 2 - Creating the Report Line Header." The Next Step for SQL Based Applications If you are developing the HP ALLBASE/SQL based application, you must first create the sel_product function and the SQL logic block that it calls. Follow the procedure below. Start of Report Function Function sel_product 1. Create and generate the sel_product function. The sel_product function reads as follows: 1 SQL select_product 2 EXIT This function simply calls the SQL logic block select_product. Note that this function does not contain a FILE *NEXT command. The report generator performs the equivalent operation to a FILE *NEXT command when it accesses the primary file for the report. In this case, the primary file for the report is the active set for the cursor defined by the SQL block select_product. 2. Create and generate the SQL Logic Block select_product. The select_product SQL logic block contains the following command: SELECT :product FROM sqlgrp.product ORDER BY product_no; This SELECT command contains an ORDER BY clause. This clause ensures that records are retrieved in the required order for the report.
![[]](../../pic3k/M012318/FFN533c50.gif)
