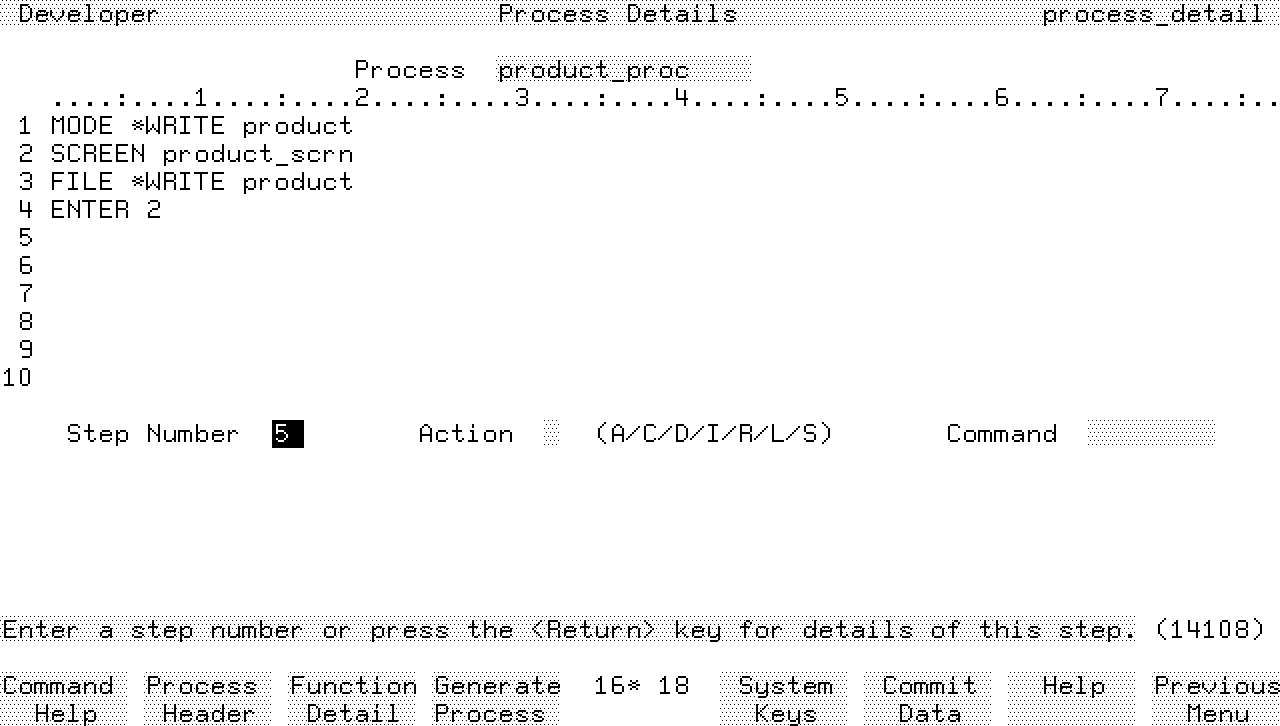

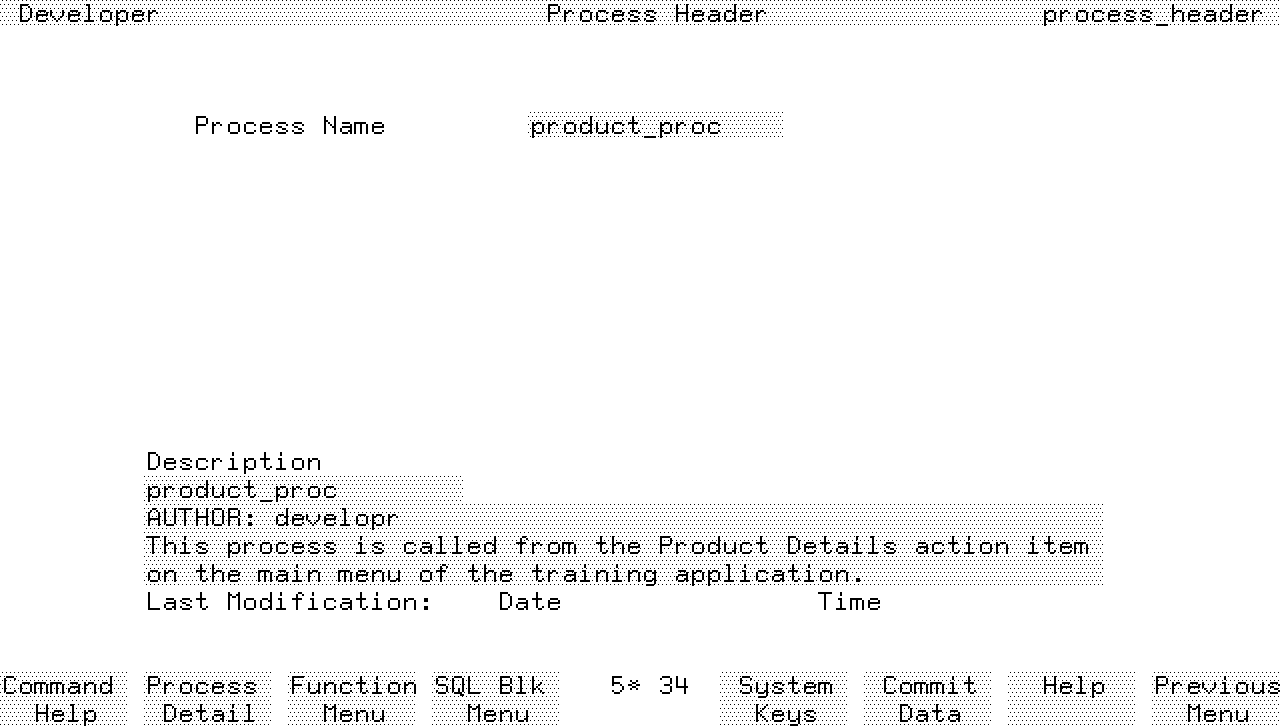

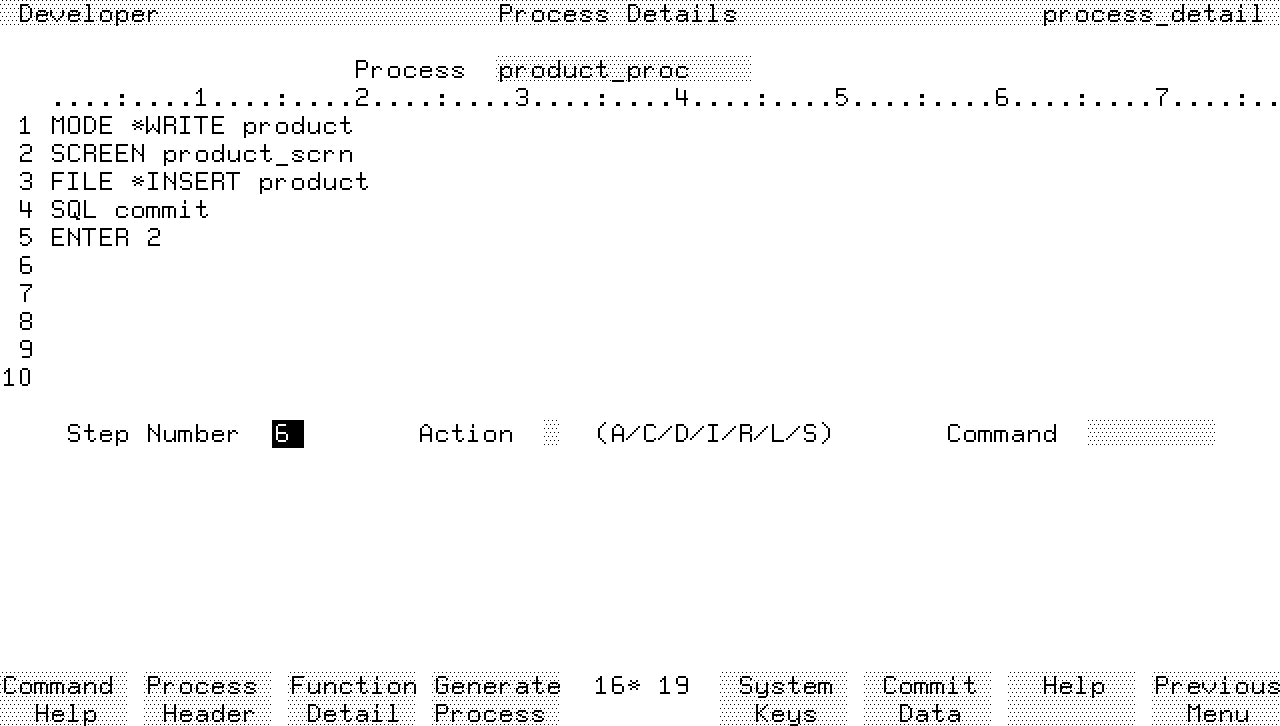

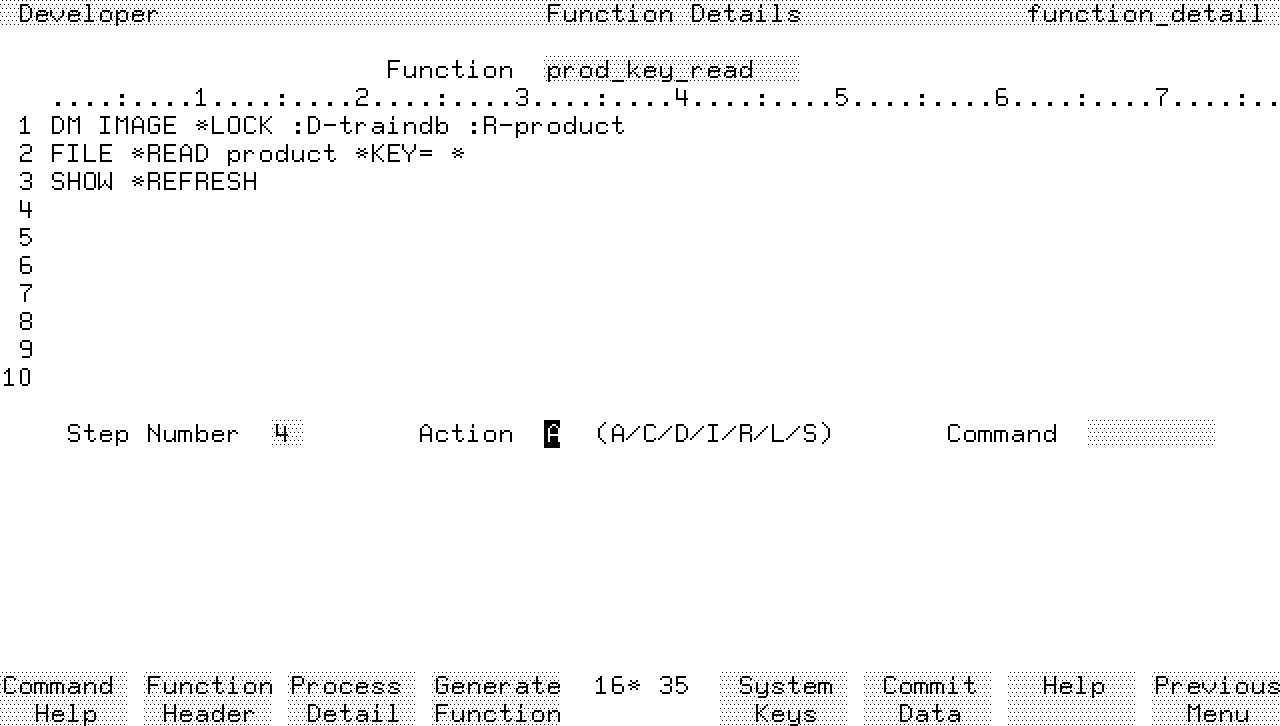

The Product Process The process you are about to develop calls a data screen. When the user completes the screen, the same process writes the data entered by the user to the product file. The process then loops back to the beginning to start again. Many processes call data screens. The training application uses a menu item to call a process, which in turn displays a data screen and then manipulates data in a file. For the training application, the user must press the Previous Menu function key to exit from the process. After pressing the Previous Menu function key the user is taken back to the menu that called the process. Task 1 - Defining the Process Header The first task in defining the process is to define the process header. This involves two steps. First you must define a process header, and then define the steps that make up the process on the process details screen. Menu Path To access the screen: 1. From the main menu, select the Logic menu item. 2. Choose Processes. 3. Choose Header.Process Header Screen Screen Description This screen enables you to enter a brief description of the process for documentation purposes. To enter the field values: Field Entry Explanation --------------------------------------------------------------------------------------- Process Name product_proc The name of the process within the application. Description Enter a suitable Used for documentation purposes. description. To complete and commit the screen: 1. Press the Commit Data function key to create the process header. Once you've done this, go to the Process Details screen to create the process logic block. Task 2 - Defining the Process Details Now that you have created the process header, you can define the details of the process. Menu Path To access the screen from the main menu: 1. Select the Logic option. 2. Choose Processes. 3. Choose Details.Process Details Screen Screen Description This screen allows you to create the command lines that make up the process logic block. The screen is divided into two distinct regions. The upper region displays 10 of the 99 lines allowed in the logic block. This range is scrolled up and down to display the current line in the logic block as you work through it. The lower region allows you to enter commands. Three fields are always displayed in the lower region. These are the current step number, action, and command name. Below this a window is sometimes displayed, and this is where the remainder of the command line is entered or displayed. Process Details Windows HP ALLBASE/4GL displays special windows for commands that have a more complex syntax. This special window steps you through the syntax of the particular command. HP ALLBASE/4GL displays the window after you enter a command name in the Command field. The simpler commands use a free format window for you to enter the rest of the command. Some commands don't have options, so no window is displayed. You will see examples of each of these methods as you enter the steps for this process. About the Process Because each data manager is different, sometimes the logic that you write will vary according to the data manager you are using. In particular, commands that read or write to a data manager may vary. This process, and some other processes and functions that you will create later, is slightly different for each data manager. Follow the instructions for the appropriate data manager. If you wish, take a look at the logic for other data managers to see how the logic varies for the needs of each data manager. If you are developing the KSAM based application, read on below. If you are developing the HP ALLBASE/SQL based application, turn to HP ALLBASE/SQL Based Applications. If you are developing the HP TurboIMAGE/iX based application, turn to HP TurboIMAGE/iX Based Applications. KSAM Based Applications For KSAM based applications, this is the process you are going to create. 1 MODE *WRITE product 2 SCREEN product_scrn 3 FILE *WRITE product 4 ENTER 2 What the Process Does This process is quite simple. * In the first line the MODE command specifies how the application can access data files. In this case, the application has write access to the data file called product. * The SCREEN command in the second line displays the product_scrn screen. * The FILE command in the third line writes data from the file record buffer to the product file. * The ENTER 2 command in the last line causes the process to execute again from step number 2. * The user can exit from the process by pressing the Previous Menu function key at any time.KSAM Process Details Screen Enter the steps for this process as shown below. To enter the field values: Field Entry Explanation --------------------------------------------------------------------------------------- Process Name product-proc The default name in this field, if you have just defined the header for the process. Using Open Window Commands. The first two commands use the open window method for you to enter the remainder of the step. Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. The number of the step in the logic block that you are defining. It is not necessary for step numbers to be contiguous. You can leave blank lines within a logic block. Action Accept the default. An action code much like the one used to create the record layout details. It defaults to A indicating add for a new step, or C indicating change for an existing step. The other valid actions available are D to delete a step, I to insert a step, R to replace a step, L to list the whole logic block, and S to swap the display pages if your logic block is longer than the ten lines displayed in the window. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- Command MODE When you enter this command name, HP ALLBASE/4GL presents a free form data entry area at the base of the screen so you can enter the remainder of the command. HP ALLBASE/4GL automatically upshifts a lower-case entry. The MODE command sets the usage mode for a file while a process is active. By default, HP ALLBASE/4GL opens files for read access only. Refer to the HP ALLBASE/4GL Developer Reference Manual for more information about this command and any others you encounter in this manual. Pressing the Command Help function key on the process (or function) details screens displays several further sets of function keys that allow you to select the help screen you want. To Complete the *WRITE product Specifies that you want to write to the Command product file. Note that you don't need to enter the word write in uppercase letters. To complete this command: 1. Press Commit Data . This commits the step. HP ALLBASE/4GL clears the window and shows the new command line in the display region of the screen. The cursor returns to the Step Number input field so you can proceed to enter the next command. The step number is automatically incremented as you build the logic block. To enter the next command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default Notice that it is automatically incremented value. as you create each line of the logic block. If the current step is not displayed in the upper region of the screen, then the logic block is scrolled to ensure that the step is displayed. Action Accept the default action. Command SCREEN To Complete the Enter product_scrn This command tells HP ALLBASE/4GL to Command display the product_scrn screen. After the process is executed, control returns to the process when the end user terminates the screen by pressing the Commit Data function key on this screen. To complete this command: 1. Press Commit Data . This displays the second command line in the display region of the screen. It also clears the command window and returns the cursor to the Step Number input field. To enter the next process: This process uses a command sensitive window to enter the remainder of the command line. Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default action. Command Enter FILE Displays a special window to prompt for further details. The window appears after you enter the command name FILE. *WRITE Try entering an invalid file operation. HP ALLBASE/4GL displays a message informing you that the operation is invalid. The cursor remains on the field and you must correct the entry before you can move on. This shows you how the command sensitive window helps you enter the correct command structure. Also note that you don't need to enter the asterisk before the command name. HP ALLBASE/4GL enters it for you. Since the file used in this process has unique primary key values, it is possible to use the *WRITE option to both add or modify a record in the file. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- *NOLOCK Accept the default. Specifies whether this command imposes a lock on the file as it is accessed. The N option specifies that normal locking applies. (That is, the NOLOCK option is not used.) File ID[.Record] Enter product The name of the file that is used for this operation. You can append a record specifier to the file name. This is only necessary if you want to access a file using a record layout other than the default record layout. The remaining fields on the FILE command window are optional. You will use some of these fields later in this training course. For the moment, leave them blank. To complete this command: 1. Press Commit Data . When you press this key, HP ALLBASE/4GL clears the window and displays the command on the third line of the process logic block. Notice that the fields for which you made no entry are omitted from the command. To enter the fourth command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default action. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- Command ENTER When you enter this command name, HP ALLBASE/4GL presents a free form data entry area at the base of the screen so you can enter the remainder of the command. The ENTER command passes control to another line of the process to execute it again. To Complete the 2 This specifies that you want to pass Command control to line 2 of the process. To complete this command: 1. Press Commit Data . The new command line is displayed and the cursor returns to the Step Number field.Completed Process Details Screen The next step in creating a process is to generate it. This procedure is the same for all data managers. Turn to "Generating a Logic Block" to continue the training course and to generate the process. Creating an SQL Process For HP ALLBASE/SQL based applications, you are going to create the following process. 1 MODE *WRITE product 2 SCREEN product_scrn 3 FILE *INSERT product 4 SQL commit 5 ENTER 2 What the Process Does This process is quite simple. * In the first line the MODE command specifies how the application can access data files. In this case the application has write access to the data file called product. * The SCREEN command in the second line displays the product_scrn screen. * The FILE command in the third line inserts data from the file record buffer to the product file. * The SQL command calls an SQL logic block to commit the work. You will create the SQL logic block in Lesson 8. * The ENTER command in the last line causes the process to execute again from step number 2. The user can exit from the process by pressing the Previous Menu function key at any time. The screen that follows shows how the finished process will look.Completed ALLBASE/SQL Process Details To enter the field values: You can now enter the data required to define the process. Each entry is detailed below. Field Entry Explanation --------------------------------------------------------------------------------------- Process Name product_proc This will be the default name in this field if you have just defined the header for the process. Using Open Window Commands. The first two commands use the open window method for you to enter the remainder of the step. Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. The number of the step in the logic block that you are defining. It is not necessary for step numbers to be contiguous. You can leave blank lines within a logic block. Action Accept the default. This is an action code much like the one you used to create the record layout details. It defaults to A indicating add for a new step, or C indicating change for an existing step. The other valid actions available are D to delete a step, I to insert a step, R to replace a step, L to list the whole logic block, and S to swap the display pages if your logic block is longer than the ten lines displayed in the window. Command MODE When you enter this command name, HP ALLBASE/4GL presents a free form data entry area at the base of the screen so you can enter the remainder of the command. Notice that you don't have to enter upper-case characters. HP ALLBASE/4GL automatically upshifts a lower-case entry. The MODE command sets the usage mode for a file while a process is active. By default, HP ALLBASE/4GL opens files for read access only. You can get a brief description of a command by pressing the Command Help function key on the process (or function) details screens. This function key displays several further sets of function keys that allow you to select the help screen you want. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- To Complete the *WRITE product This specifies that you want to write to Command the product file. Note that you don't need to enter the word write in uppercase letters. To complete this command: 1. Press Commit Data . This commits the step. HP ALLBASE/4GL clears the window and shows the new command line in the display region of the screen. The cursor returns to the Step Number input field so you can proceed to enter the next command. The step number is automatically incremented as you build the logic block. To enter the next command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Notice that it is automatically incremented as you create each line of the logic block. If the current step is not displayed in the upper region of the screen, then the logic block is scrolled to ensure that the step is displayed. Action Accept the default. Command SCREEN To Complete the product_scrn This command tells HP ALLBASE/4GL to Command display the product_scrn screen. When the process is executed, control returns to the process when the end user terminates the screen by pressing the Commit Data function key on this screen. To complete this command: 1. Press Commit Data . This displays the second command line in the display region of the screen. It also clears the command window and returns the cursor to the Step Number input field. A Special Window Command The next step uses a command sensitive window to enter the remainder of the command line. Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default. Command FILE The file command displays a special window to prompt for further details. The window appears after you enter the command name FILE. *INSERT If you enter an invalid file opeation, HP ALLBASE/4GL displays a message informing you that the operation is invalid. The cursor remains on the field and you must correct the entry before you can move on. This shows you how the command sensitive window helps you enter the correct command structure. Also note that you don't need to enter the asterisk before the command name. HP ALLBASE/4GL enters it for you. *NOLOCK Accept the default. Specifies whether this command imposes a lock on the file as it is accessed. The N option specifies that normal locking applies. (That is, the NOLOCK option is not used.) Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- File ID[.Record] product The name of the file that is used for this operation. You can append a record specifier to the file name. This is only necessary if you want to access a file using a record layout other than the default record layout. The Remaining Fields The remaining fields on the FILE command window are optional. You will use some of these fields later in this training course. For the moment, leave them blank. To complete this command: 1. Press Commit Data . When you press this key, HP ALLBASE/4GL clears the window and displays the command on the third line of the process logic block. Notice that the fields for which you made no entry are omitted from the command. To enter the next command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default. Command SQL This displays an open window. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- To Complete the commit This command calls an SQL logic block Command called commit. You will create this SQL logic block in Lesson 8. HP ALLBASE/SQL requires you to issue an explicit COMMIT WORK to complete a transaction and make it permanent in the database. If you terminate a transaction or attempt to start a new transaction without issuing a commit work command, HP ALLBASE/SQL reverses any currently open transaction. The commit SQL logic block will issue the COMMIT WORK command. To complete this command: 1. Press Commit Data . This displays the fourth command line in the display region of the screen. It also clears the command window and returns the cursor to the Step Number input field. To enter the final command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default. Command ENTER When you enter this command name, HP ALLBASE/4GL presents a free form data entry area at the base of the screen so you can enter the remainder of the command. The ENTER command passes control to another line of the process to execute it again. To Complete the 2 Specifies that you want to pass control to Command line 2 of the process. To complete this command: 1. Press Commit Data . The new command line is displayed and the cursor returns to the Step Number field. Generating the Process. The next step in creating a process is to generate it. This procedure is the same for all data manaagers. Turn to the section "Generating a Logic Block" to continue the training course and to generate the process. Notes on Entries. SQL Command Equivalent The FILE *INSERT command inserts the current contents of the product file buffer into the product table as a new row. This command is equivalent to the SQL command: INSERT INTO sqlgrp.product VALUES (:F-product_no.product, :F-description.product, :F-supplier_no.product, :F-lead_time.product); In this application, the user cannot attempt to insert a row into the product table if a row with the same value in the product_no field already exists. If the application logic allows the user to attempt an insert operation that causes an index uniqueness violation, HP ALLBASE/SQL generates an error message. If the FILE command has an optional error command, control would pass to the error command if such an error occurred. Creating an HP TurboIMAGE/iX Process For HP TurboIMAGE/iX based applications, this is the process you are going to create. 1 DM IMAGE *MODE *MODLOCK :D-traindb 2 MODE *WRITE product 3 SCREEN product_scrn 4 FILE *WRITE product 5 DM IMAGE *UNLOCK :D-traindb 6 ENTER 3 What the Process Does This process is quite simple. * In the first line the DM IMAGE * MODE command specifies how the application can access the traindb database. In this case the application has read access, and write access if the part of the database that you wish to write to is locked by the application. * In the second line, the MODE *WRITE command also specifies how the application can access the data, but this is specific to the product data set only. This command must be used in conjunction with the DM IMAGE *MODE command, and must not offer greater capability than the DM IMAGE * MODE command. * The SCREEN command in the third line displays the product_scrn screen. * The FILE command in the fourth line writes data from the file record buffer to the product file. * When the screen field product_no is entered, a function product_key_read is called that locks and reads the data set. The DM IMAGE *UNLOCK command releases all locks held by this process on the traindb database. In this case, the lock on the record placed by the product_key_read function is the only lock released. The lock on the data set is held from the time the user enters a product number until after the user presses the Commit Data function key. * The ENTER 3 command in the last line causes the process to execute again from step number 3. The user can exit from the process by pressing the Previous Menu function key at any time. The process should be entered as shown below.Completed HP TurboIMAGE/iX Process Details Screen To enter the field values: Field Entry Explanation --------------------------------------------------------------------------------------- Process Name product_proc This will be the default name in this field if you have just defined the header for the process. Open Window Commands The first three commands use the open window method for you to enter the remainder of the step. Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. The number of the step in the logic block that you are defining. It is not necessary for step numbers to be contiguous. You can leave blank lines within a logic block. Action Accept the default. This is an action code much like the one you used to create the record layout details. It defaults to A indicating add for a new step, or C indicating change for an existing step. The other valid actions available are D to delete a step, I to insert a step, R to replace a step, L to list the whole logic block, and S to swap the display pages if your logic block is longer than the ten lines displayed in the window. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- Command DM When you enter this command name, HP ALLBASE/4GL presents a free form data entry area at the base of the screen so you can enter the remainder of the command. Notice that you don't have to enter upper-case characters. HP ALLBASE/4GL automatically upshifts a lower-case entry. The DM command is used as a prefix to logic commands specific to a certain data manager. Currently, HP ALLBASE/4GL only offers data manager specific commands for the HP TurboIMAGE/iX data manager. You can obtain a brief description of a command by pressing the Command Help function key on the process (or function) details screens. This function key displays several further sets of function keys that allow you to select the help screen you want. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- To Complete the IMAGE *MODE *MODLOCK The DM IMAGE *MODE command specifies how Command :D-traindb the application can access one or more databases. In this case, you are setting the access mode for the traindb database. Each access mode represents an HP TurboIMAGE/iX access mode. The access mode *MODLOCK is equivalent to HP TurboIMAGE/iX access mode 1. This mode gives the application read access, and write access if the part of the database to be altered is locked before being altered. It is not necessary to use a lock to read the database. To complete this command: 1. Press Commit Data . This commits the step. HP ALLBASE/4GL clears the window and shows the new command line in the display region of the screen. The cursor returns to the Step Number input field so you can proceed to enter the next command. The step number is automatically incremented as you build the logic block. To enter the next command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Notice that it is automatically incremented as you create each line of the logic block. If the current step is not displayed in the upper region of the screen, then the logic block is scrolled to ensure that the step is displayed. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- Action Accept the default. Command MODE To Complete the *WRITE product This command tells HP ALLBASE/4GL that it Command may execute any commands that require write access to the product data set. To complete this command: 1. Press Commit Data . This displays the second command line in the display region of the screen. It also clears the command window and returns the cursor to the Step Number input field. To enter the next command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default. Command SCREEN To Complete the product_scrn This command tells HP ALLBASE/4GL to Command display the product_scrn screen. When the process is executed, control returns to the process when the end user terminates the screen by pressing the Commit Data function key on this screen. To complete this command: 1. Press Commit Data . This displays the third command line in the display region of the screen. It also clears the command window and returns the cursor to the Step Number input field. Using a Special Window Command. The next step uses a command sensitive window to enter the remainder of the command line. Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default. Command FILE The file command displays a special window to prompt for further details. The window appears after you enter the command name FILE. *WRITE If you enter an invalid file operation, HP ALLBASE/4GL displays a message informing you that the operation is invalid. The cursor remains on the field and you must correct the entry before you can move on. This shows you how the command sensitive window helps you enter the correct command structure. Also note that you don't need to enter the asterisk before the command name. HP ALLBASE/4GL enters it for you. Since the file used in this process has unique primary key values, it is possible to use the *WRITE option to both add or modify a record in the file. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- *NOLOCK Accept the default. Specifies whether this command imposes a lock on the file as it is accessed. The N option specifies that normal locking applies. (That is, the NOLOCK option is not used.) File ID[.Record]. product The name of the file that is used for this operation. You can append a record specifier to the file name. This is only necessary if you want to access a file using a record layout other than the default record layout. Remaining Fields The remaining fields on the FILE command window are optional. You will use some of these fields later in this training course. For the moment, leave them blank. To complete this command: 1. Press Commit Data . When you press this key, HP ALLBASE/4GL clears the window and displays the command on the third line of the process logic block. Notice that the fields for which you made no entry are omitted from the command. To enter the second DM command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default. Command DM When you enter this command name, HP ALLBASE/4GL presents a free form data entry area at the base of the screen so you can enter the remainder of the command. Table 4-0. (cont.) Field Entry Explanation --------------------------------------------------------------------------------------- To Complete the IMAGE *UNLOCK This command unlocks all locks held by the Command :D-traindb process on the traindb database or on any part of the traindb database. On this occasion there is only one lock; this lock is created in the product_key_read function that you will create soon. The function is called from the product_scrn screen and is executed while the process is active, so it is classified as a lock held by the process. To complete this command: 1. Press Commit Data . The new command line is displayed and the cursor returns to the Step Number field. To enter the last command: Field Entry Explanation --------------------------------------------------------------------------------------- Step Number Accept the default. Action Accept the default. Command ENTER When you enter this command name, HP ALLBASE/4GL presents a free form data entry area at the base of the screen so you can enter the remainder of the command. The ENTER command passes control to another line of the process to execute it again. To Complete the 3 This specifies that you want to pass Command control to line 3 of the process. To complete this command: 1. Press Commit Data . The new command line is displayed and the cursor returns to the Step Number field. Generating the Process. The next step in creating a process is to generate it. This procedure is the same for all data managers.
