HP TurboIMAGE/iX Database Creation

The following paragraphs describe the procedure to define the HP
TurboIMAGE/iX database for the training application.

The first step is to define the database.  Run HP TurboIMAGE DBSCHEMA
using the following database definition.

     BEGIN DATA BASE TRAIN, LANGUAGE:AMERICAN;
     PASSWORDS: 10 DEVELOP;

     ITEMS:

     SUPPLIER-NO,    I1  (/10);
     PRODUCT-NO,     X6  (/10);
     DESCRIPTION,    X30 (/10);
     LEAD-TIME,      I1  (/10);
     ORDER-NO,       I1  (/10);
     OFFICER-NAME,   X30 (/10);
     QUANTITY,       I1  (/10);
     UNIT-MEASURE,   X4  (/10);
     COST,           P12 (/10);
     ORDER-DATE,     X8  (/10);
     DELIVERY-DATE,  X8  (/10);
     OPTION-KEY,     X10 (/10);
     OPTION-NO,      X4  (/10);

     SETS:

     NAME:      PRODUCT, MANUAL (/10);
     ENTRY:     PRODUCT-NO (2),
                DESCRIPTION,
                SUPPLIER-NO,
                LEAD-TIME;
     CAPACITY:  211;

     NAME:     OPTION-KEY, AUTOMATIC (/10);
     ENTRY:    OPTION-KEY (1);
     CAPACITY: 211;

     NAME:     OFFICERS, AUTOMATIC (/10);
     ENTRY:    OFFICER-NAME (1);
     CAPACITY: 211;

     NAME:     ORDER-NO, AUTOMATIC (/10);
     ENTRY:    ORDER-NO (1);
     CAPACITY: 211;

     NAME:     ODATE, AUTOMATIC (/10);
     ENTRY:    ORDER-DATE (1);
     CAPACITY: 211;

     NAME:     DDATE, AUTOMATIC (/10);
     ENTRY:    DELIVERY-DATE (1);
     CAPACITY: 211;

     NAME:      ORDER, DETAIL (/10);
     ENTRY:     ORDER-NO (ORDER-NO),
                OFFICER-NAME (OFFICERS),
                PRODUCT-NO (!PRODUCT),
                QUANTITY,
                UNIT-MEASURE,
                COST,
                ORDER-DATE (ODATE),
                DELIVERY-DATE (DDATE);
     CAPACITY:  200;

     NAME:     OPTION, DETAIL (/10);
     ENTRY:    OPTION-KEY (OPTION-KEY),
               PRODUCT-NO (!PRODUCT),
               OPTION-NO,
               DESCRIPTION,
               COST,
               QUANTITY,
               UNIT-MEASURE; CAPACITY: 200;

     END.

Then create the database, using HP TurboIMAGE DBUTIL. For more
information about creating the database, refer to the HP TurboIMAGE/iX
Database Management System Reference Manual.

Once you have created the database, you must define it within the HP
ALLBASE/4GL administrator application.

Defining the Database

The following paragraphs describe the procedure for defining the database
within HP ALLBASE/4GL. This screen allows you to specify the name, group,
and account of the HP TurboIMAGE/iX database and allocate an HP
ALLBASE/4GL name for the database.

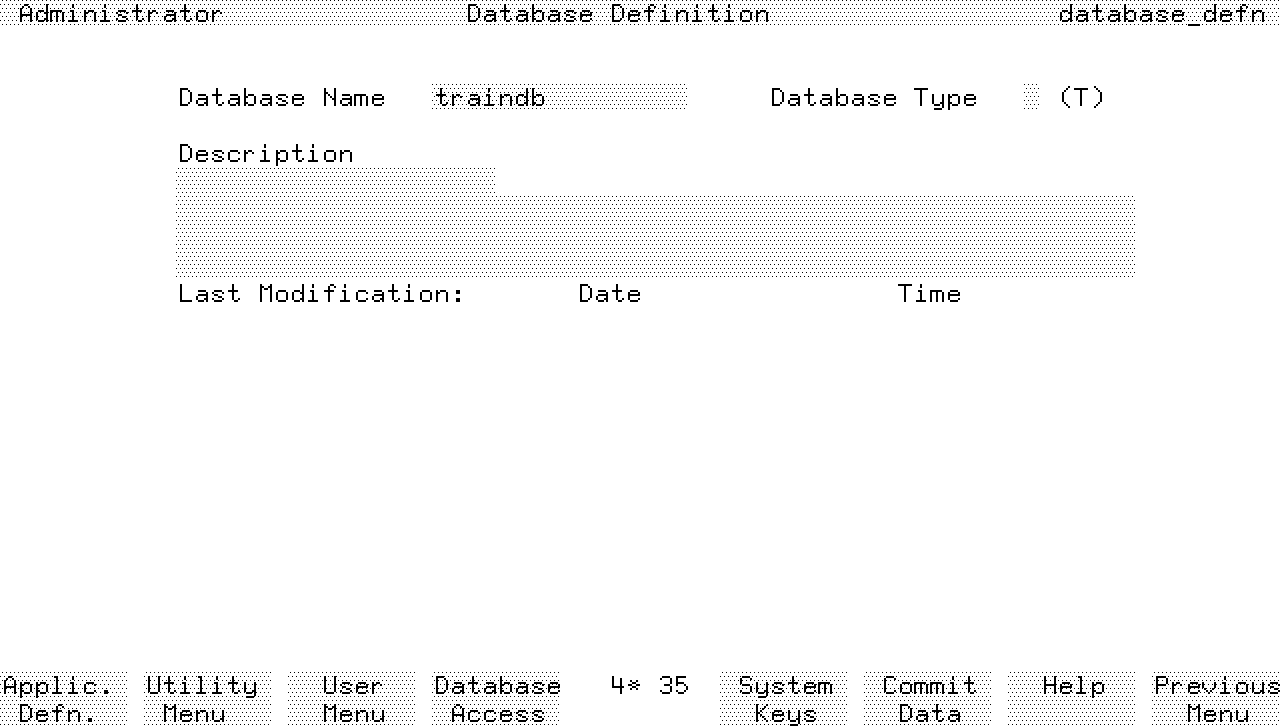

          Database Definition Screen

To enter the field values:

Complete the database definition screen using the following information.

        Field                 Entry                         Explanation

---------------------------------------------------------------------------------------

Database Name         traindb               This is the name of the database as it will
                                            be known within HP ALLBASE/4GL.

Database Type         Accept the default    This field indicates the type of database
                      value of T.           that you are defining.  Currently, you can
                                            only define HP TurboIMAGE/iX databases.
                                            When you commit this field, an HP
                                            TurboIMAGE/iX window is displayed.

Description           Enter a description
                      of the database in
                      this field.

External Name         Enter TRAIN

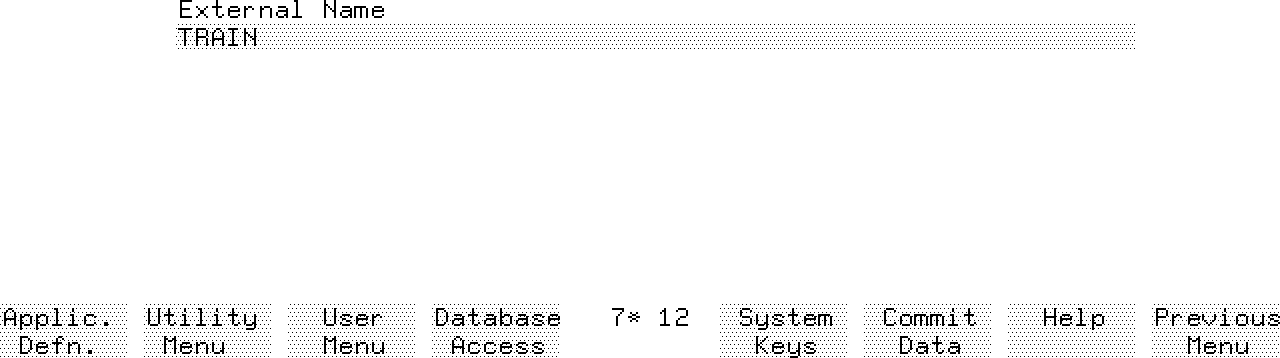

          HP TurboIMAGE/iX Window

If the database is not in the account and group identified by the
HP4TIPATH system variable, you should enter the fully qualified name of
the database root file in this field (that is, including the group and
account in the name).

To complete the entries:

   1.  Press the  Commit Data  function key to complete this screen.

Your next step is to give the training application access to this
database.

The Parameters for Database Access Screen

Go to the parameters for database access screen to give the training
application access to the traindb database.

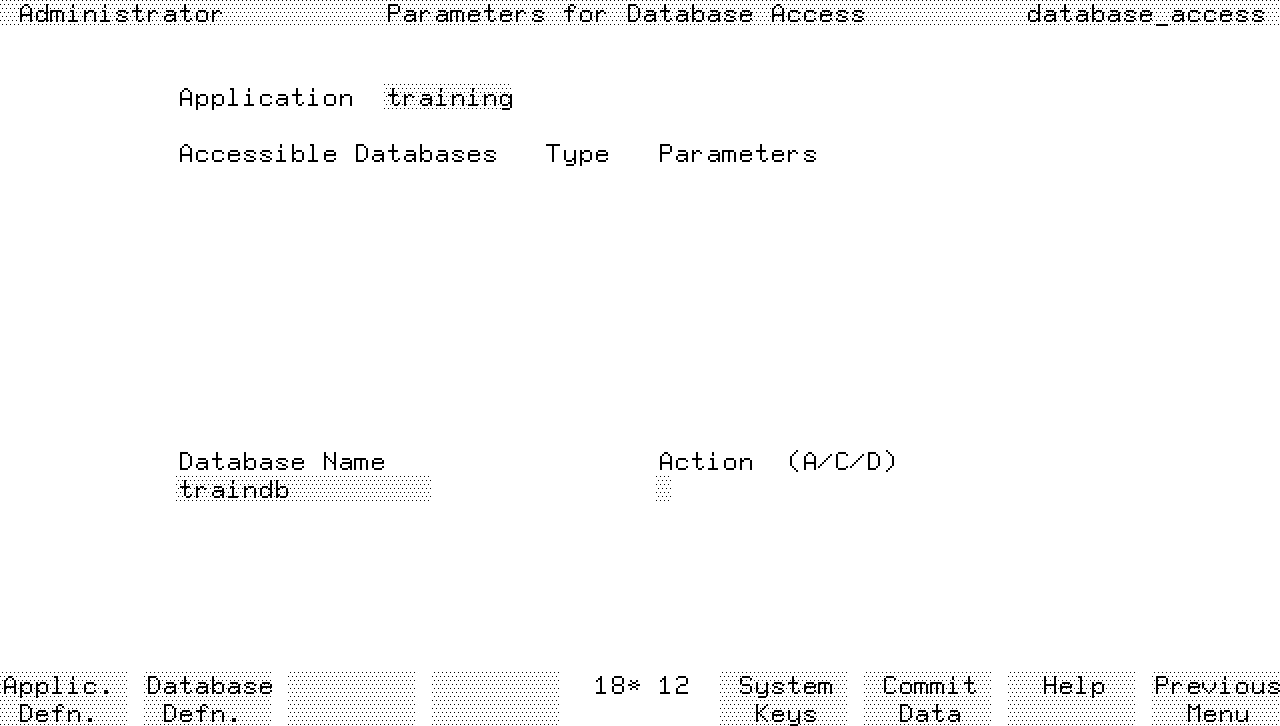

          Parameters for Database Access

To enter the field values:

        Field                 Entry                         Explanation

---------------------------------------------------------------------------------------

Application           training              This is the name of the application to
                                            which you wish to allow database access.

Database Name         traindb               This is the name of the HP TurboIMAGE/iX
                                            database.  When you commit this field, a
                                            password window is displayed.

Action                Accept the default
                      action of Add (A).

Password              DEVELOP

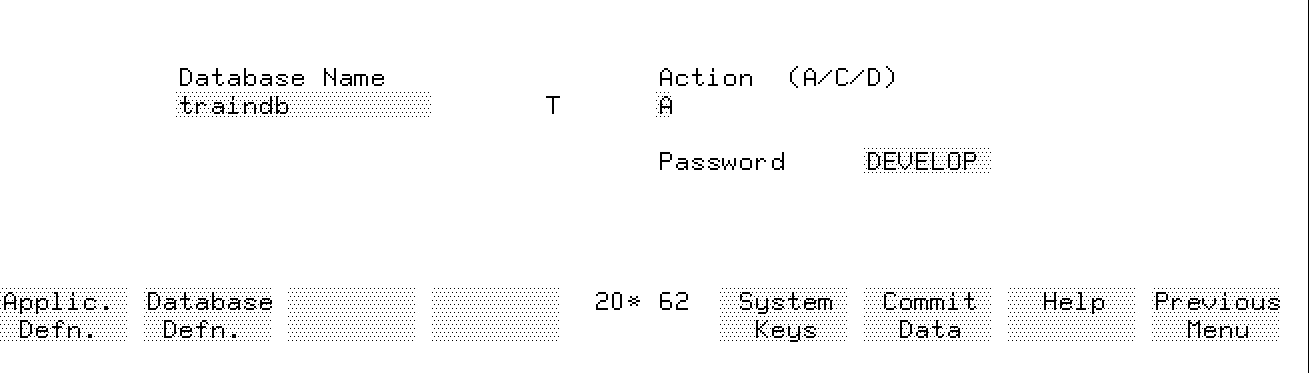

          Password Window

This HP TurboIMAGE/iX database password supplies all developers and users
of the training application with write access to all parts of the
database.

To complete the entries:

   1.  Press the  Commit Data  function key to complete this screen.

You have now completed the application definition and database definition
required for developers to begin developing the training application.
