KSAM Data File Definition and Creation

The data file you will create in this lesson is a KSAM file.  KSAM is an
abbreviation for "Keyed Sequential Access Method".  HP ALLBASE/4GL
includes a KSAM data manager that allows you to create and access KSAM
data files.

When you created the record layout in Lesson 2, you allocated a key
number to several fields on the records layout.  The KSAM file manager
uses the key fields to define the indexes for the file.  Key number 1 in
a record layout is called the primary key.

Task 1 - Defining a Data File

Just as you had to define the field specifications before you could
create the physical fields, you have to follow the same process for data
files.  You first task is to define the characteristics of the file.

Using the Data File/SQL Table Definition Screen.

You use this screen to specify the name of the file to be used in HP
ALLBASE/4GL, the name by which it is known to the host operating system,
and the record layout to be used for the file.  You can also enter a
brief description for documentation purposes.

To access the screen:

   1.  From the main menu, select the Dictionary option.

   2.  Choose Database Items.

   3.  Choose Data File/SQL Table Definition.

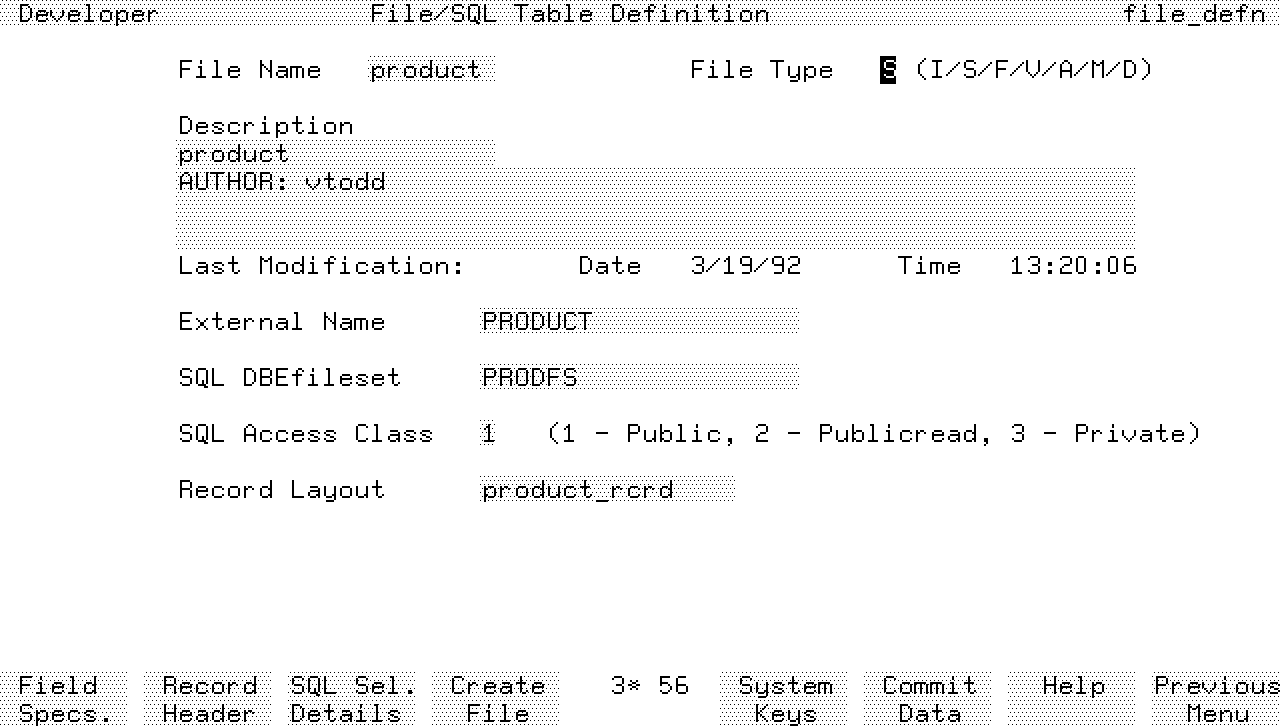

          Data File/SQL Table Definition Screen Showing Window

This screen uses three different windows.  One window allows you to
define KSAM and serial data files.  The second window allows you to
define HP ALLBASE/SQL tables.  The third window allows you to define HP
TurboIMAGE/iX data sets.  Your entry in the File Type field determines
which window is displayed.

To enter the field values:

        Field                 Entry                         Explanation

---------------------------------------------------------------------------------------

File Name             product               Internal name of the data file used by the
                                            application.

File Type             I                     Indicates the type of file interface to be
                                            used.  Automatically displays KSAM window.

Description.          Enter a description.

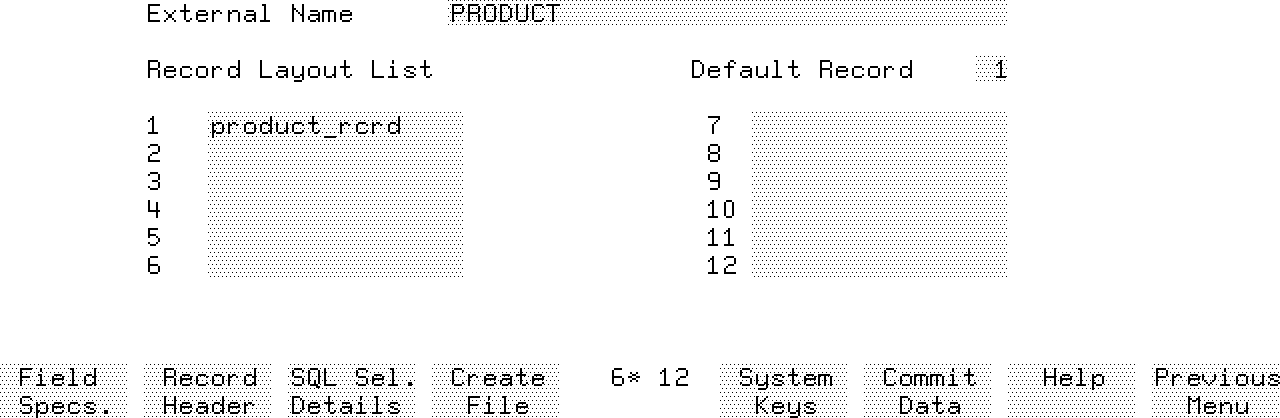

          KSAM Window

To enter values in the KSAM window:

       Field                Entry                         Explanation

--------------------------------------------------------------------------------------

External Name       product (Accept       Name of the file in the MPE/iX environment.
                    default, if shown)    By default this is the same name as the
                                          internal file name.  A different name can be
                                          entered.

          Table 2-0.  (cont.)

       Field                Entry                         Explanation

--------------------------------------------------------------------------------------

Default Record      Accept the default.   Indicates the record layout number to be
                                          used if no record name is specified in a
                                          file field reference.  Also used to create
                                          the file.

Record Layout List  This is the header    HP ALLBASE/4GL always builds the physical
                    for the next 12       disk file records according to the default
                    fields.  You can      record layout.
                    enter the names of up
                    to 12 different
                    record layouts to be
                    associated with this
                    file.

Record Layout List  product_rcrd          Name of the record layout to be associated
- 1                                       with this file.

Record Layout List  Leave these fields
- 2-12              blank.

Notes on Window Entries.

In addition to defining KSAM files, the other options for the File Type
field allow you to define SQL base tables (S), fixed length record serial
files (F), variable length record serial files (V), HP TurboIMAGE/iX
automatic master data sets (A), HP TurboIMAGE/iX manual master sets (M),
and HP TurboIMAGE/iX detail data sets (D). Refer to the HP ALLBASE/4GL
Developer Reference Manual for more information about these file types.

Using multiple record layouts in the file definition allocates a file
buffer in memory (when the application is running) for each record layout
assigned to the file.  If you use multiple record layouts for a file, you
can read more than one physical file record at the same time, or you can
read the same physical record through different file buffers, allowing
you to modify one buffer without destroying the contents of another.

To complete and commit the screen:

   1.  Press the  Commit Data  function key to create the file
       definition.

       This is the logical file definition for use in HP ALLBASE/4GL.

   2.  Create the physical disk file.  by pressing the  Create File
       function key, or use the menus by pressing the  Previous Menu
       function key and selecting Create File/SQL Table.

       The file/SQL table creation screen will be displayed.

You are now ready to create the data file.

Task 2 - Creating the Data File

This is the second step in creating a data file.  During this procedure
the KSAM file manager is automatically invoked to create the physical
files that are necessary to support the data file that you have defined.

Using the File/SQL Table Screen.

On this screen you enter the name of the data file that you defined in
the last lesson.  HP ALLBASE/4GL reads the file definition and displays
the details so you can confirm your selections.  You then create the
physical file space.

To access the screen from the main menu:

   1.  Select the Dictionary option.

   2.  Choose Database Items.

   3.  Choose Create File/SQL Table.

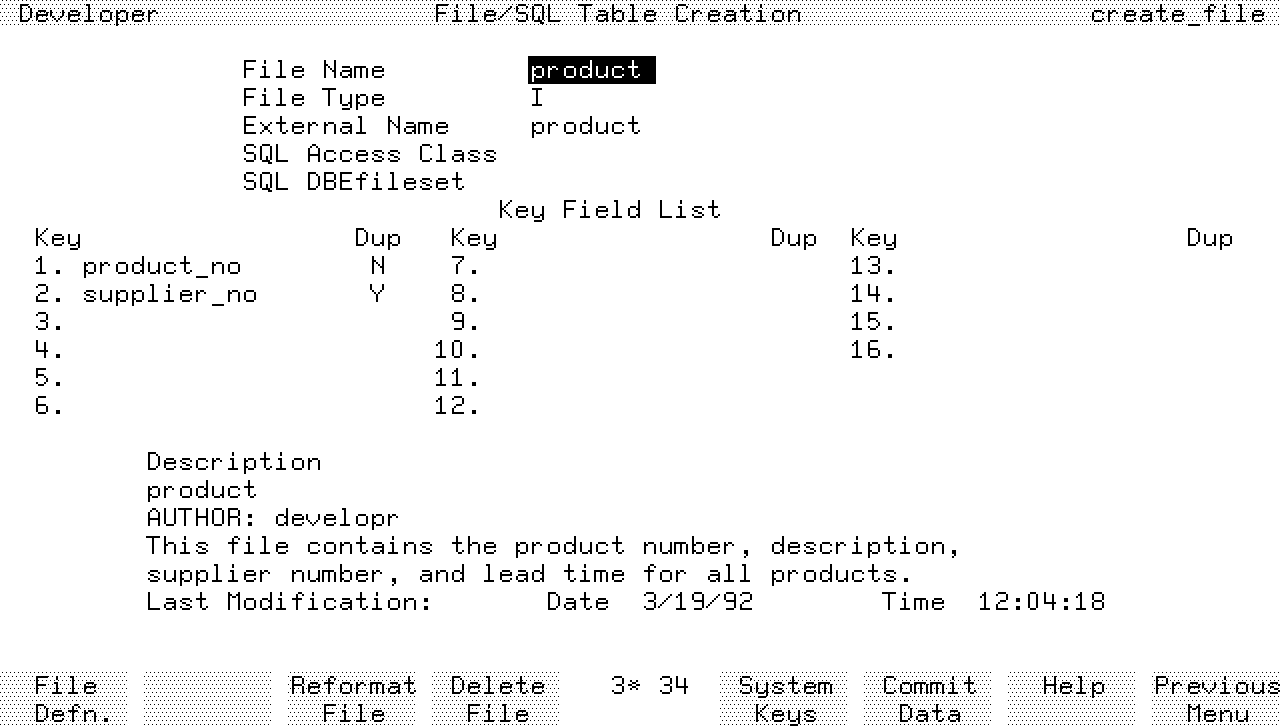

          Create File/SQL Table Screen

The screen is shown as it will appear after you have completed all of the
entries.

To enter the field values:

        Field                 Entry                         Explanation

---------------------------------------------------------------------------------------

File Name             Accept the default of The name you used when you created the file
                      product               definition.

This completes the data entry required on this screen.  The remaining
fields display the data you entered on the record layout screen.

To create the file on disk:

   1.  Press Return to display the details of this file on the screen.

       The MPE/iX external file name is displayed first, followed by the
       key fields from the default record.

       Note that the two keys defined when you created the record
       definition are listed, along with an indicator specifying whether
       duplicate values are allowed.  The description of the file is
       displayed in the lower portion of the screen.

   2.  Press the  Commit Data  function key to create the file on disk.

When this process has completed, HP ALLBASE/4GL displays a message
indicating that the file has been successfully created.
