Defining Report Sorting Levels

The report sorting levels determine the order in which the report items
are listed, and also define control break levels.

Control breaks allow you to perform a variety of sub-heading and
sub-totalling tasks.  A control break for a given sort level occurs each
time the value in a sort field value changes from one record to the next.
This report uses one control break to print the subtotal line after each
product.

Menu Path

To access the report sorting screen:

   1.  From the main menu, select the Reports option.

   2.  Choose Sorting.

Screen Description

This screen allows you to define up to eight sort fields, giving you a
total of eight control break levels.  The sort fields must be data fields
on the primary file that you specified in the report header.  For each
sort field, you must state whether the sort is to be in ascending or
descending order.  You can also specify whether the file is already in
sequence.

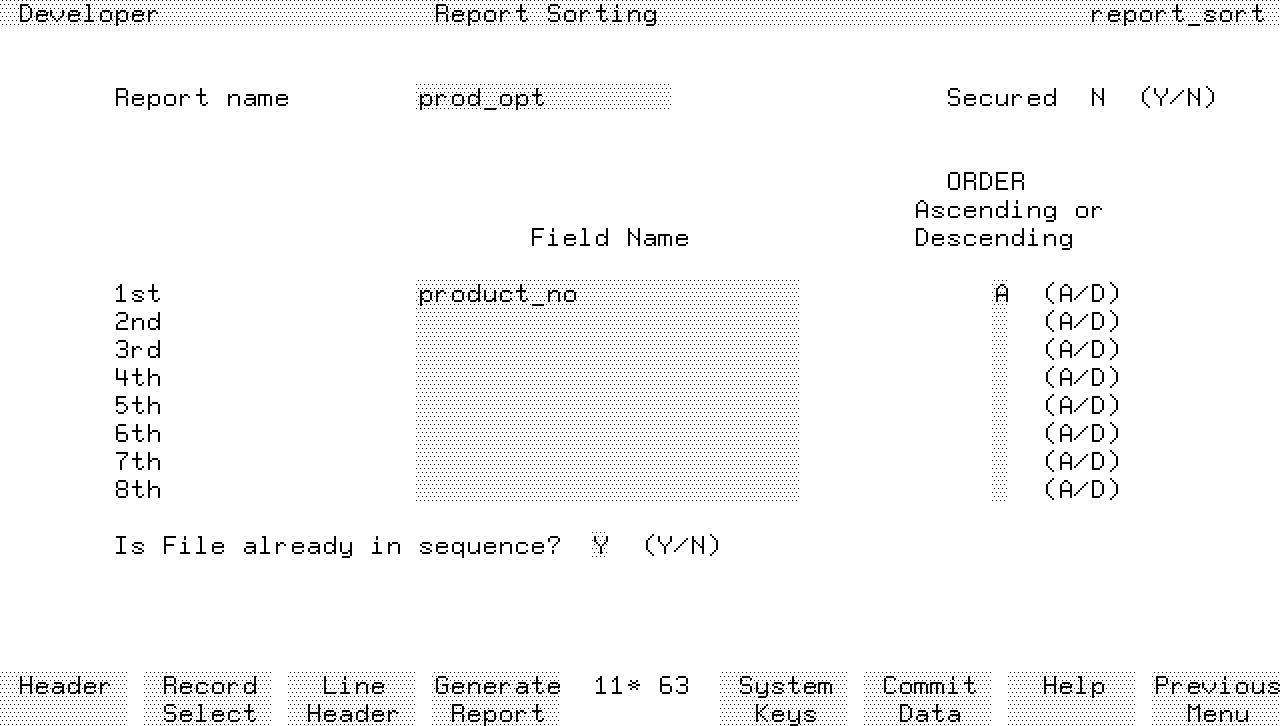

          Report Sorting Screen

To enter the field values:

        Field                 Entry                         Explanation

---------------------------------------------------------------------------------------

Report Name           prod_opt              This is the name of the report that you are
                                            defining.

Sort Fields                                 The next 16 fields define the eight sort
                                            fields and their sorting order.  The sort
                                            field numbers 1st through to 8th specify
                                            the control break level and relate directly
                                            to subheading line groups H1 - H8 and
                                            subtotal T1 - T8 line groups.

                                            The sorting order is either ascending or
                                            descending.  The collating sequence is
                                            listed in the HP ALLBASE/4GL Developer
                                            Reference Manual.

                                            This report only uses the 1st sort field.

          Table 11-0.  (cont.)

        Field                 Entry                         Explanation
---------------------------------------------------------------------------------------

1st Field Name        product_no            This is the name of the field on the
                                            primary data file which forms the report's
                                            first sort level and control break.

                                            For this report, a control break occurs
                                            every time a product record is read from
                                            the primary report file.

ORDER                 A                     This specifies that the records are to be
                                            sorted in ascending order.

                                            Leave the remaining Field Name and ORDER
                                            fields blank.

Is File already in    Enter Y for KSAM or   This indicates that the file is already in
sequence?             SQL, N for            the order when it is read by the key
                      TurboImage/ix         specified on the header screen.  In this
                                            application, no sorting is done, but the
                                            sort fields are used to initiate control
                                            breaks.

To complete the screen:

   1.  Press the  Commit Data  function key to create the sorting
       specifications and control break specifications for this report.
