Dictionary Requirements
The first task is to create the files used by this system. This involves
creating the field specifications, record layouts, and data files. The
file and fields you need are shown below:
* An option file with the following fields:
- option_key (not necessary for HP ALLBASE/SQL based
applications)
- product_no
- option_no
- description
- cost
- quantity
- unit_measure
Task 1 - Creating Dictionary Field Specifications
The first items you must create are the dictionary field specifications.
Most of these field specifications already exist from the previous work
you have done, so you won't need to create the product_no, description,
cost, quantity, or unit_measure fields.
1. If you are creating the KSAM based or HP TurboIMAGE/iX based
application, create both of the specifications described below.
2. If you are creating the HP ALLBASE/SQL based application, only
create the first of these specifications.
a. Option Number. A three digit option specifier. A unique
value within any given product.
Field Spec Name option_no
Field Length 3
Edit Code N
Storage Type C
Pad Character 0
b. Option Key. A concatenation of the product number and
option number forming a unique key to the option data file.
You cannot actually specify the concatenation when you
define the field specification. Later, you will create
some logic that links the product number and option number
fields, and sends the output to the option_key field
specification.
Field Spec Name option_key
Field Length 9
Minimum Entry 9
Length
Edit Code U
When you have created these dictionary field specifications you can
create the record layout and the option file.
Task 2 - Creating the Record Layout and File
If you are developing the KSAM based application, continue reading below.
If you are developing the HP ALLBASE/SQL based application, turn to the
instructions for creating ALLBASE/SQL based record layouts.
If you are developing the HP TurboIMAGE/iX based application, turn to the
instructions for HP TurboIMAGE/iX Based Applications.
To create KSAM Based record layout:
1. Create the following record layout.
2. Remember to generate the layout once you have defined it.
a. Option record. This record contains the seven fields
needed to store and retrieve each option item.
Record Layout Name. option
Field Field Spec.Name Key # Duplicates
1 option_key 1 N
2 product_no 2 Y
3 option_no 3 Y
4 description
5 cost
6 quantity
7 unit_measure
You can now create the option data file.
b. Option File.
The option file contains all the option records. Create
the file definition, using the details below, and then use
the file creation screen to create the physical file.
File Name option
File Type I
External Name option
Default Record 1
Record Layout option
You have now completed all the records and files required for this
application. Turn to Variables to continue developing your application.
To create HP ALLBASE/SQL based record layouts:
1. Create the following record layout.
2. Remember to generate the layout once you have defined it.
a. Option record. This record contains the six fields needed
to store and retrieve each option item.
Record Layout Name. option
Field Field Spec.Name Key # Duplicates
1 product_no
2 option_no
3 description
4 cost
5 quantity
6 unit_measure
You can now create the option table.
b. Option Table.
The option table contains all the option records.
Create the table definition according to the following
definition and then use the file creation screen to create
the physical table.
File Name option
File Type S
External Name OPTION
SQL DBEfileset OPTFS
SQL Access Class 1
Record Layout option
You have now completed all the records and files required for this
application. Turn to Variables, to continue developing your application.
To create the HP TurboIMAGE/iX based record layout:
For the HP TurboIMAGE/iX based application, you will define the option
data set, which contains all the details about each option for a product.
The HP TurboIMAGE/iX database traindb created by your HP HP ALLBASE/4GL
or HP TurboIMAGE/iX administrator also contains automatic master data
sets which act as indexes to the option_key and option_no key field
specifications. You won't need to define these automatic master data
sets in HP ALLBASE/4GL as you do not use them directly in HP ALLBASE/4GL
logic. The HP TurboIMAGE/iX database also specifies that the product_no
field is linked to the manual master data set product.
1. Create the following record layout.
2. Remember to generate the layout once you have defined it.
a. Option record. This record contains the seven fields
needed to store and retrieve each option item.
Record Layout Name. option
Field Field Spec.Name Key # Duplicates
1 option_key 1 N
2 product_no 2 Y
3 option_no 3 Y
4 description
5 cost
6 quantity
7 unit_measure
You can now define the option data set.
b. Option File.
The option file contains all the option records. Create
the file definition now.
File Name option
File Type D
Database Name traindb
Schema Data Set OPTION
Name
Default Record 1
Record Layout option
You have now completed all the records and files required for this
application.
Task 3 - Creating Variables
This part of the application requires three additional variables for KSAM
based and HP TurboIMAGE/iX based applications, and four additional
variables for HP ALLBASE/SQL based applications. The variables are
described below.
1. Create each variable now.
a. confirm. This variable is used to receive confirmation
from the user for a deletion request. The Q edit code is a
special Query code which allows the entry of Y, y, N, or n
only.
Name confirm
Length 1
Edit Code Q
b. current_record. Indicates the current record type, which
is either product or option.
Name current_record
Length 3
Edit Code X
c. option_status. Indicates whether the current option record
exists.
Name option_status
Length 1
Edit Code X
If you are developing the HP ALLBASE/SQL based application,
create the following variable. If you are not developing
the HP ALLBASE/SQL based application, continue reading from
the Alphanumeric Constants section below.
d. option_no. Contains the option_no currently displayed on
the option window.
Name option_no
Length 3
Edit Code N
Task 4 - Creating Alphanumeric Constants
Two alphanumeric constants are required for the application. They are
described below.
1. Create both of these constants now.
a. option. An indicator of the current record.
Name option
Value opt
b. product. An indicator of the current record.
Name product
Value prd
Task 5 - Creating Numeric Constants
For KSAM based applications, this application requires two more
additional numeric constants.
For HP ALLBASE/SQL based applications, only the zero numeric constant is
required.
For HP TurboIMAGE/iX based applications, this application requires three
more additional numeric constants.
1. Create the constants necessary for your application.
a. All Applications
Name zero
Value 000
This numeric constant is the value of the first option
number for each product. The constant is used to test for
the first option.
b. KSAM Based and HP TurboIMAGE/iX Based Applications
Numeric Constant - end_of_file.
Name end_of_file
Value 19110
The value of this numeric constant is the file error value
returned by the KSAM data manager if a FILE *NEXT command
encounters the end or beginning of a file. In this
application it is used to test the file return status
value.
c. HP TurboIMAGE/iX Based Applications
Name end_of_chain
Value 19115
This numeric constant is the file error value returned by
the HP TurboIMAGE/iX data manager is a FILE *NEXT command
encounters the end or beginning of a chain of linked detail
data set records. The constant is used to test the file
return status value.
You have now completed defining all of the constants and variables
required by the application.
Task 6 - Creating Validation Tables
The last dictionary item needed to support the field specifications and
files is the unit validation table. You haven't used validation tables
yet so it's described in full.
Menu Path
To access the Validation Tables Screen
1. From the main menu, select the Dictionary option.
2. Select the Validation Items option.
3. Choose Tables.
Screen Description
A validation table is used in a similar manner to a validation range. A
table contains a number of discrete values that are acceptable values in
a field.
A validation table is a table containing up to 51 values.
When you associate a validation table with a screen field, HP ALLBASE/4GL
automatically tests the data entered by the user against the values in
the table when data entry is complete. If the value entered exists in
the table, processing continues normally.
If the entered value does not exist in the table, HP ALLBASE/4GL displays
the message associated with the table. Processing then continues in
accordance with the type of message. If you don't define a message in
association with the table, HP ALLBASE/4GL displays a system defined
ERROR type message by default.
NOTE In some cases you may need to validate input data against more than
51 values. You can use the CHECK logic command in an after
function on the field to validate the entered data against a number
of tables. Refer to the HP HP ALLBASE/4GL Developer Reference
Manual for further information on the CHECK command.

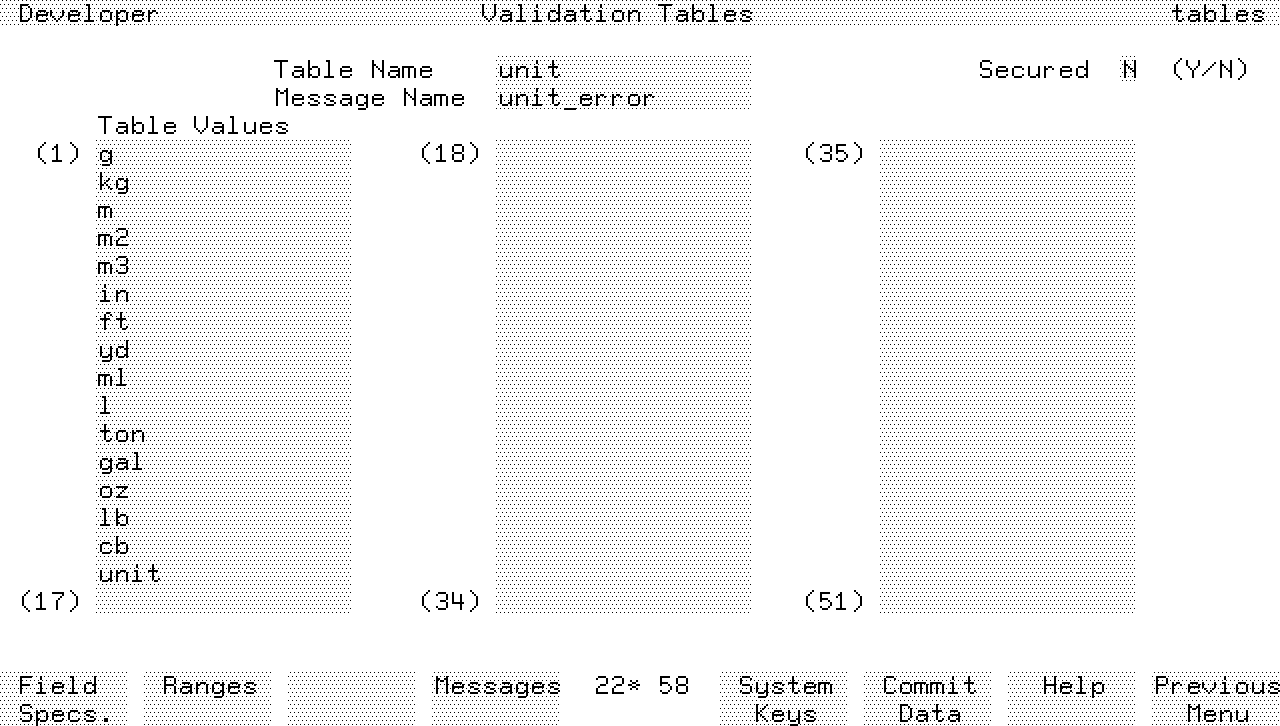

![[]](../../pic3k/M012318/FFN763c50.gif)
Validation Tables Screen
To enter the field values:
Field Entry Explanation
---------------------------------------------------------------------------------------
Table Name unit This is the name of the table within the
application.
Secured Accept the default. This designates whether this item is
secured against an unauthorized developer
changing the entry.
Message Name unit_error This is the name of the message that is
displayed if the value entered by the user
does not match any of the values in the
table. You will define this message soon.
Table Values Enter the following The meanings of the abbreviations are
abbreviations. listed only for information.
g gram ml milliliter
kg kilogram l liter
m meter ton ton
m2 square meter gal gallon
m3 cubic meter oz ounce
in inch lb pound
ft foot cb cubit
yd yard unit single unit
You can add some other values if you wish.
1. Press the Commit Data function key to create the table.
2. When you have committed the table, include it in the field
specification by performing the following steps.
Action Explanation
Press Field This displays the field specification screen.
Specs.
Enter unit_measure This is the name of the field specification
that has to be altered.
Tab to the Table This is the field where you enter the name of
field the validation table.
Enter unit This is the name of the validation table.
Press Commit Data This creates the new field specification.
3. Now go to the screen field details screen and call up the mb_order
screen (which was created by the module builder).
4. Call up field number 6 and you will see that the new detail for
the field specification has been included automatically.
5. Press the Generate Screen function key to incorporate the new
table for the field specification in the application.
Message - unit_error
The last thing you need to do is to create the unit_error message.
1. Go to the message definition screen.
2. If you haven't defined any other messages, tables, or ranges since
you defined the validation table, the message name should default
to unit_error. If it doesn't, enter the correct name.
3. Assign the message an ERROR type code and enter a message to
inform the user that the unit of measure just entered is invalid.
4. Then commit the message to generate it.
All of the additional dictionary items for this part of the application
are complete.
