Screen Development Menu

The screen development menu allows you to access the HP ALLBASE/4GL
screen development facilities.

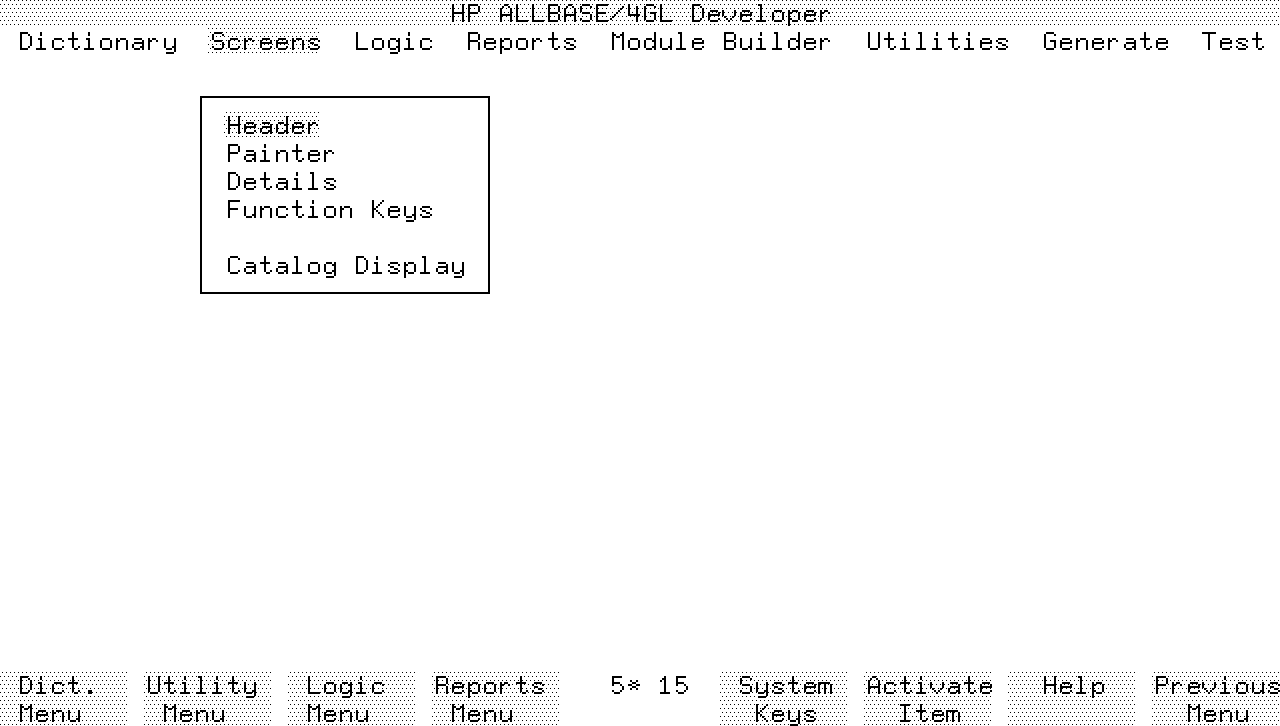

Screen Image




Menu Selections

Header   This selection displays the screen header screen which allows
you to define the name and characteristics of an application screen.

Painter   This selection runs the screen painter.  This is a program that
allows you to interactively paint application screens as the end user
will see them.  Refer to the section on "Using the Screen Painter" for
details.

Details   This selection displays the screen fields detail screen, which
allows you to define the attributes of each field on an application data
screen.  You don't need to complete this screen for menus.

Function Keys   This selection displays the function keys screen which
allows you to define the purpose and text of the function keys associated
with the application screen.

Catalog Display   This selection displays the catalog display screen,
allowing you to display the names of existing application components.
Refer to chapter 13 for details of this screen.

Function Keys

f1       Dict.  Menu  Cancels the current screen and displays the
        dictionary menu.

f2       Utility Menu  Cancels the current screen and displays the
        utilities menu.

f3       Logic Menu  Cancels the current screen and displays the logic
        menu.

f4       Reports Menu  Cancels the current screen and displays the
        reports menu.
