Record Layout Menu

The screens in the record layout menu allow you to name record layouts
and define the structure of record layouts.

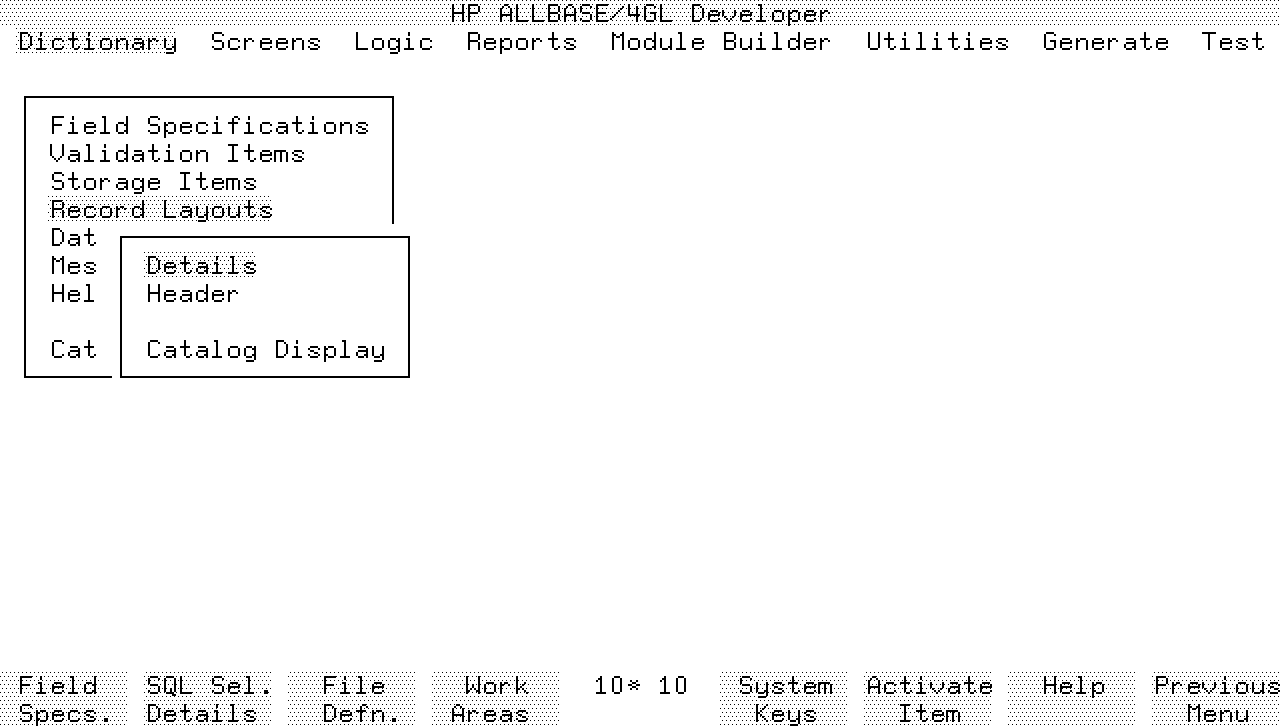

Screen Image




Menu Selections

Details   This selection displays the record layout detail screen,
allowing you to specify the structure of a record layout.

Header   This selection displays the record layout header screen,
allowing you to assign a name to a record layout and enter a description
for documentation purposes.

Catalog Display   This selection displays the catalog display screen,
allowing you to display the names of existing application components.

Function Keys

f1       Field Specs.    Cancels the current screen and displays the
        field specifications screen.

f2       SQL Sel.  Details  Cancels the current screen and displays the
        SQL select list details screen.

f3       File Defn.    Cancels the current screen and displays the
        file/SQL table definition screen.

f4       Work Areas  Cancels the current screen and displays the work
        areas screen.
