HP ALLBASE/4GL Developer Reference Manual Vol. 1

Numeric Constants Screen

This screen allows you to define a numeric constant.

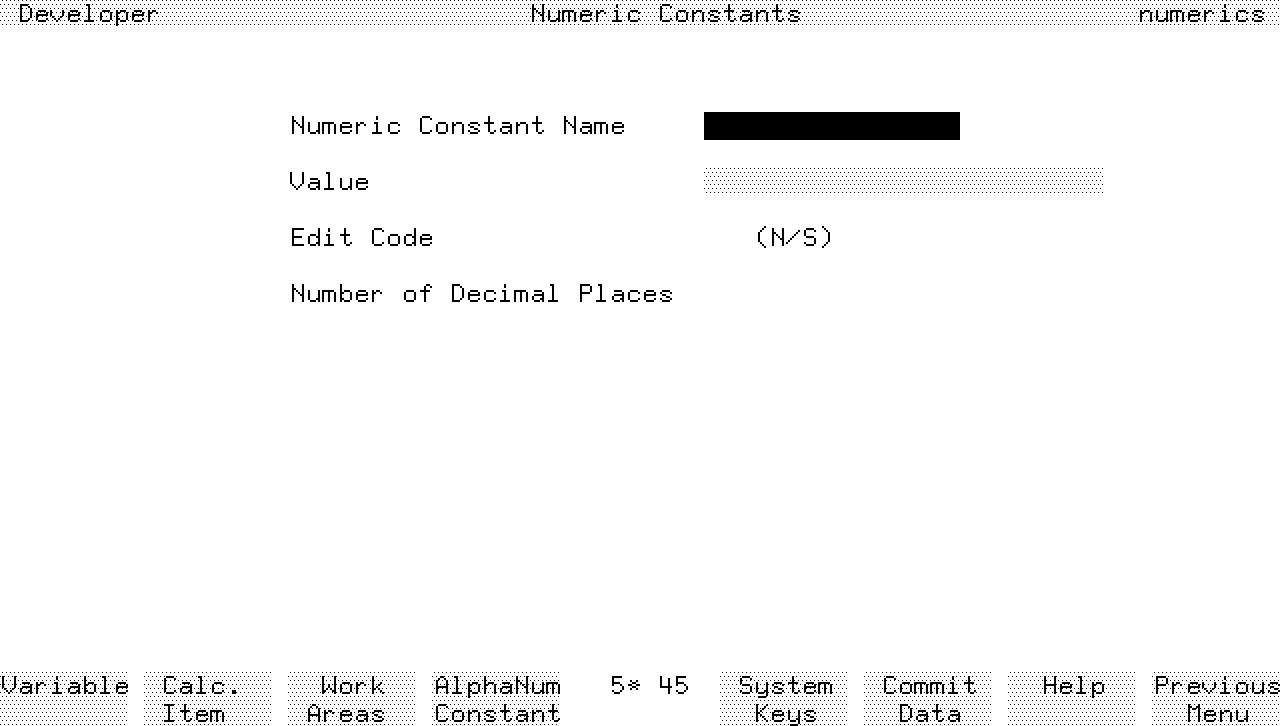

Screen Image




Field Descriptions

Numeric Constant Name   Enter the name of the numeric constant (up to 16
characters).

Value   Enter the value of the constant.  The constant can have up to 14
significant digits and up to 9 decimal places.

Edit Code   Display-only field.  For an existing numeric constant, the
display in this field is N for an unsigned constant and S for a signed
constant.

Number of Decimal Places   Display-only field.  For an existing numeric
constant, the display in this field indicates the number of decimal
places used by the constant.

Function Keys

f1       Variable  Cancels the current screen and displays the variables
        screen.

f2       Calc.  Item  Cancels the current screen and displays the
        calculated items screen.

f3       Work Areas  Cancels the current screen and displays the work
        areas screen.

f4       AlphaNum Constant  Cancels the current screen and then displays
        the alphanumeric constants screen.
