Using TurboIMAGE/XL Intrinsics (Continued)
DBLOCK (Continued)
Discussion.
The format of the array containing a list of lock descriptors is
illustrated in Figure 5-2 and applies only for locking modes 5 or 6.
The number of lock descriptors (n) is a one-halfword binary integer.
Only the first n lock descriptors are processed. If n is zero, DBLOCK
returns without taking any action. The format of a lock descriptor is
illustrated in Figure 5-3 , and the lock descriptor fields are
described in Table 5-16 .
The shortest possible descriptor is 9 halfwords long consisting of the
length field and a dset field containing @. Although the dset field only
contains an at-sign, it must still be 8 halfwords long. The length of
the entire descriptor array cannot exceed 4094 bytes.
Lock descriptors are sorted by data set number, then by value provided
for the lock item. TurboIMAGE/XL does not sort by item within the set,
because more than one item per data set constitutes a conflicting lock
descriptor (TurboIMAGE/XL error -134).
Table 5-15. Locking Mode Options
-------------------------------------------------------------------------------------------------
| | | | |
| Lock | Lock | Locking | |
| Mode | Level | Type | Description |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| 1 | Base | Unconditional | DBLOCK applies an unconditional lock to the whole |
| | | | database, returning to the calling program only |
| | | | after the lock is successful (or if an error |
| | | | occurs). The qualifier parameter is ignored. |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| 2 | Base | Conditional | DBLOCK applies a conditional lock to the database |
| | | | and returns immediately. A return status of zero |
| | | | indicates success. A non-zero return status |
| | | | indicates the reason for failure. (Refer to Table |
| | | | 5-17.) |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| 3 | Set | Unconditional | DBLOCK applies an unconditional lock to a data set. |
| | | | The qualifier parameter must specify the name of an |
| | | | array containing the left-justified name of the |
| | | | data set or the name of an integer referencing the |
| | | | data set number. The data set name can be 16 |
| | | | characters long or, if shorter, terminated by a |
| | | | semicolon or blank. |
| | | | |
| | | | The data set need not be accessible for read or |
| | | | write access to the user requesting the lock. |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| 4 | Set | Conditional | DBLOCK applies a conditional lock of the same type |
| | | | as mode 3. It always returns to the calling |
| | | | program immediately. A return status of zero |
| | | | indicates success and a non-zero return status |
| | | | indicates a reason for failure. (Refer to Table |
| | | | 5-17.) |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| 5 | Entry | Unconditional | DBLOCK applies unconditional locks to the data |
| | | | entries specified by lock descriptors. The |
| | | | qualifier parameter must specify the name of an |
| | | | array containing the lock descriptors. The format |
| | | | of the array is shown in Figure 5-2. It returns |
| | | | only when all the locks have been acquired. |
| | | | |
-------------------------------------------------------------------------------------------------
| | | | |
| 6 | Entry | Conditional | DBLOCK applies conditional locks of the same type |
| | | | as mode 5. If multiple lock descriptors are |
| | | | specified and DBLOCK encounters a lock descriptor |
| | | | that it cannot apply, it returns. All locks that |
| | | | have been applied until that point are retained. |
| | | | |
| | | | Because the locks are not executed in the order |
| | | | supplied by the user, it is not predictable which |
| | | | locks are held and which are not after an |
| | | | unsuccessful mode 6 DBLOCK. Status element 2 |
| | | | indicates how many lock descriptors were actually |
| | | | successful. It is recommended that a DBUNLOCK be |
| | | | issued after any unsuccessful mode 6 DBLOCK. |
| | | | |
-------------------------------------------------------------------------------------------------
NOTE Be careful when changing modes. The qualifier parameter can
change.
![[]](../../pic3k/M017091/FFN203c50.gif)

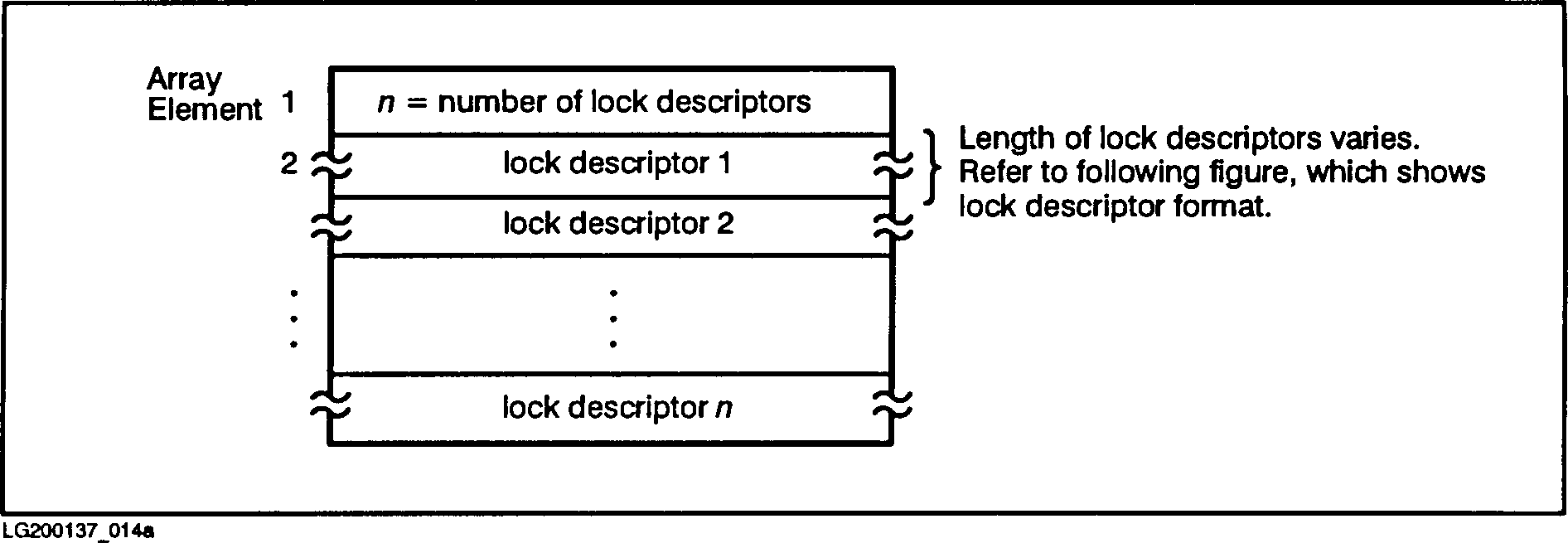

Figure 5-2. Qualifier Array Format for Locking Modes 5 and 6
![[]](../../pic3k/M017091/FFN213c50.gif)

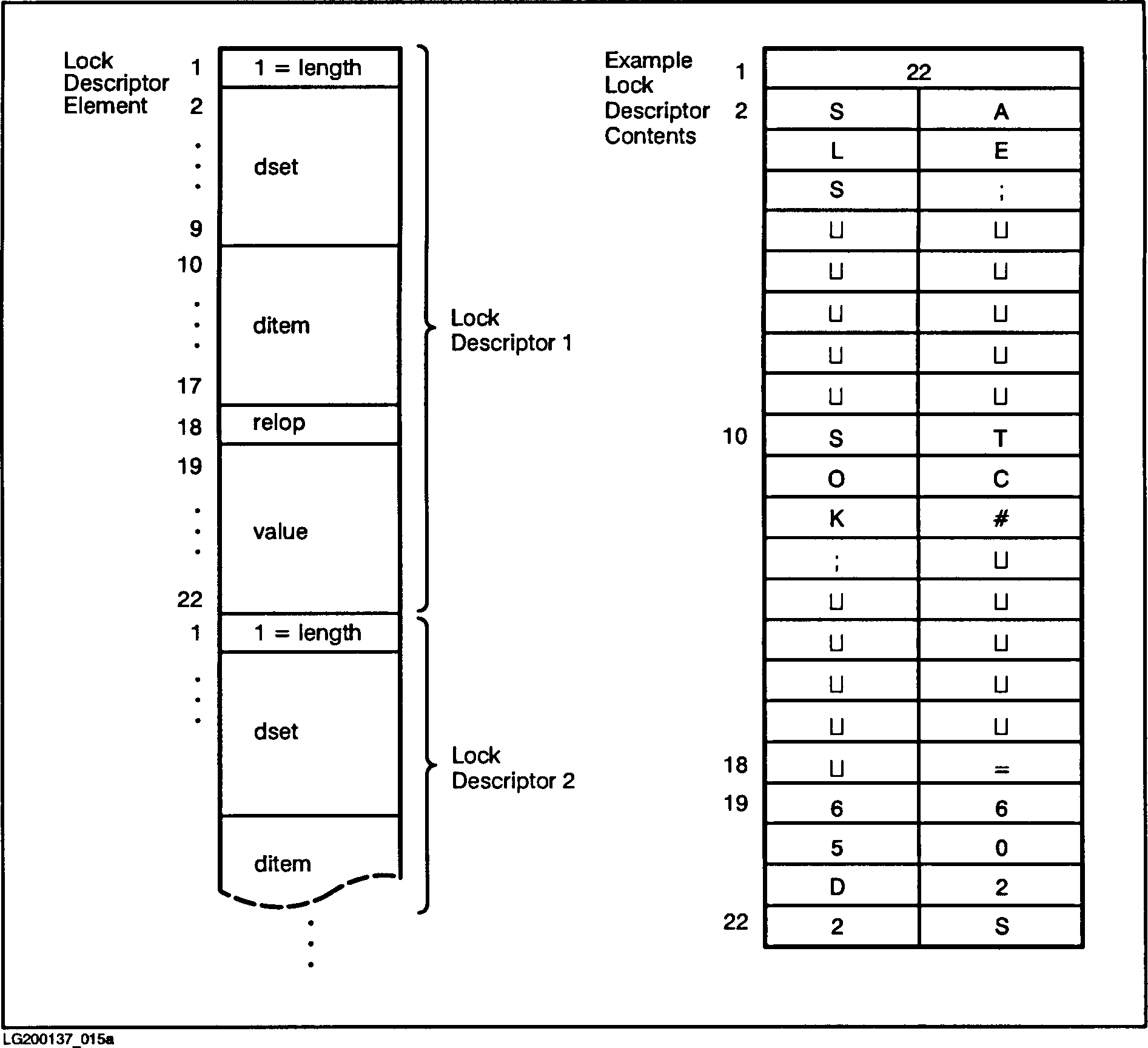

Figure 5-3. Lock Descriptor Format
Table 5-16. Lock Descriptor Fields
---------------------------------------------------------------------------------------------
| | |
| Field Name | Description |
| | |
---------------------------------------------------------------------------------------------
| | |
| length | A halfword integer specifying the physical length in halfwords of the |
| | lock descriptor, including the length field itself. |
| | |
---------------------------------------------------------------------------------------------
| | |
| dset | Describes the data set in which locks are placed. It is always 8 |
| | halfwords long and can be one of the following: |
| | |
| | |
| | * A data set name, left-justified, 16 characters long or, if |
| | shorter, terminated with a blank or semicolon (for example, |
| | SALES;). |
| | |
| | * A data set number, an integer in the range of 1 to 199 stored |
| | in the first element. |
| | |
| | * An at-sign (@) stored in the first byte of the dset and a lock |
| | descriptor length of 2 indicating that the whole database is |
| | to be locked. All unused bytes are ignored. In this case, |
| | the ditem, relop, and value fields are ignored and can be |
| | omitted if desired. |
| | |
| | * A blank or semicolon (first byte) or binary zero (first |
| | halfword) indicating that the whole lock descriptor is to be |
| | ignored. (It is counted as one of the n descriptors.) |
| | |
| | The data set, if specified, need not be accessible for read or write |
| | access to the user requesting the lock. |
| | |
---------------------------------------------------------------------------------------------
| | |
| ditem | Always 8 halfwords long unless an @ is stored in the first byte. It |
| | can be one of the following: |
| | |
| | * A data item name, left-justified, 16 characters long or, if |
| | shorter, terminated with a blank or semicolon. |
| | |
| | * A data item number stored as an integer in the first halfword. |
| | It can be in the range of 1 to 1023. |
| | |
| | * An at-sign (@) stored in the first byte of the dset indicating |
| | that the whole data set specified in dset is to be locked. |
| | All unused bytes are ignored and can be omitted if desired. |
| | |
| | The data item need not be a search item, nor does it have to be |
| | accessible to the user requesting the lock. However, it cannot be a |
| | compound item or a P-type item longer than P28. |
| | |
---------------------------------------------------------------------------------------------
| | |
| relop | One halfword long, it contains one of the three relational operators |
| | represented as two ASCII characters: |
| | |
| | <= less than or equal |
| | |
| | >= greater than or equal |
| | |
| | =_ or _= equal (_ indicates space character) |
| | |
---------------------------------------------------------------------------------------------
| | |
| value | The value of the data item to be locked. It must be stored in |
| | exactly the same way as it is stored in the database. TurboIMAGE/XL |
| | extracts as many halfwords as required by the corresponding data item |
| | definition (in the schema). The rest (if any) are ignored. |
| | |
---------------------------------------------------------------------------------------------
If you specify a data item of type P, U, or Z in a lock descriptor,
TurboIMAGE/XL checks that the value is valid for that data item type.
The following checks are made:

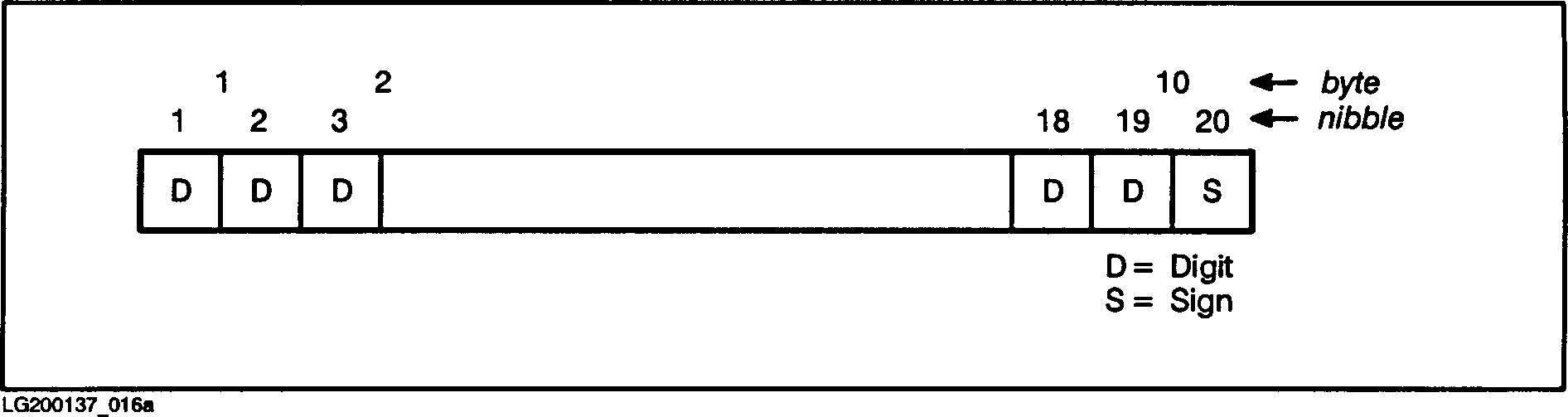

* If the data item is type P, the right half of the right most byte
must contain a sign and all preceding nibbles must contain decimal
digits represented in Binary Coded Decimal (BCD) format. For
example, if a data item is defined as type P with a length of 20,
the format must be as shown here:
![[]](../../pic3k/M017091/FFN223c50.gif)
This would be declared in COBOL II as 19 digits plus a sign or 20
nibbles (P20 in the schema):
S9(19) COMP-3
Type P data item used in a lock descriptor cannot exceed 28
nibbles (7 halfwords) in length. The locking system treats all
sign digits other than 11012 as identical. 11012 is assumed to be
a negative sign.
* If the data item is type U, the value cannot contain any lowercase
alphabetic characters in the range of a through z (for non-native
language use only).
* If the data item is type U or X, and a lock specifies an
inequality, the language of the database is used.
* If the data item is type Z, each byte preceding the last one must
contain an 8-bit digit represented in ASCII format and the last
byte must contain a value representing a digit and a sign.
* If the data item is type R, it is sorted based on the HP 3000
floating point number format.
Table 5-17. DBLOCK Return Status Values
-----------------------------------------------------------------------------------------------
| | | |
| Calling Errors: | -11 | Bad database reference. |
| | -31 | Bad mode value. |
| | -121 | Descriptor count error. |
| | -123 | Illegal relop in a descriptor. |
| | -124 | Descriptor too short. Must be greater than or |
| | -125 | equal to 9. |
| | -126 | Bad set name/number. |
| | -127 | Bad item name/number. |
| | -128 | Attempt to lock using a compound item. |
| | -129 | Value field too short in a descriptor. |
| | -130 | P-type item longer than P28 specified. |
| | -131 | Illegal digit in a P-type value. |
| | -132 | Lowercase character in type U value. |
| | -133 | Illegal digit in type Z value. |
| | -134 | Illegal sign in type Z value. |
| | -135 | Two descriptors conflict. |
| | -136 | DBLOCK called when locks already in effect. |
| | -222 | Descriptor list exceeds 4094 bytes. |
| | | Only DBXUNDO allowed when a dynamic transaction |
| | | encounters an error. |
| | | |
-----------------------------------------------------------------------------------------------
| | | |
| Communications Errors: | -102 | DSWRITE failure. |
| | -103 | Remote 3000 stack too small. |
| | -106 | Remote 3000 data inconsistent. |
| | -107 | NS 3000 or DS 3000 system error. |
| | | |
-----------------------------------------------------------------------------------------------
| | | |
| Exceptional Conditions: | | Applicable Modes |
| | 20 | Database locked or contains locks. (2,4,6) |
| | | (Status element 3: 0 = database |
| | | locked |
| | 22 | 1 = data set or entries locked) (3,4,5,6) |
| | 23 | Data set locked by another (4) |
| | 24 | process. (6) |
| | 25 | Entries locked within set. (6) |
| | 26 | Item conflicts with current locks. (1,2,3,4,5,6) |
| | | Entry or entries already locked. |
| | 62 | Lock not performed since deadlock (5,6) |
| | | would occur. |
| | | DBG full. |
| | | (If this error occurs when |
| | | multiple lock descriptors are |
| | | specified, some of the descriptors |
| | | may have been successfully |
| | | completed. If so, they are not |
| | | unlocked by TurboIMAGE/XL before |
| | | returning the error. Therefore, |
| | 63 | issue a DBUNLOCK after any |
| | | positive-numbered error, unless |
| | -192 | you have reason to do otherwise.) |
| | -241 | DBG disabled; potential damage; |
| | | only DBCLOSE allowed. |
| | | Invalid DBU. |
| | | Bad tag for TurboLKT table. |
| | | |
-----------------------------------------------------------------------------------------------
Appendix A contains more information about these conditions.
DBMEMO
INTRINSIC NUMBER 414.
Used to log user data (ASCII or binary) to the log file.
Syntax.
DBMEMO,base,text,mode,status,textlen
Parameters.
base is the name of the array used as the base parameter
when opening the database. The first element of
the array must contain the base ID returned by
DBOPEN. (Refer to DBOPEN for more information about
the base ID.)
text is an array of up to 512 bytes that contains user
data (ASCII or binary) to be written to the log
file as part of the DBMEMO log record.
mode must be an integer equal to 1.
status is the name of an array of 10 halfwords in which
TurboIMAGE/XL returns status information. If the
procedure executes successfully, the status array
contents are:
Element Contents
1 If the procedure succeeds, the return
status is 0. Table 5-18 describes
the contents of element 1 when the
procedure does not succeed.
2-4 Unchanged from previous procedure call
using this array.
5-10 Procedure call information. Refer to
"Library Procedure Error Messages" in
appendix A for a description of this
information.
textlen is an integer equal to the number of halfwords to
be logged from the text parameter, or is a negative
integer equal to the number of bytes. Length can
be zero.
Discussion.
DBMEMO is used to log user data to the log file when the user process is
logging. No action occurs if the process is not logging. DBMEMO can be
used to add additional auditing information to the log file or to
facilitate the identification of transactions in the event of a failure
and subsequent recovery.
Table 5-18. DBMEMO Return Status Values
----------------------------------------------------------------------------------------------
| | | |
| Calling Errors: | -11 | Bad database reference. |
| | -31 | Bad mode. |
| | -151 | Text length greater than 512 bytes. |
| | -222 | Only DBXUNDO allowed when a dynamic transaction |
| | | encounters an error. |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| Communications Errors: | -102 | DSWRITE failure. |
| | -106 | Remote 3000 data inconsistent. |
| | -107 | NS 3000 or DS 3000 system error. |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| Logging System Failures: | -111 | WRITELOG failure. |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| Exceptional Conditions: | -193 | DBU control block is full. |
| | 63 | DBG disabled; potential damage; only DBCLOSE |
| | | allowed. |
| | | |
----------------------------------------------------------------------------------------------
Consult appendix A for more information about these conditions.
DBOPEN
INTRINSIC NUMBER 401.
Initiates access to the database and establishes the user class number
and access mode for all subsequent database access. DBOPEN is used in
conjunction with DBCLOSE to establish and terminate access to a database.
Syntax.
DBOPEN,base,password,mode,status
