Preparing Tapes and DDSs
You must select the backup media onto which you are going to store your
files. If you have followed the instructions for setting up a backup
library in Chapter 2, "Managing Backups and Backup Media," you should
have a set of new or scratch backup media or both available for storing
files.
To prepare your backup media for, perform the following steps:
1. Estimate the number of blank media you need, and take them from
your library.
2. Attach a label to each unit of backup media. (A standard
Hewlett-Packard tape label has several headings for different
types of important information. If your label does not have such
headings, you may want to create your own headings including the
information which is described next.)
3. Label the first unit of backup media (tape or DDS).
Single or Sequential Label the first unit Volume 1 of n. Replace
n with the total number of units of backup
media--if you use more or fewer tapes than
you planned, you may have to change this
number when you finish storing the files.
Label the second unit of backup media Volume
2 of n. Label the third unit of backup
media Volume 3 of n, and so on.
Parallel or Parallel Label the first backup for the first device
Pools (or first device pool) Volume Reel1 Set1 of
x replacing x with a list of the last backup
for each parallel device or device pool.
If you use more or fewer units of backup
media than you planned, you may have to
change these numbers when you finish.) For
example, if you plan to use four units of
backup media and two parallel devices, label
the first backup Volume Reel1 Set1 of Reel2
Set1/Reel2 Set2 .
Label the second backup from the first
device (or device pool) Volume Reel2 Set1 of
Reel2 Set1/Reel2 Set2.
Label the first backup from the second
device (or device pool) Volume Reel1 Set2 of
Reel2 Set1/Reel2 Set2, and label the second
backup Volume Reel2 Set2 of Reel2 Set1/Reel2
Set2.
4. In addition to the media number, write the following information
on each media's label:
* The currrent date which serves as a reminder of when the
backup was created.
* The name of your computer system.
* A list of the files you intend to store, or if the tape is
from a system backup, write either "FULL BACKUP" or
"PARTIAL BACKUP".
* If you plan to use interleave format, write "INTERLEAVE".
(Interleave format is described in Chapter 5, "Storing
Files.")
* Any other important information about the backup. Since it
is a STORE backup, write "STORE".
* Your name or initials.
* The date after which the information on the backup is
obsolete, called the Purge Date. If you keep STORE backups
indefinitely, make a note to that effect.
* The number of times the backup has been used, under the
heading "Cycle".

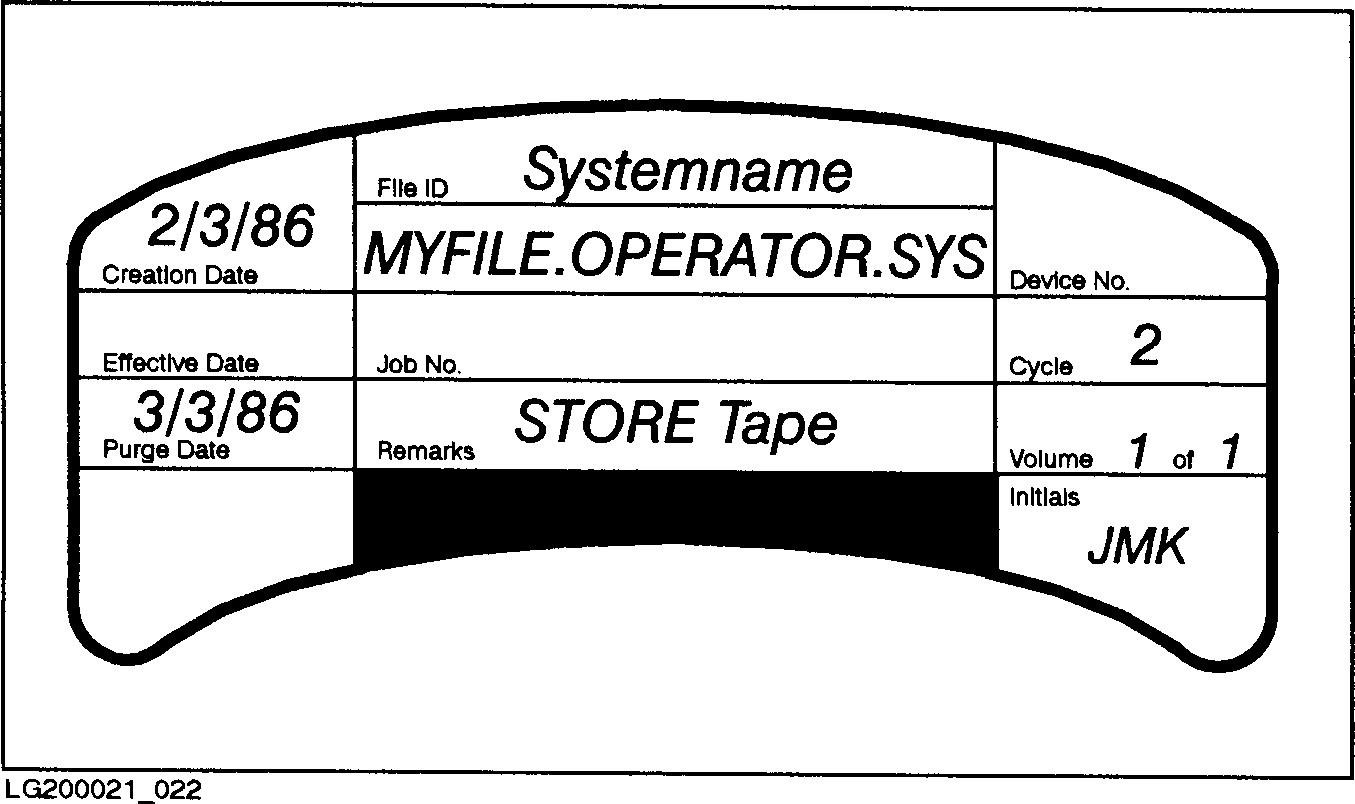

Figure 3-2 shows an example of a correctly labeled backup:
![[]](../../pic3k/M013445/FFN63c50.gif)
Figure 3-2. A Correctly Labeled Tape
5. Stack all your media (tapes or DDSs).
Single If you plan to use a single device, stack
all of your backups, label side up, in
order, with the lowest number on top, near

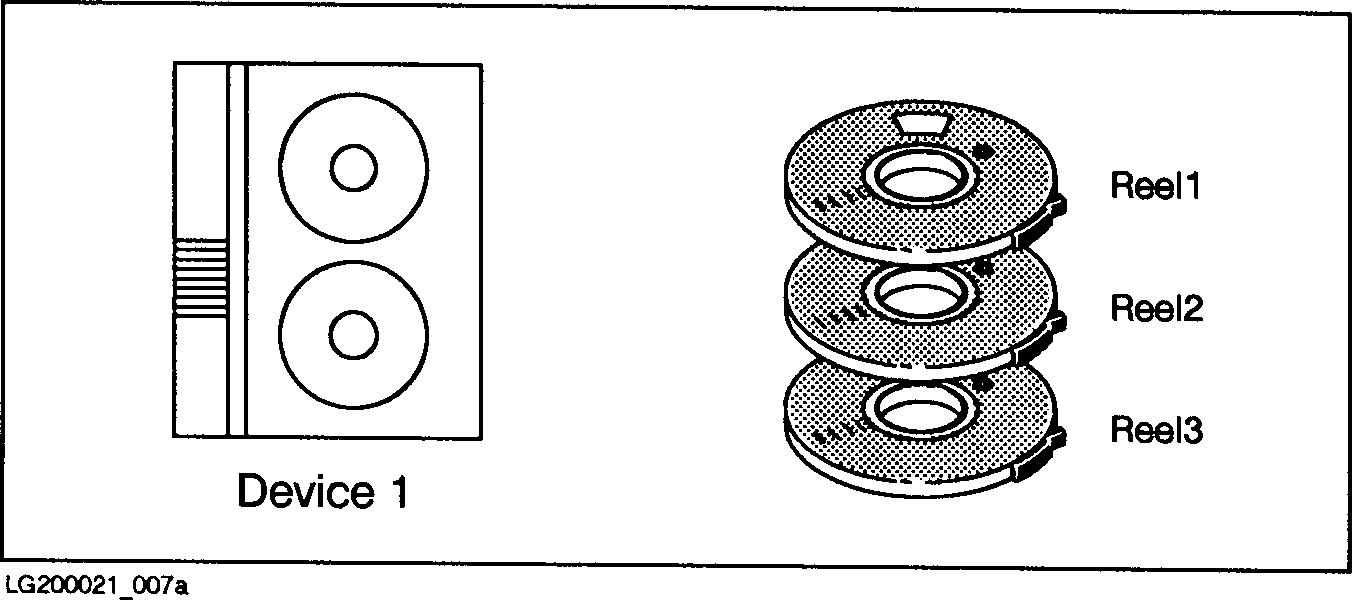

the device, as shown in Figure 3-3 .
![[]](../../pic3k/M013445/FFN73c50.gif)
Figure 3-3. Preparing Tapes for a Single Device
Parallel If you are using parallel devices, stack all
of your backups, label side up, in order
with the lowest number on top, near the
corresponding device. For example, place
all the backups with numbers ending with
Set1 near your first parallel device. Put
media Reel1 Set1 on top of the stack.

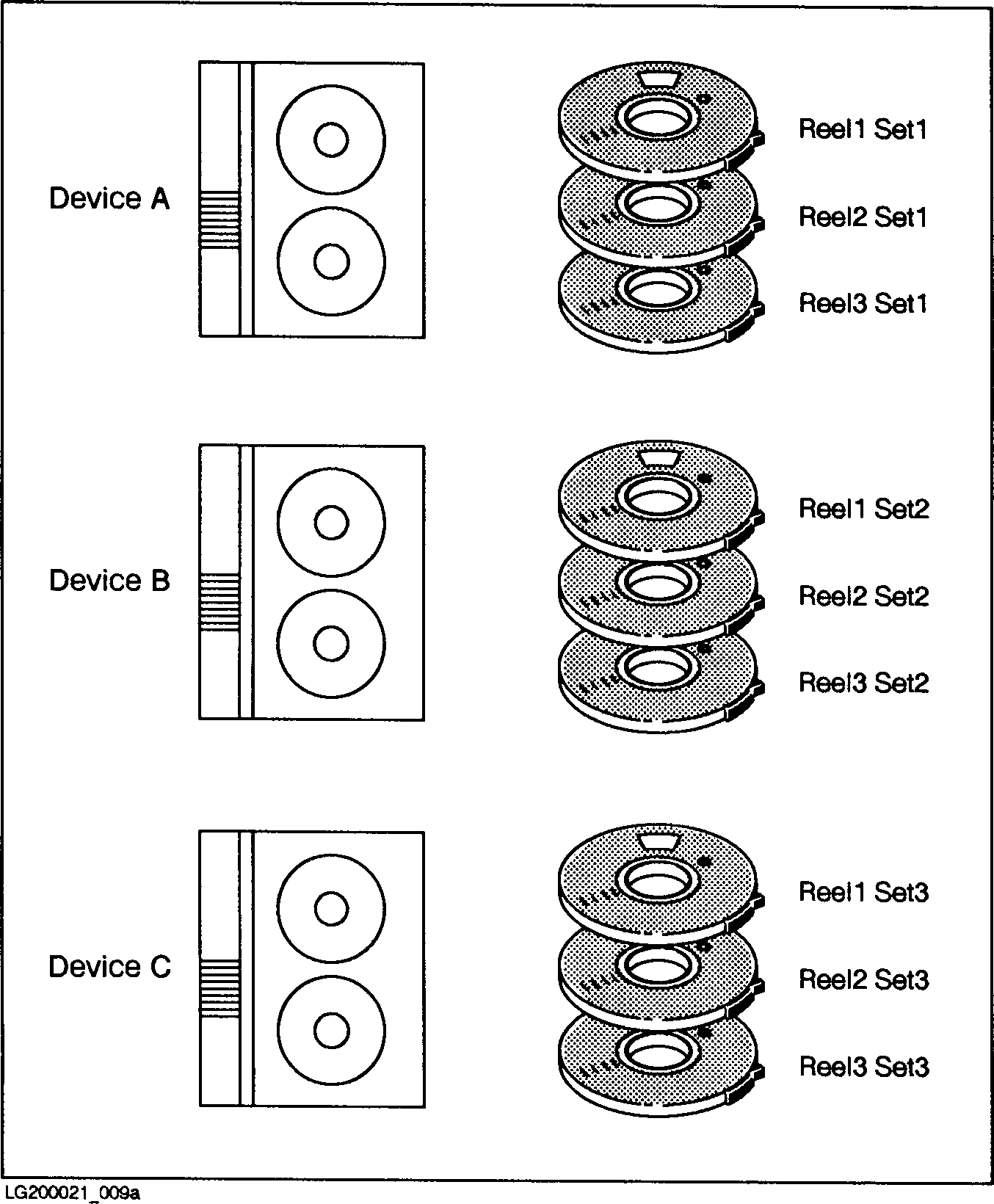

Figure 3-4 shows how to prepare backup
medias for parallel devices.
![[]](../../pic3k/M013445/FFN83c50.gif)
Figure 3-4. Preparing Tapes for Parallel Devices
6. Divide your media among the devices.
Sequential If you plan to use sequential devices,
divide your media among the devices in
order. For example, if you have two
sequential devices and six media, stack
media 1, 3 and 5 near device 1, and stack
media 2, 4 and 6 near device 2. Stack all
media label side up and make sure that the
lowest-numbered backup is on the top of each

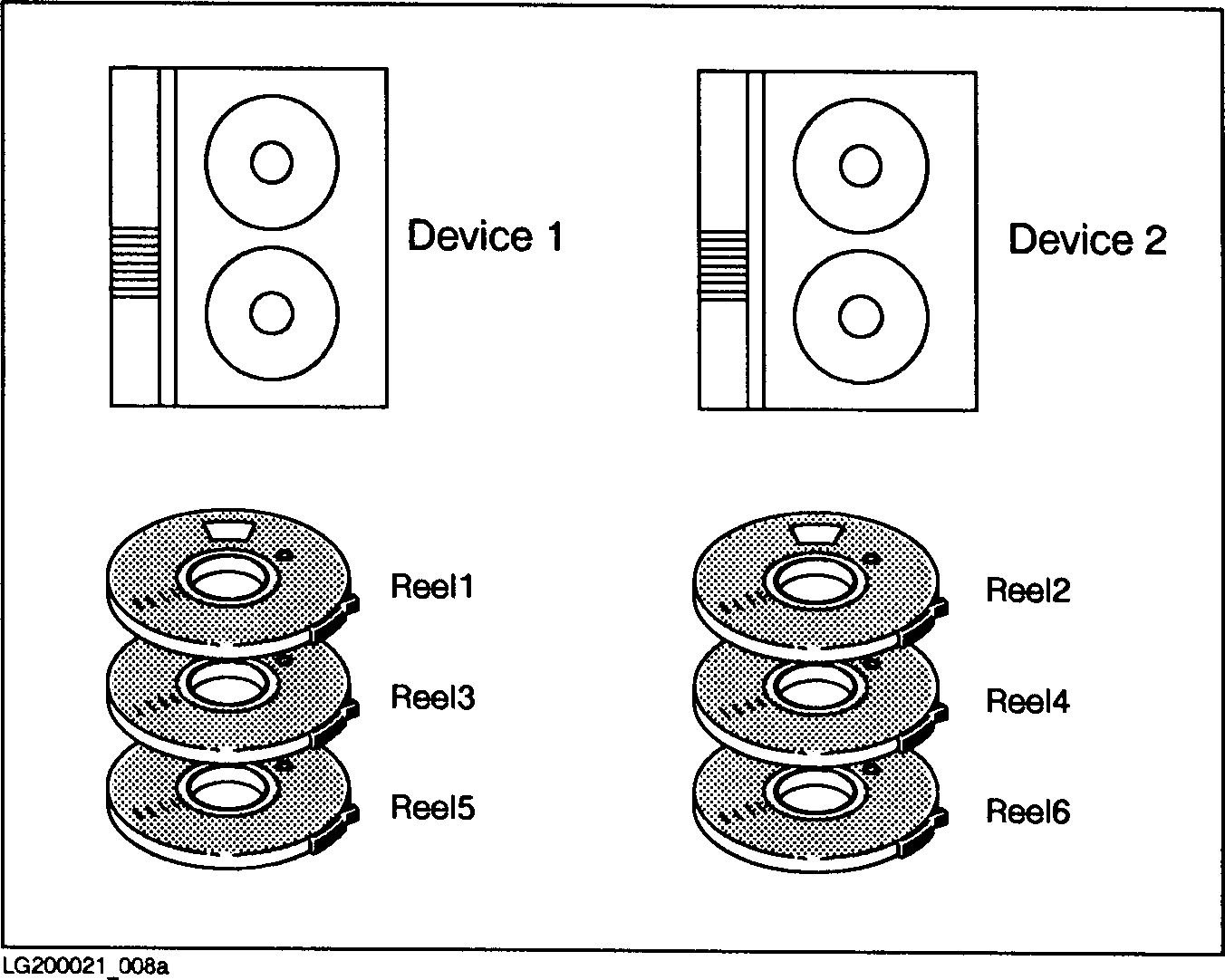

stack. Figure 3-5 shows an example.
![[]](../../pic3k/M013445/FFN93c50.gif)
Figure 3-5. Preparing Tapes for Sequential Devices
Parallel Pool If you are using parallel device pools,
divide your media among the devices in each
device pool, placing them in order with the
label side up. For example, if the first
device pool has two sequential devices and
four media, stack media Reel1 Set1 and Reel3
Set1 near device A1, and place media Reel2

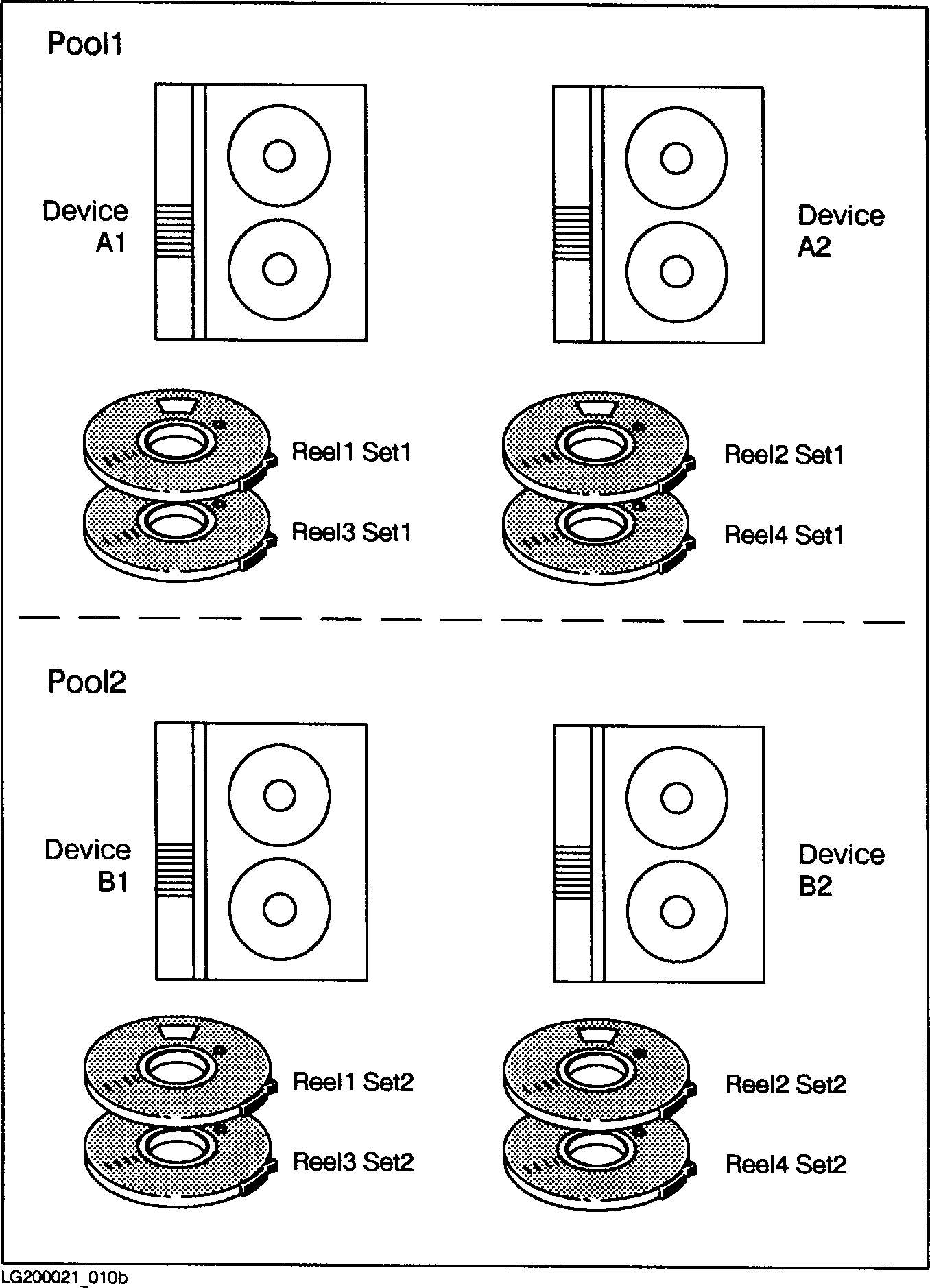

Set1 and Reel4 Set1 near device A2. Figure
3-6 shows media prepared for storing
files to parallel device pools.
![[]](../../pic3k/M013445/FFN103c50.gif)
Figure 3-6. Preparing Tapes for Parallel Device Pools
