Columns 13-17
Largest Sum
Columns 13 through 17 specify the largest sum of control field lengths of
any record section (in bytes).
The entry requires the following calculations:
a. Compute the lengths of all control fields on Field Description specs
(when column 7 is N, O, or F--see table below). Sum these totals
separately for each record section (see definition of "Sections" on
page 5-3).
b. Place the largest of these sums in columns 13-17. The entry cannot
exceed 256.
Additional information concerning this entry can be found under column 7
of the Field Description Specifications. Also, see figure 2-1, in which
the largest control field sum of two record sections is calculated and
the total entered in columns 13-17.
In computing the total lengths of control fields and work records the
following guidelines should be noted:
----------------------------------------------------------------------------------------------
| | | |
| | If Column 7 | Add This To Total Length: |
| | Entry Is: | |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| Control | N or O | Field length* |
| fields | | |
| | | |
| | F | 1 If column 19 (continuation) is blank. |
| | | 0 If column 19 (continuation) is non-blank. |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| Data fields | D | Field lengthIf column 8 is blank. |
| | | 1 If column 8 contains V. |
| | | |
----------------------------------------------------------------------------------------------
* Actual length of the field as defined by its input record "location"
(columns 9-16).
![[]](../../pic3k/M010190/F02013c50.gif)

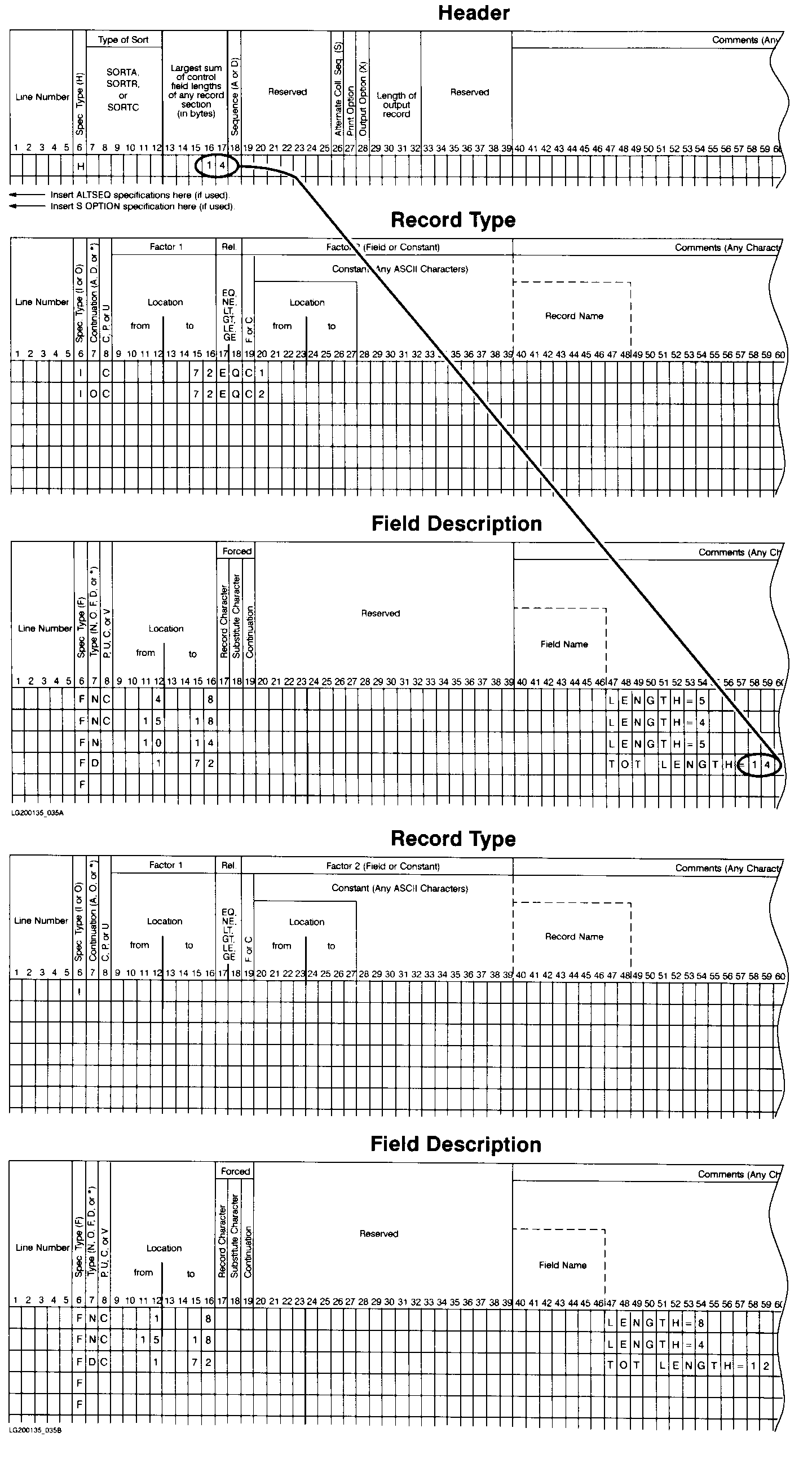

Figure 2-1. Calculating Control Field Length
