HP SNADS/iX Examples

Configuration of HP Desk Resident Users

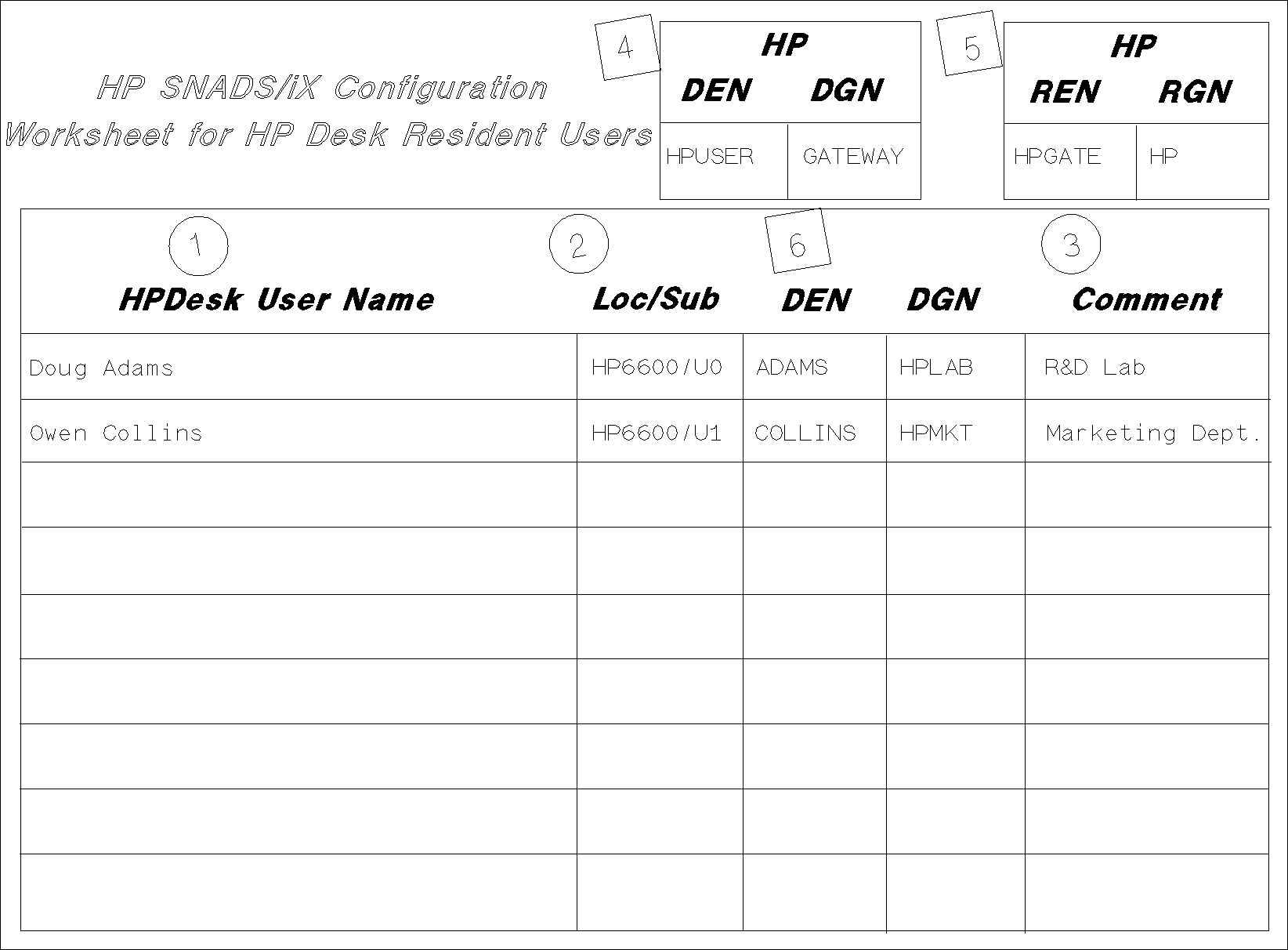

Figure E-1 shows an example of the HP SNADS/iX configuration worksheetfor
HP Desk resident users.

The fields correspond to the numbers on the worksheet.  Fields 1, 2, and
3 should be completed by the HP SNADS/iX gateway administrator.  Fields
4, 5, and 6 should be completed by the IBM system programmer.


          Figure E-1.  Example SNADS Config.  Worksheet for Desk Users

To connect to HP SNADS/iX, one routing table entry needs to be defined.
An REN.RGN should be chosen to represent the HP SNADS/iX gateway.  For
example, if this REN.RGN is HPGATE.HP, the following entry should be
added.

     ADD RGN=HP,
         REN=HPGATE,
         SSL=*,
         QUEUE=LDSP,
         TRANSID=DSVE

The REN.RGN, HPGATE.HP, will need to be configured on the HP SNADS/iX
gateway once the product is installed.

In addition, an entry for every HP Desk user needs to be defined in the
directory (HUP). For example, a user whose DGN.DEN is ADAMS.HPLAB will
need the following directory definition:

     ADD USERTYPE=REMOTE,
         DDN=HPLAB,
         SA=ADAMS,
         RGN=HPGATE,
         REN=HP


NOTE  Asterisks (*) are recommended here for the DDN and SA to aid in
      configuring the HP Desk users.


Configuration of SNA/DS Resident Users

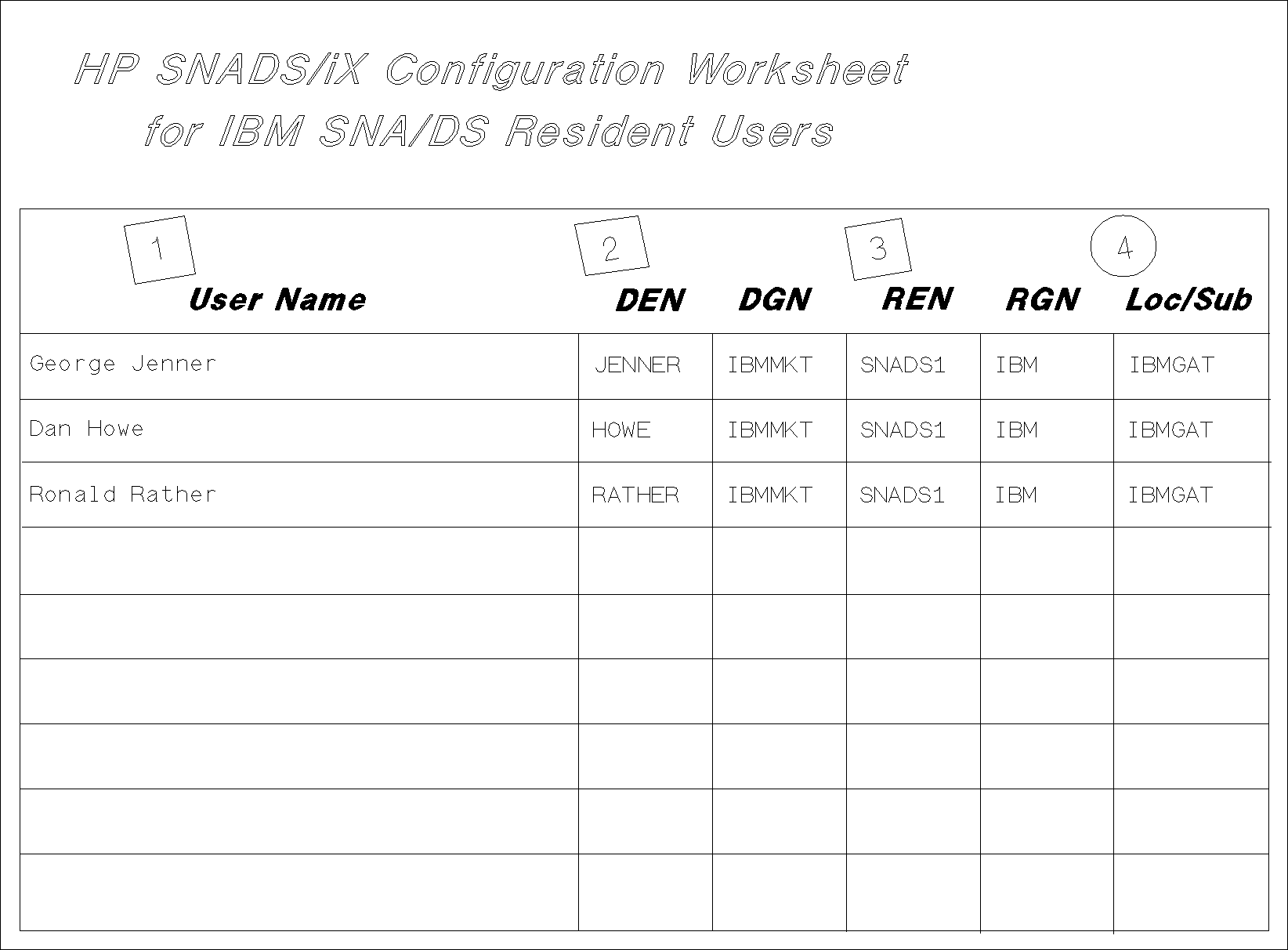

Figure E-2 shows an example of the HP SNADS/iX configuration worksheetfor
IBM SNA/DS resident users.

The fields correspond to the numbers on the worksheet.  Fields 1, 2, and
3 should be completed by the IBM system programmer.  Field 4 should be
completed by the HP SNADS/iX gateway administrator.


          Figure E-2.  Example SNADS Config.  Worksheet for IBM Users
