HP DeskManager Intrinsics

Browsing a Transaction File or Session Profile File

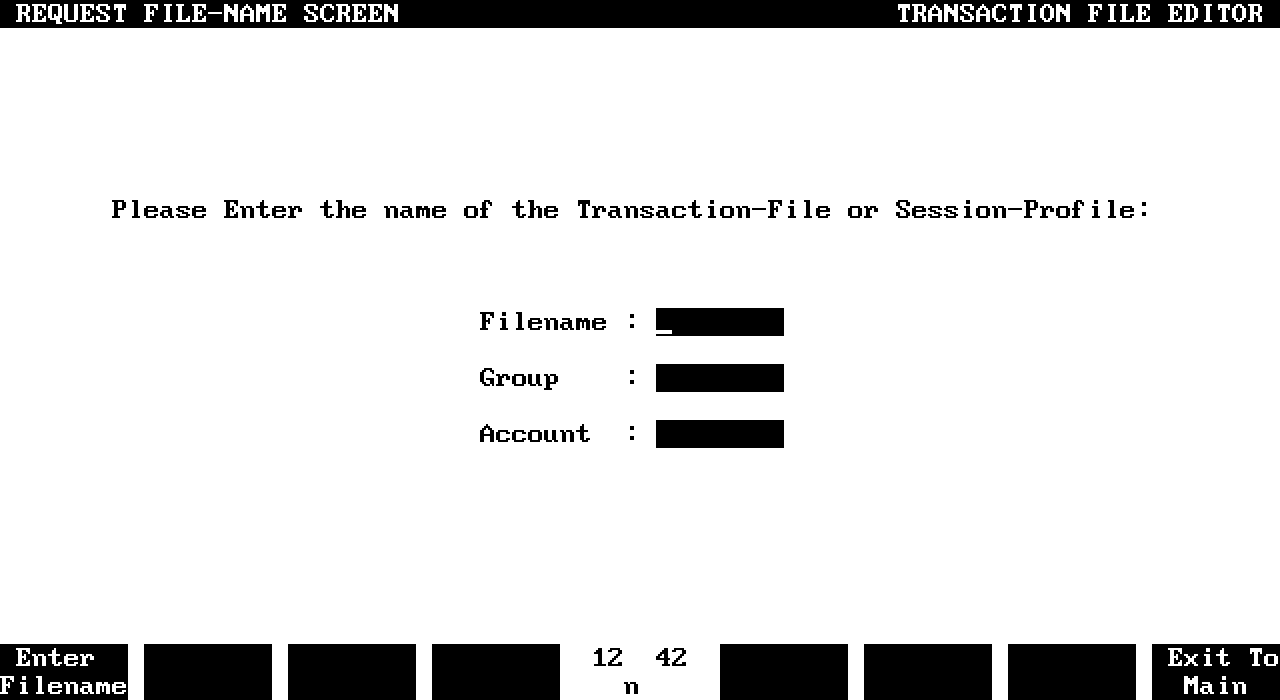

From the initial Transaction File Editor screen, press  Browse File.  The
following screen appears:




Type the filename of the file you want to browse.  If this file is not in
the sign on group and account you will have to give this information too.
Press  Enter Filename.  If you are using the Gateway Intrinsics and the
Transaction File you are browsing was not created by the Transaction File
Editor and does not contain a type 2000 transaction record, the following
screen appears (skip over the instructions for this screen if they do not
apply to you):

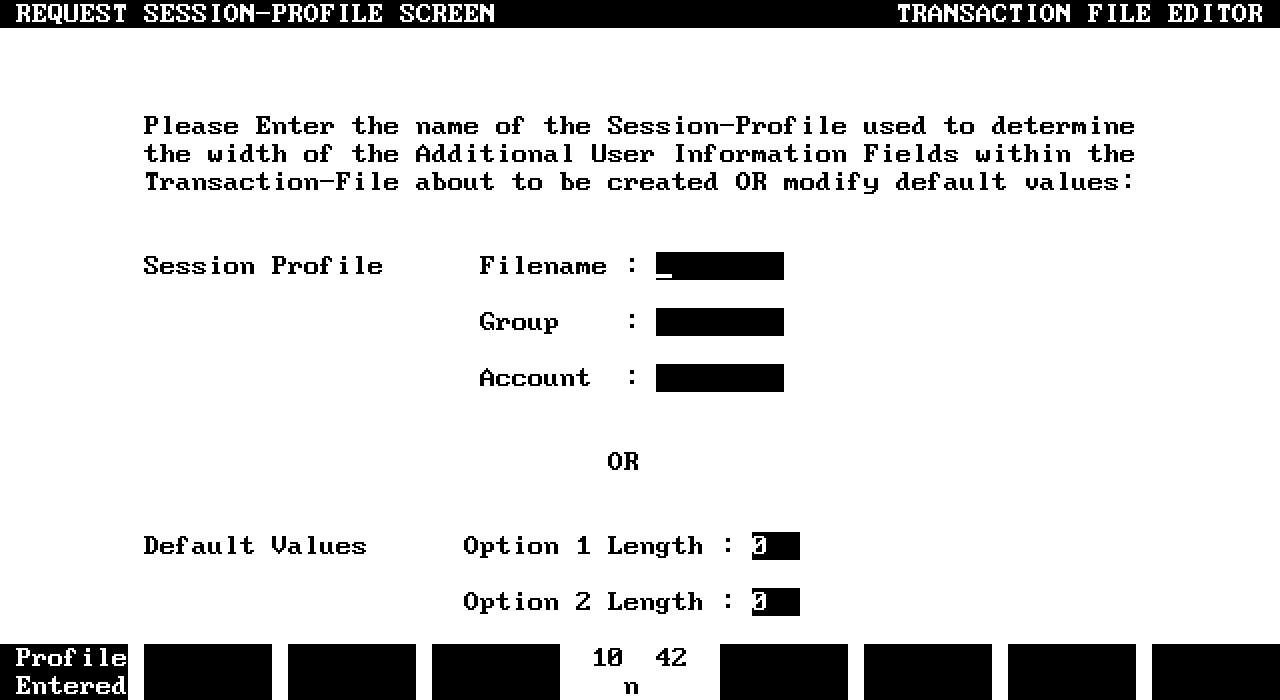

This screen is used to specify whether you are using foreign address
aliases or explicit foreign addresses and, if so, the length of these
fields in bytes.  You may:

   *   Type the name of the Session Profile file containing the 100100
       transaction type record which gives foreign address information,
       in the Session Profile field.

   *   Type the length of your foreign address aliases or explicit
       foreign addresses in the Option 1 Length field.  If you use both
       foreign address aliases and explicit foreign addresses, type the
       length of the explicit foreign address in the Option 2 Length
       field.

Press  Profile Entered.

The first transaction record of the file you have asked to browse appears
on your screen.  You can step through the file record by record using
Next Record and  Prev Record.  Alternatively, you can press  Goto Record
which allows you to go to either a particular group of records in the
file, the first or last record in the file or a particular record
selected by its transaction record number, for example 11000.


NOTE  If you use both foreign address aliases and explicit foreign
      addresses, the browsing of transaction types 10000, 20400, 21000,
      21100, 21200, 21300, 30200 and 30400 differs from normal.  There is
      not enough room on the screen to show the Additional user
      information (Option 2):  field.  If you want to look at this, press
       Display Option2 to display the Additional user information (Option
      2):  field.  Once you have finished with this screen, press
      Display Option1 to return to the previous screen.  You can then
      continue stepping through the file record by record as normal.


Leave the browse function by pressing  Exit To Main.
