NFS over TCP/IP
Implementing
ONC+/NFS over the TCP/IP Transport Protocol
Thomas McNeal
and Lisa Liu
Hewlett-Packard
19420
Homestead Road
Cupertino, CA 95014
(408) 447-2000
FAX: (408)
447-3660
tom_mcneal@hp.com,
lisa_liu@hp.com
When
NFS
was first developed in the 1980. s, the User Datagram Protocol, or UDP, was
chosen as the simplest, most efficient, and most reliable transport protocol
for client/server file system transactions in a local area network. At the time, the
remote procedure call protocol (RFC 1050) implemented for NFS specifically
assumed that the transport protocol would be UDP. In the early 1990. s, when developing the
newer NFS protocol know as Protocol Version 3 (RFC 1813), a . transport
independent. version of RPC was developed, in order to support the eventual use
of connection oriented protocols, such as TCP/IP.
The TCP
protocol is now supported by many implementations of NFS, and is considered a
desirable component of the increasingly distributed applications now available
on Solaris, AIX, and other UNIX platforms, as well as HP-UX. Since development
environments are expanding into widely dispersed locations, particularly with
3rd party applications, the guaranteed
connectivity offered by the TCP protocol is becoming a mandatory component of
NFS.
This
paper will discuss the modifications required to support NFS over the TCP/IP
transport protocol, which are largely confined to changes within RPC. We will show that
this implementation, using a private copy of RPC known only to the NFS layer,
allows us to maintain binary compatibility, even in the face of kernel-intrusive
applications, while preserving the excellent UDP performance results released on
11.0 in December, 1998. We will show the modifications necessary to a
few commands and daemons in order to support TCP, and will discuss the internal
system behavior imposed upon NFS and RPC by the differences between
connectionless and connection oriented protocols such as UDP and TCP.
Impact of UDP on NFS behavior
The
connectionless behavior of UDP has required RPC to manage individual messages,
requiring confirmation of message receipt, in addition to error recovery from
delivery problems.
On the client, this is particularly evident in the complex timeout and
message retransmission algorithms necessary to handle network traffic across a
connectionless protocol. An equivalent situation exists on the
server, with its requirements to keep track of and reply to incoming messages,
to reassemble them correctly if message fragmentation occurs across the wire,
and to manage duplicate requests which inevitable occur when the client is
unaware that the server has successfully received its messages.
The
timeout and retransmission mechanism on the NFS client is particularly complex,
involving timeout and error handling loops in both the NFS and RPC layers. The general
behavior is that a specific timeout length may be specified during mount time,
with a default that may differ from one vendor to another. (In the case of
HP-UX release 11.0, that default is now 1.1 seconds, but was set to .7 seconds
in earlier releases).
In addition, the number of attempts made to reach the server can be defined at
mount time (again, in conformance with SUN, the default number of
retransmissions after the first attempt is 5). If the first attempt fails, the length of the
timeout doubles, up to a maximum of 20 seconds, until the defined number of
retransmissions has been made. If all of these attempts have been
unsuccessful, the client will mark his kernel data structures to show that the
server is . down. , and a message (. NFS failed for server xyz. , on HP-UX
release 11.0, or the more familiar . NFS Server not responding. on earlier
releases) is displayed at the console and sent to the system log.
With
soft mounts, once a server has been marked . down. , any further NFS requests to
that server will be attempted only once, if at all, and a failure will generate
another error message at the console. Hard mounts will continue to try the defined
number of times before posting the error message. If the maximum timeout length had not
previously been reached, the length of the timeout will continue to double with
each attempt until it hits maximum value of 20 seconds. Once the client
succeeds in reaching the server, all parameters are set back to their original
values, the . down. flag is removed, and the . NFS Server OK. message is
displayed at the console.
On the
server, the fundamental problem with a connectionless protocol is that the
client may never receive the reply from the server that a request was
successfully received and acted upon. The client will then continue to send the
same request, as long as no reply is received. In this case, the server handles these
duplicate requests differently depending upon whether or not they are .
idempotent. .
An idempotent request, such as the . getattr. attribute query, may be
executed any number of times without changing the state of the server; in that
case, depending upon the implementation, the server may simply execute the
request again.
For the requests which are not idempotent, or which are more expensive to
execute than to throw away, a duplicate request cache is consulted in order to
determine if the request had been received and executed previously.
In
contrast to UDP, the guaranteed connectivity of TCP removes the need to manage
individual messages within the client, but the server continues to utilize the
duplicate request cache, in order to allow requests encountering permission
denials to be reattempted once the client. s credential caches are updated. This is highly
dependent upon the security flavors implemented on the platform in question, and
is not generally used in HP-UX.
Managing TCP connections
Instead
of managing messages in the UDP environment, NFS must be able to manage TCP
connections.
In an abstract way, this provides some stateful knowledge to the server,
since the server then knows which clients are attached to it, but this is
invisible at the NFS layer, and so NFS retains its stateless nature regardless
of the transport type.

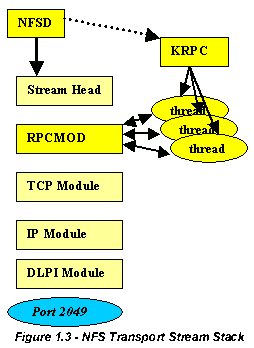

Within
the STREAMS environment, a new module, RPCMOD, will provide much of the
connection management. In both the client and the server
environment, this module is pushed onto the Streams stack, and will, on the
server, communicate directly with kernel components of the NFS Daemon.
On the
client, an RPC request to the server will result in a connection request to the
server, using a client structure to manage the client. s requests and responses
through the STREAMS stack. Each client can have maximum CLNT_MAX_CONNS
number of connections to each server. The default value of CLNT_MAX_CONNS is 1. The
total maximum number of connections on the client is the number of NFS servers
multiplied by CLNT_MAX_CONNS. For example, if CLNT_MAX_CONNS is 5 and there are
10 NFS mount across 3 servers, this client may have up to 15 connections.

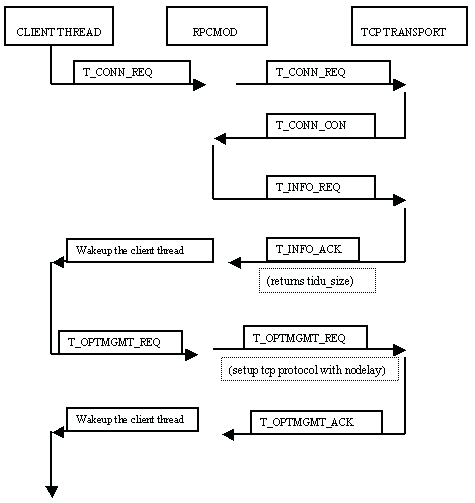

Figure 1.1 .
Establishing a TCP connection on a NFS client
A
connection remains in the client until it becomes inactive. "Inactive" is
defined as either "idle"or "disconnected". By default, the idle time is defined
to be 5 minutes, meaning that ifI there is no outbound request on this channel
for more than 5 minutes, the system tears down this connection by sending a
close request to the stream head. The stream subsystem performs all the close
functions defined for each downstream module, and eventually tears down the
whole stream stack.
On the
server, a request for a TCP connection will be identified correctly if the
service has been advertised in the /etc/services file, with the entry . nfsd 2049/tcp.
. When a
request for a TCP connection comes from a client, the NFS Daemon listening for
TCP requests (by polling the entries in a poll array) will open a connection to
the client, using the STREAM stack devoted to TCP.
The NFS
TCP server can support up to the maximum number of connections specified in the
nfsd command line with the -c option. The default number of connections is
unlimited. Each of the connections has an entry in a poll array. The nfsd daemon
polls on the entires in the poll array for events and errors.
The
poll array has an initial size of 64 entries. When the total number of
connection grows, the system re-allocates a larger array to accommodate more
connections. When the nfsd user thread
receives a T_LISTEN event, it opens a new connection. If the system has already
opened the maximum number of connections specified on the command line, it drops
the oldest connection before accepting the new connection
A Server. s connection is torn down by
the NFS daemon, nfsd,
when one of the following events happens:
§
When the RPCMOD detects an idle connection, it sends a
signal to the NFS daemon. The NFS daemon closes this connection accordingly.
§
The NFS
daemon
receives a connection request after it has reached the maximum number of
connections allowed. It finds the oldest one from the polling list and closes
this connection.
§
The NFS
daemon receives a disconnecting event or unrecoverable error event. Its response to
such events is to close the connection.
Constructing TCP
support for NFS within HP-UX
The primary location of the code
modifications required to support TCP are in the HP-UX kernel. s ONC+/RPC
layer.
Fortunately,
the libraries containing HP-UX kernel components used to build the ONC+
are separated into RPC and NFS archives (/usr/conf/lib/libnfs.a and
/usr/conf/lib/librpc.a). This allows us to create a private,
NFS-specific RPC, known only to NFS, and contained within the NFS kernel archive
library. We
decided to implement a private copy of the RPC library for the following
reasons:
§
Preserve binary compatibility for kernel-intrusive ISVs in
the 11.11 system release
§
Preserve the SPECsfs93 benchmark results published in July,
1998
§
Preserve our ability to patch the 11.0 system release
Since
the RPC enhancements are private to NFS, the first and third issues are
automatically addressed, since hiding the externally visible changes preserves
the current RPC product for usage without run-time, link-time, or compile-time
modifications.
NFS Performance modifications in HP-UX 11.0
Preserving the SPECsfs93 (also known as SPECsfs 1.1)
benchmark results was more difficult than preserving compatibility, since the
NFS layer UDP pathways needed to continue using the current RPC pathways which
contained the benchmark modifications. This was important on the server, where the
benchmark results are measured, but not so important on the client, which had no
real modifications related to SPECsfs93.
In the
HP-UX 11.0 server (as patched with the performance modifications available in
December 1998),

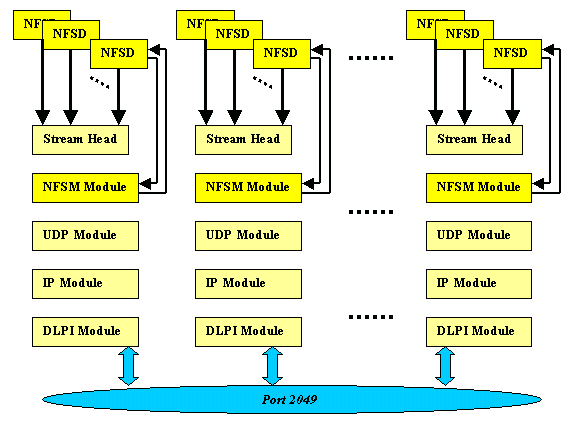

the kernel structures handling incoming traffic on port 2049, the
standard NFS server port, were cloned and distributed per processor, as seen in
figure 1.2.
This called for replicating the STREAMS stack which handled UDP transport
traffic, in addition to assuring that enough NFS daemons existed to service each
stack.
Several
other enhancements were important in achieving the outstanding benchmark numbers
first published in June 1998, just prior to the closure of the benchmark by the
SPEC consortium, in favor of the SPECsfs97 benchmark. These enhancements
included:
§
Task
stealing by the kernel component of the NFS daemons, in order to prevent
contention at a single processor if all daemons assigned to that processor are
already busy.
§
Avoidance of some buffer copies in the NFS Server. s read
pathways
§
Enhanced hashing functions for several internal tables
§
Enhanced vnode synchronization within the underlying file
systems (both HFS and VxFS)
HP has
now begun analyzing and measuring the latest NFS benchmark, SPECsfs97. This benchmark
exercises the Protocol Version 3 (PV3) of NFS, rather than the older PV2
protocol used in SPECsfs93. The newer benchmark will also change the mix
of operations executed by the load generating clients, so the absolute numbers
of operations per second (IOPS) and the response time of the server should only
be compared with other SPECsfs97 results, and not with the SPECsfs93
results.
Figure
1.2 . NFS Server UDP Transport Stream Stack
With the additional support of NFS
over the TCP/IP protocol, an additional STREAMS stack will be created for each
TCP connection created, as shown in figure 1.3. The number of connections that can be
supported by the NFS daemon is specified by the . -c. option of the nfsd
command. By default, the number of connections is unlimited.
Each
connection may have maximum of 10 kernel threads serving requests in the kernel
space. The actual number of kernel threads is dynamically adjusted by the system
according to the system load.
Each connection is associated with a stream stack headed by
the RPCMOD module. The nfsd program communicates to the stream through the
stream head, but the kernel nfsd thread, known as KRPC, communicates to
the stream by passing packages between the RPCMOD module and KRPC directly,
bypass the stream head.
Changes to the NFS Server
daemon command
From
the system administration point of view, very few changes are necessary to
support NFS transactions with the TCP/IP protocol. As
mentioned, the NFS Server daemon, /usr/sbin/nfsd, has been modified with an
additional parameter, and will exhibit behavior when initializing the NFS Server
that is different from that currently seen.
As with
the current performance enhancements, the NFS Server daemon will replicate
itself at
least as many times as there are processors on the Server, regardless of the
number of server daemons specified in the NFS configuration file, /etc/rc.config.d/nfsconf. In addition, the
total number of daemons launched will be a multiple of the number of configured
processors, with the number of daemons specified in the configuration file
serving as a lower bound.
In addition to the daemons specified
above, all of which handle UDP traffic, a single daemon for TCP traffic will be
launched. This
daemon, as seen in figure 1.3, will launch a kernel component used to manage
kernel threads launched to handle a particular connection. s traffic, and then
wait for incoming requests.
Changes to the NFS Mount command
The mount command
will contain an additional NFS specific option which specifies the transport
protocol which is desired. As with SUN, use of the TCP/IP protocol will
be the default, with UDP being the alternative if the server does not support
TCP. If the
command specifically calls for the UDP protocol, only that protocol will be
requested, and no other request will be made regardless of the server. s
response.
The actual variable which must be used
with the protocol option (-o proto=tcp, or . o proto=udp)
will be the . netid. specified in the protocol configuration file used by
transport independent RPC, /etc/netconfig.
Conclusion
The underlying support within NFS
required by the TCP protocol should be unseen by the application user, and
should only be visible to the system administrator through minor changes to
commands and daemons, and through entries in supporting files required to
advertise and support the TCP protocol. Its presence has been anticipated by the
implementation of the Transport Independent Remote Procedure Call components of
ONC+ in the initial release of HP-UX 11.0, and the architectural design within
the HP-UX kernel has made every effort to provide a smooth transition to general
usage of NFS across the TCP/IP transport protocol.
Appendix 1 - nfsd man page
nfsd(1M)
nfsd(1M)
NAME
nfsd, biod - NFS
daemons
SYNOPSIS
/usr/sbin/nfsd [-a]
[-c conns] [-p protocol] [-t device] [nservers]
/usr/sbin/biod
[nservers]
DESCRIPTION
nfsd starts the NFS
server daemons that handle client file system
requests (see
nfs(7)).
biod starts nservers
asynchronous block I/O daemons. This command is
used on an NFS client
to buffer cache handle read-ahead and write-
behind. nservers is a
number greater than zero. For best
performance, set
nservers to at least four.
OPTIONS
nfsd recognizes the
following options:
-a
Start a NFS daemon over all supported connectionless
and connection-oriented transports, including udp and
tcp.
-c
conns
This sets the maximum number of connections allowed
to the NFS server over connection-oriented
transports.
By default, the number of connections is
unlimited.
-p
protocol
Start a NFS daemon over the specified protocol.
-t device Start a NFS daemon
for the transport specified by the
given device.
nservers nservers is the suggested number
of file system
request daemons that will start. The actual number
of
daemons started will be one tcp daemon (to support
kernel tcp threads) plus the number of udp daemons.
The minimum number of udp daemons will be equal to
the number of active processors, or to nservers,
whichever is greater. The actual number of udp
daemons started will be a multiple of the number of
active processors. To obtain the best performance in
most cases, set nservers to at least four.
AUTHOR
nfsd was developed by
Sun Microsystems, Inc.
SEE ALSO
mountd(1M),
exports(4)
Appendix 2 - mount_nfs man page
mount_nfs(1M)
mount_nfs(1M)
NAME
mount, umount - mount
and unmount an NFS file systems
SYNOPSIS
/usr/sbin/mount [-l]
[-p|-v]
/usr/sbin/mount -a
[-F nfs] [-eQ]
/usr/sbin/mount [-F
nfs] [-eQrV] [-o specific_options]
{host:path|directory}
/usr/sbin/mount [-F
nfs] [-eQrV] [-o specific_options]
host:path directory
/usr/sbin/umount -a
[-F nfs] [-h host] [-v]
/usr/sbin/umount [-v]
[-V] {host:path|directory}
DESCRIPTION
The mount command
mounts file systems.
Only a superuser can mount
file systems. Other users can use
mount to list mounted file systems.
The mount command
attaches host:path to directory. host is a remote
system, path is a
directory on this remote system and directory is a
directory on the
local file tree.
directory must already exist, be
given as an absolute
path name and will become the name of the root of
the newly mounted
file system.
If either host:path or directory is
omitted, mount
attempts to determine the missing value from an entry
in the /etc/fstab
file. mount
can be invoked on any removable file
system, except /.
If mount is invoked
without any arguments, it lists all of the mounted
file systems from the
file system mount table, /etc/mnttab. The
umount command
unmounts mounted file systems. Only a superuser can
unmount file
systems.
OPTIONS
-r Mount the
specified file system read-only.
-o
specific_options
Set file system
specific options according to a comma-separated
list chosen from words below.
rw|ro
resource is mounted read-write or read-only. The
default is rw.
suid|nosuid Setuid execution allowed or
disallowed.
The
default is suid.
remount If a file
system is mounted read-only, remounts
the file system read-write.
bg|fg
If the first attempt fails, retry in the
background, or, in the foreground. The default is
fg.
quota
Enables quota(1M) to check whether the user is
over quota on this file system; if the file system
has quotas enabled on the server, quotas will
still be checked for operations on this file
system.
The default is quota.
noquota Prevent quota(1M)
from checking whether the user
exceeded the quota on this file system; if the
file system has quotas enabled on the server,
quotas will still be checked for operations on
this file system.
retry=n The
number of times to retry the mount operation.
The default is 1.
vers=<NFS version number>
By default, the version of NFS protocol used
between the client and the server is the highest
one available on both systems. If the NFS server
does not support NFS Version 3, then the NFS mount
will use NFS Version 2 .
port=n Set
server UDP port number to n (the default is
the port customarily used for NFS servers).
proto=<transp> Use the transport protocol, <transp> for
this
mount.
Valid values for <transp> are tcp
(connection-oriented), or udp (connectionless).
The default behavior is to attempt a tcp
connection.
If the tcp connection attempt fails,
a udp connection will be attempted.
grpid
By default, the GID associated with a newly
created file will obey the System V semantics;
that
is, the GID is set to the effective GID of
the calling process. This behavior may be
overridden on a per-directory basis by setting the
set-GID bit of the parent directory; in this case,
the GID of a newly created file is set to the GID
of the parent directory (see open(2) and
mkdir(2)).
Files created on file systems that are
mounted with the grpid option will obey BSD
semantics independent of whether the set-GID bit
of the parent directory is set; that is, the GID
is unconditionally inherited from that of the
parent directory.
rsize=n Set the
read buffer size to n bytes. The default
value is set by kernel.
wsize=n Set the
write buffer size to n bytes. The default
value is set by kernel.
timeo=n Set the
NFS timeout to n tenths of a second. The
default value is set by kernel.
retrans=n Set the number of NFS
retransmissions to n.
The
default value is 5.
soft|hard Return an error if
the server does not respond, or
continue the retry request until the server
responds.
The default value is hard.
intr|nointr Allow (do not allow) keyboard
interrupts to kill a
process that is hung while waiting for a response
on a hard-mounted file system. The default is
intr.
noac
Suppress attribute caching.
nocto
Suppress fresh attributes when opening a file.
devs|nodevs Allow (do not allow) access to
local devices.
The
default
is devs.
acdirmax=n Hold cached attributes for
no more than n seconds
after directory update. The default value is 60.
acdirmin=n Hold cached attributes for
at least n seconds
after directory update. The default value is 30.
acregmax=n Hold cached attributes for
no more than n seconds
after file modification. The default value is 60.
acregmin=n
Hold cached attributes for at
least n seconds
after file modification. The default value is 3.
actimeo=n Set min and max times
for regular files and
directories to n seconds. actimeo has no default;
it sets acregmin, acregmax, acdirmin, and acdirmax
to the value specified.
-O Overlay
mount. Allow
the file system to be mounted over an
existing mount point, making the underlying file system
inaccessible.
If a mount is attempted on a pre-existing mount
point without setting this flag, the mount will fail, producing
the error device busy.
Options (umount)
umount recognizes the
following options:
-a
Attempt to unmount all file systems described in
/etc/mnttab.
All optional fields in /etc/mnttab
must be included and supported. If -F nfs option
is
specified, all NFS file systems in /etc/mnttab
are unmounted.
File systems are not necessarily
unmounted in the order listed in /etc/mnttab.
-F nfs
Specify the NFS file system type (see fstyp(1M)).
-h host Unmount
only those file systems listed in
/etc/mnttab that are remote-mounted from host.
-v
Verbose mode.
Write a message to standard output
indicating which file system is being unmounted.
-V
Echo the completed command line, but performs no
other action.
The command line is generated by
incorporating the user-specified options and other
information derived from /etc/fstab. This option
allows the user to verify the command line.
NFS File Systems
Background vs.
Foreground
File systems mounted with the bg option
indicate that mount is to
retry in the background if the server's mount daemon (mountd(1M))
does not respond. mount retries the request up to the count
specified in the retry=n option. Once the file system is
mounted, each NFS request made in the kernel waits timeo=n tenths
of a second for a response. If no response arrives, the time-out
is multiplied by 2 and the request is retransmitted. When the
number of retransmissions has reached the number specified in the
retrans=n option, a file system mounted with the soft option
returns an error on the request; one mounted with the hard option
prints a warning message and continues to retry the request.
Hard vs. Soft
File systems that are mounted read-write or that contain
executable files should always be mounted with the hard option.
Applications using soft mounted file systems may incur unexpected
I/O errors.
To improve NFS read performance, files and file attributes are
cached.
File modification times get updated whenever a write
occurs.
However, file access times may be temporarily out-of-
date until the cache gets refreshed. The attribute cache retains
file attributes on the client. Attributes for a file are
assigned a time to be flushed. If the file is modified before
the flush time, then the flush time is extended by the time since
the last modification (under the assumption that files that
changed recently are likely to change soon). There is a
minimum
and maximum flush time extension for regular files and for
directories.
Setting actimeo=n sets flush time to n seconds for
both regular files and directories.
EXAMPLES
To mount an NFS file
system:
mount serv:/usr/src /usr/src
To mount an NFS file
system readonly with no suid privileges:
mount -r -o nosuid serv:/usr/src /usr/src
To mount an NFS file
system over Version 3:
mount -o vers=3 serv:/usr/src /usr/src
To unmount all file
systems imported from a given host, enter the
following command as
root:
umount -h mysystem.home.work.com -a
The hostname must
match what is in /etc/mnttab exactly (as shown by
the bdf command). For
example, if bdf shows:
mysystem:/projects,
the umount command
would be
umount -h mysystem -a.
FILES
/etc/mnttab
table of mounted file systems.
/etc/fstab
list of default parameters for each file system.
SEE ALSO
fsclean(1M),
mount(1M), quotaon(1M), mount(2), fstab(4), mnttab(4),
fs_wrapper(5),
quota(5).
STANDARDS COMPLIANCE
mount: SVID3
umount: SVID3
Appendix 3
Included is a representative sample of the output from the
nfsstat
command.
Please note the division of data into the differing transport types -
Connection oriented, as with TCP, and Connectionless, as with UDP.
# nfsstat
Server rpc:
Connection oriented:
calls badcalls nullrecv badlen
xdrcall dupchecks dupreqs
7
0
0
0
0
0
0
Connectionless oriented:
calls badcalls nullrecv badlen
xdrcall dupchecks dupreqs
0
0
0
0
0
0
0
Server nfs:
calls badcalls
6
0
Version 2: (0 calls)
null getattr
setattr root lookup
readlink
read
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
wrcache write
create remove
rename link symlink
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
mkdir rmdir
readdir statfs
0 0% 0 0% 0 0% 0 0%
Version 3: (6 calls)
null getattr
setattr lookup
access readlink read
1 16% 1 16%
0 0% 0 0% 1 16%
0 0% 0 0%
write create
mkdir symlink
mknod remove
rmdir
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
rename link readdir
readdir+
fsstat fsinfo
pathconf
0 0% 0 0% 0 0% 2 33%
0 0% 1 16%
0 0%
commit
0 0%
Client rpc:
Connection oriented:
calls badcalls badxids
timeouts
newcreds
badverfs
timers
32
0
0
0
0
0
0
cantconn nomem interrupts
0
0
0
Connectionless oriented:
calls badcalls retrans
badxids timeouts waits
newcreds
0
0
0
0
0
0
0
badverfs timers toobig
nomem cantsend
bufulocks
0
0
0
0
0 0
Client nfs:
calls badcalls clgets
cltoomany
32
0
32
0
Version 2: (0 calls)
null getattr
setattr root lookup
readlink
read
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
wrcache write
create remove
rename link symlink
0 0% 0 0% 0 0% 0 0% 0 0% 0 0% 0 0%
mkdir rmdir
readdir statfs
0 0% 0 0% 0 0% 0 0%
Version 3: (32 calls)
null getattr
setattr lookup
access readlink read
0 0% 8 25%
2 6% 2 6% 10 31% 0
0% 1 3%
write create
mkdir symlink
mknod remove
rmdir
1 3% 1 3% 0 0% 0 0% 0 0% 0 0% 0 0%
rename link readdir
readdir+
fsstat fsinfo
pathconf
0 0% 0 0% 0 0% 4 12%
1 3% 1 3% 0 0%
commit
1 3%
Author | Title | Track | Home
